Component Locations

For component locations, see Fig 1.

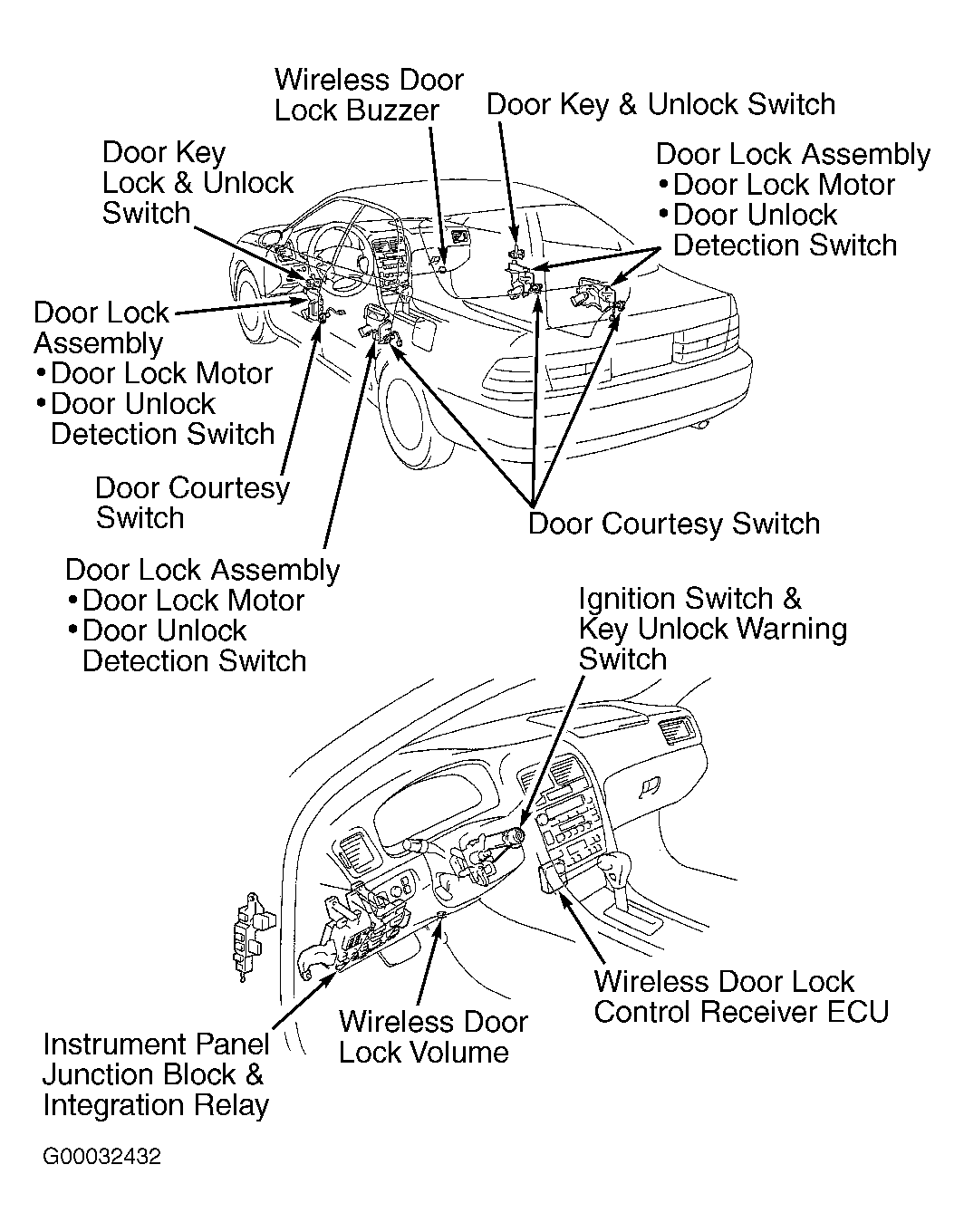

Fig 1: Identifying Remote Keyless Entry System Components
G00032432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
