Front Speed Sensor: Components

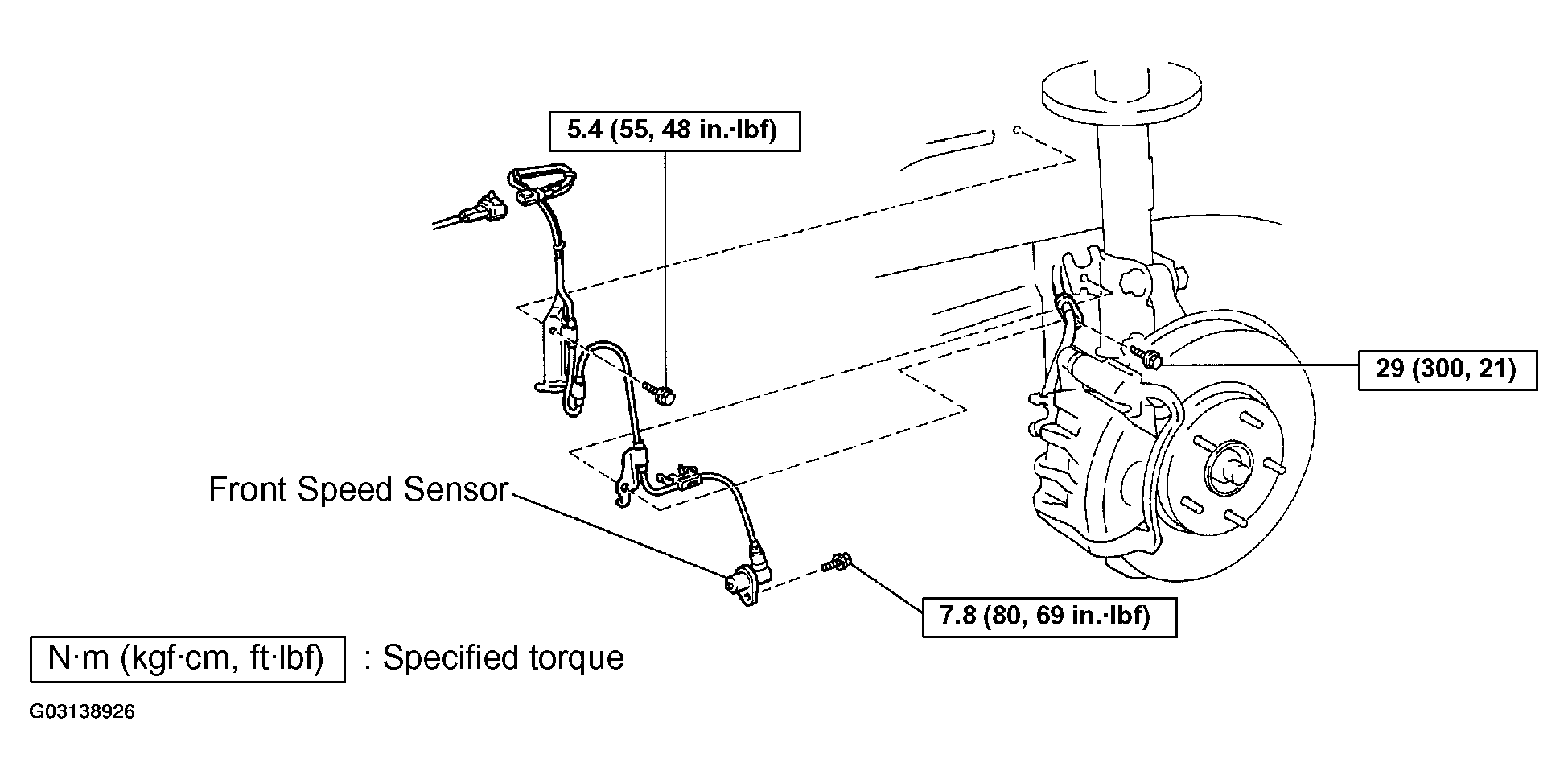

Fig 1: Exploded View Of Front Speed Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
