Front Speed Sensor: Removal

Disconnect speed sensor connector.
1. Remove the fender liner.
2. Disconnect the speed sensor connector.

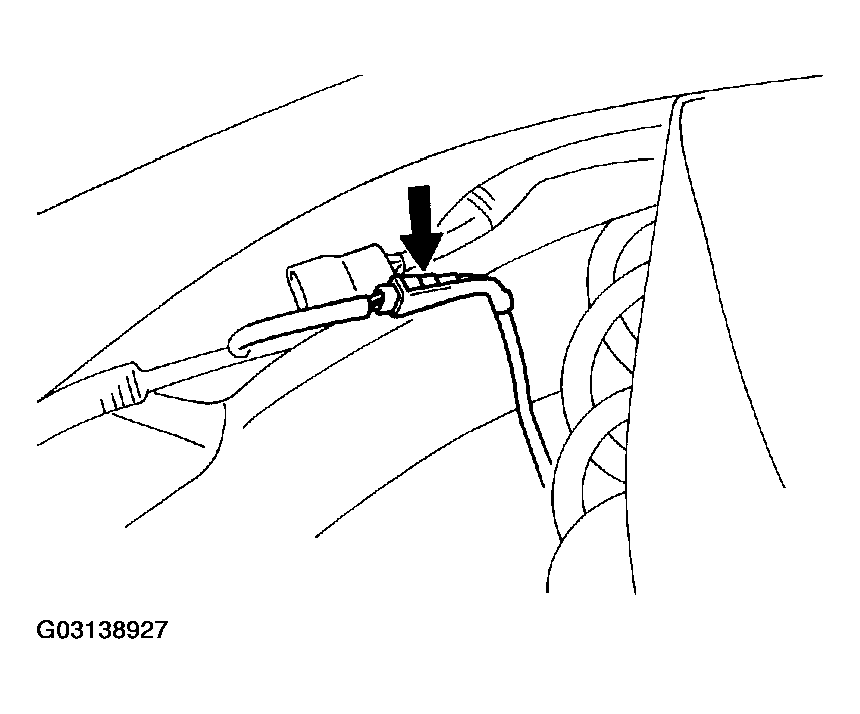

Fig 1: Locating Front Speed Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove speed sensor.
1. Remove the bolt, flexible hose and speed sensor harness clamp from the shock absorber.
  1. Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
2. Remove the resin clip and clamp bolt holding the sensor harness to the body.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Remove the bolt and speed sensor from the steering knuckle.
  1. Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

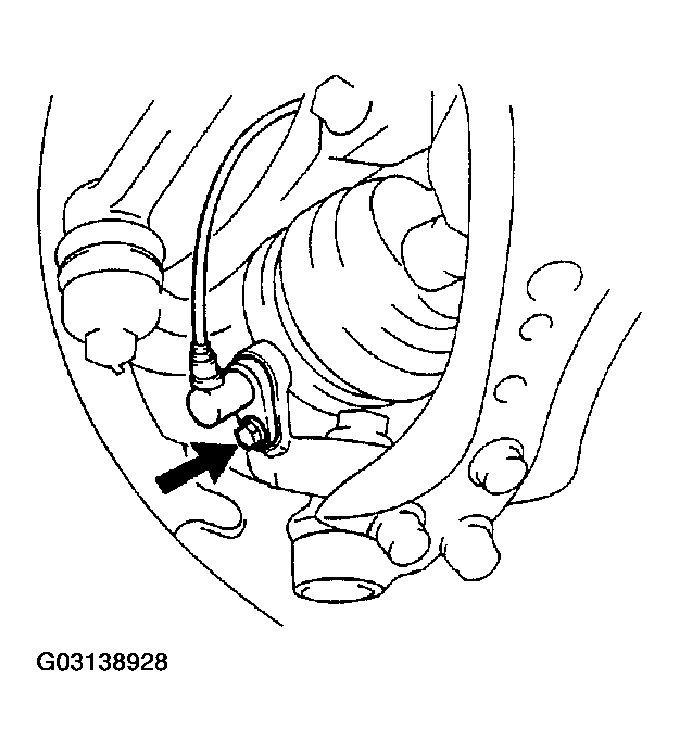

Fig 2: Removing Front Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
