Component Locations

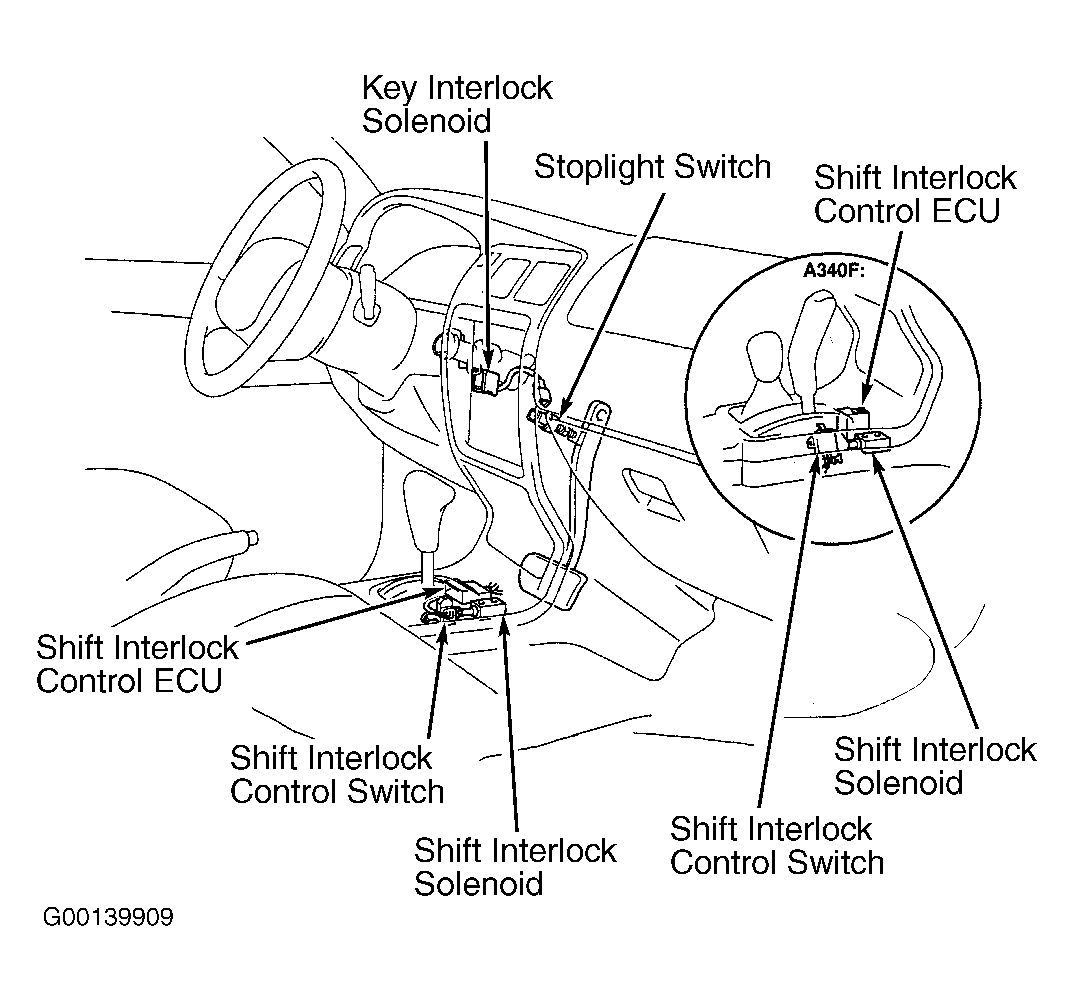

Fig 1: Shift Interlock & Key Interlock Component Locations (Lexus GS300 & GS430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

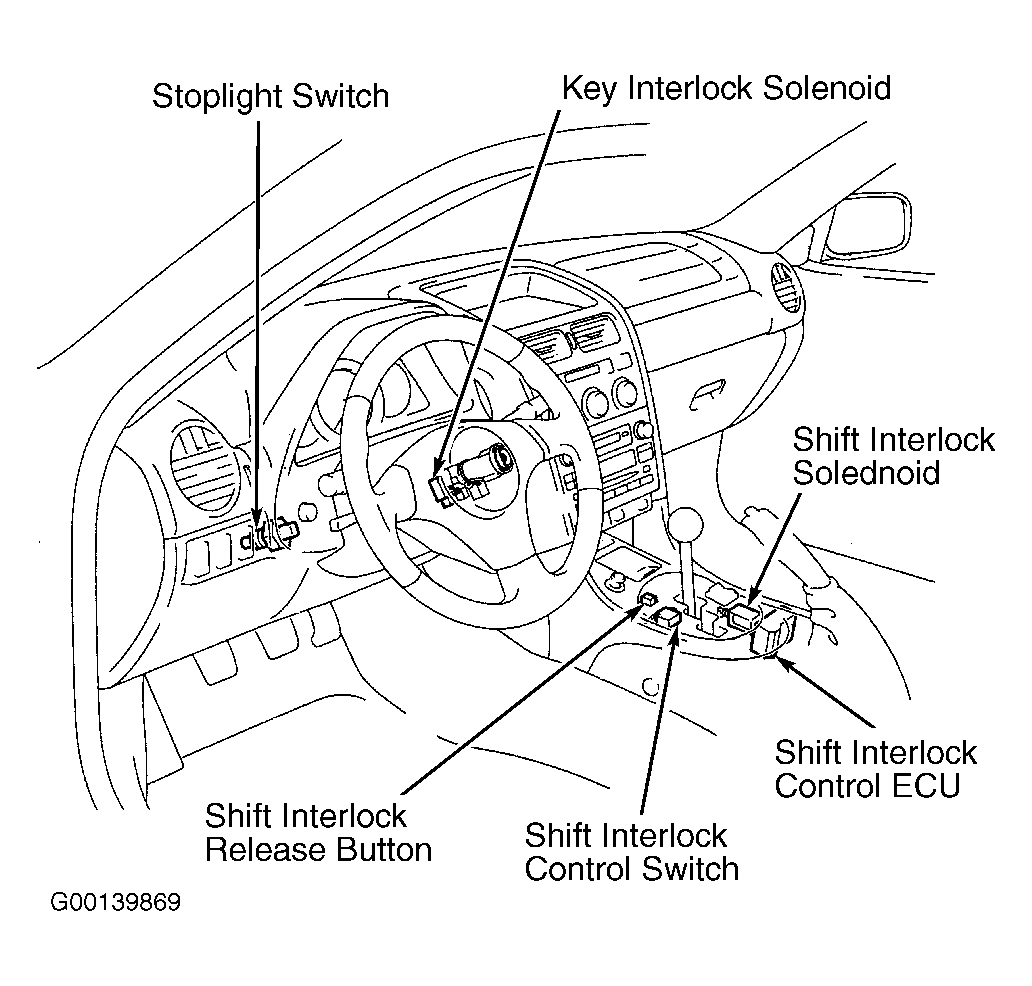

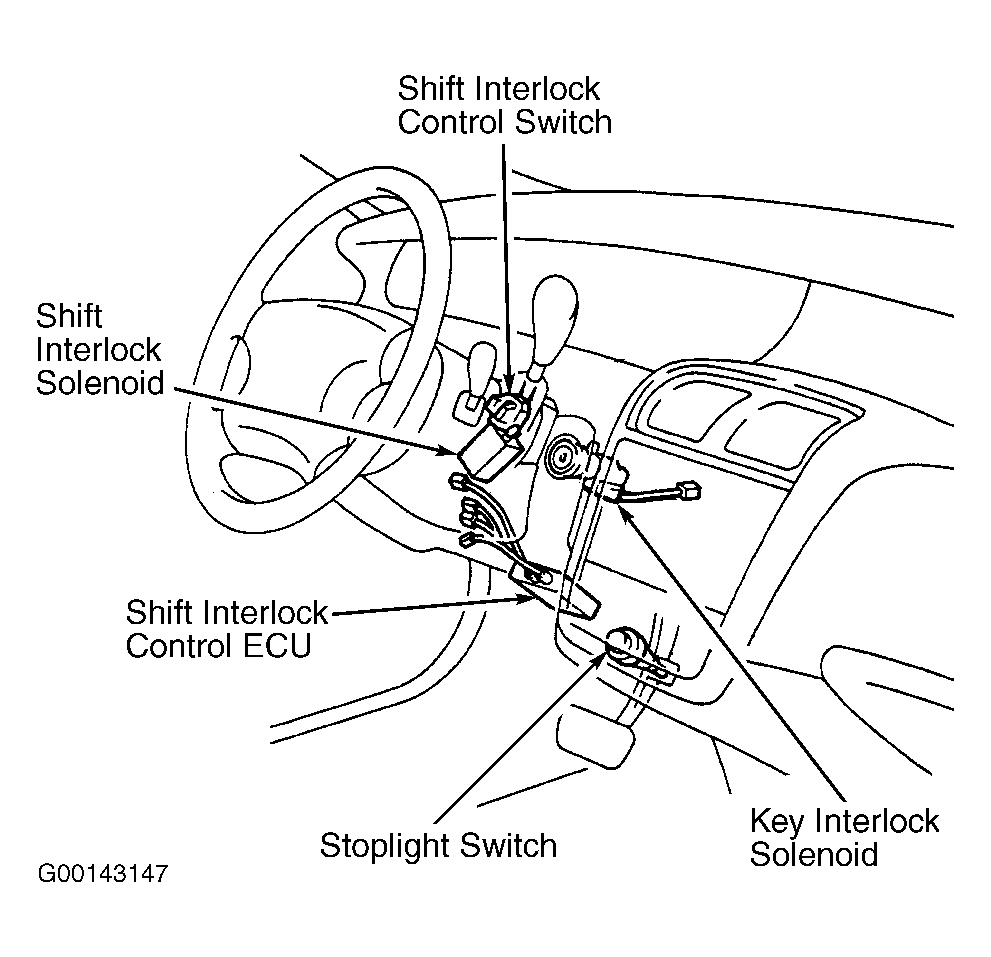

Fig 2: Shift Interlock & Key Interlock Component Locations (Lexus IS300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

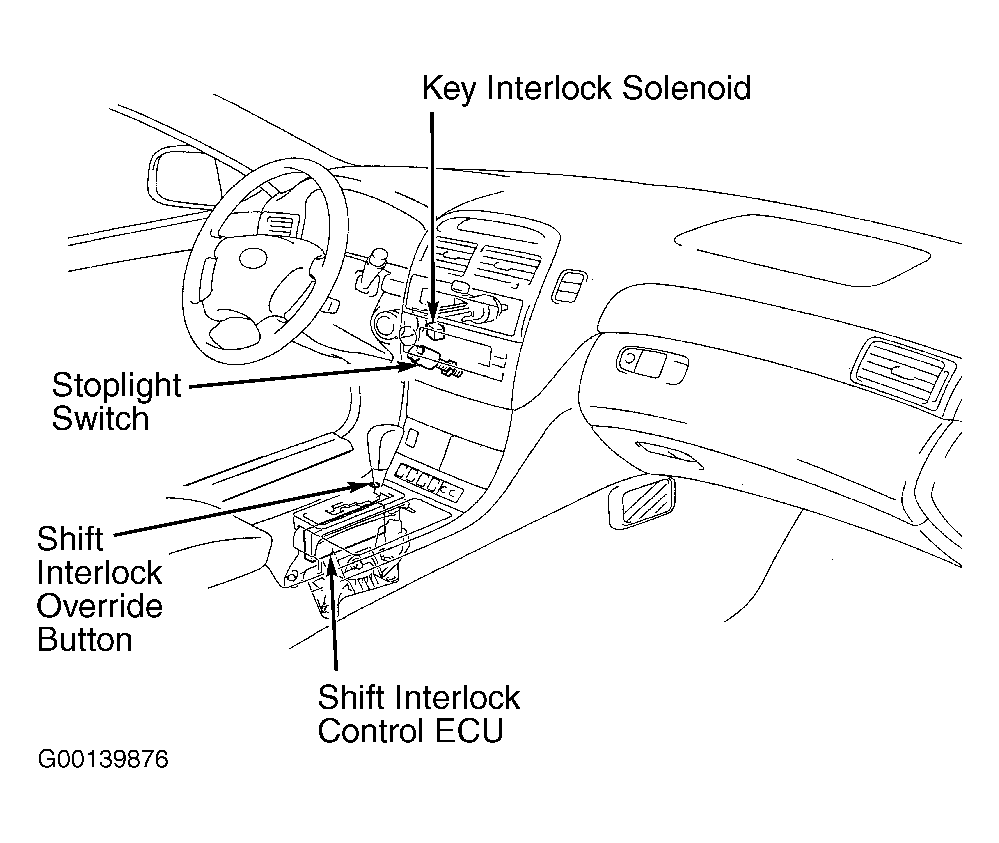

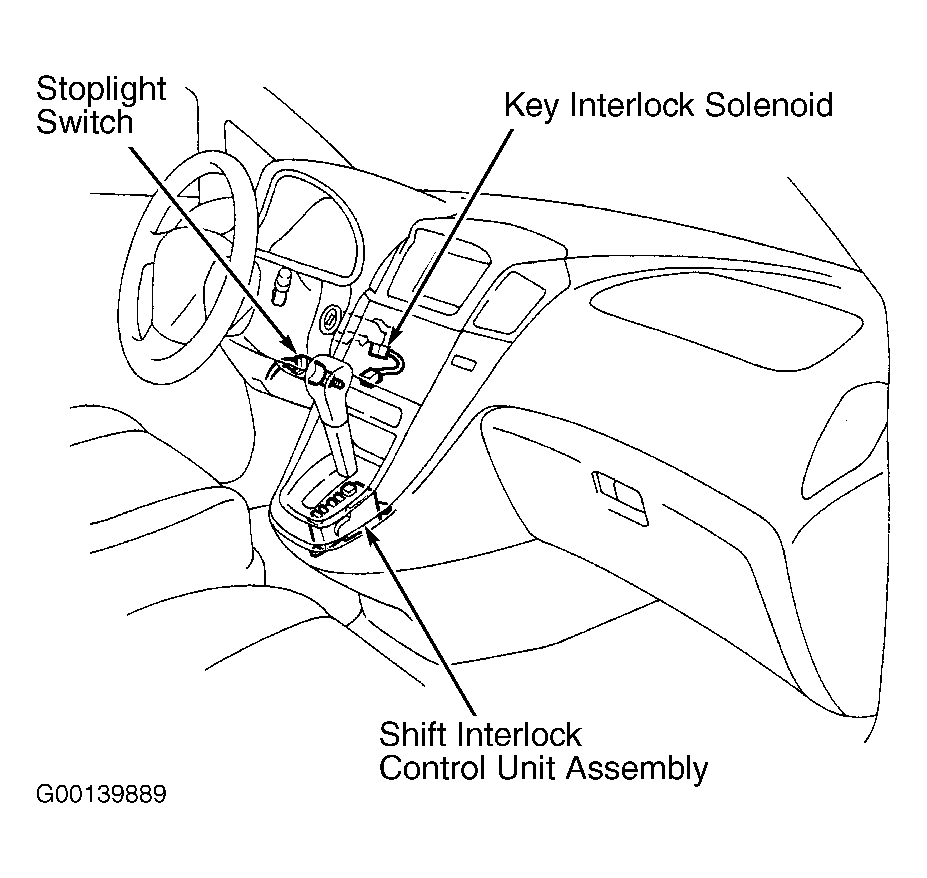

Fig 3: Shift Interlock & Key Interlock Component Locations (Lexus LS430)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

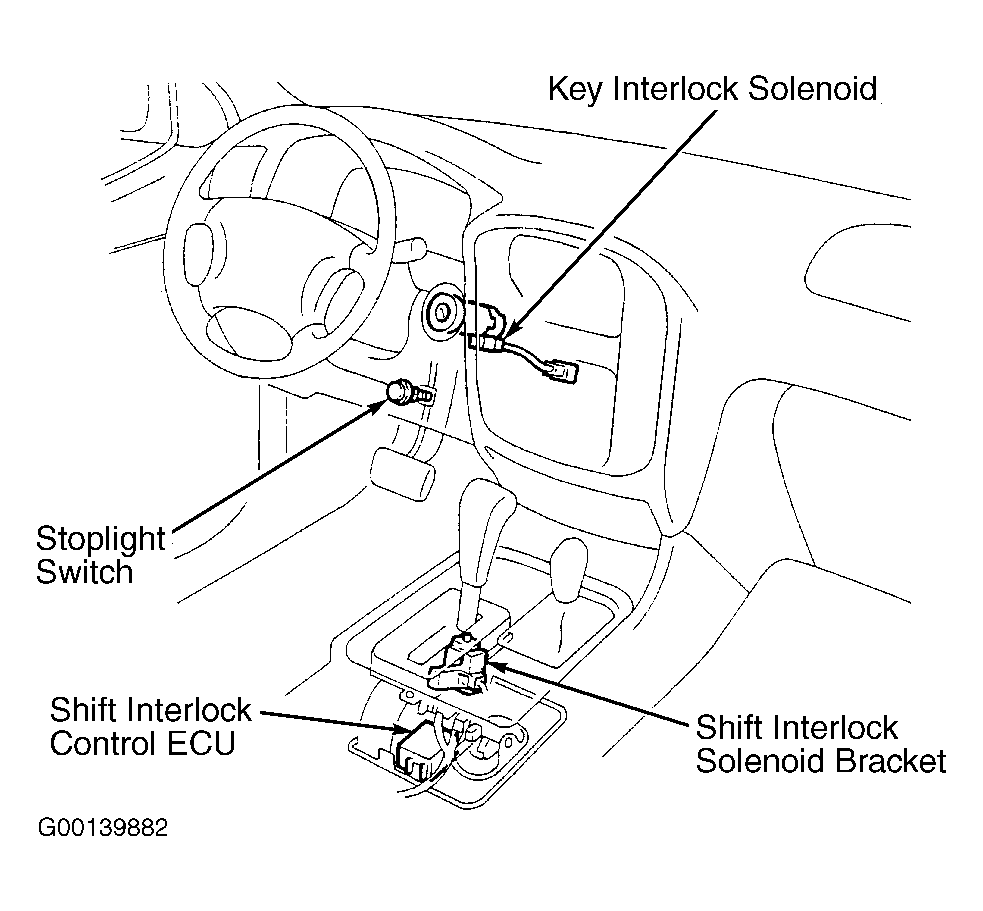

Fig 4: Shift Interlock & Key Interlock Component Locations (Lexus LX470 & Toyota Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

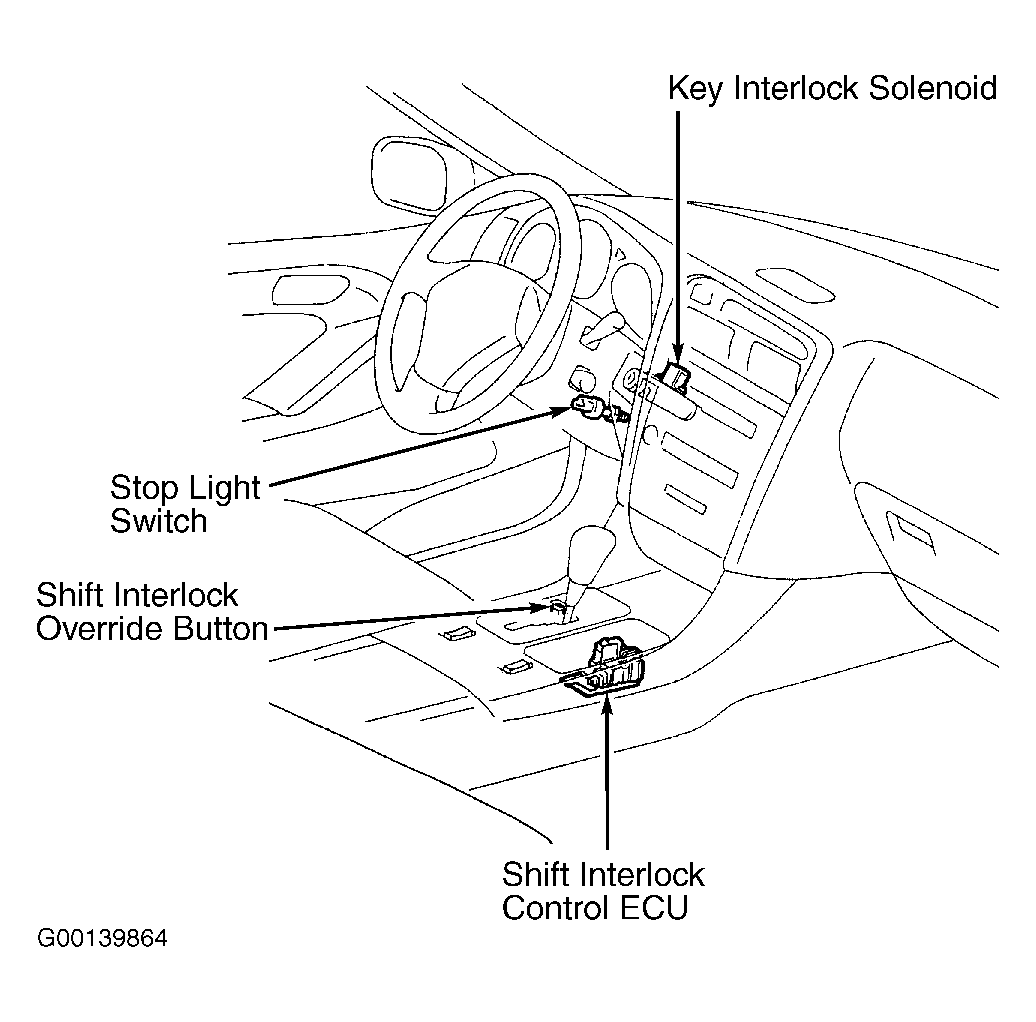

Fig 5: Shift Interlock & Key Interlock Component Locations (Lexus RX300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

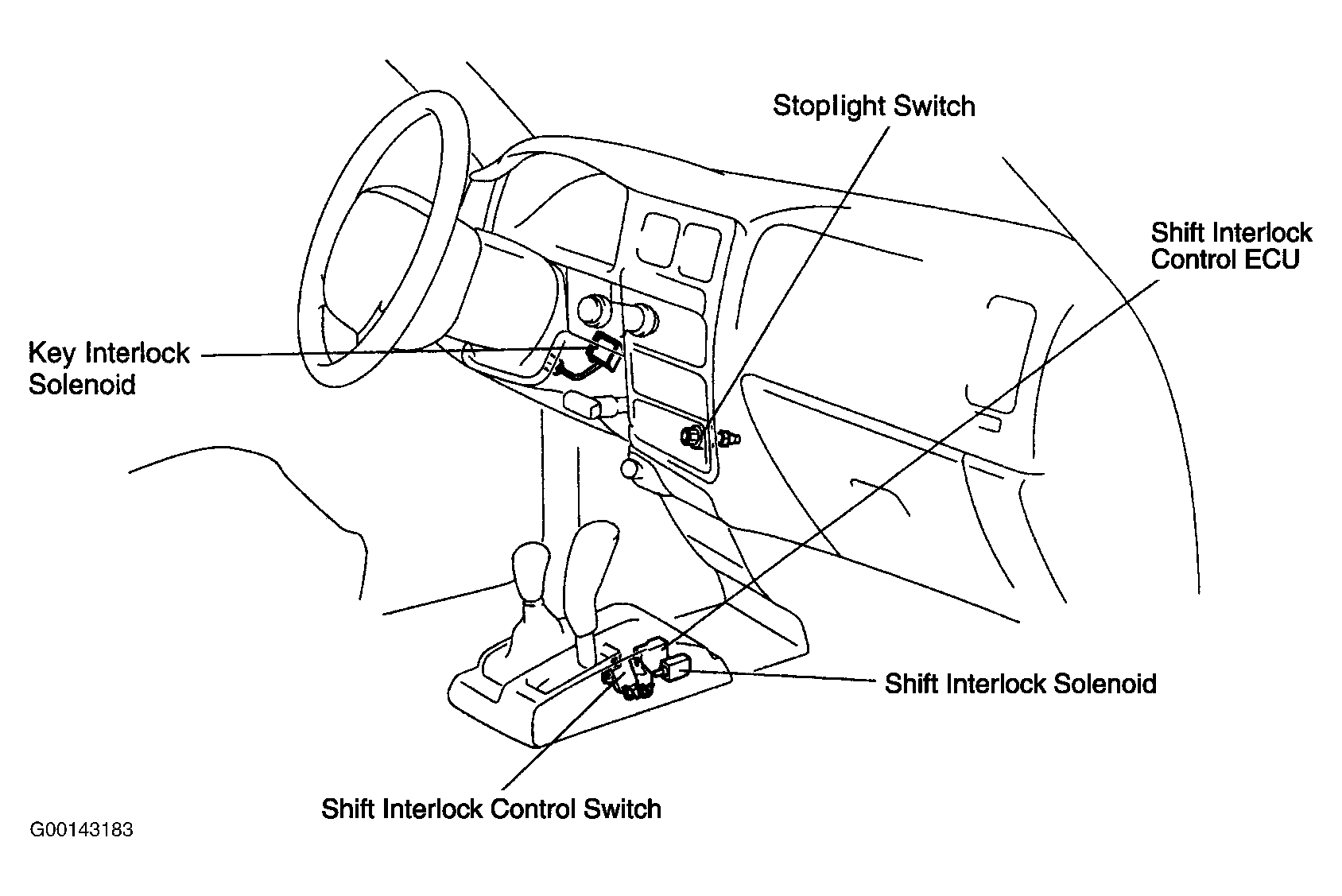

Fig 6: Shift Interlock & Key Interlock Component Locations (Toyota Avalon - Column Shift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Shift Interlock & Key Interlock Component Locations (Toyota Avalon - Floor Shift)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

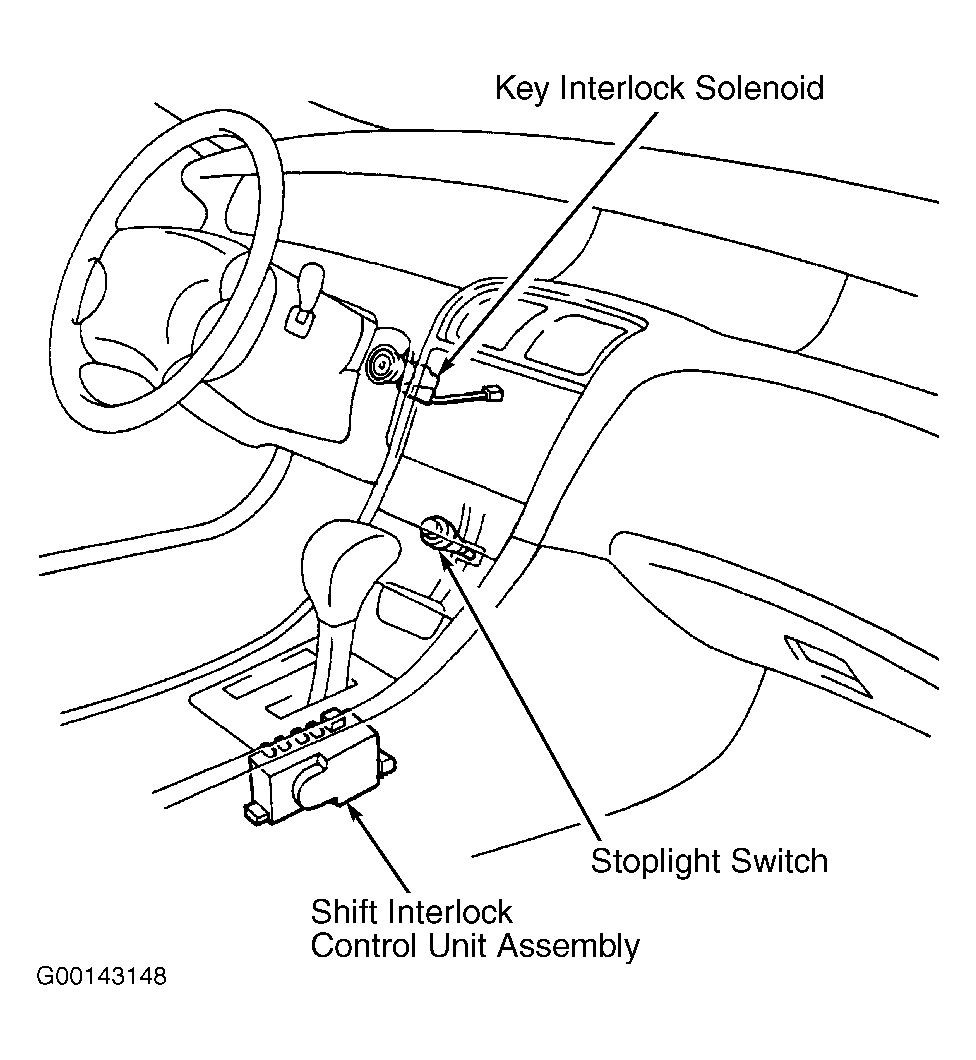

Fig 8: Shift Interlock & Key Interlock Component Locations (Toyota Camry Solara)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

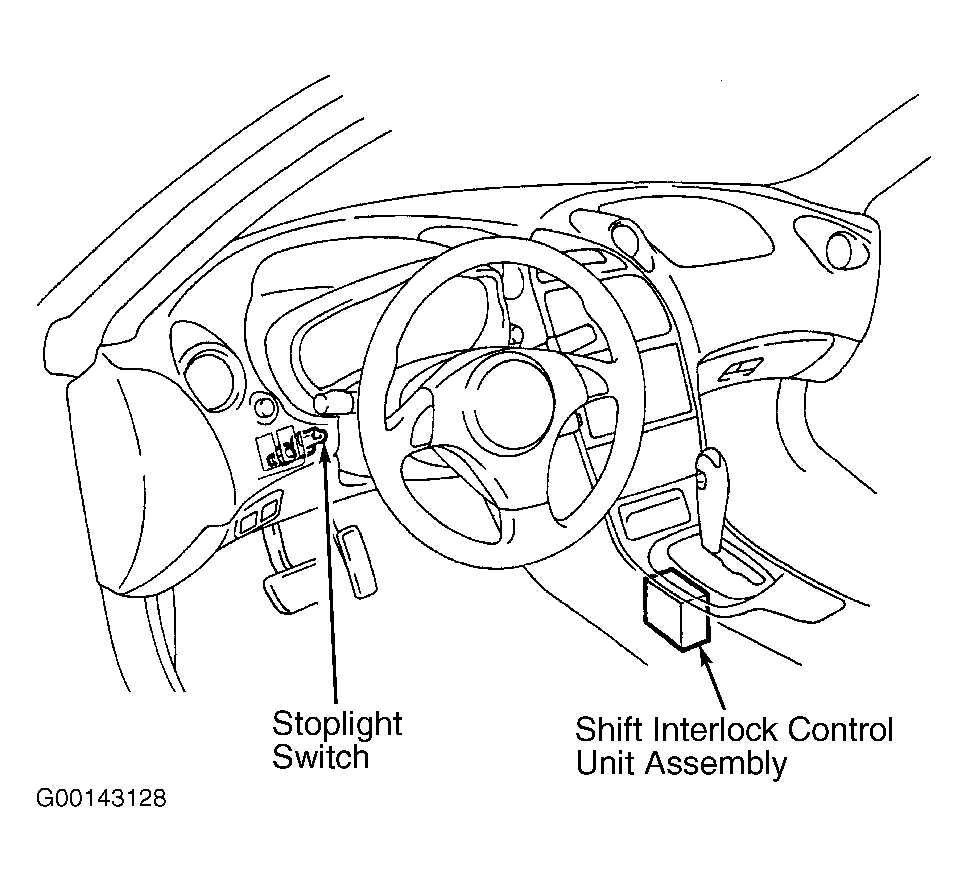

Fig 9: Shift Interlock & Key Interlock Component Locations (Toyota Celica)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

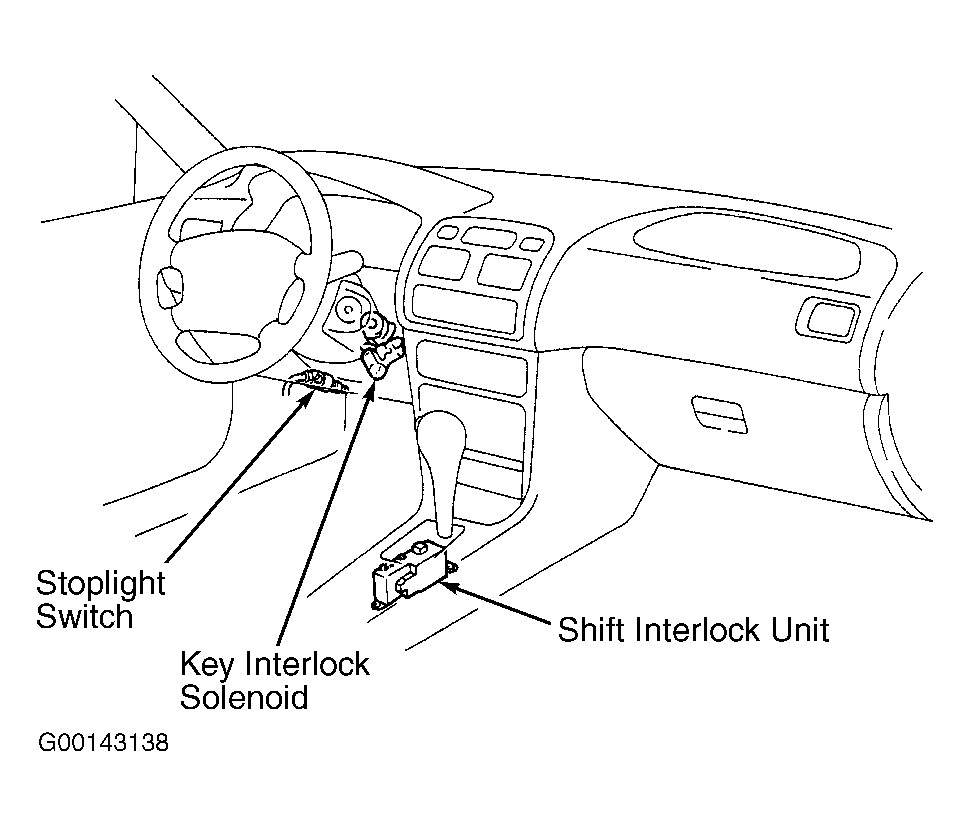

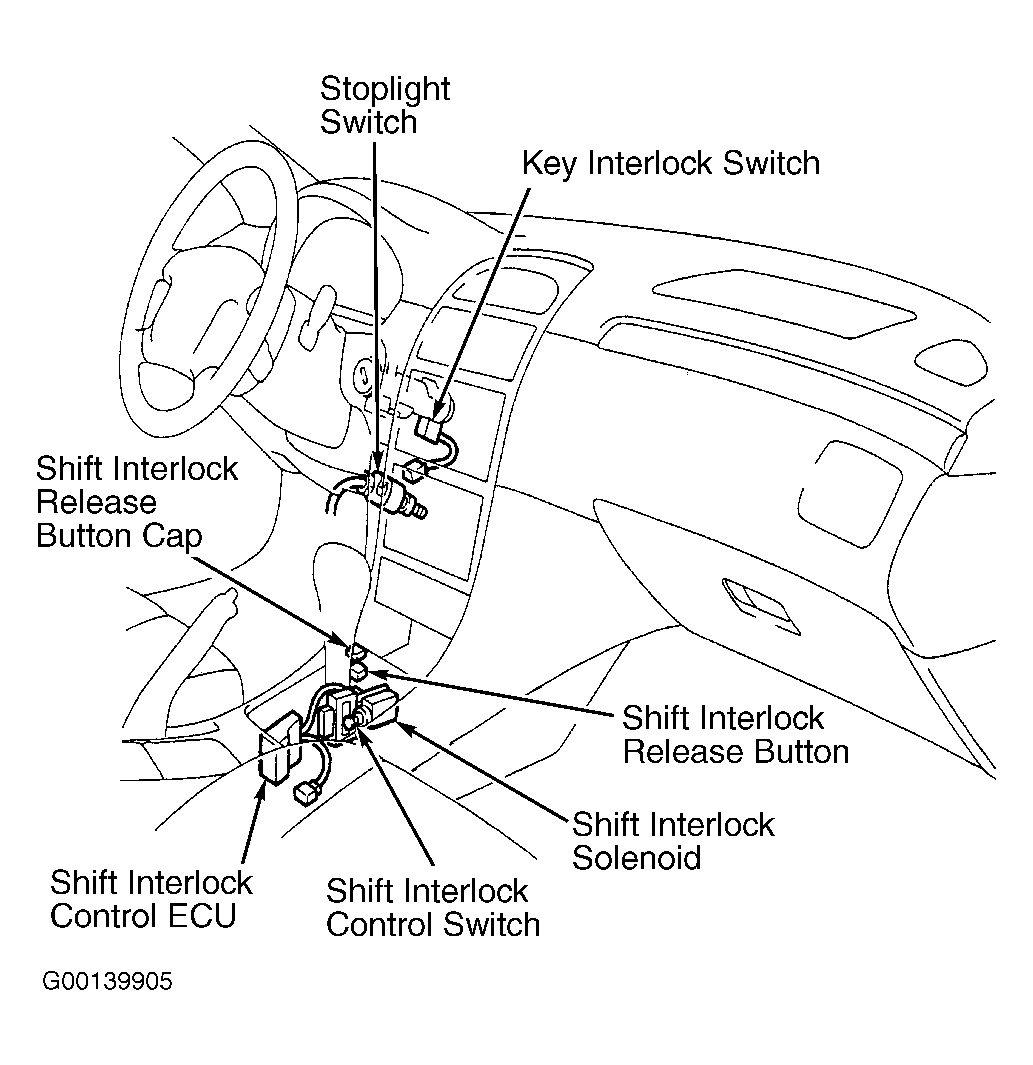

Fig 10: Shift Interlock & Key Interlock Component Locations (Toyota Corolla)

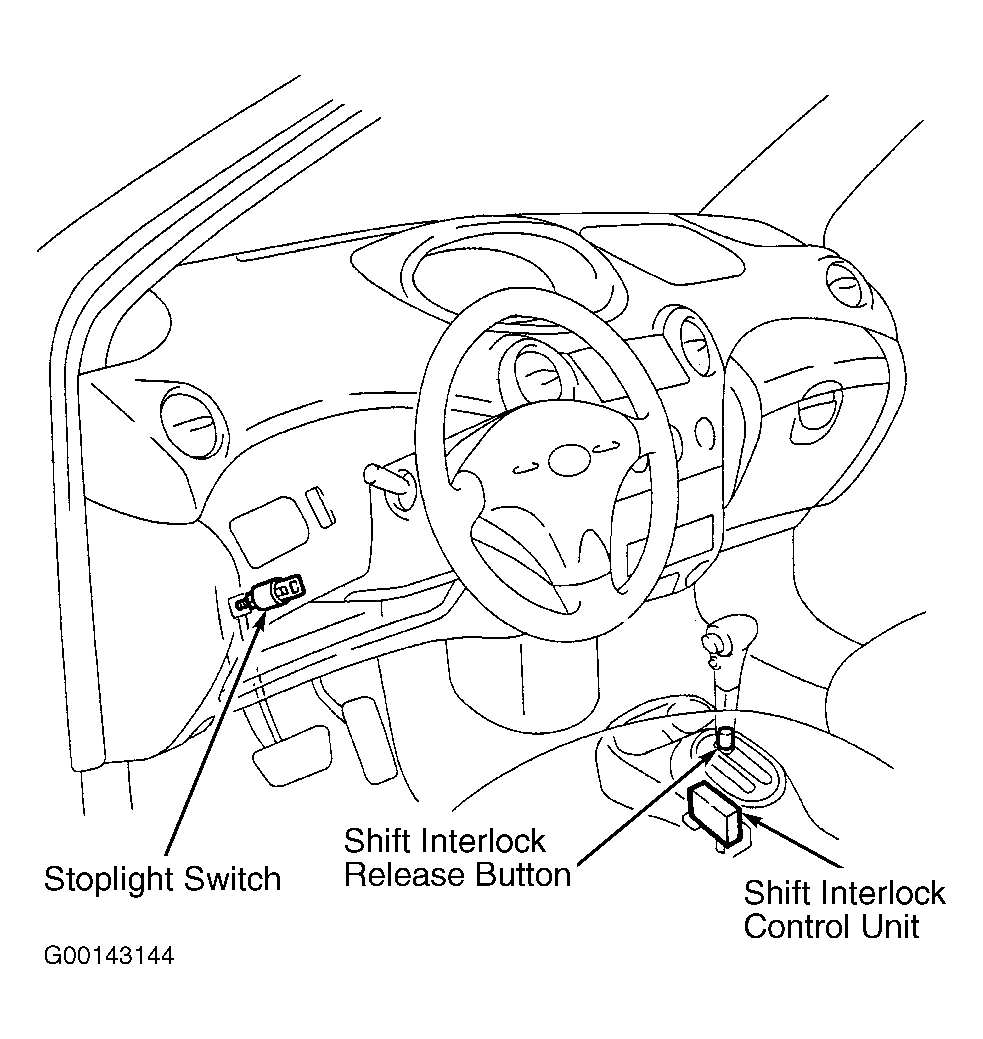

Fig 11: Shift Interlock & Key Interlock Component Locations (Toyota ECHO)

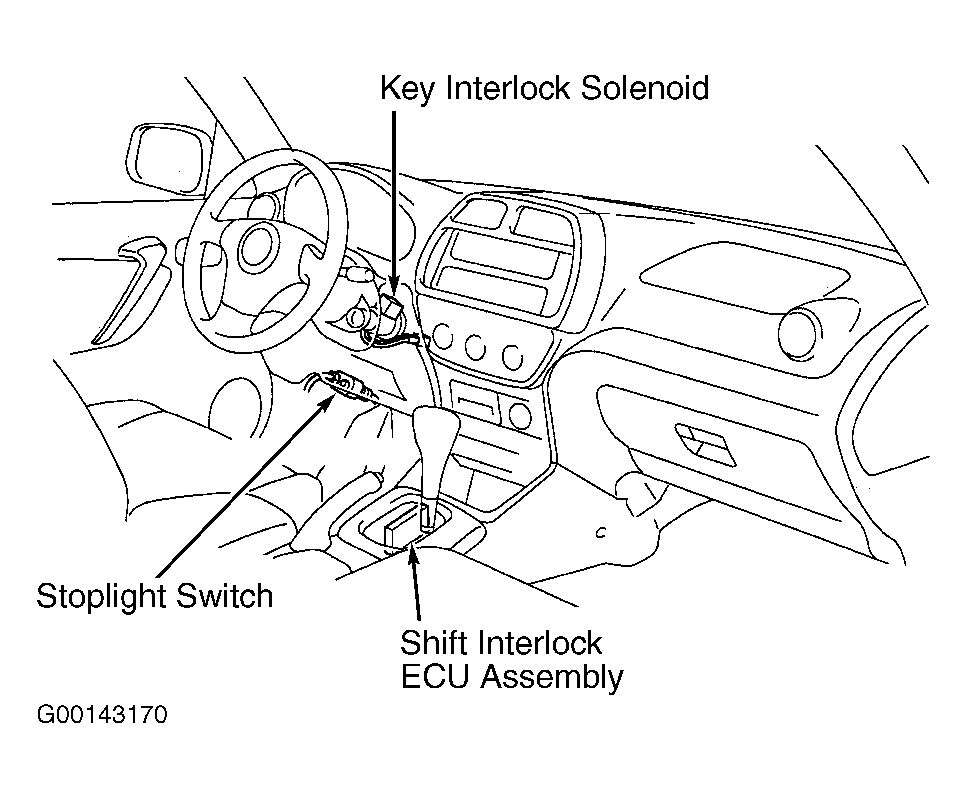

Fig 12: Shift Interlock & Key Interlock Component Locations (Toyota RAV4)

Fig 13: Shift Interlock & Key Interlock Component Locations (Toyota Tacoma)

Fig 14: Shift Interlock & Key Interlock Component Locations (Toyota 4Runner)
