Charging Systems: Generator: Removal

REMOVE ENGINE UNDER COVER.
REMOVE DRIVE BELT. Loosen the belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.
NOTE: At the time of installation, please refer to the following items. Do an on-vehicle inspection. (See ON-VEHICLE INSPECTION ).

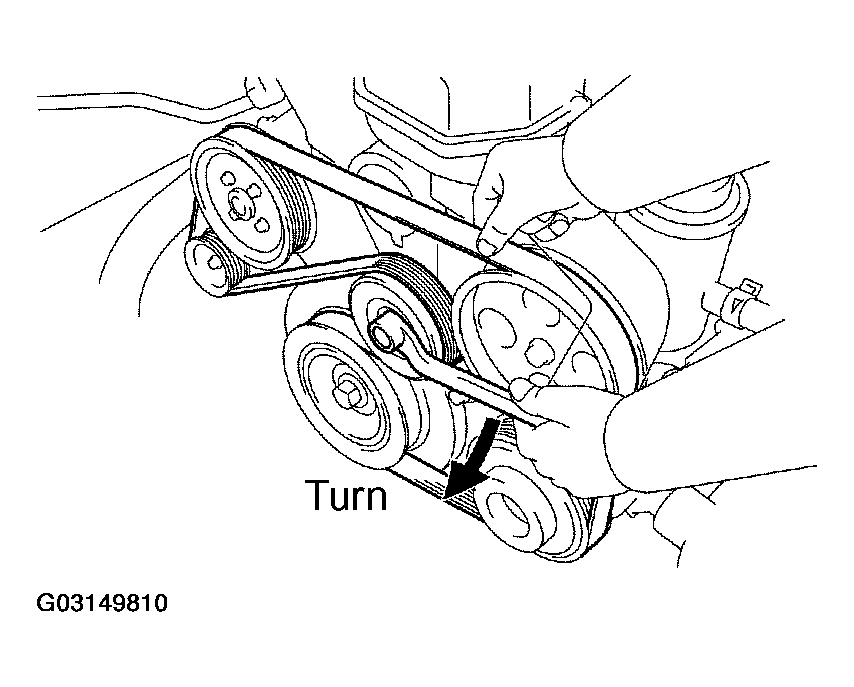

Fig 1: Loosening Drive Belt Tension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR.
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

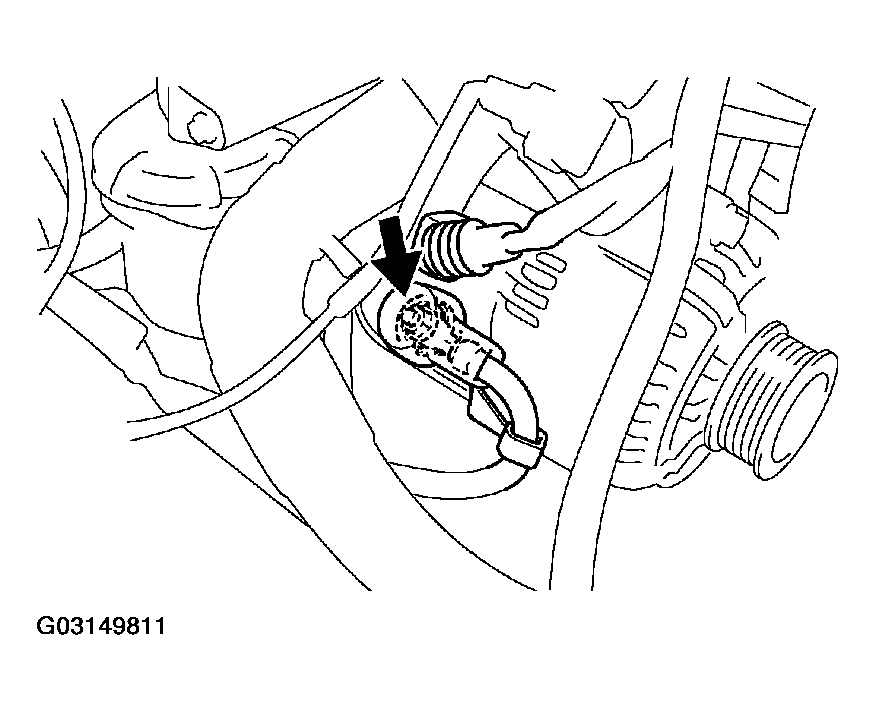

  Fig 2: Disconnecting Generator Connector & Generator Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the engine wire clamp from the wire clip on the generator.
4. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.

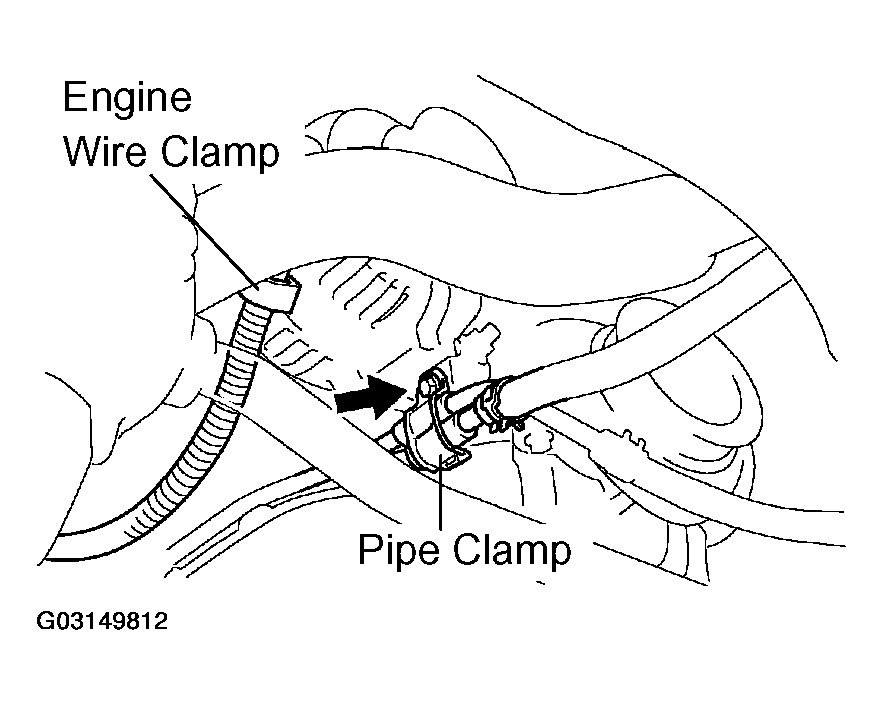

  Fig 3: Locating Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt, nut, pipe bracket and generator.
  1. Torque: 40 N.m (400 kgf.cm, 30 ft.lbf)

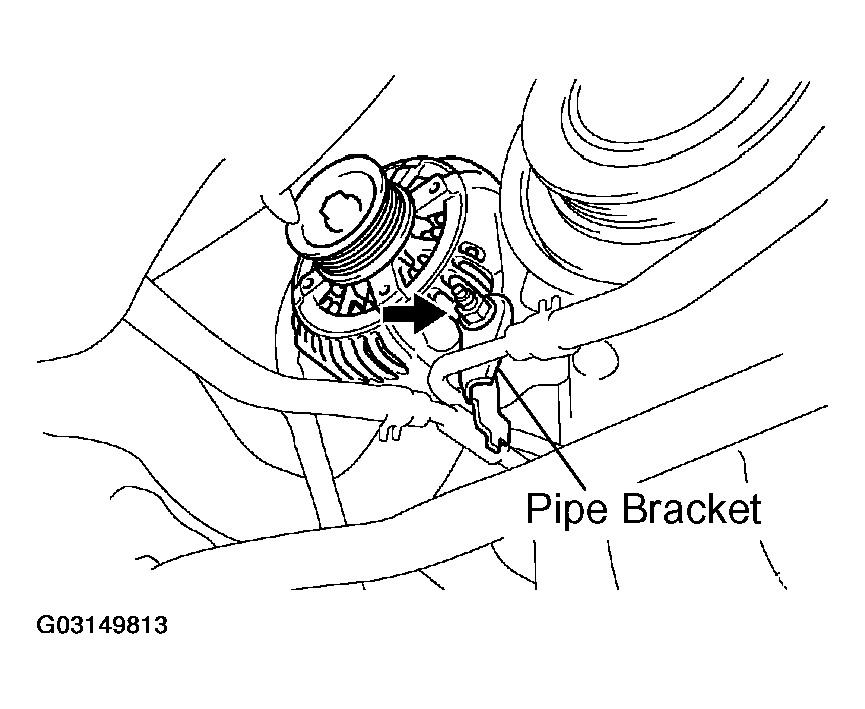

  Fig 4: Removing Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
