Charging Systems: Generator: Replacement

REPLACE FRONT BEARING

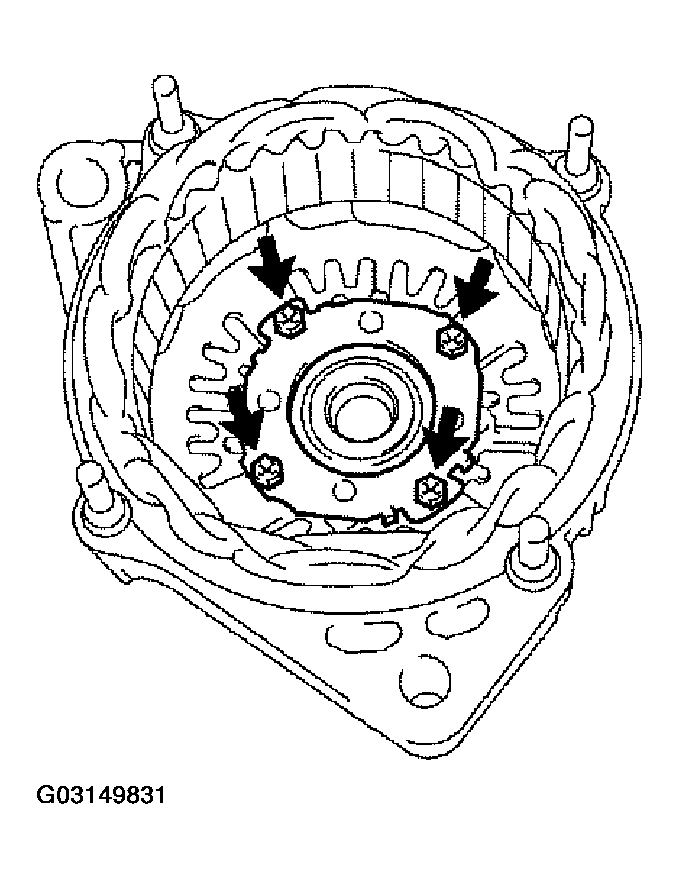

1. Remove the 4 screws, bearing retainer and bearing.

  Fig 1: Removing Front Bearing Retainer & Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

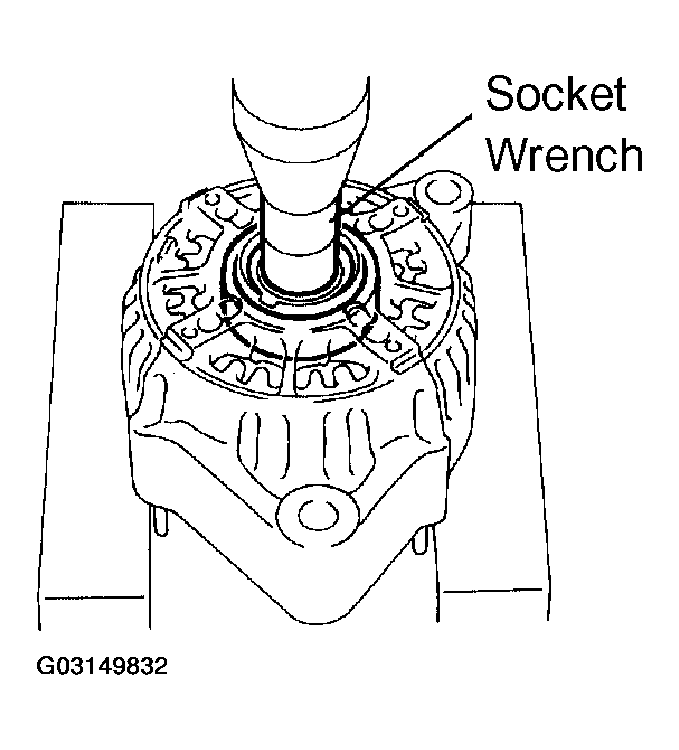

2. Using a socket wrench and press, press out the bearing.

  Fig 2: Pressing Out Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

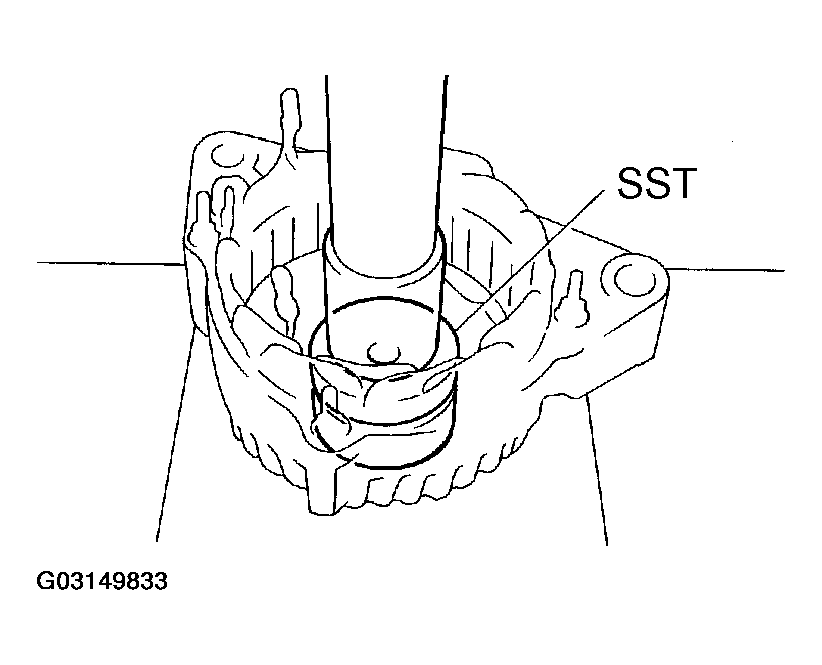

3. Using SST (SST 09950-60010/09951-00500) and a press, press in a new bearing.
4. Install the bearing retainer with the 4 screws.
  1. Torque: 3.0 N.m (31 kgf.cm 27 in.lbf)
  Fig 3: Installing NEW Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE REAR BEARING.

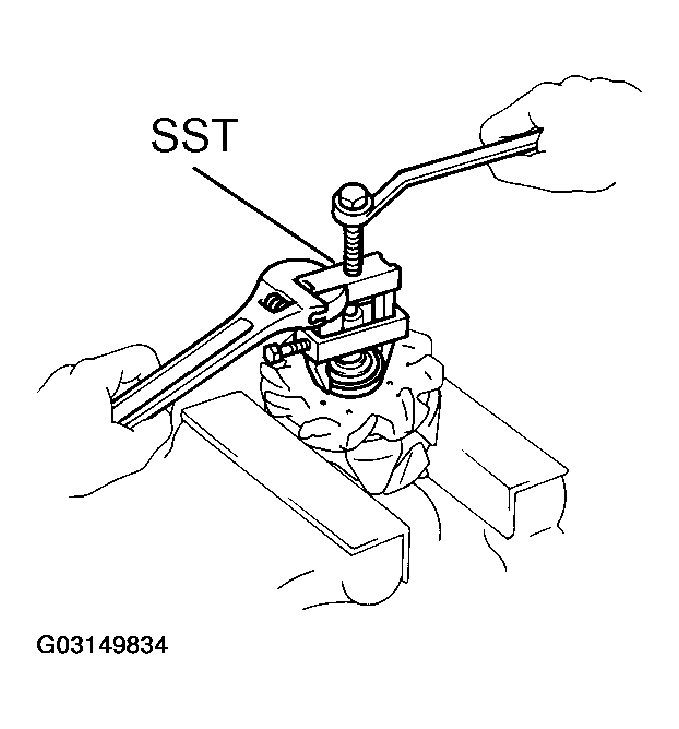

1. Using SST (SST 09820-00021), remove the bearing cover (outside) and bearing.
  NOTE: Be careful not to damage the fan.

  Fig 4: Removing Outside Bearing Cover & Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

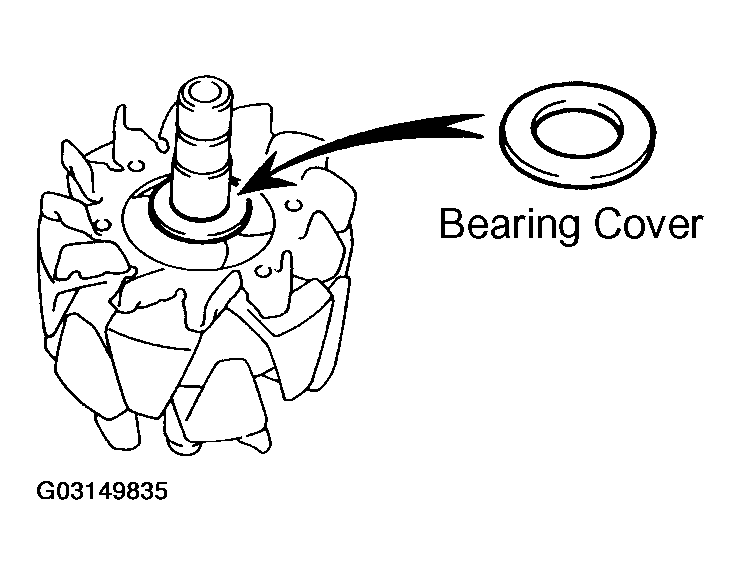

2. Remove the bearing cover (inside).
3. Place the bearing cover (inside) on the rotor.

  Fig 5: Replacing Inside Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

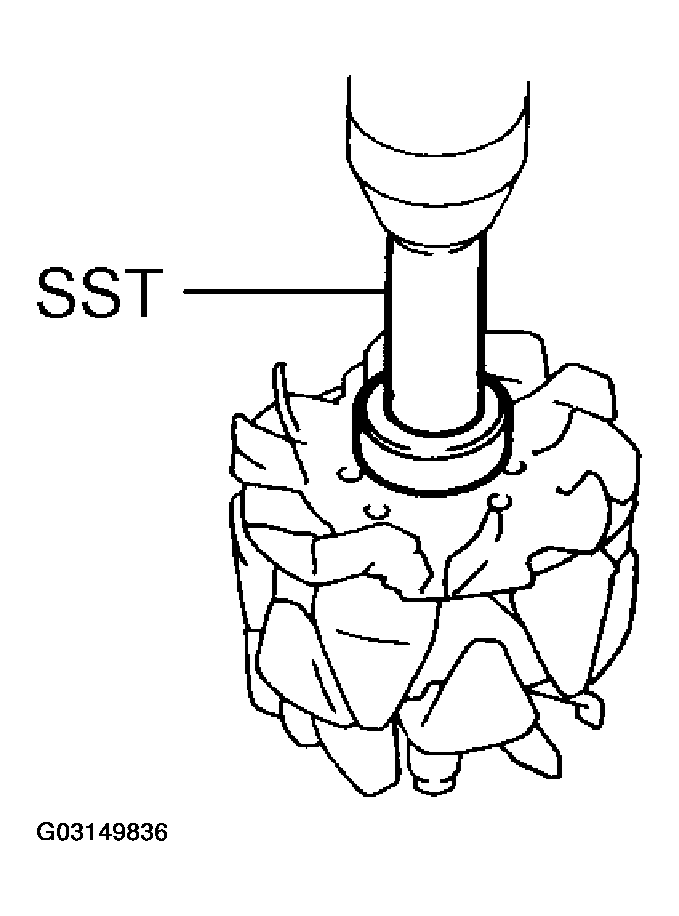

4. Using SST (SST 09820-00030) and a press, press in a new bearing.

  Fig 6: Pressing In NEW Inside Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

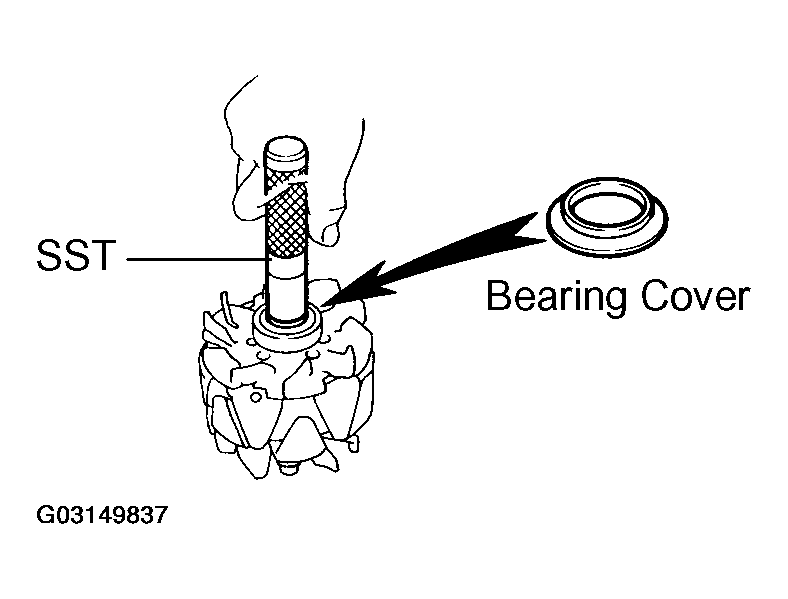

5. Using SST (SST 09285-76010), push in the bearing cover (outside).

  Fig 7: Pushing In Outside Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
