Component Locations

For component locations, see Fig 1.

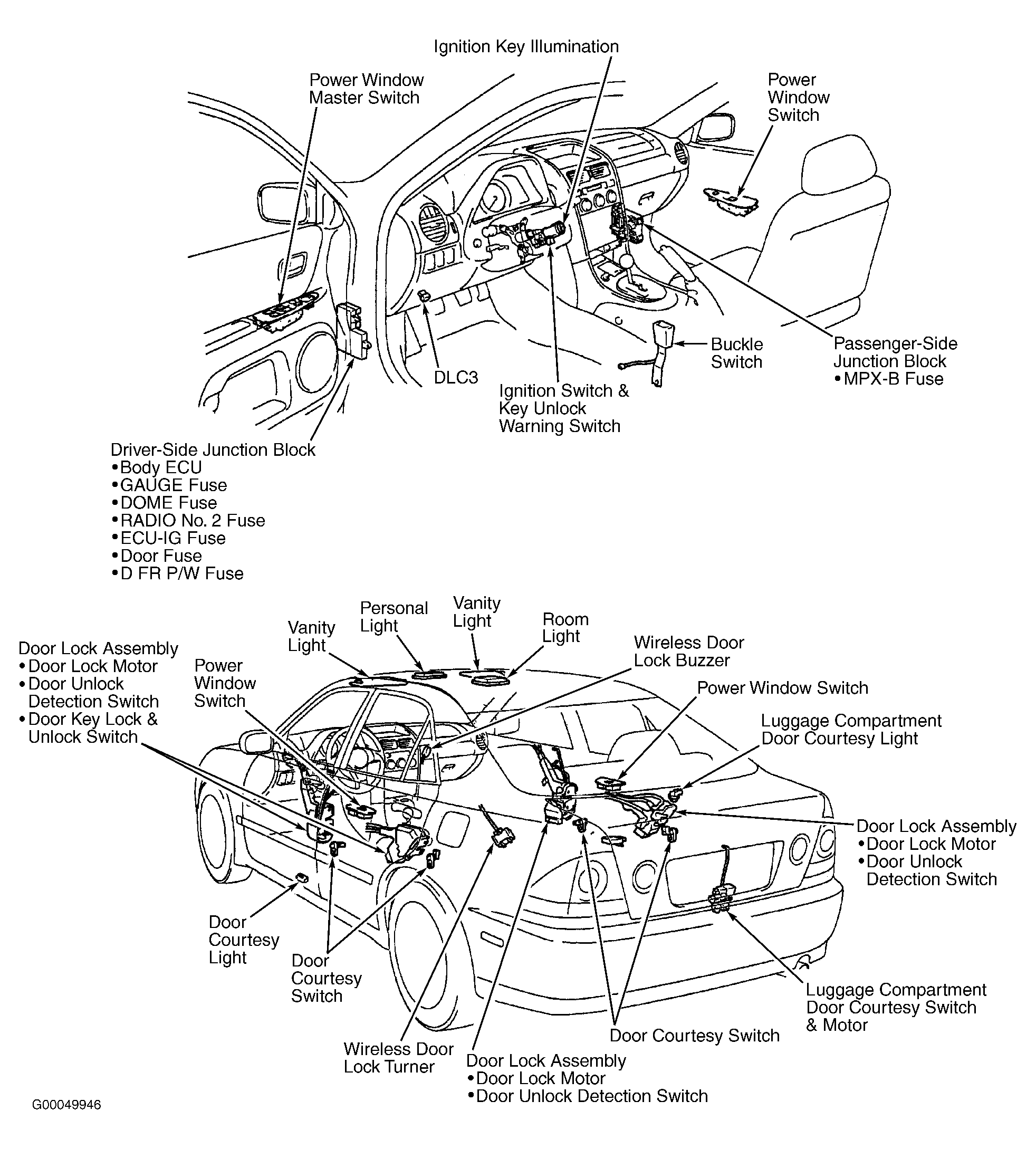

Fig 1: Identifying Body Control System Components
G00049946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
