Front Speed Sensor: Components

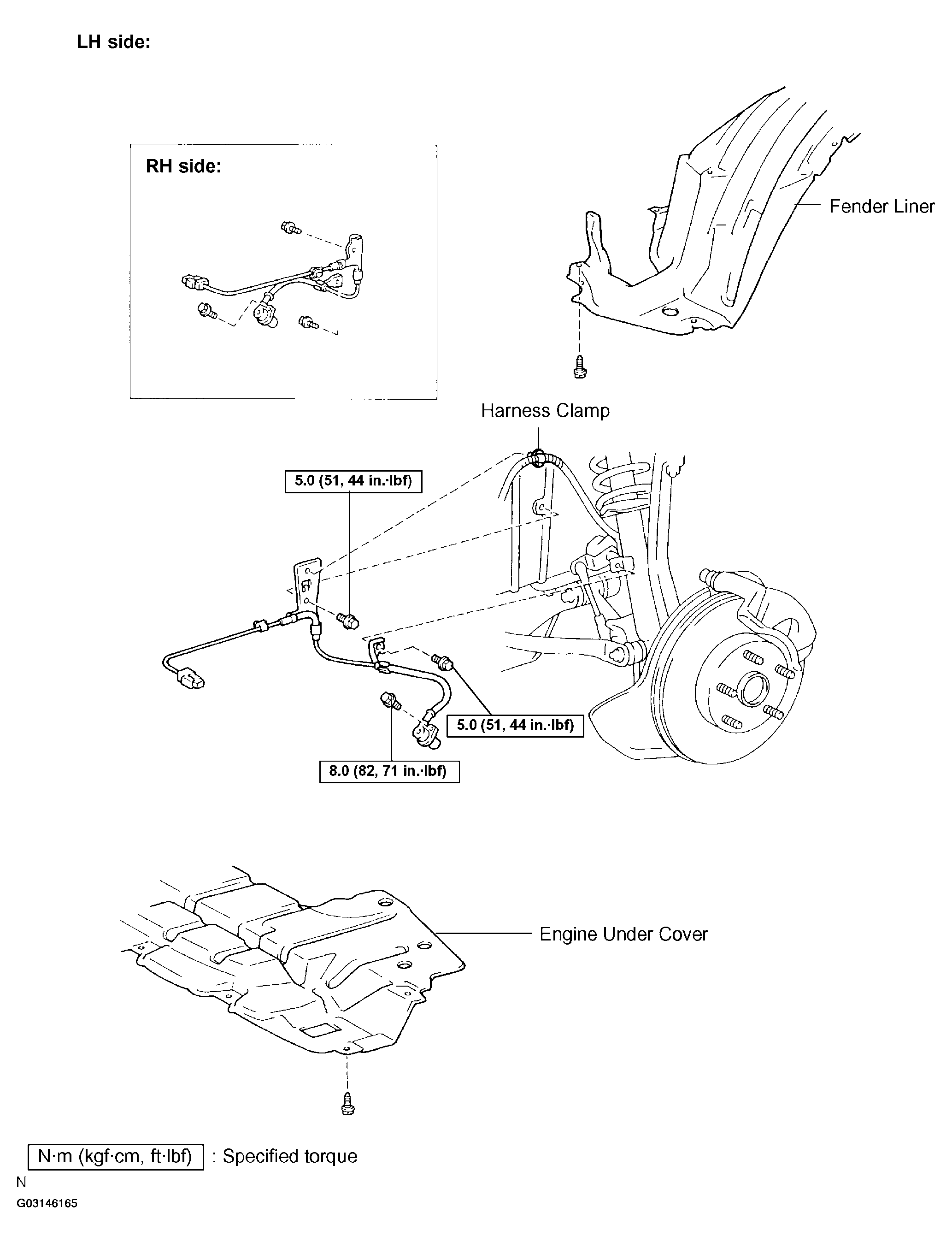

Fig 1: Identifying Components Of Front Speed Sensor

G03146165

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
