Front Speed Sensor: Removal

Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

1. Remove the engine under cover and fender liner.
2. Disconnect the speed sensor connector.

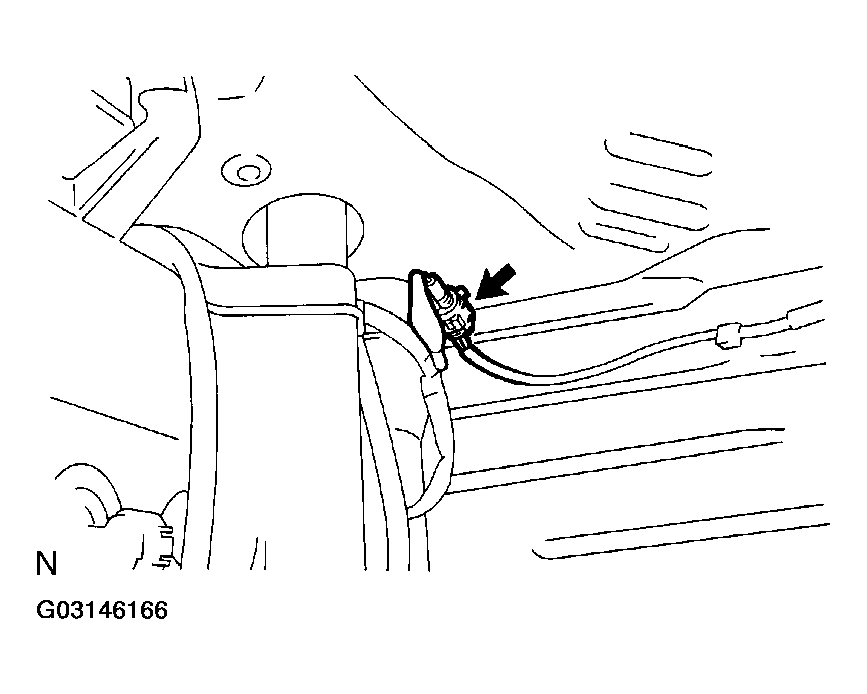

Fig 1: Disconnecting Speed Sensor Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. LH side:

   Disconnect the harness clamp.

2. Remove the resin clip and 2 clamp bolts holding the sensor harness to the body.

   Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

3. Remove the bolt and speed sensor from the steering knuckle.

   Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

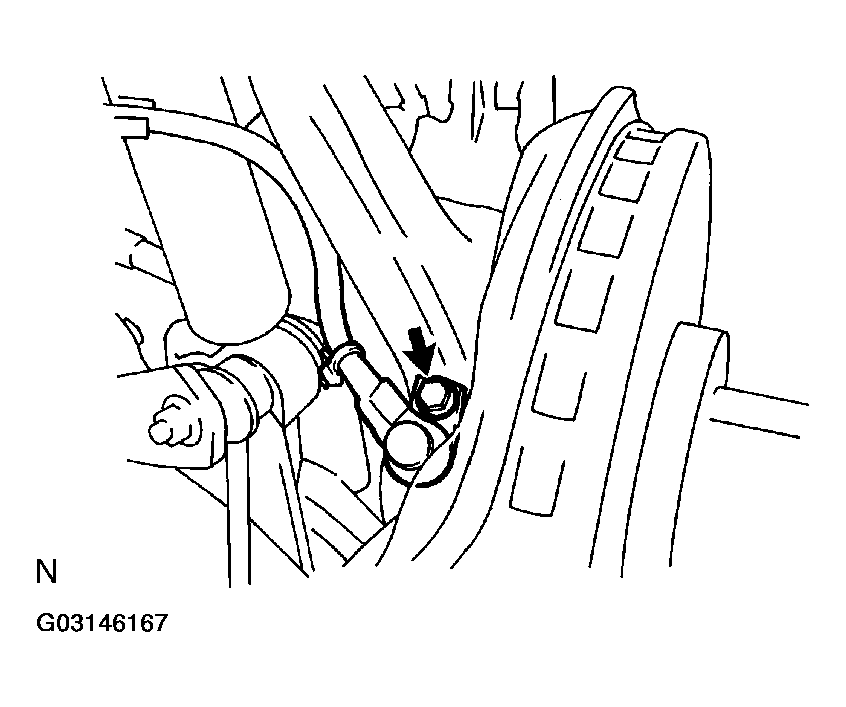

   Fig 2: Disconnecting Harness Clamp
