Charging Systems: Charging: Removal

REMOVE ENGINE UNDER COVER
REMOVE DRIVE BELT
Using SST, loosen the belt tension by turning the drive belt tensioner clockwise from the bottom side, and remove the drive belt.

SST 09216-00041

NOTE: At the time of installation, please refer to the following items. Do an on-vehicle inspection. See ON-VEHICLE INSPECTION .

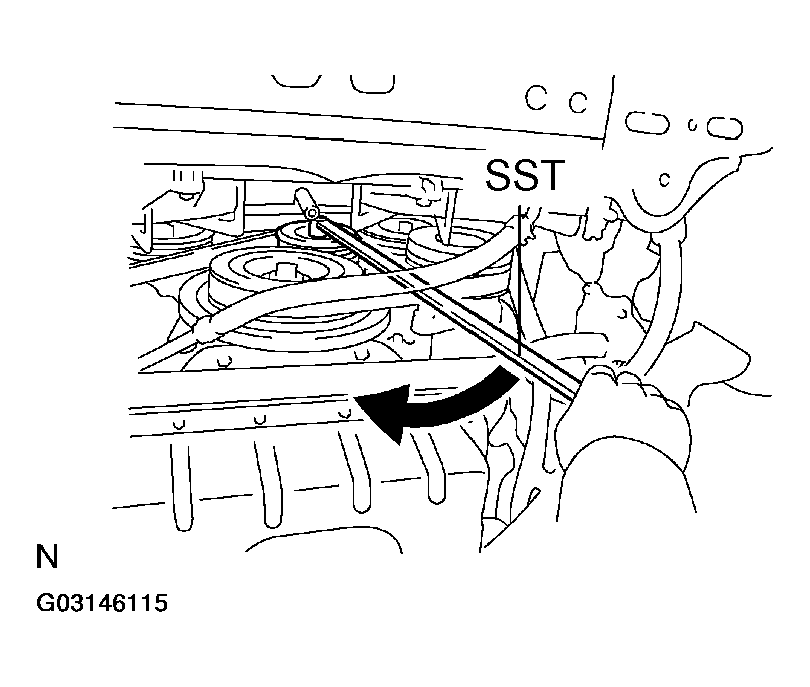

Fig 1: Loosening Belt Tension By Turning Drive Belt Tensioner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

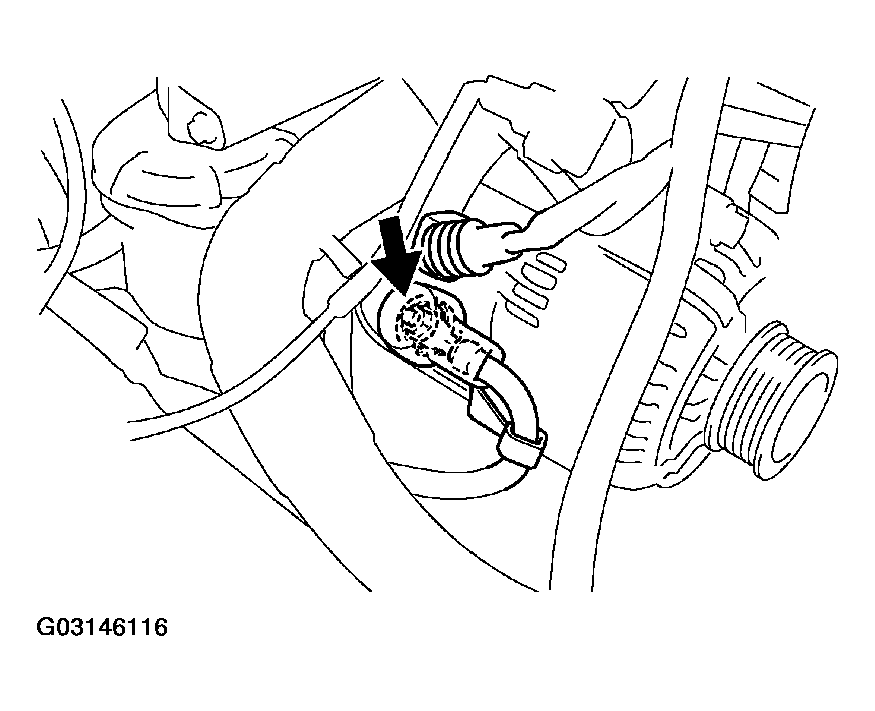

  Fig 2: Removing Generator Wire Protective Cap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the engine wire clamp from the wire clip on the generator.
4. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.

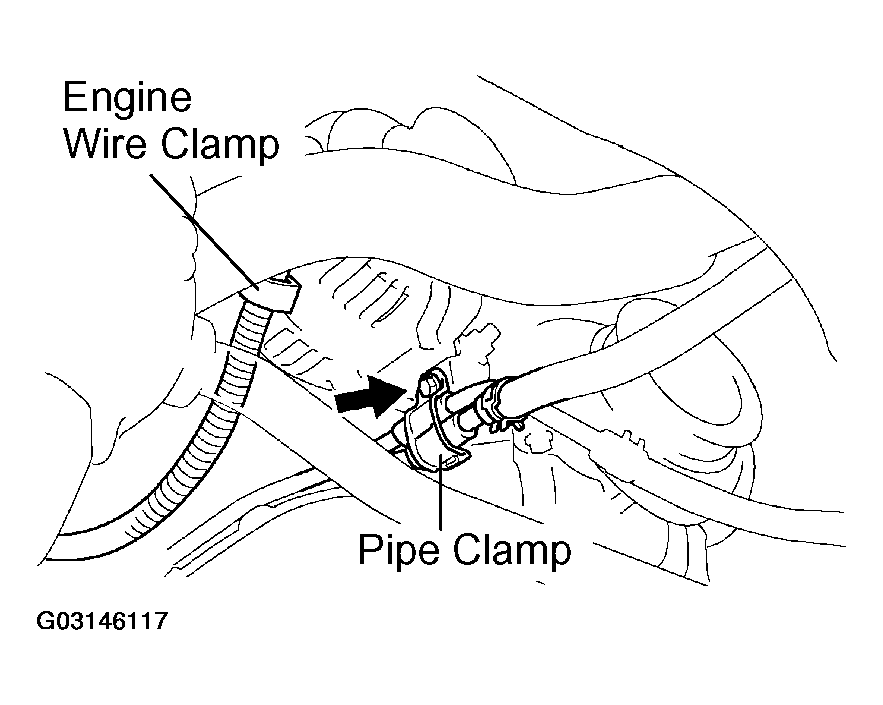

  Fig 3: Disconnecting Engine Wire Clamp From Wire Clip On Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt, nut, pipe bracket and generator.
  Torque: 40 N.m (400 kgf.cm, 30 ft.lbf)

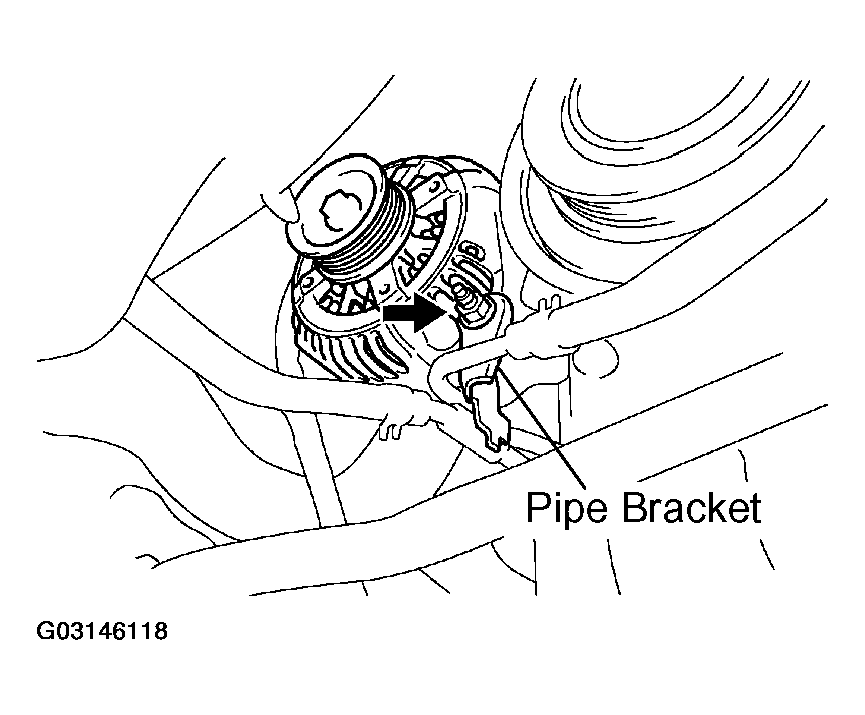

Fig 4: Removing Bolt Of Pipe Bracket Of Generator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
