No-Load Test
CAUTION:
DO NOT operate starter for more than 3-5 seconds.

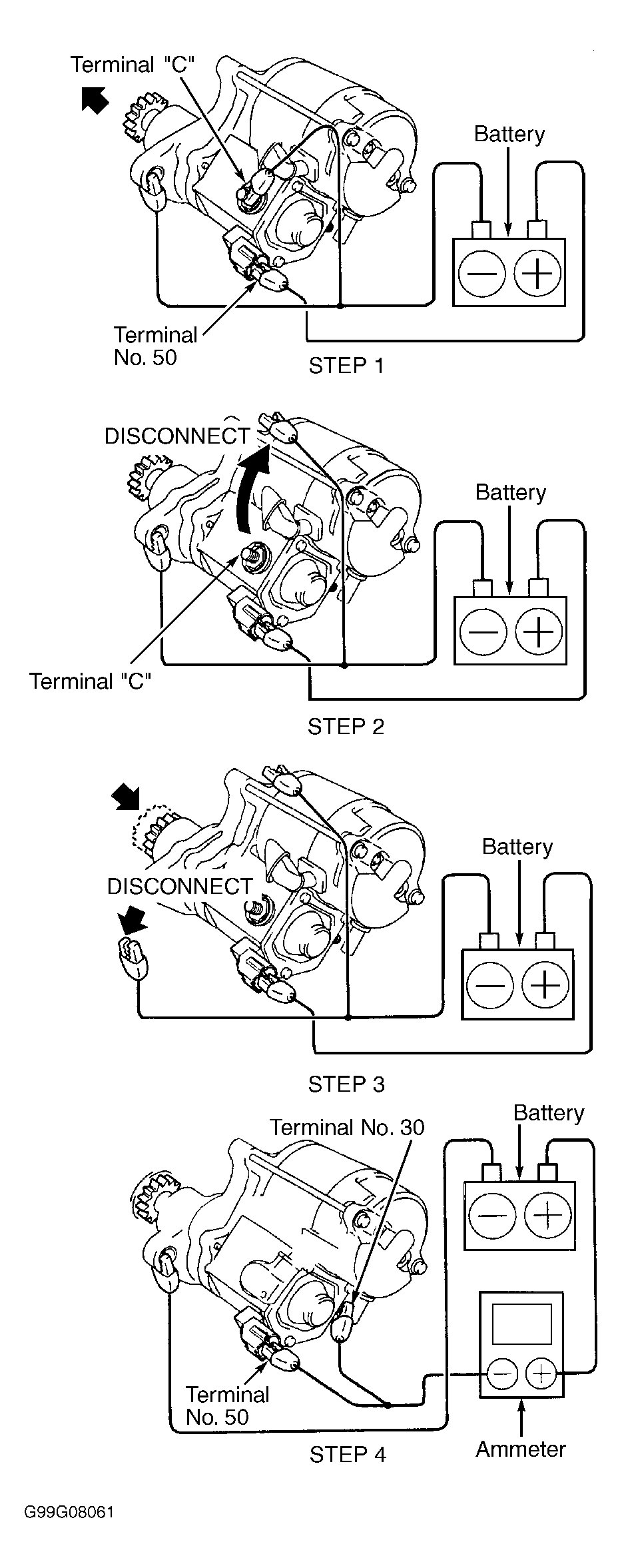

Connect battery and ammeter to starter as indicated. See Figure or Figure . Perform STEP 4. Starter armature should rotate smoothly and steadily with pinion gear moving out. Amperage draw should be within specification. See NO-LOAD TEST SPECIFICATIONS table.
NO-LOAD TEST SPECIFICATIONS
| Application | Maximum Amps | Volts |
|---|---|---|
| ES300, GS300, IS300 & RX300 | 90 | 11.5 |
| GS430 & LS430 | 100 | 11.5 |
