Component Locations

NOTE: For component locations, See Fig 1-Fig 5 .

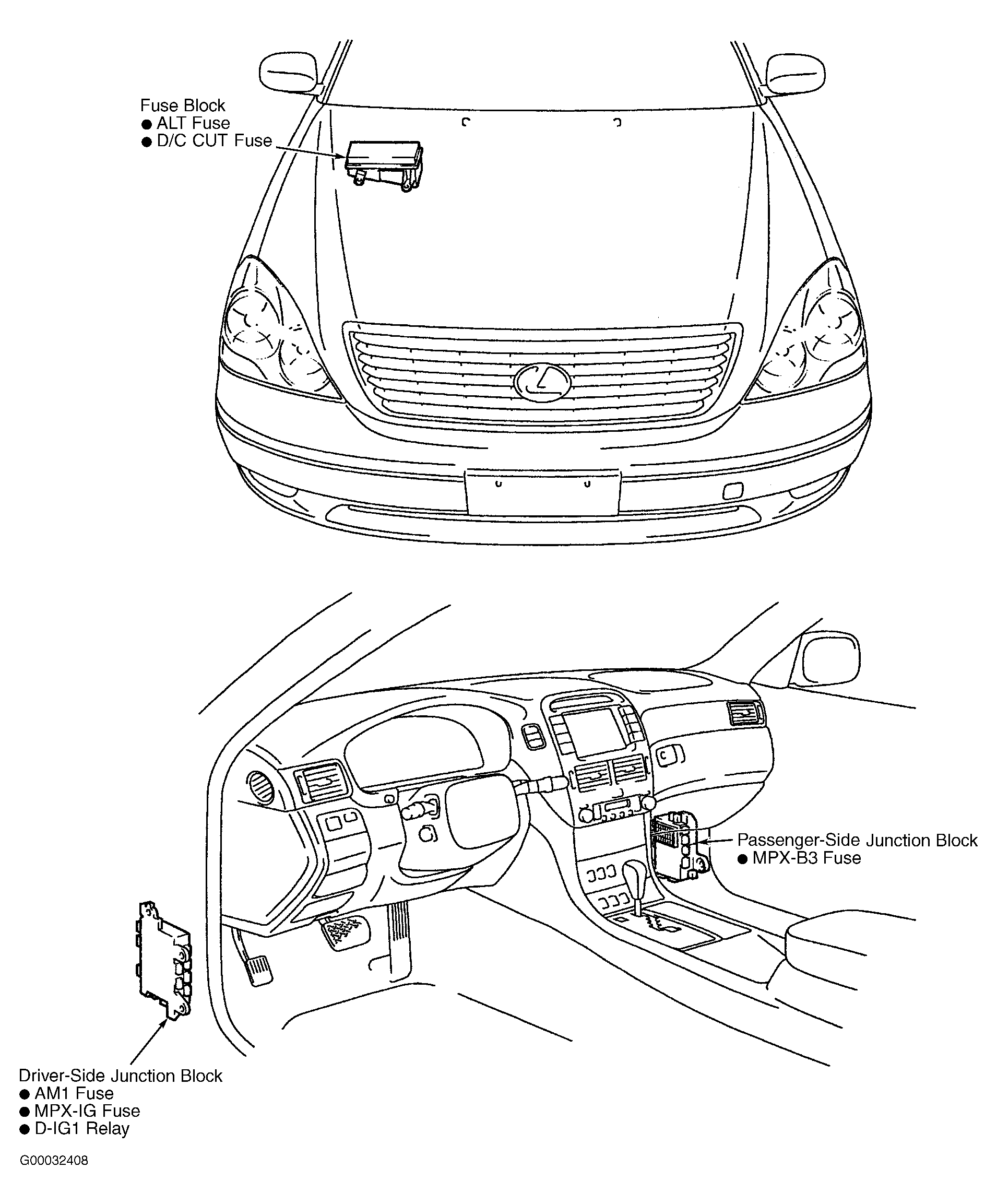

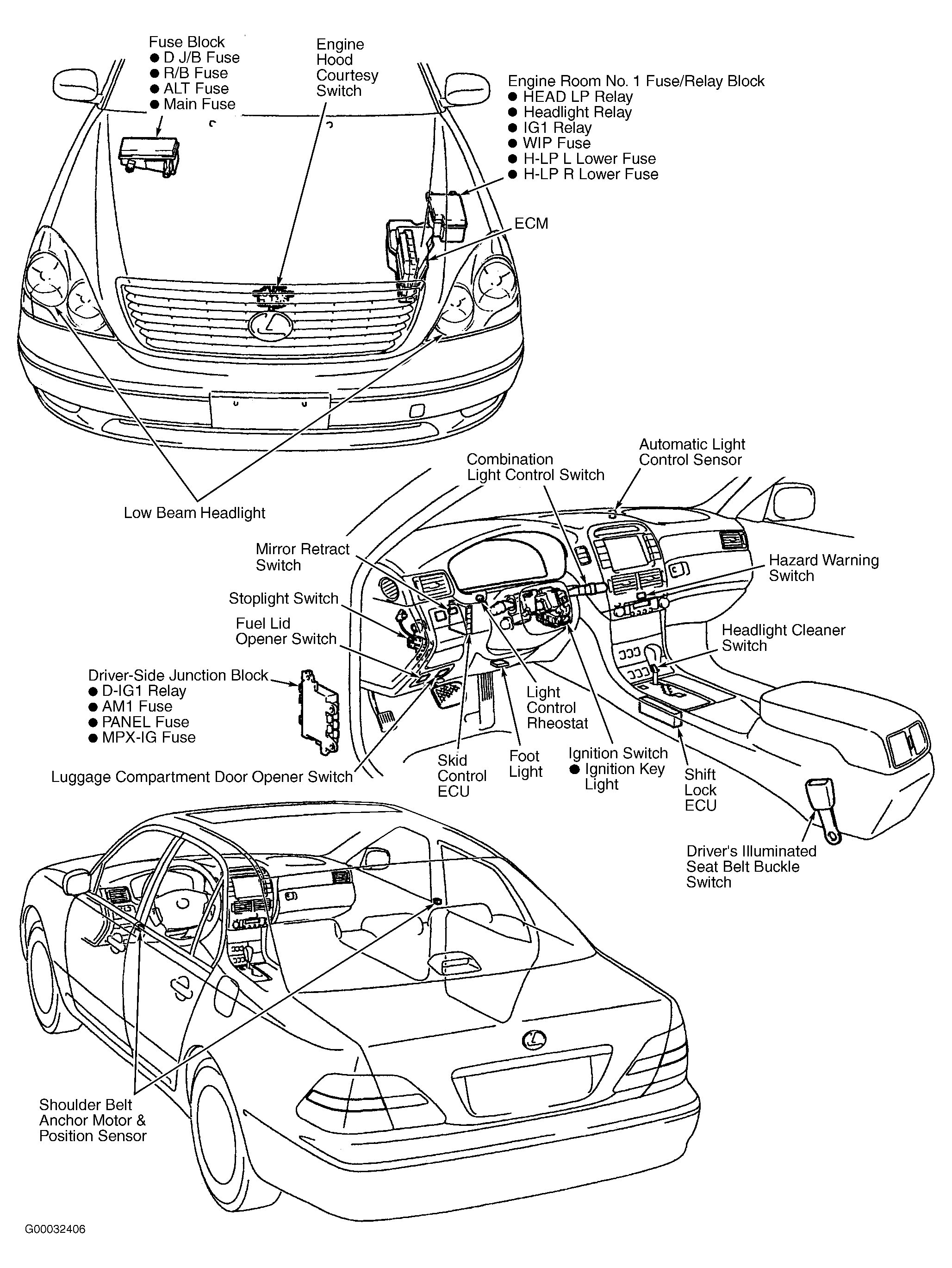

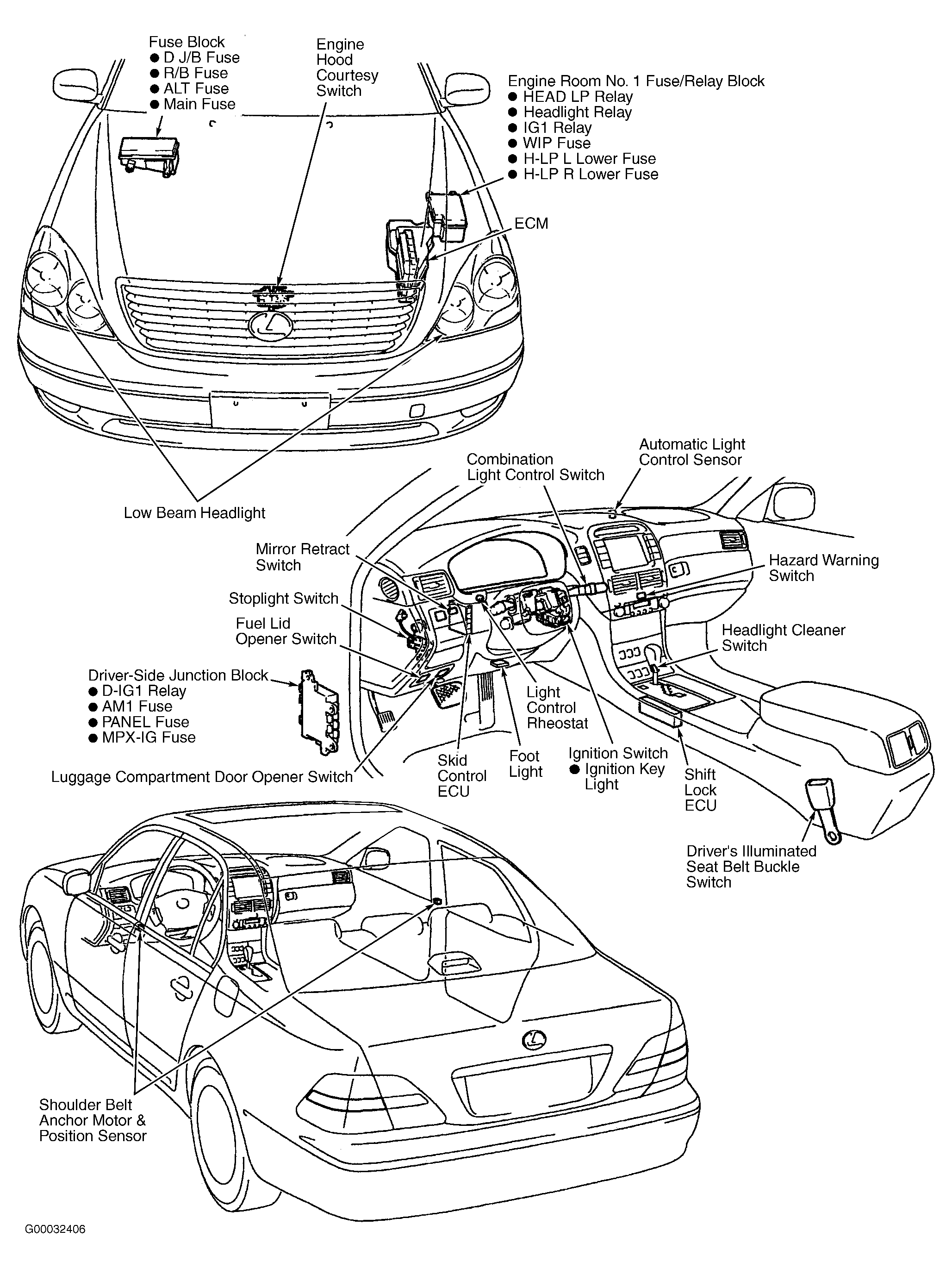

Fig 1: Identifying Driver-Side Junction Block (Body No. 2 ECU) Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

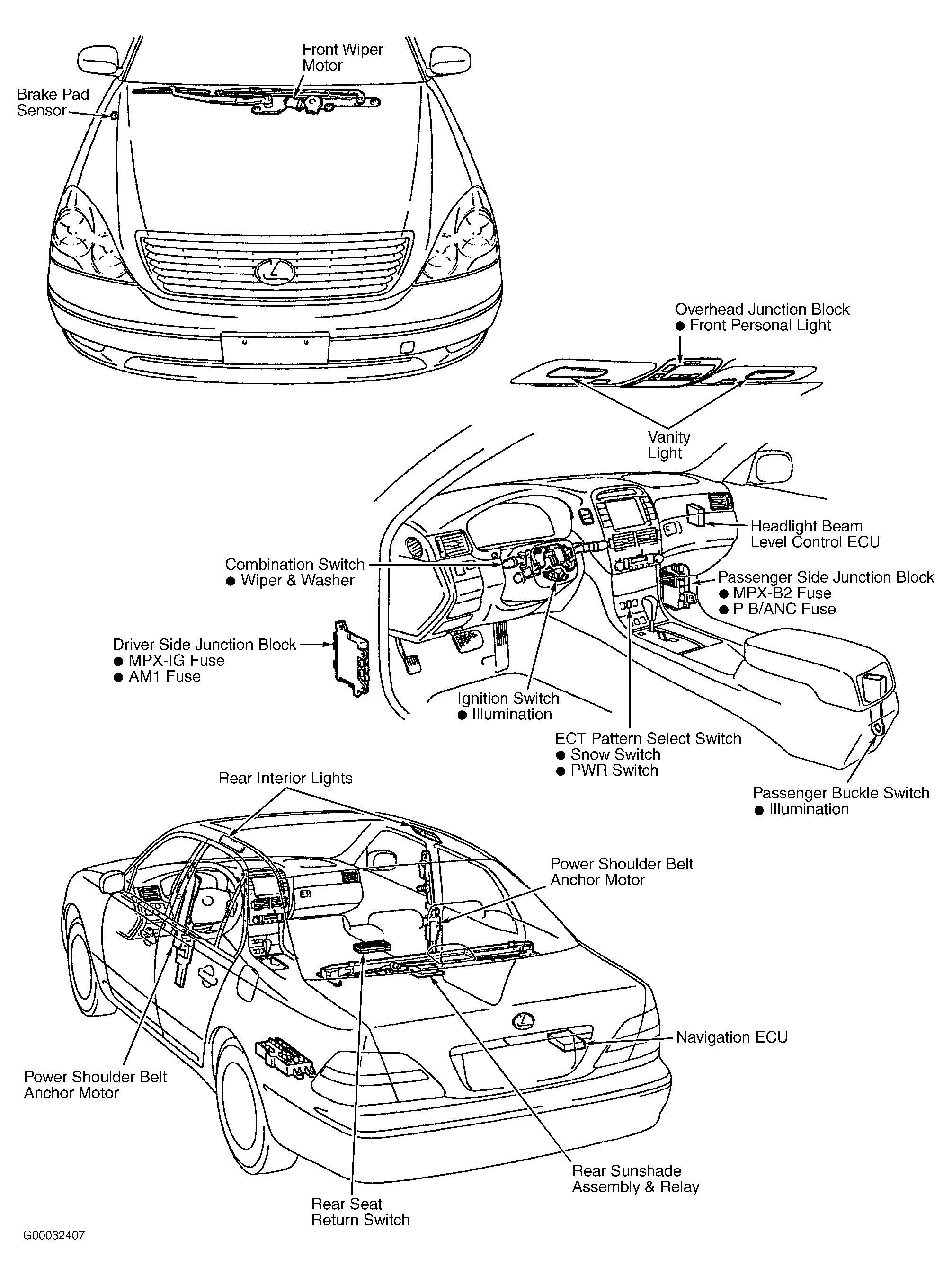

Fig 2: Identifying Passenger-Side Junction Block (Body No. 3 ECU) Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

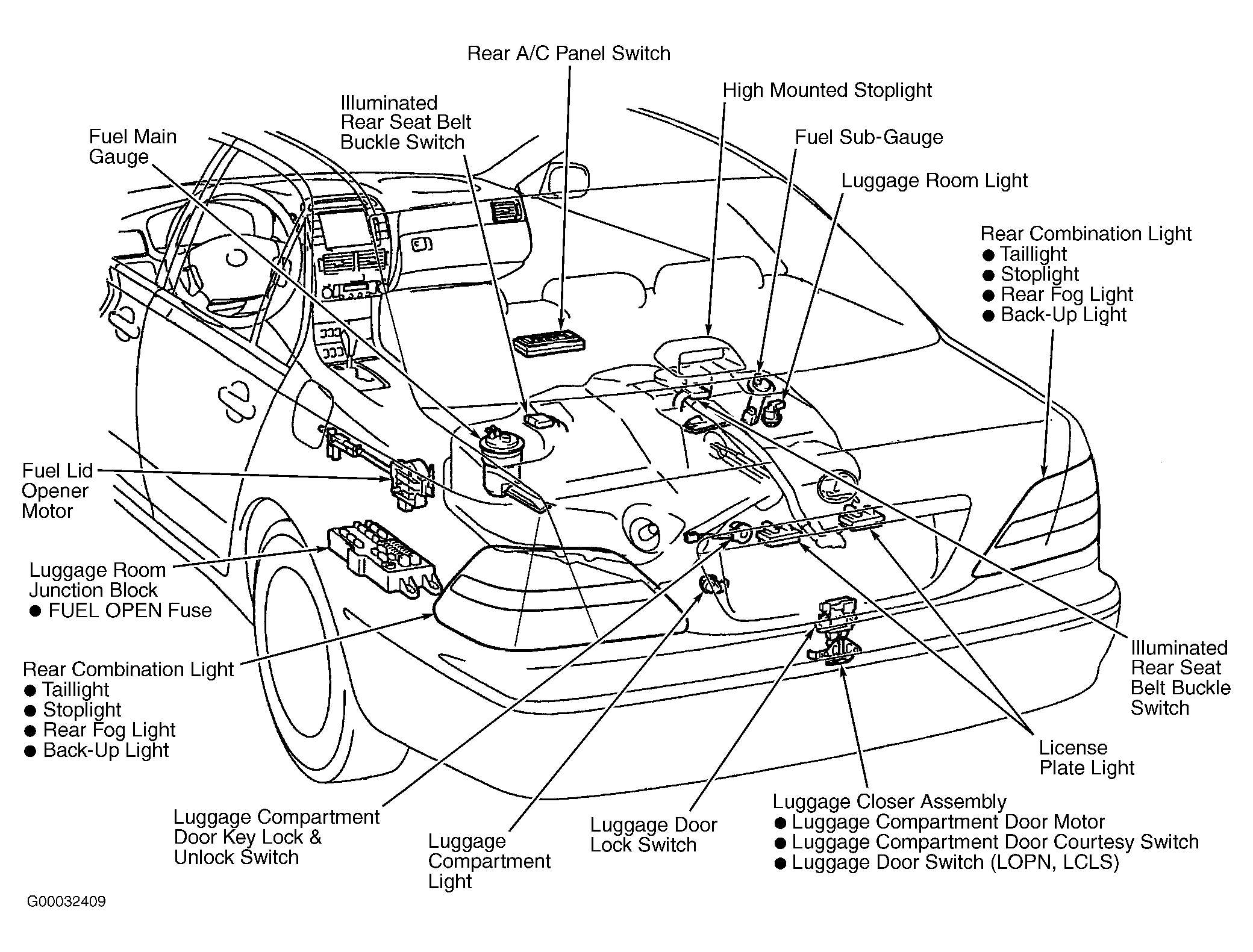

Fig 3: Identifying Luggage Room (Body No. 4 ECU) Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Luggage Room (Body No. 4) ECU Components (2 Of 2)

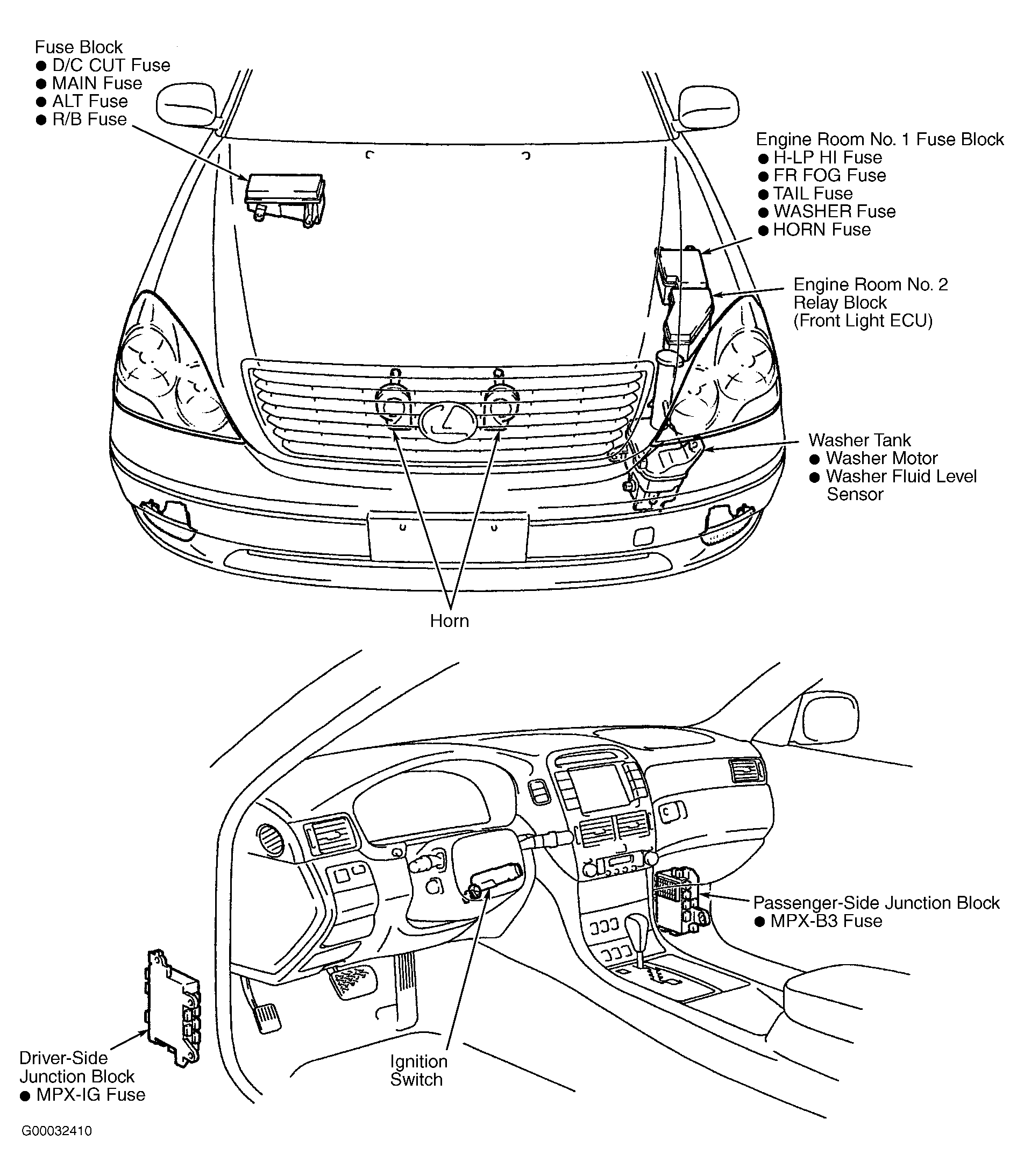

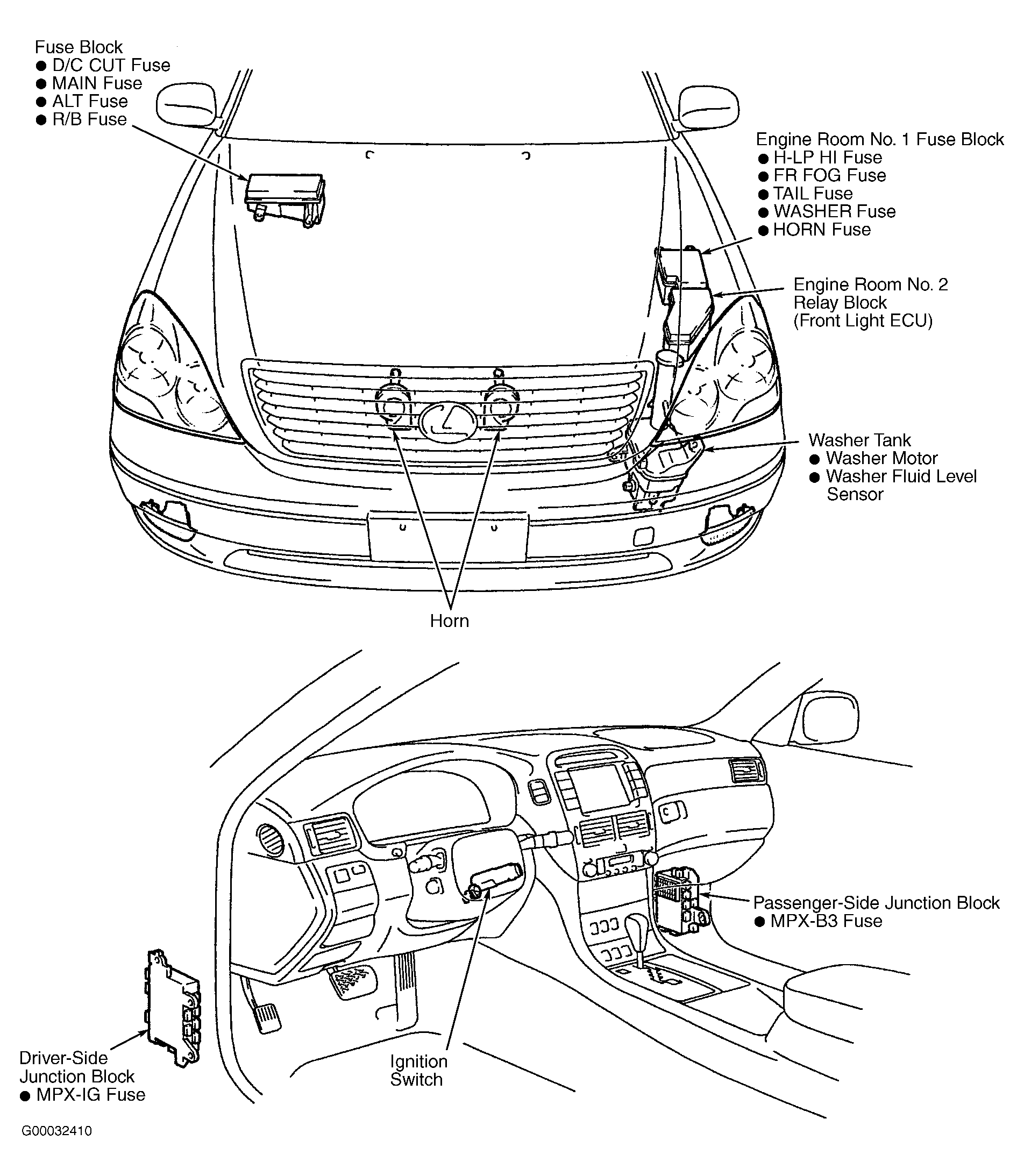

Fig 5: Identifying Front Light (Body No. 5) ECU Components
