Hazard Switch

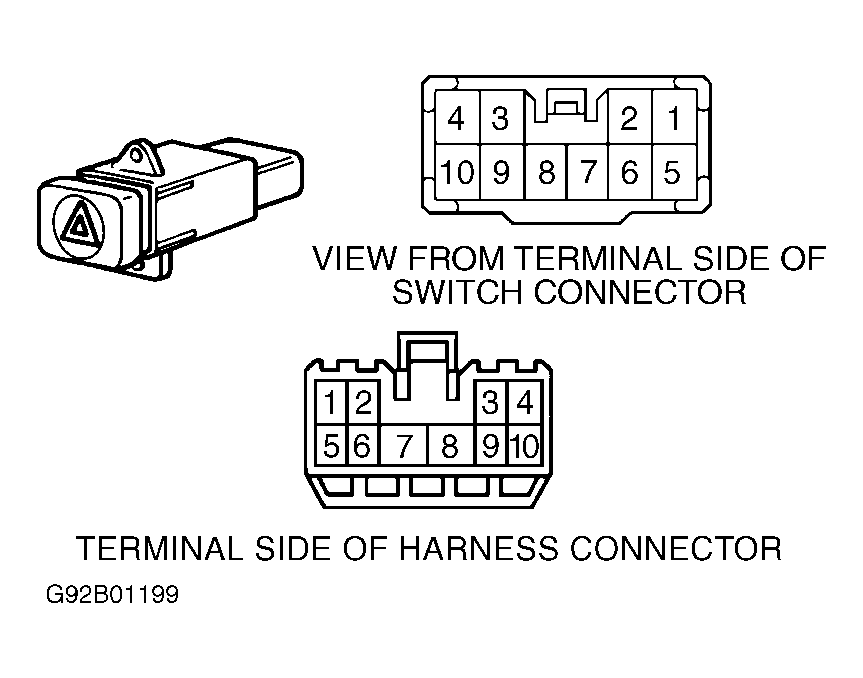

Remove and test hazard switch. See HAZARD SWITCH CONTINUITY TEST table. See Fig 1. If continuity is not as specified, replace hazard switch and retest system operation.
HAZARD SWITCH CONTINUITY TEST
| Terminals No. (Wire Color) | Specification | ||
|---|---|---|---|
| With Navigation System | |||
| 1 (Orange Wire) & 4 (White/Black Wire) | |||
| Switch On | Continuity | ||
| Switch Off | No Continuity | ||
| Without Navigation System | |||
| 3 (Orange Wire) & 2 (White/Black Wire) | |||
| Switch On | Continuity | ||
| Switch Off | No Continuity | ||
