Headlight Cleaner Switch

Disconnect headlight cleaner switch 22-pin connector. With switch off, no continuity should be present between any connector terminals. With switch on, continuity should be present between connector terminals No. 10 and 11. See Fig 1. If continuity is not as specified, replace switch.

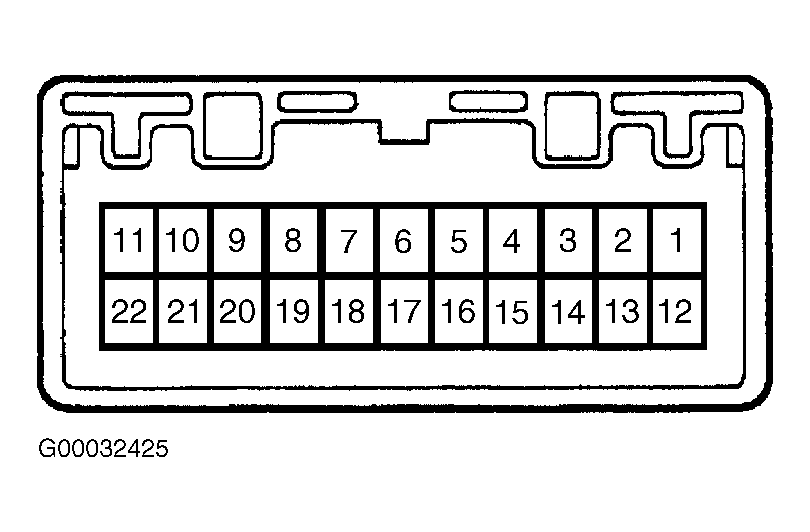

Fig 1: Identifying Headlight Cleaner & Rear Seat Return Switch 22-Pin Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
