Component Locations

NOTE: For component locations, see Fig 1.

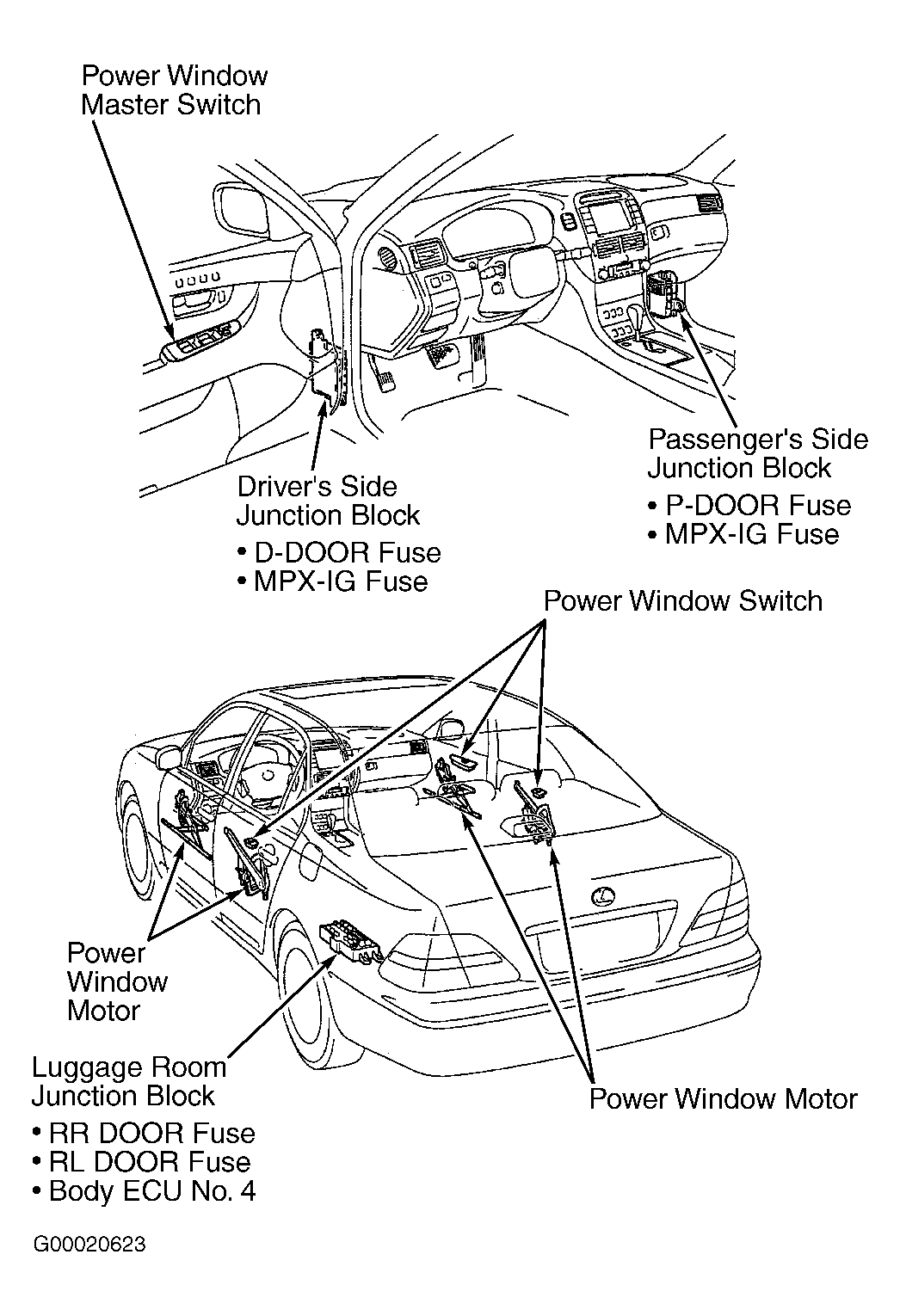

Fig 1: Identifying Power Window System Components
G00020623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
