Driver's Window Up Operation

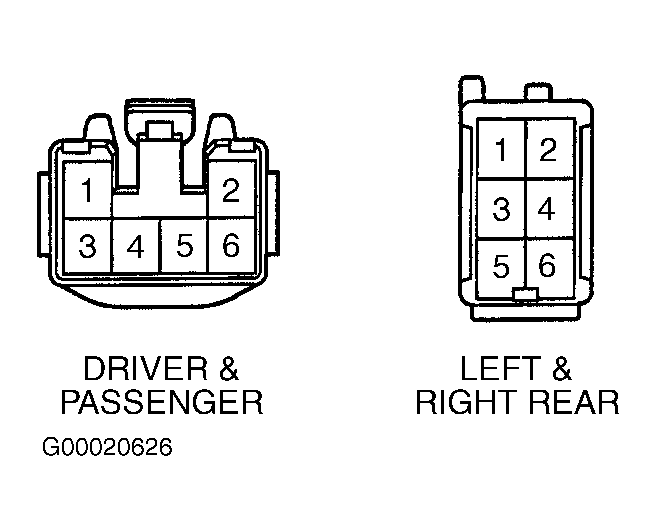

Disconnect window motor harness connector. Connect ohmmeter positive lead to terminal No. 2 (Black/White wire) and negative ohmmeter lead to terminal No. 3 (Brown/White wire) at window motor harness connector. Apply positive battery voltage to terminal No. 4 (Red/Green wire) and connect negative battery lead to terminal No. 5 (Green wire) at window motor harness connector. See Figure. Ensure continuity exists when window goes up, and does not exist when window is fully closed. If continuity is not as specified, replace window motor assembly.
