Passenger Switch

Remove appropriate passenger window switch. Check for continuity between specified terminals of switch. See Fig 1. Ensure continuity is as specified in appropriate switch positions. See PASSENGER SWITCH CONTINUITY TEST table. If continuity is not as specified, replace window switch.

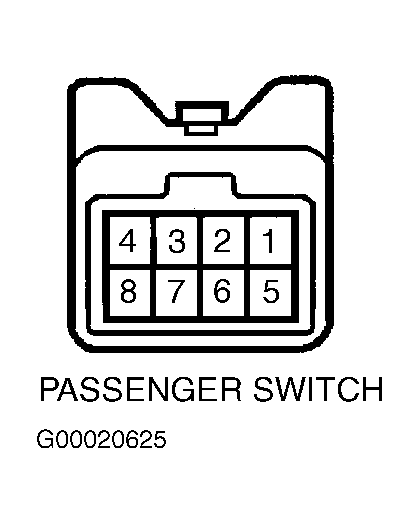

Fig 1: Identifying Passenger Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PASSENGER SWITCH CONTINUITY TEST

Position

Terminals No.

OFF

⁽¹⁾

1 & 8

UP (Auto)

3 & 8; 1 & 8

DOWN

6 & 8

DOWN (Auto)

3 & 8; 6 & 8

⁽¹⁾	Continuity should not be present between any terminals.
