Vacuum Diagrams: Introduction

This article contains underhood views and vacuum diagrams of vacuum hose routing. Use these vacuum diagrams during the visual inspection in BASIC DIAGNOSTIC PROCEDURES article. This will assist in identifying improperly routed vacuum hoses which may cause driveability and/or computer-indicated malfunctions.

Fig 1: Vacuum Diagram (ES300 - 1 Of 4)

G00010221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

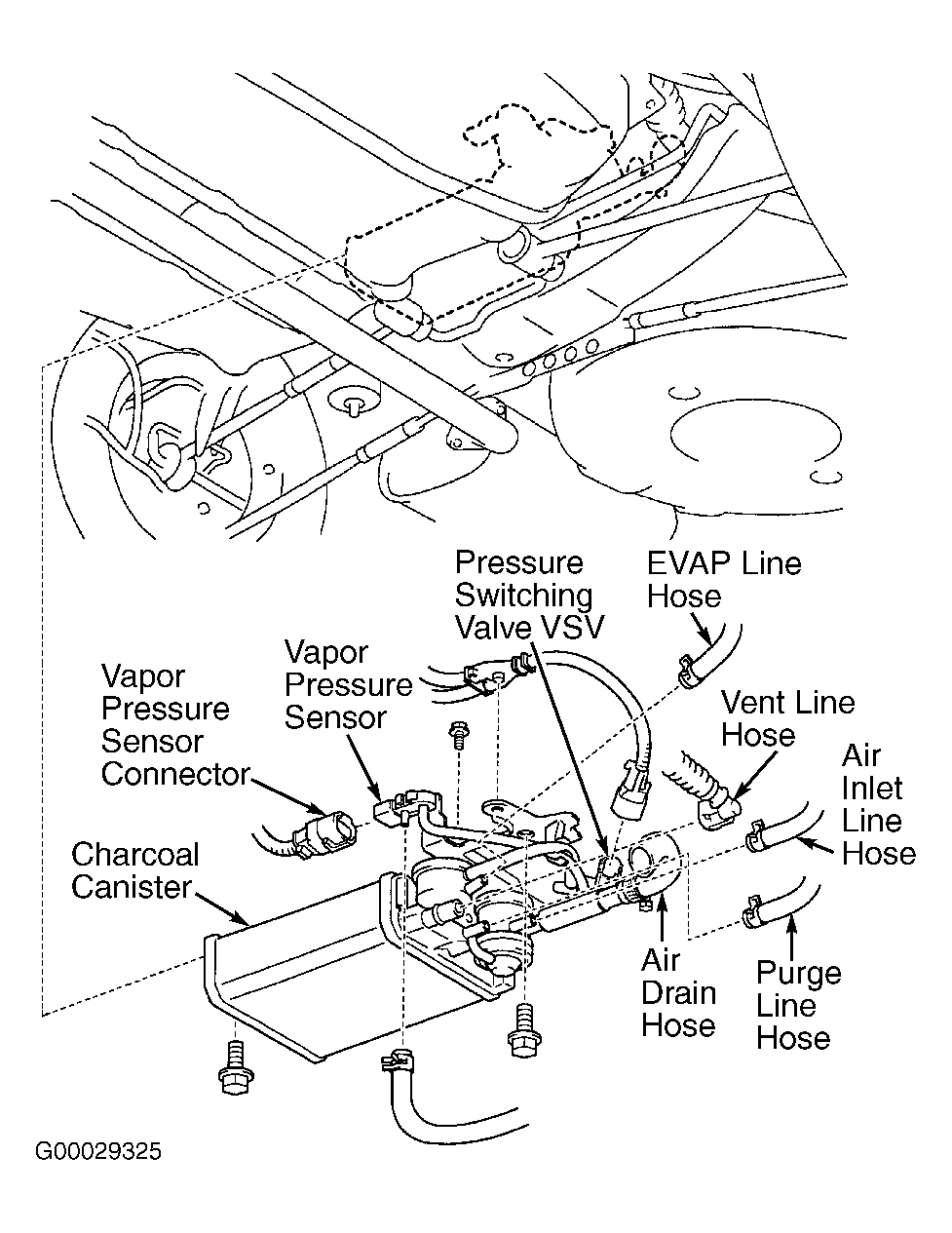

Fig 2: Vacuum Diagram (ES300 - 2 Of 4)

G00029325

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vacuum Diagram (ES300 - 3 Of 4)

G00010222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Vacuum Diagram (ES300 - 4 Of 4)

G00010228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

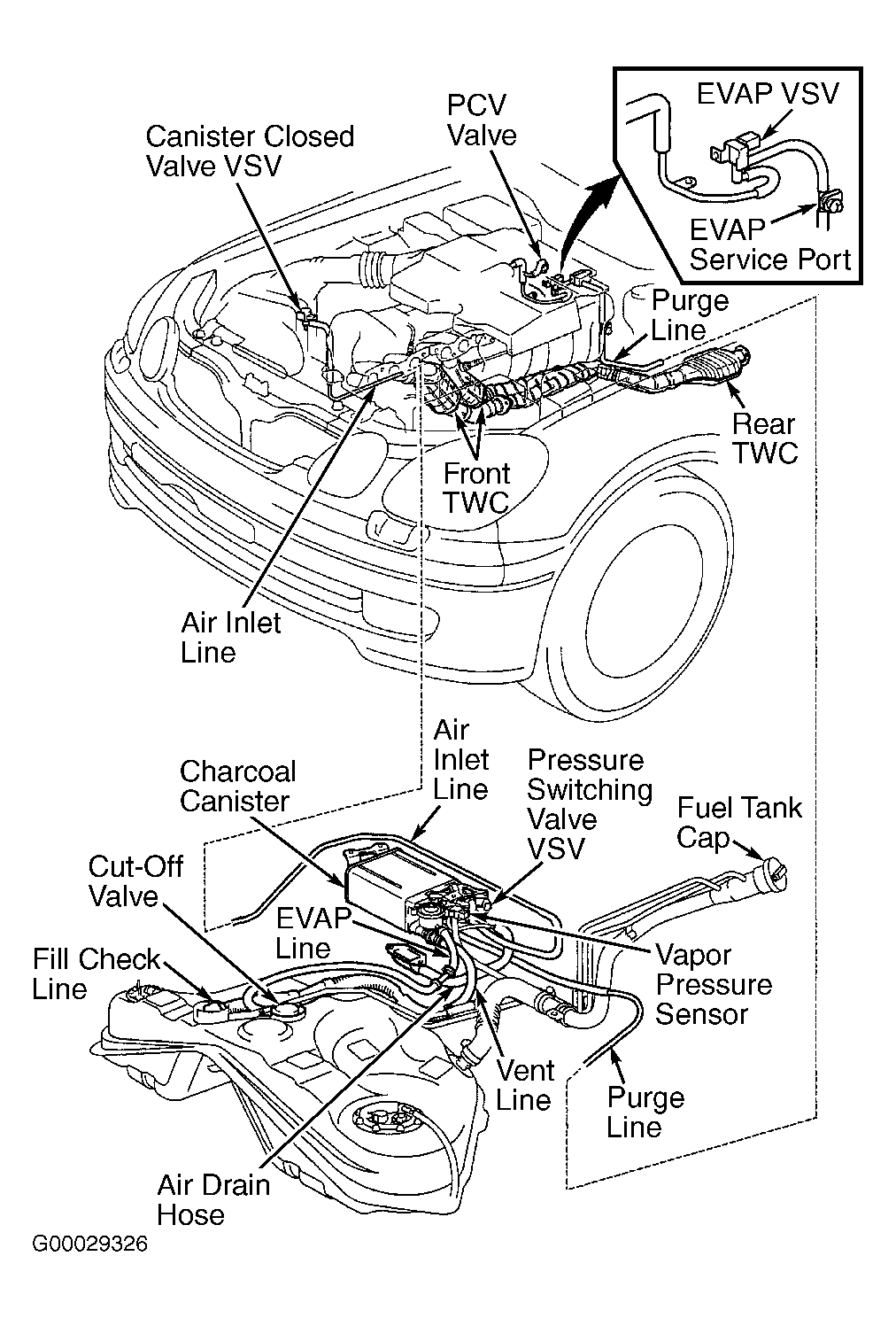

Fig 5: Vacuum Diagram (GS300 - 1 Of 3)

G00029326

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

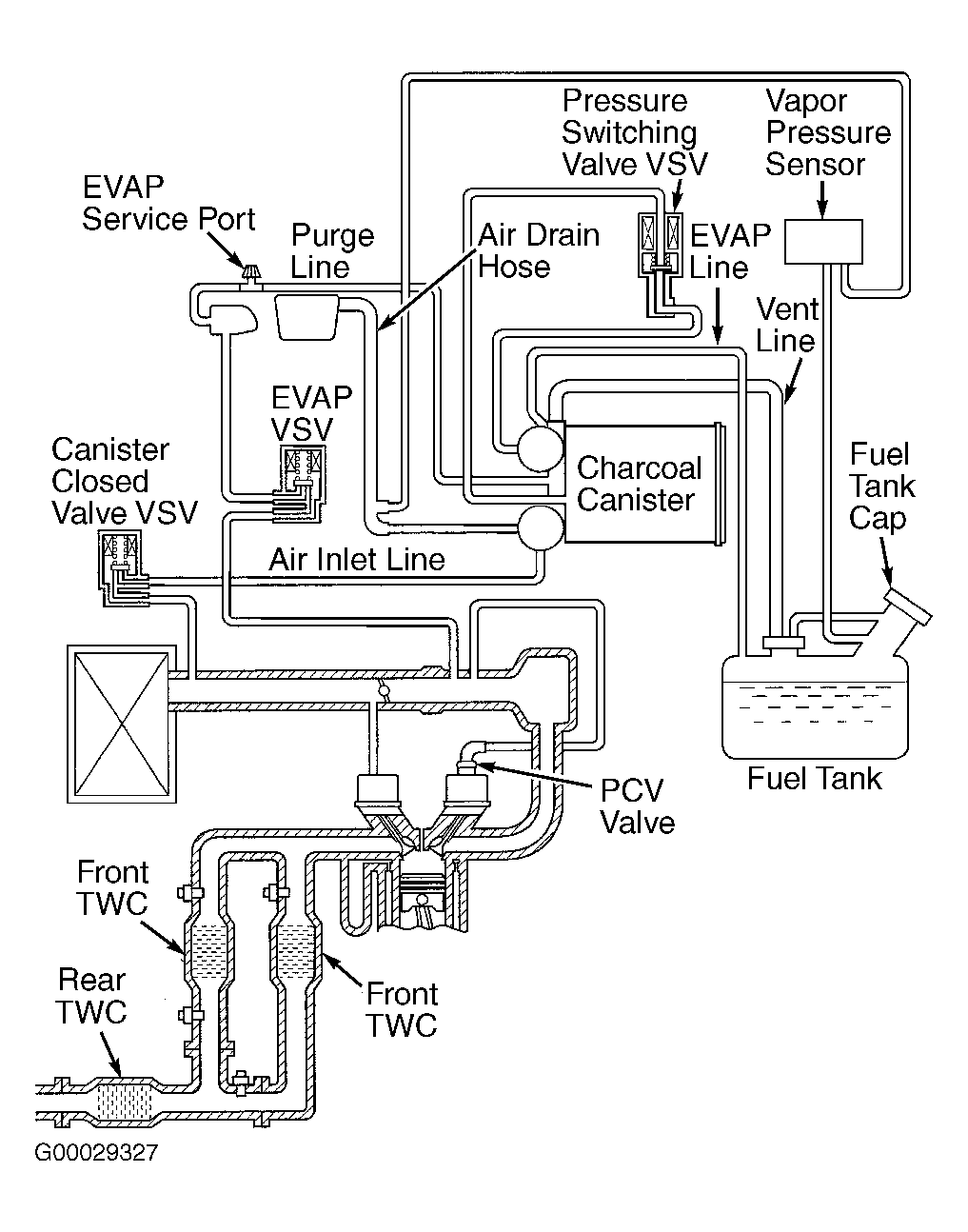

Fig 6: Vacuum Diagram (GS300 - 2 Of 3)

G00029327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

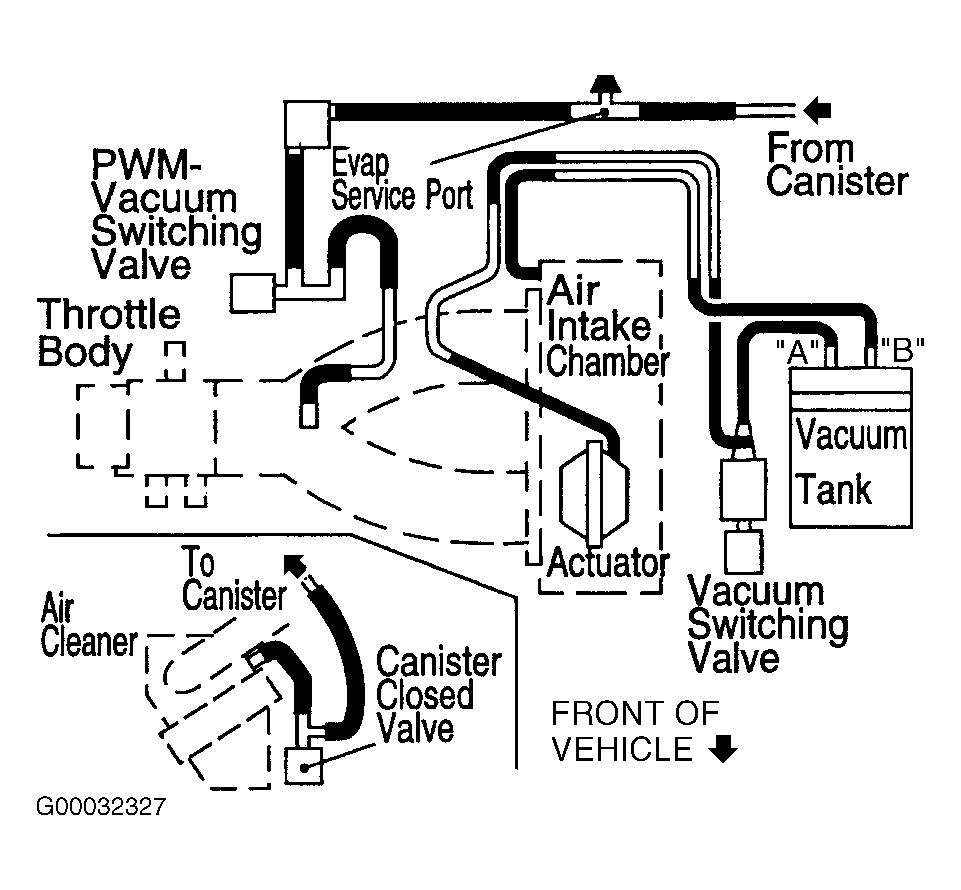

Fig 7: Vacuum Diagram (GS300 - 3 Of 3)

G00032327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

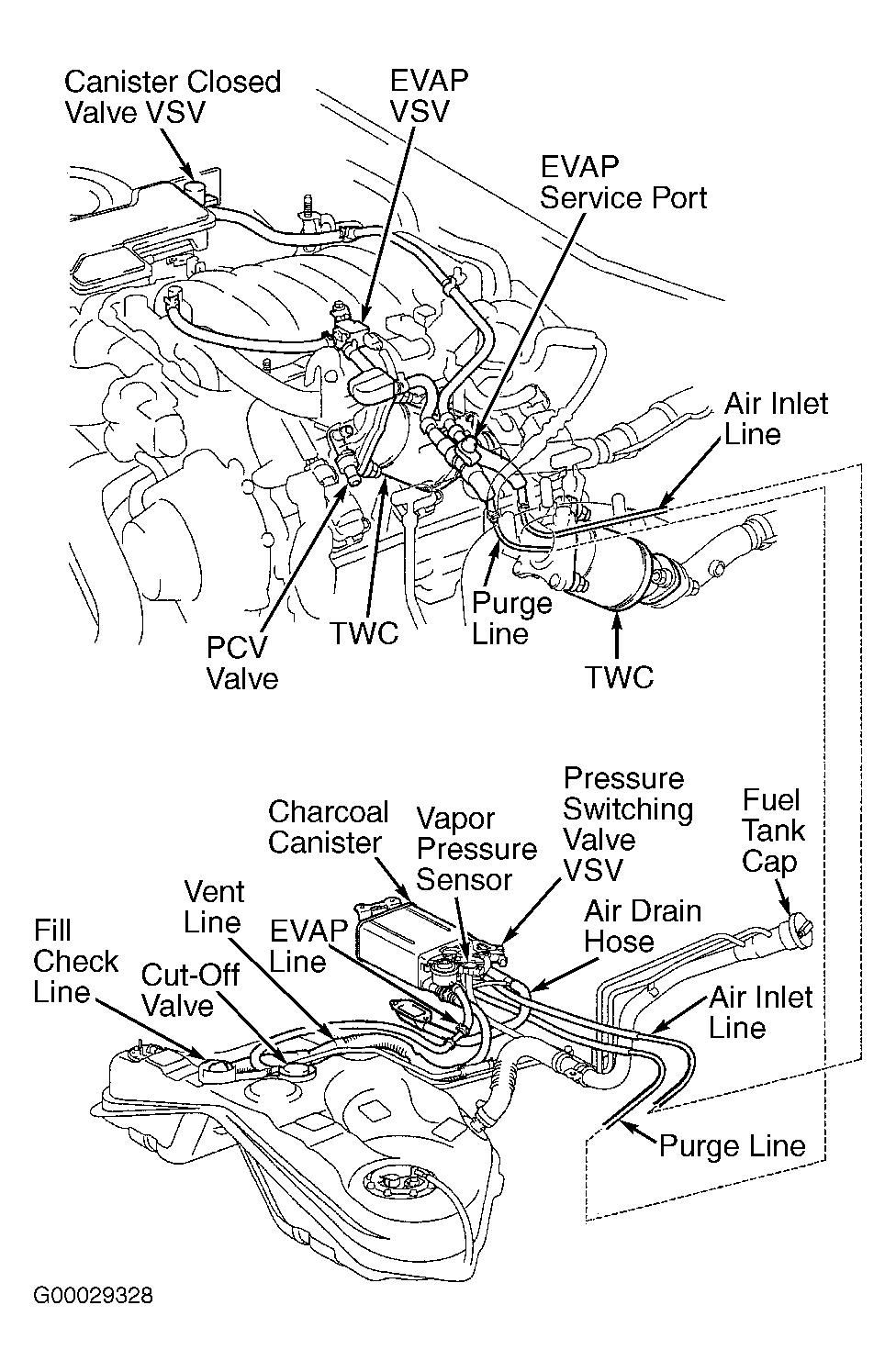

Fig 8: Vacuum Diagram (GS430 - 1 Of 3)

G00029328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

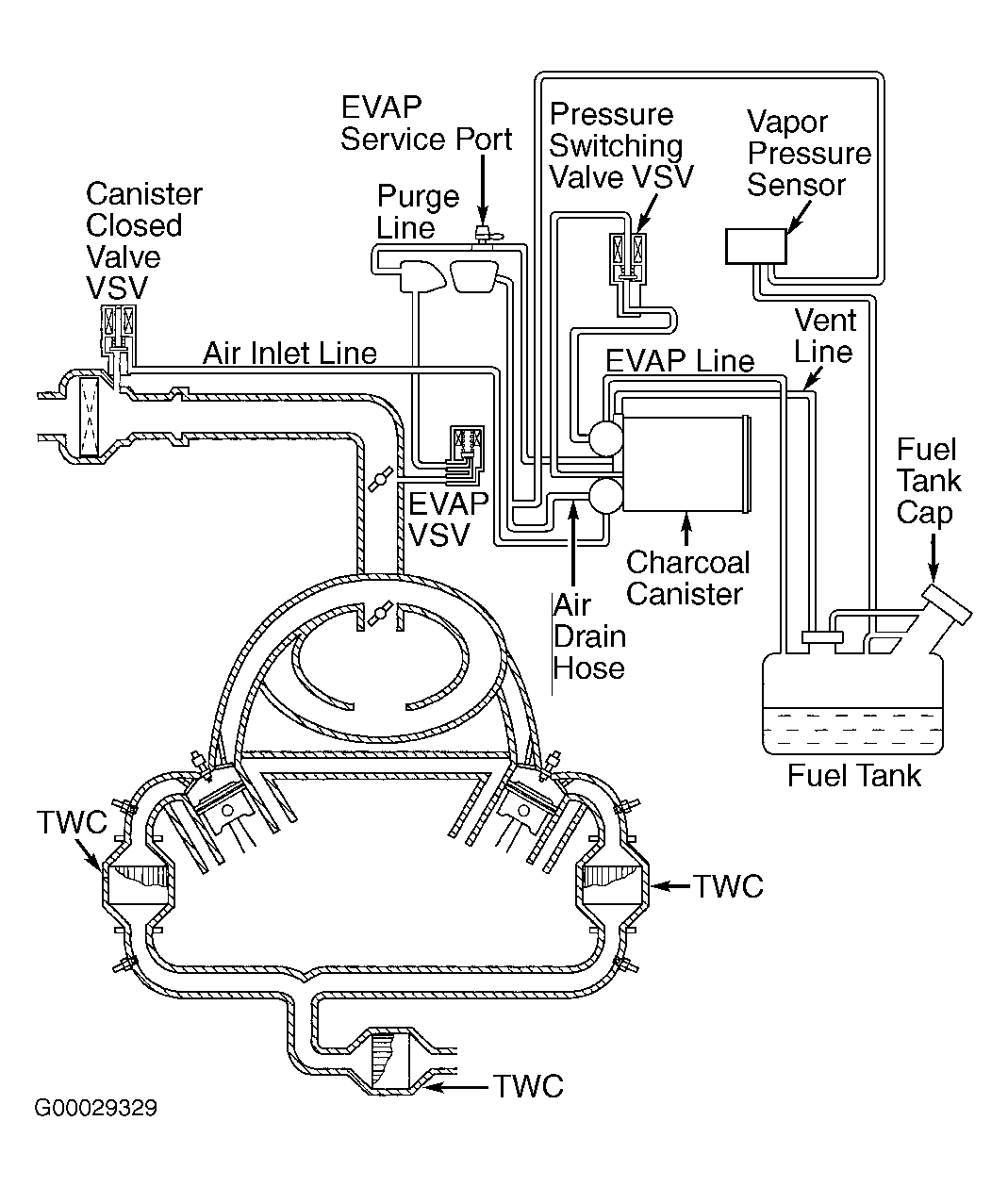

Fig 9: Vacuum Diagram (GS430 - 2 Of 3)

G00029329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

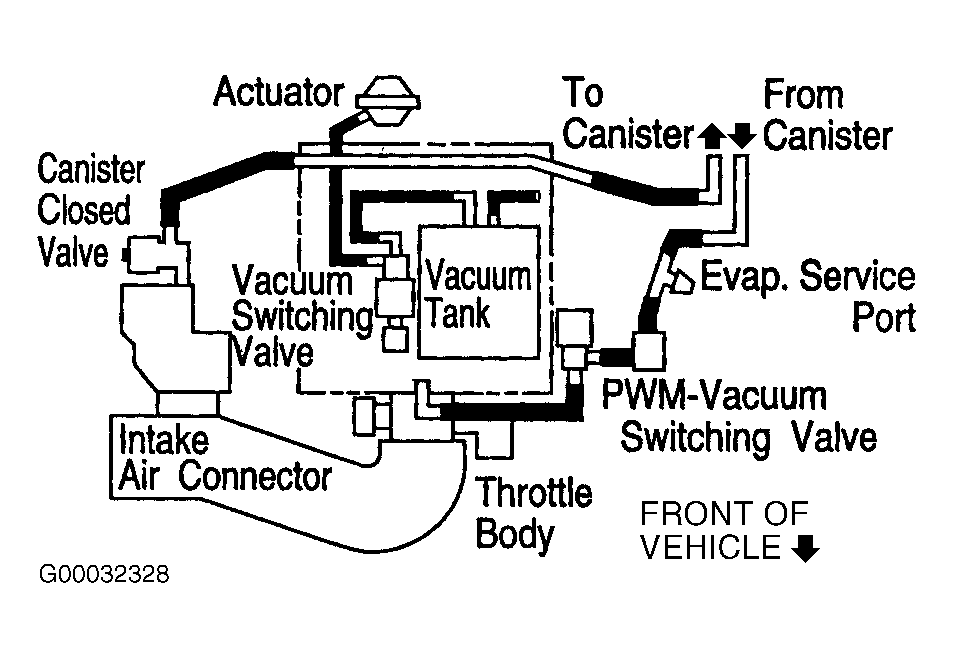

Fig 10: Vacuum Diagram (GS430 - 3 Of 3)

G00032328

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

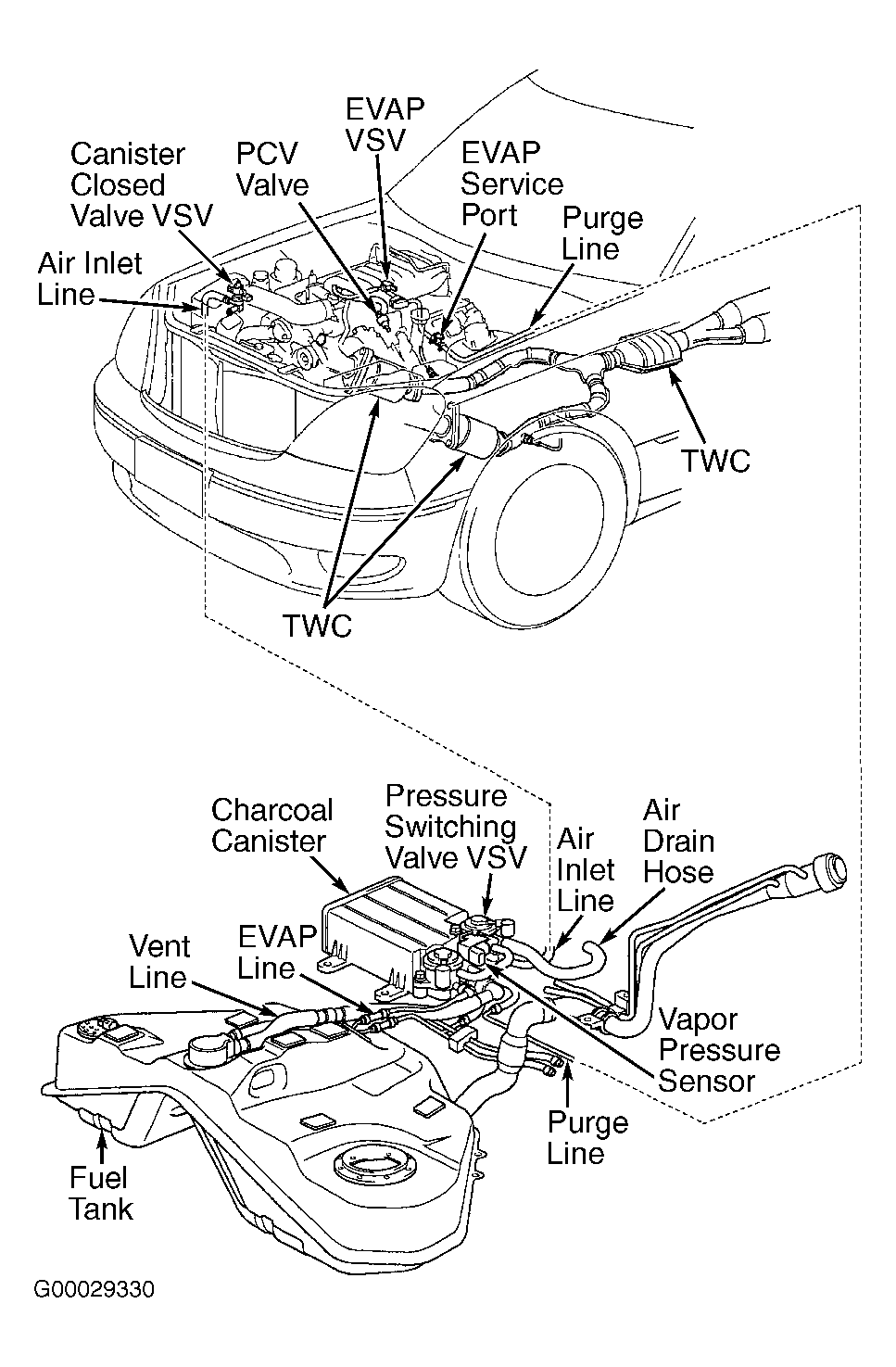

Fig 11: Vacuum Diagram (LS430 - 1 Of 3)

G00029330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

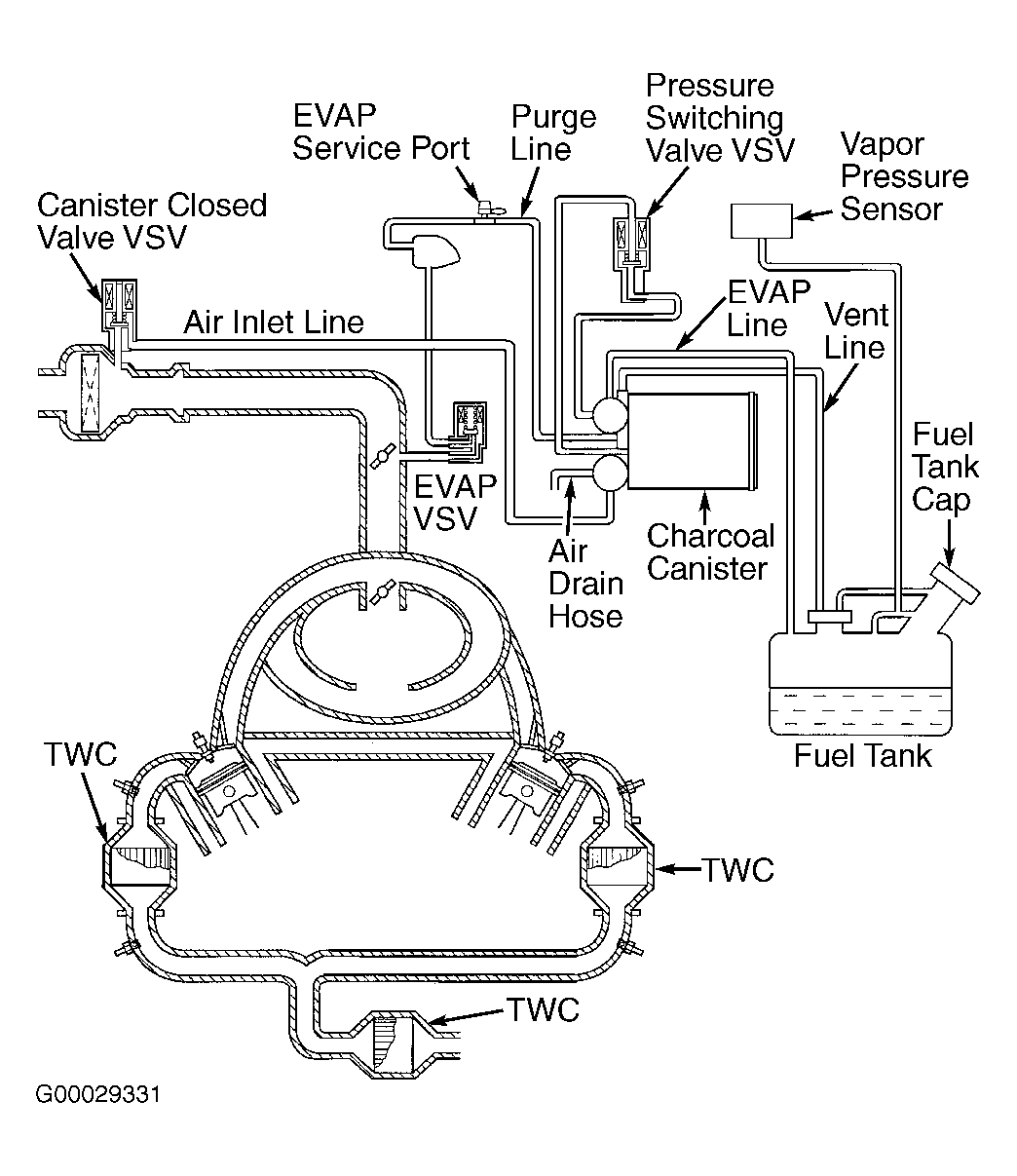

Fig 12: Vacuum Diagram (LS430 - 2 Of 3)

G00029331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

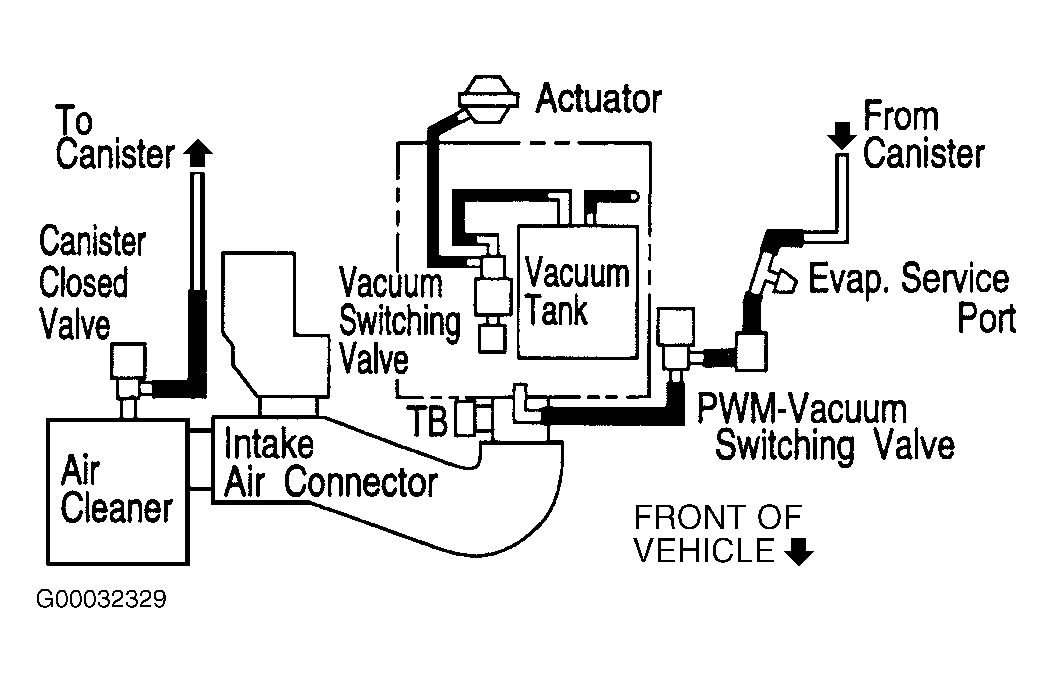

Fig 13: Vacuum Diagram (LS430 - 3 Of 3)

G00032329

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

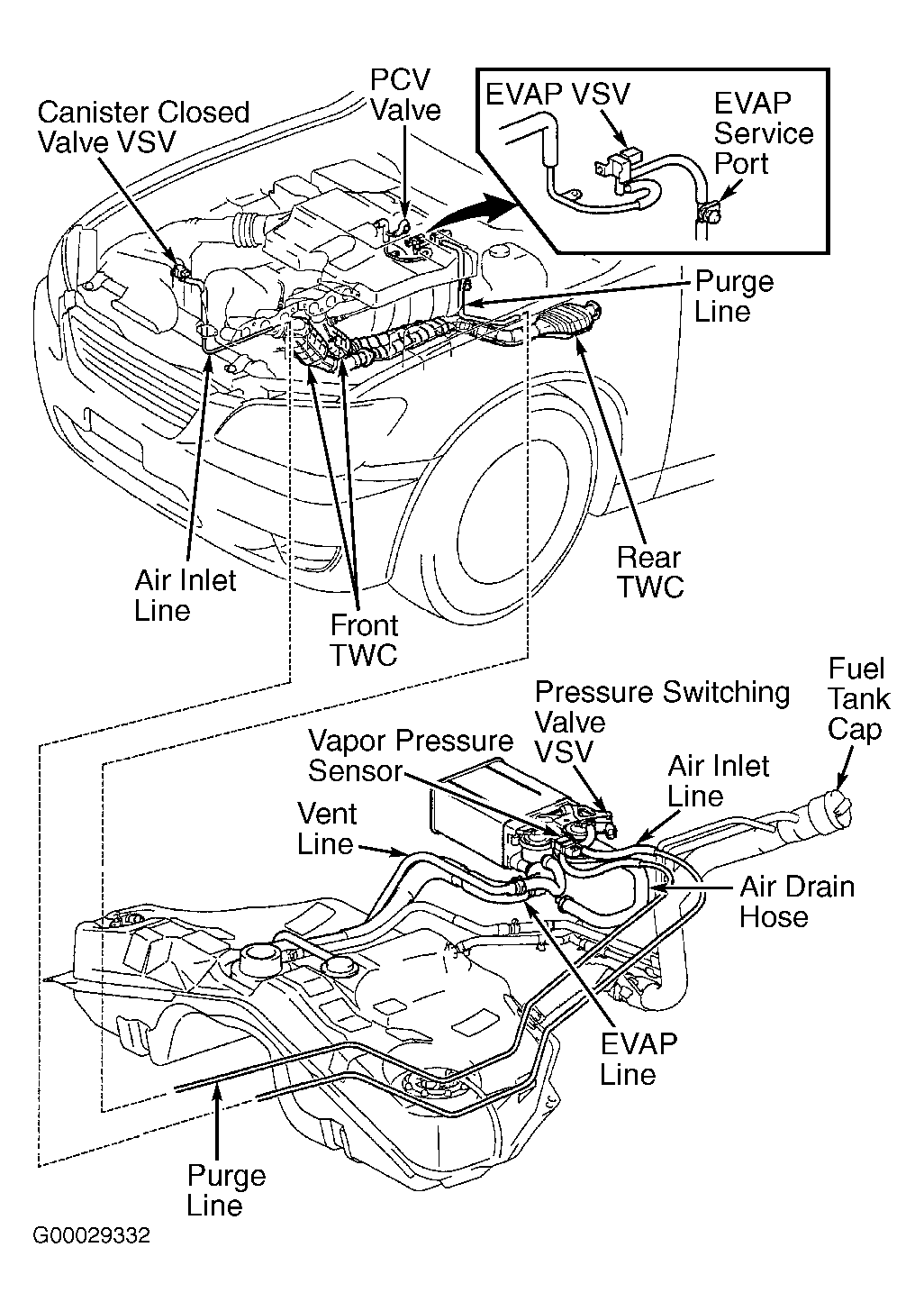

Fig 14: Vacuum Diagram (IS300 - 1 Of 3)

G00029332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Vacuum Diagram (IS300 - 2 Of 3)

G00029327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

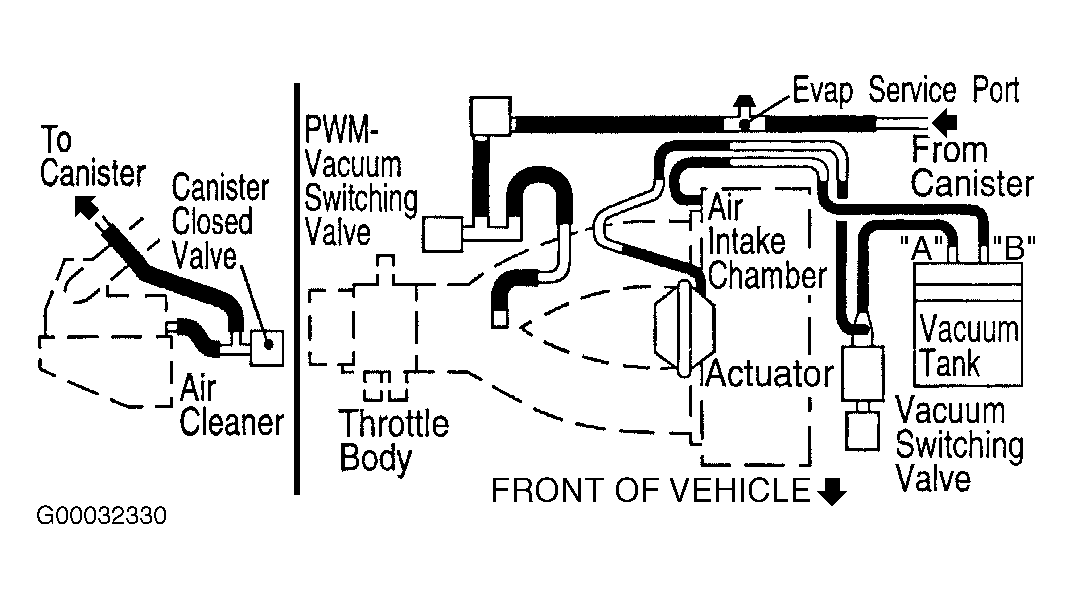

Fig 16: Vacuum Diagram (IS300 - 3 Of 3)

G00032330

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 17: Vacuum Diagram (LX470 - 1 Of 3)

G99G08749

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Vacuum Diagram (LX470 - 2 Of 3)

G99F52725

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

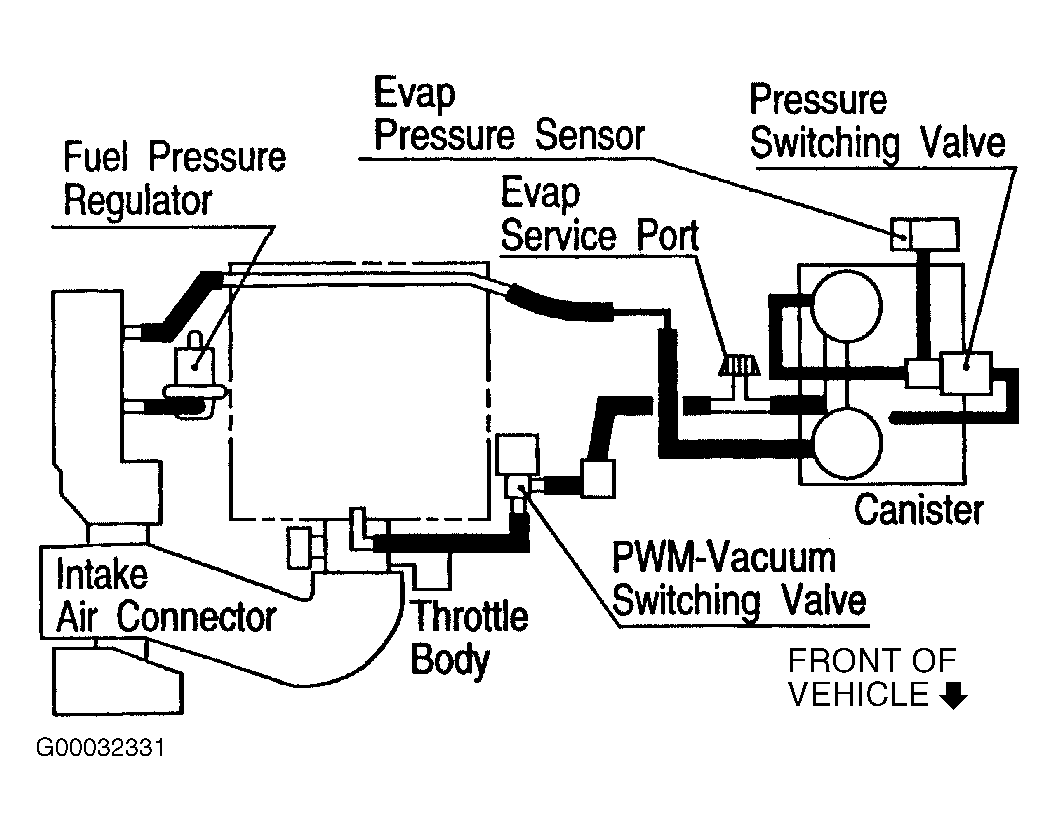

Fig 19: Vacuum Diagram (LX470 - 3 Of 3)

G00032331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: Vacuum Diagram (RX300 - 1 Of 3)

G00010224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 21: Vacuum Diagram (RX300 - 2 Of 3)

G00010223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 22: Vacuum Diagram (RX300 - 3 Of 3)

G00010231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
