Component Locations

COMPONENT LOCATIONS

Component Location
Driver Side Junction Block (Body ECU) (1)
Door Courtesy Switch (1)
Front Door W/ Motor Lock Assembly (1)
Luggage Compartment Door Lock (1)
Power Window Master Switch (1)
Wireless (Door) Control Receiver (1)
(1) See Fig 1.

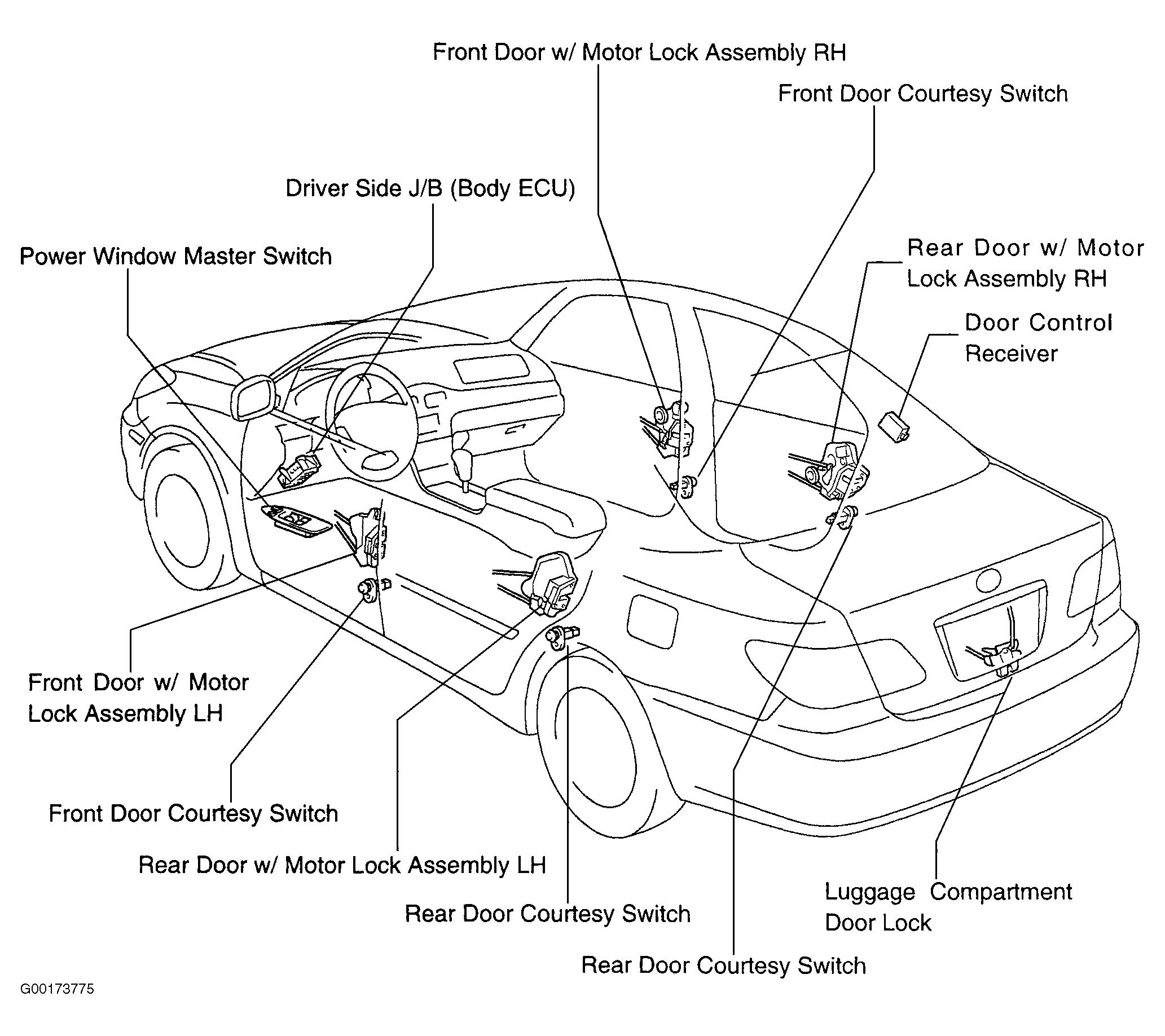

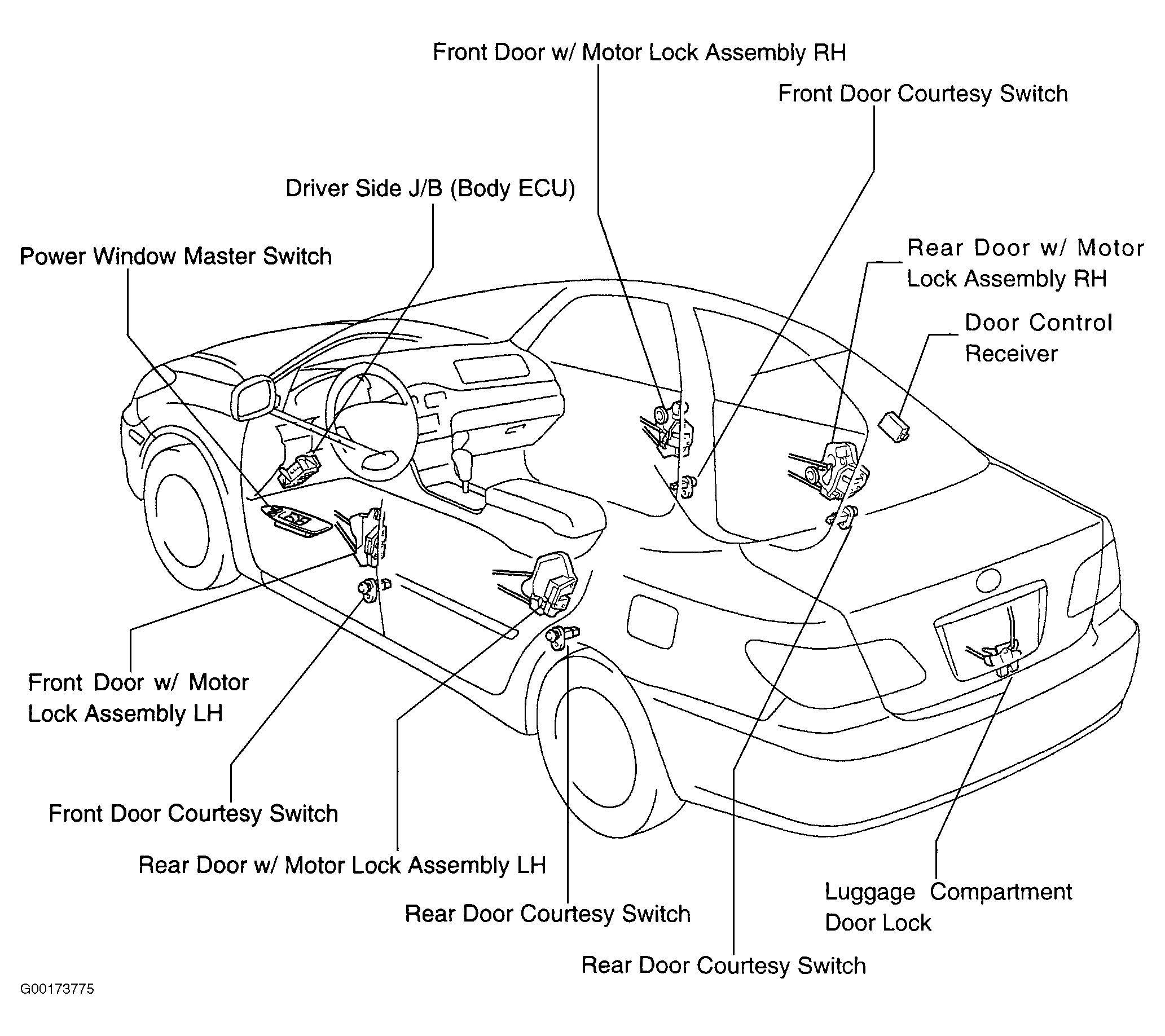

Fig 1: Identifying Remote Keyless Entry Component Locations
G00173775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
