Component Locations

COMPONENT LOCATIONS

Component

Location

Body ECU (Driver Side Junction Block)

⁽¹⁾

DOOR 1 Fuse

⁽²⁾

DOOR 2 Fuse

⁽³⁾

Driver Door ECU (Power Window Regulator Master Switch)

⁽¹⁾⁽⁴⁾

ECU-IG Fuse

⁽³⁾

Window Regulator (Front Door)

⁽⁴⁾

Window Regulator (Rear Door)

⁽⁵⁾

Passenger Door ECU (Power Window Regulator Switch)

⁽¹⁾

Power Window Regulator Motors

⁽¹⁾⁽⁴⁾⁽⁵⁾

Power Window Regulator Switch (Rear Door)

⁽⁵⁾

⁽¹⁾	See Fig 1.

⁽²⁾	Located in the engine room junction block in the left engine compartment.

⁽³⁾	Located in the driver side junction block in the lower finish panel.

⁽⁴⁾	See Fig 2.

⁽⁵⁾	See Fig 3.

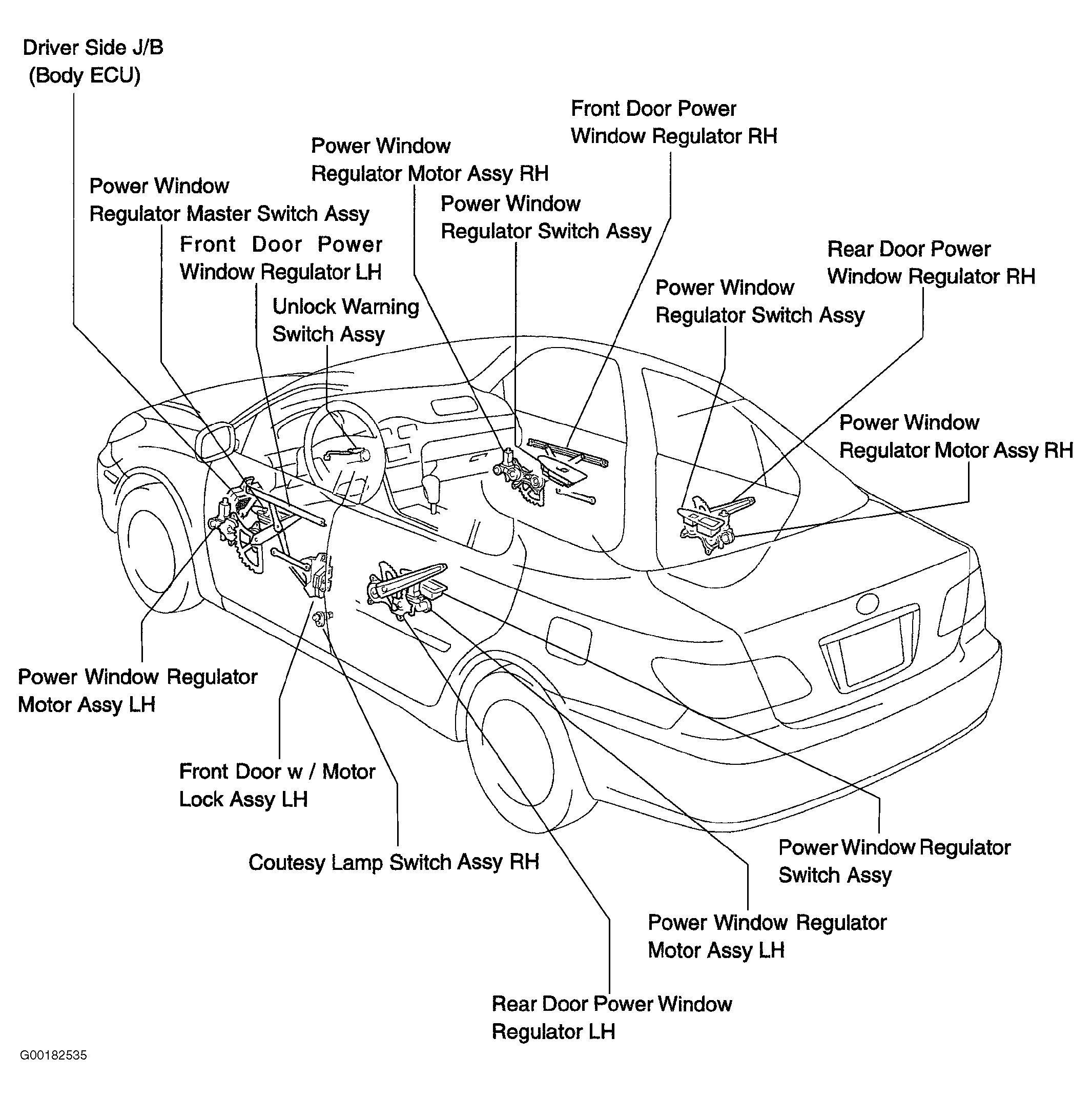

Fig 1: Identifying Power Window Component Locations

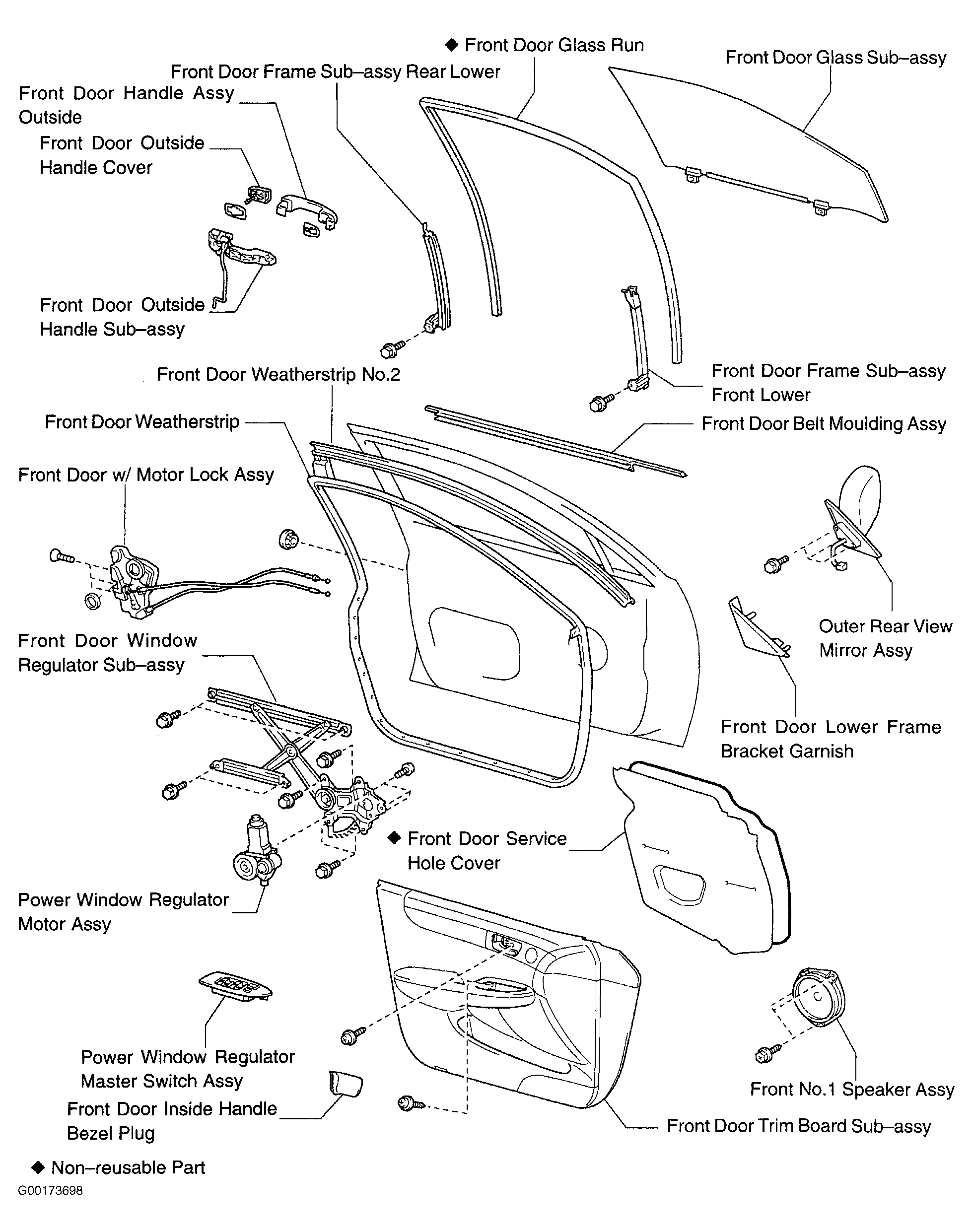

Fig 2: Exploded View Of Front Door Components

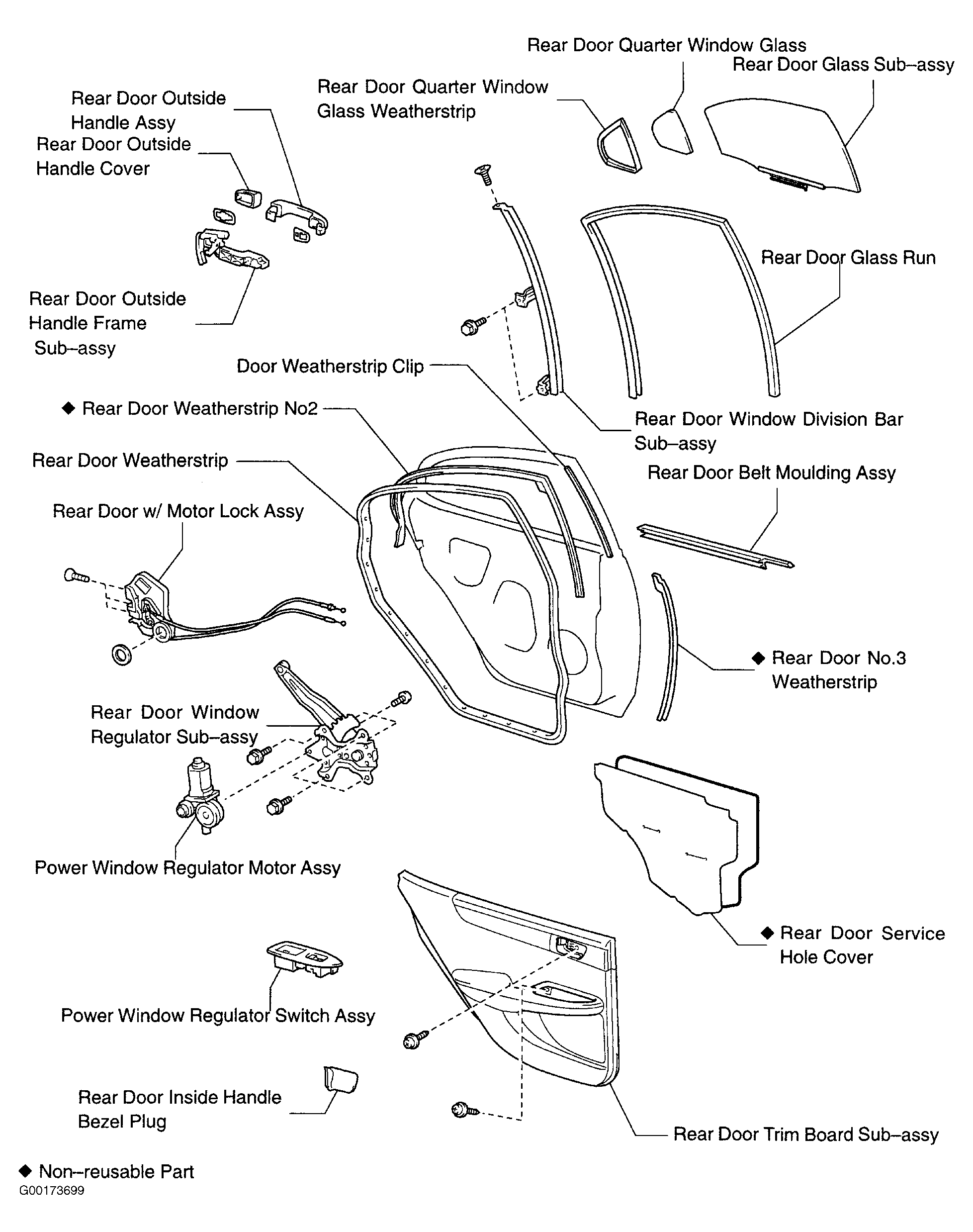

Fig 3: Exploded View Of Rear Door Components
