Connector Identification

For power window connector views, see Fig 1 and Fig 2 .

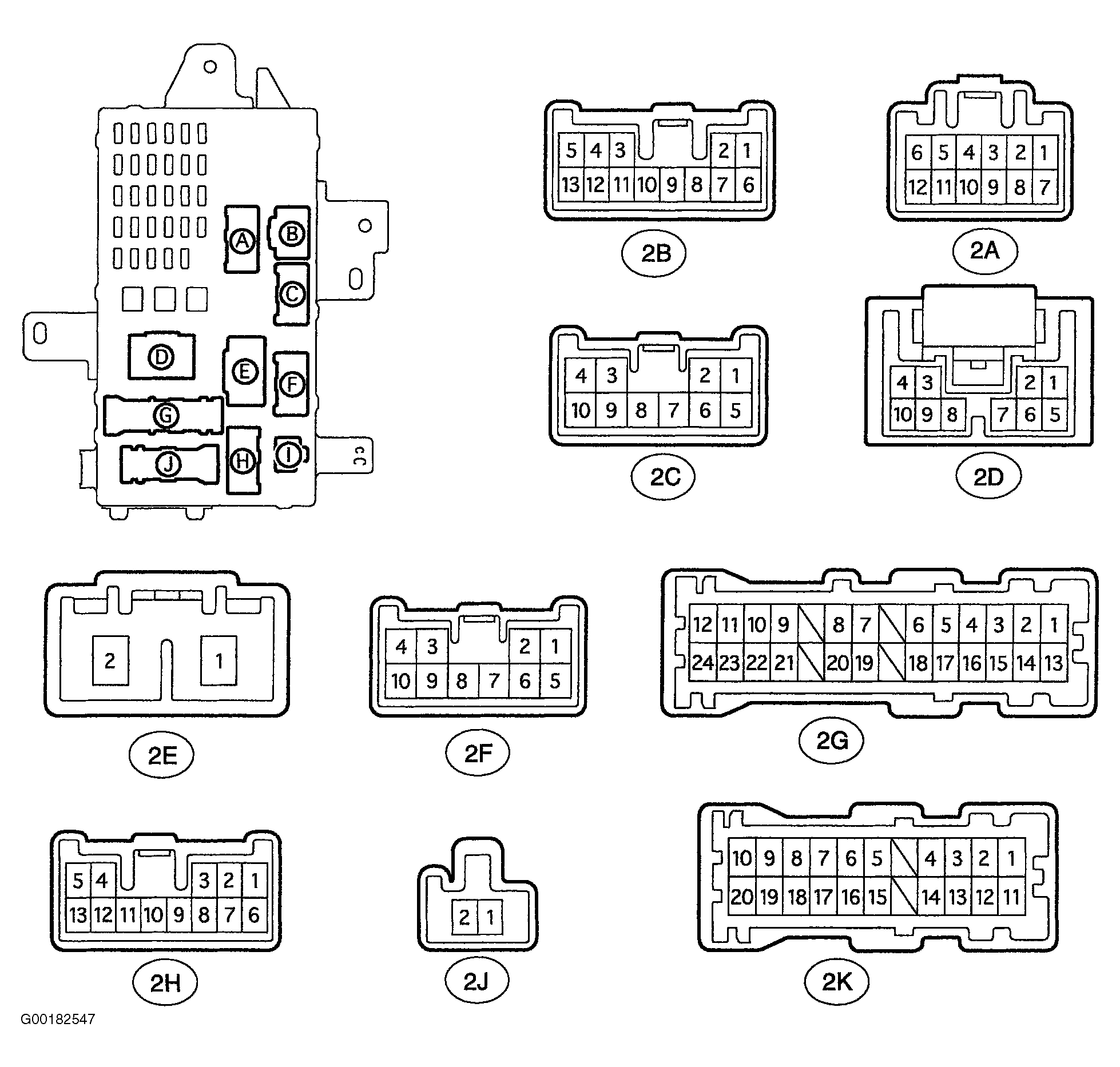

Fig 1: Identifying Driver Side Junction Block Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

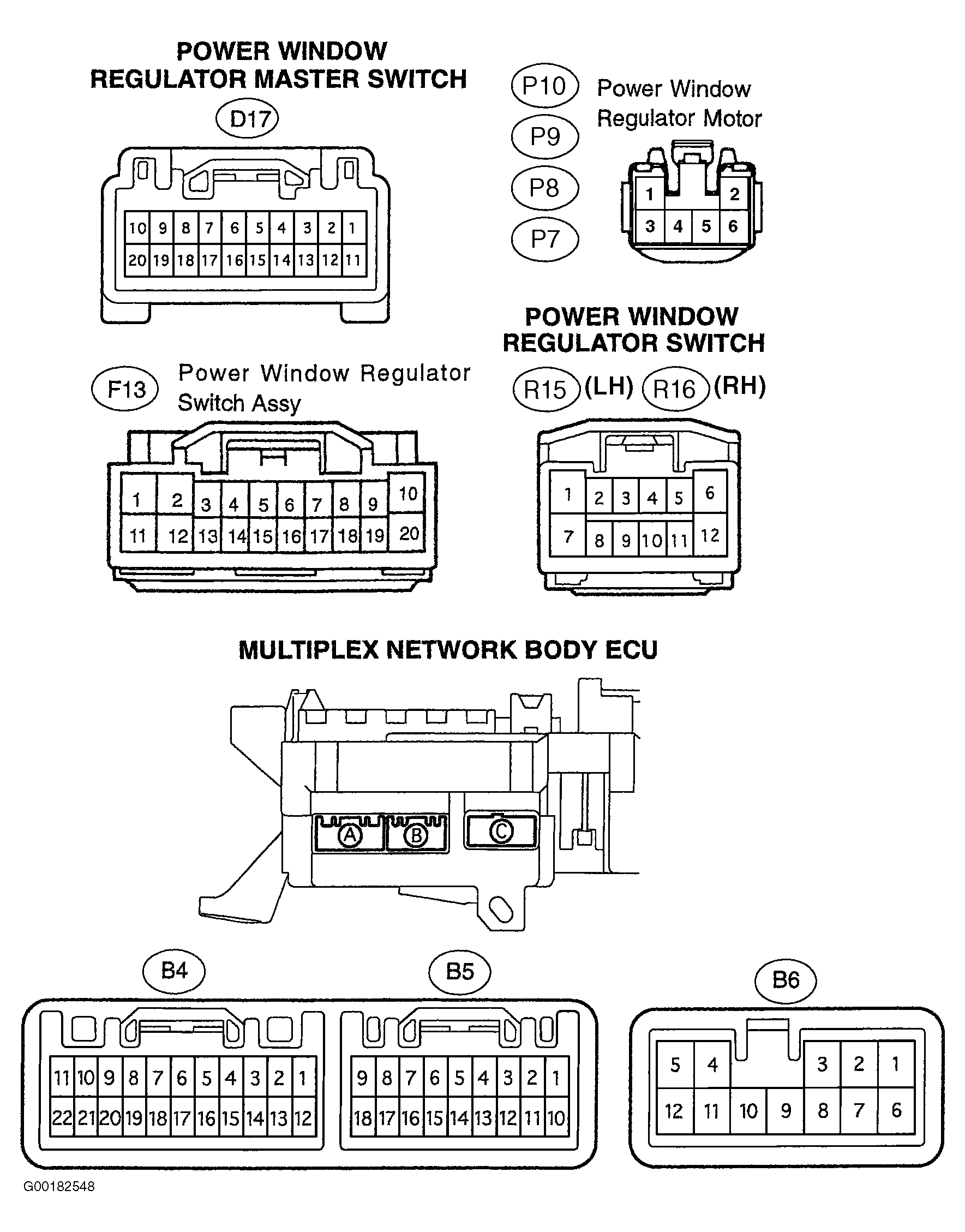

Fig 2: Identifying Power Windows Connectors
