Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

Fig 1: ABS ECU Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

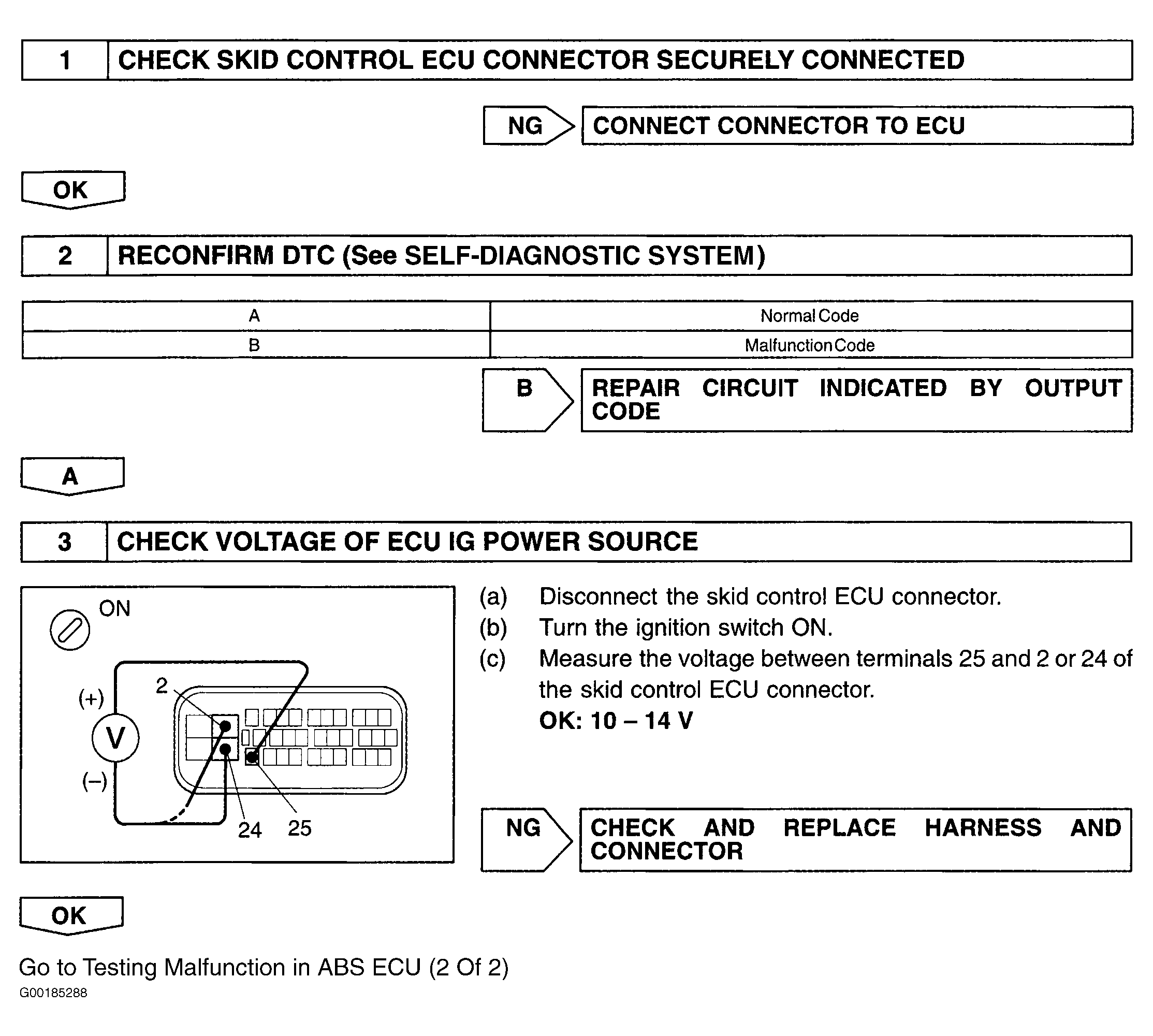

Fig 2: Testing Malfunction In ABS ECU (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

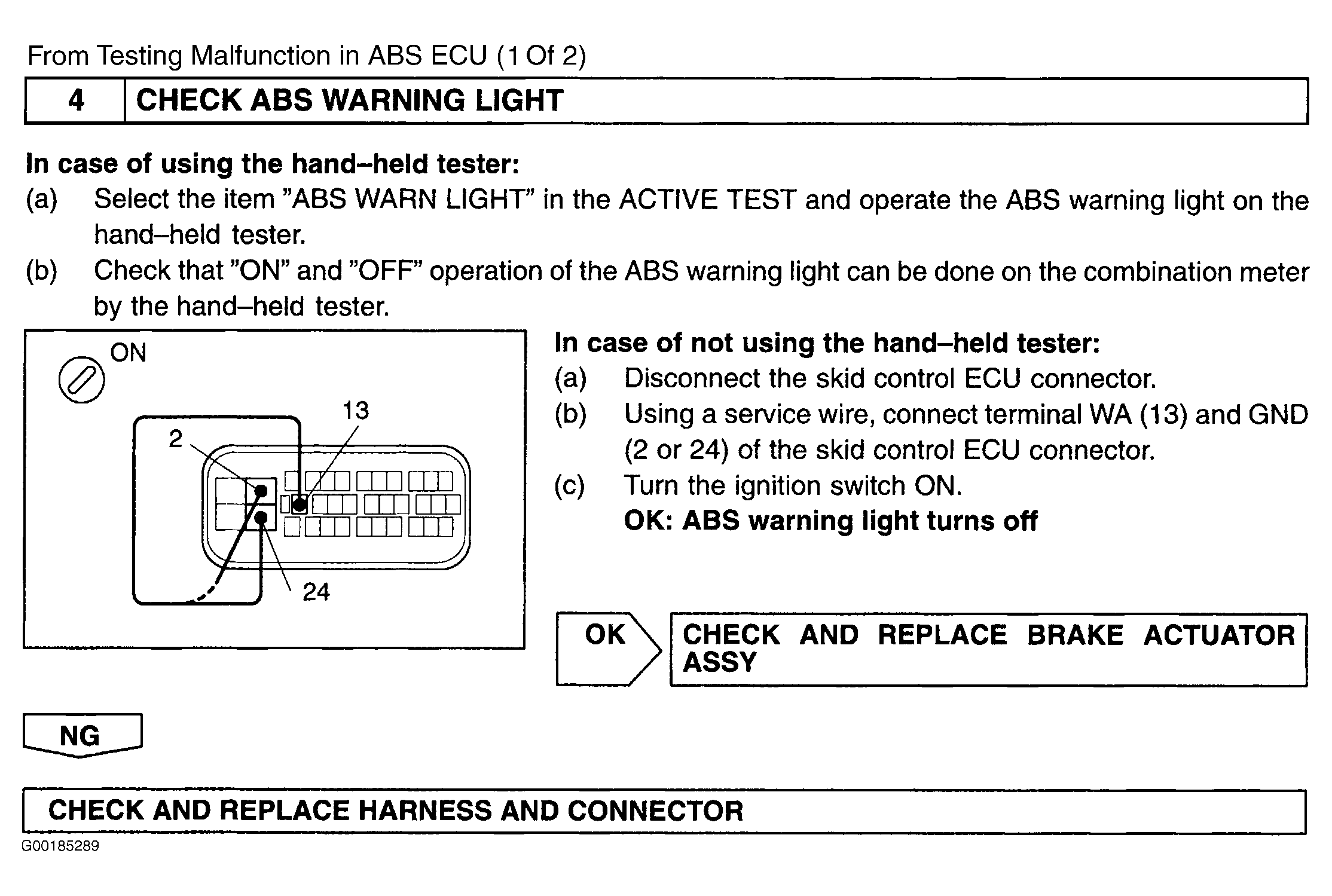

Fig 3: Testing Malfunction In ABS ECU (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
