Fuel Pump ASSY: Components: Notes

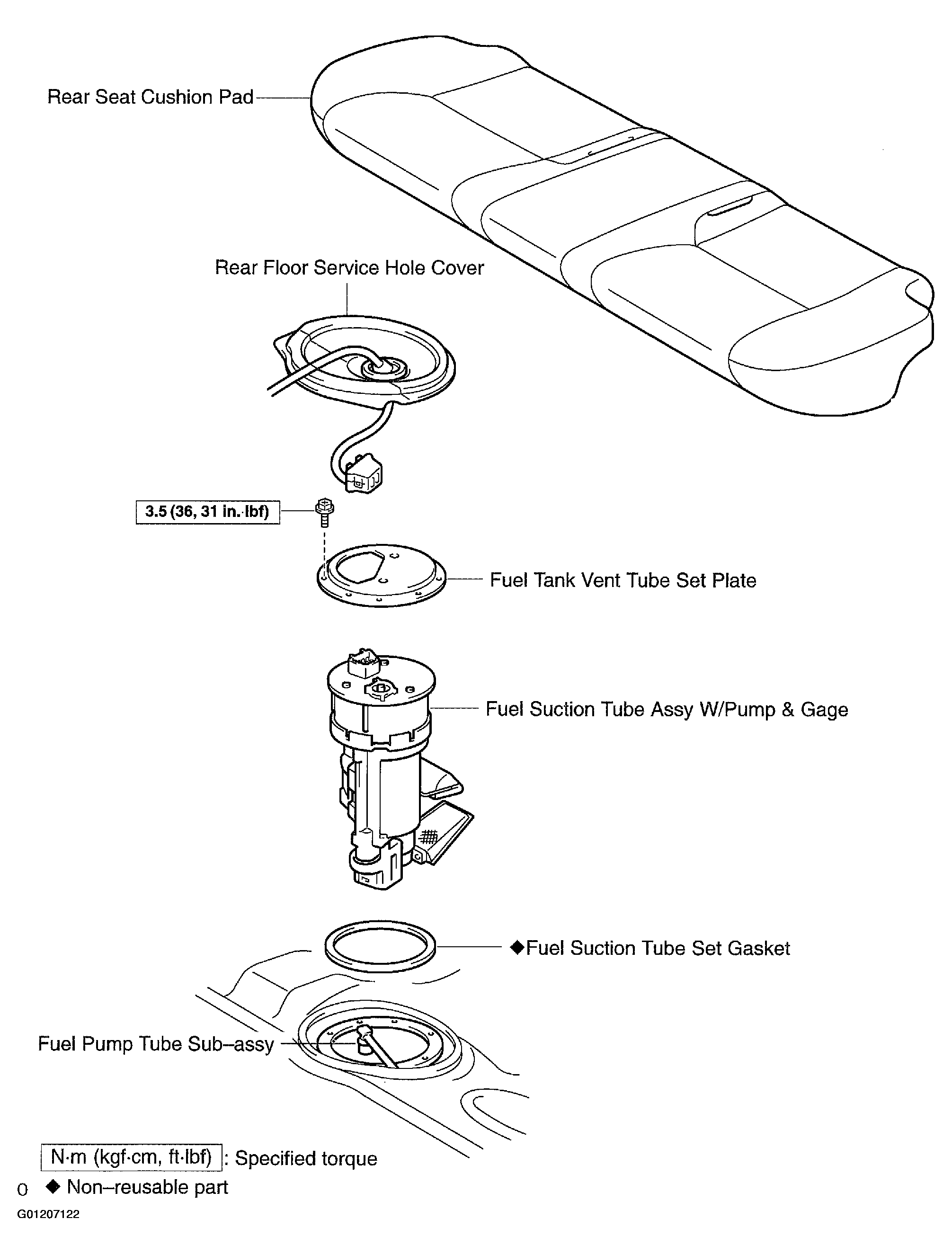

Fig 1: Displaying Fuel Pump Assy Components (1 Of 2)
G01207122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Displaying Fuel Pump Assy Components (2 Of 2)
G01207123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
