Fuel Tank ASSY: Components: Notes

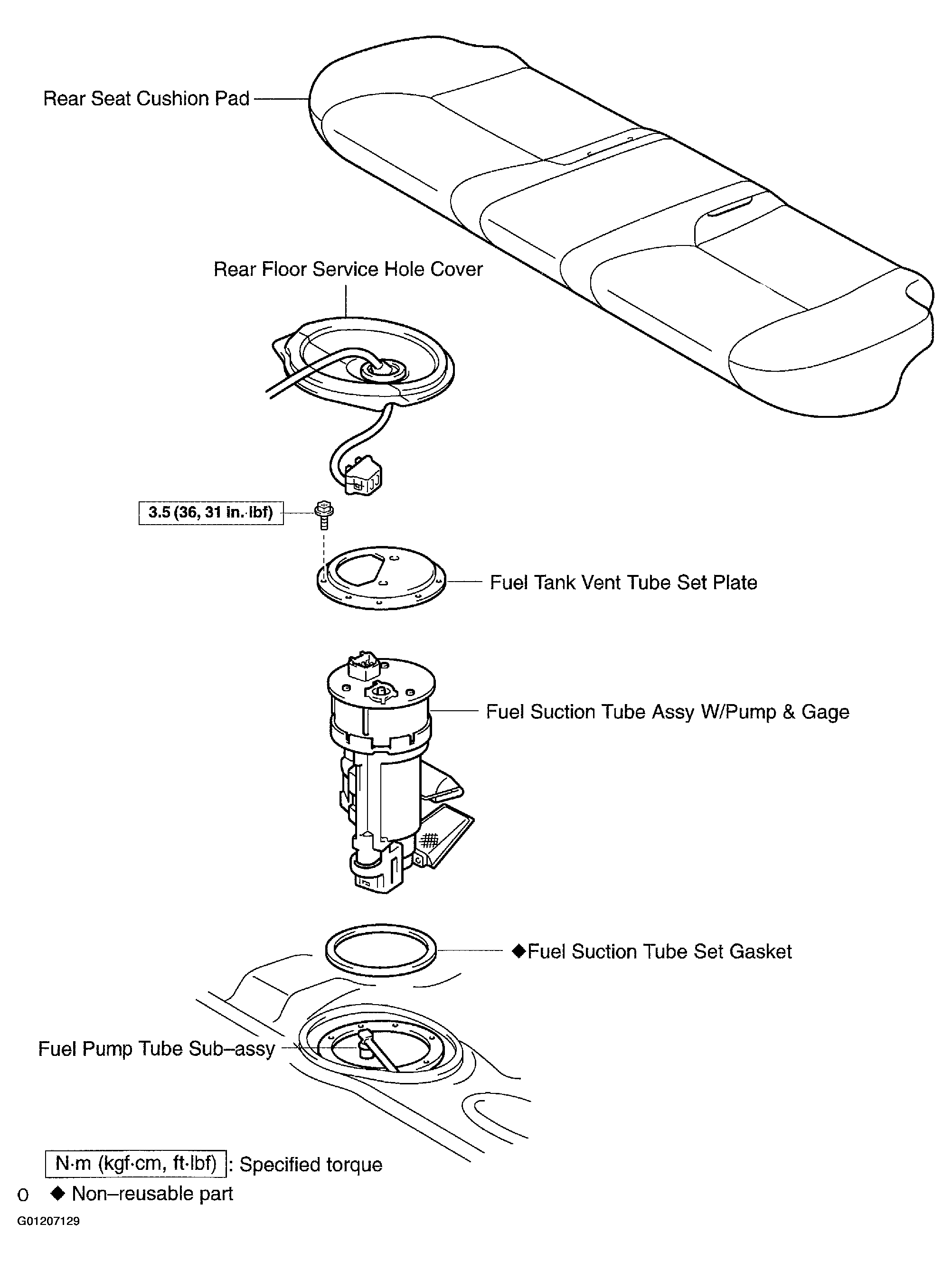

Fig 1: Displaying Fuel Tank Assy (1 Of 3)
G01207129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

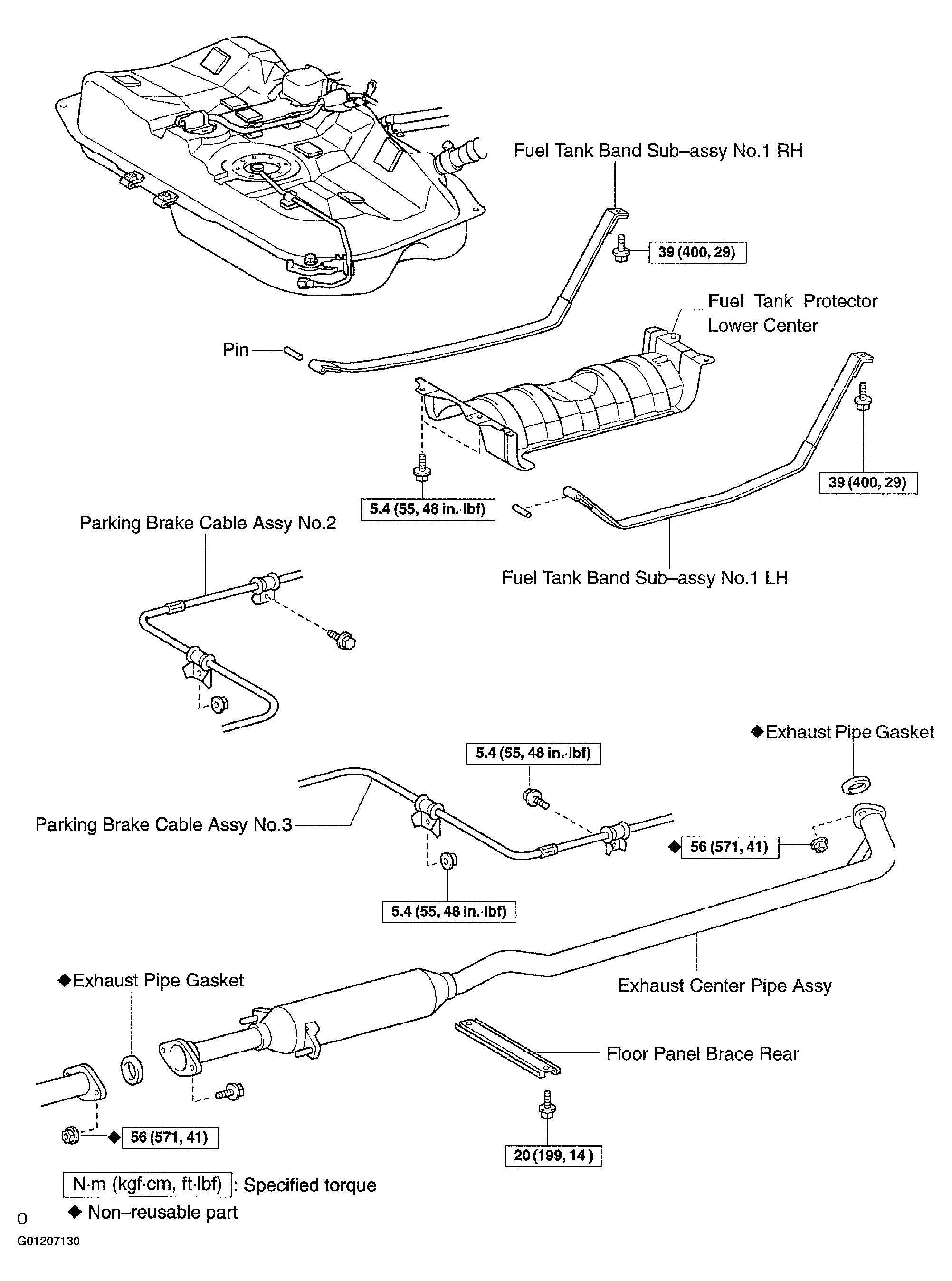

Fig 2: Displaying Fuel Tank Assy (2 Of 3)
G01207130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

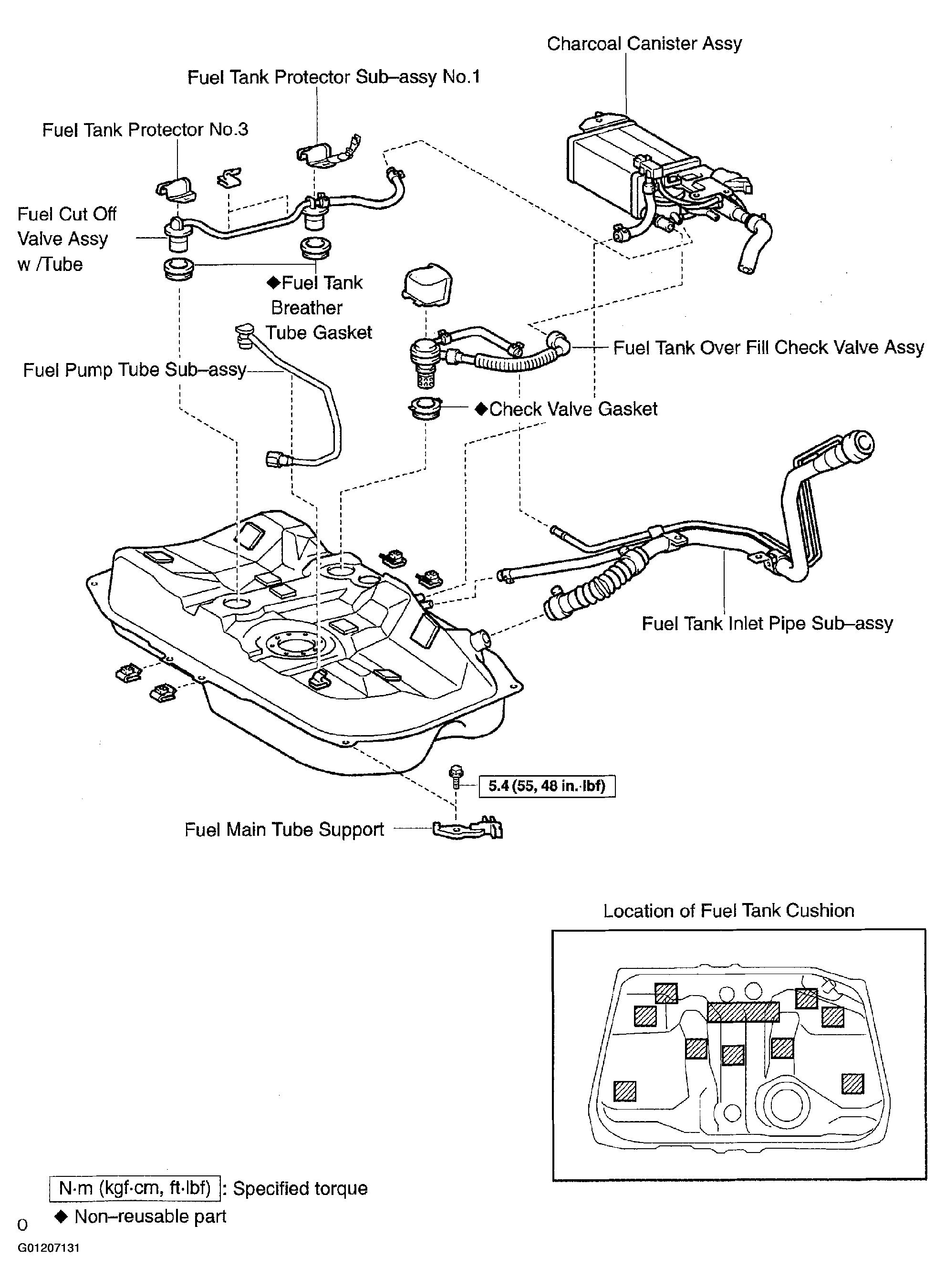

Fig 3: Displaying Fuel Tank Assy (3 Of 3)
G01207131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
