Intake Air Control Valve Assembly: Replacement

Drain coolant. See REPLACEMENT .
Remove air cleaner cap with air cleaner hose. See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY .
Remove front suspension upper brace center (w/front suspension brace upper center).
Remove throttle body assembly. See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY .
Remove intake air control valve assembly.

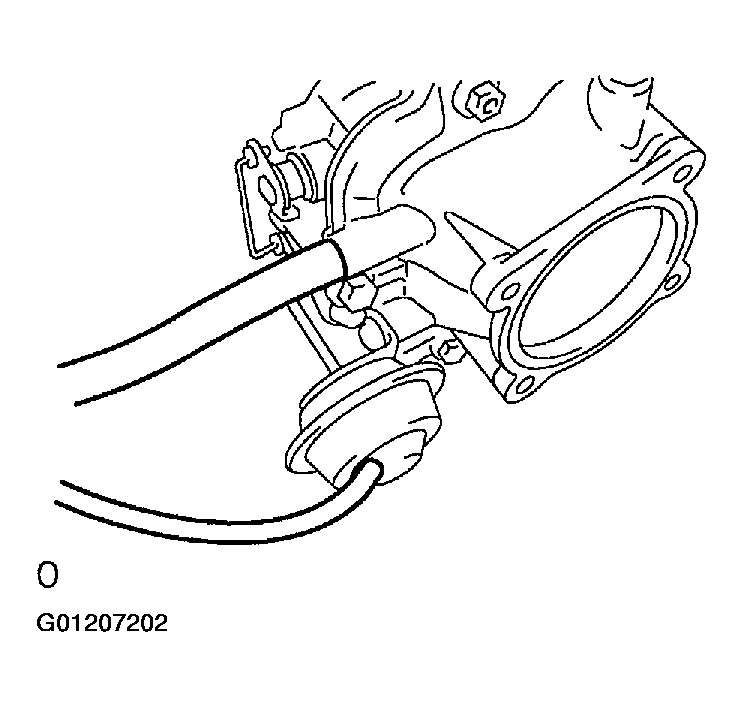

1. Disconnect the vacuum hoses.

  Fig 1: Disconnecting Vacuum Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

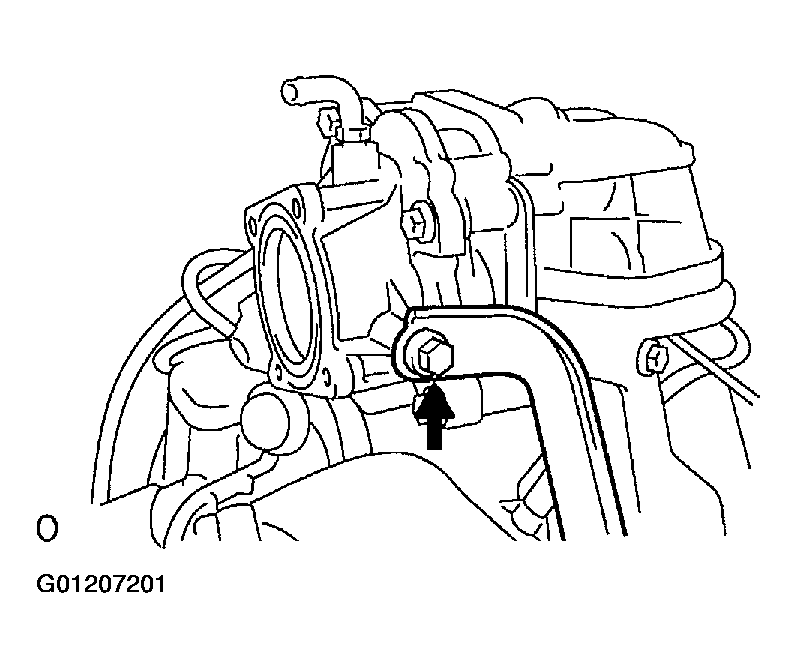

2. Remove the bolt shown in the illustration. See Fig 2.

  Fig 2: Locating Intake Air Control Valve bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

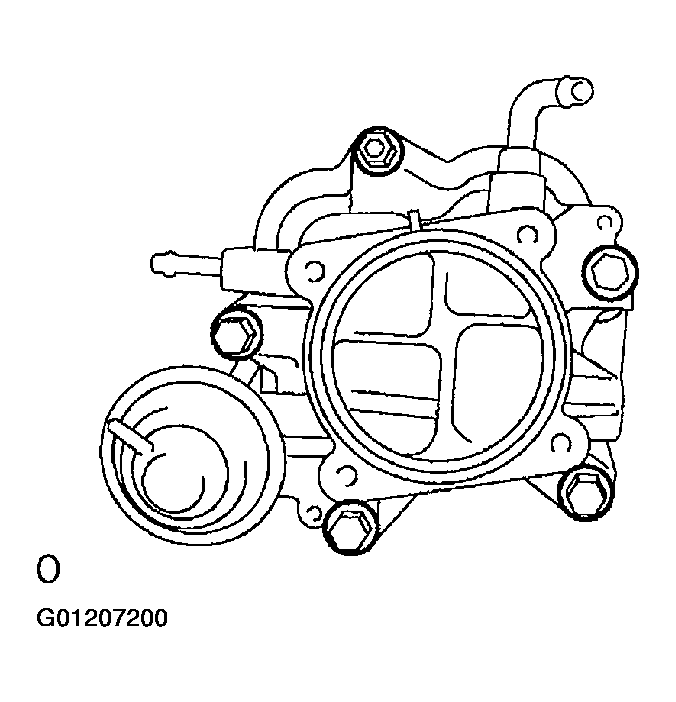

3. Remove the 4 bolts and the nut.
4. Remove the intake air control valve.
Fig 3: Locating Bolts For Removal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install intake air control valve assembly.
1. Install a new gasket and the intake air control valve assembly.
  Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

  Fig 4: Installing Air Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

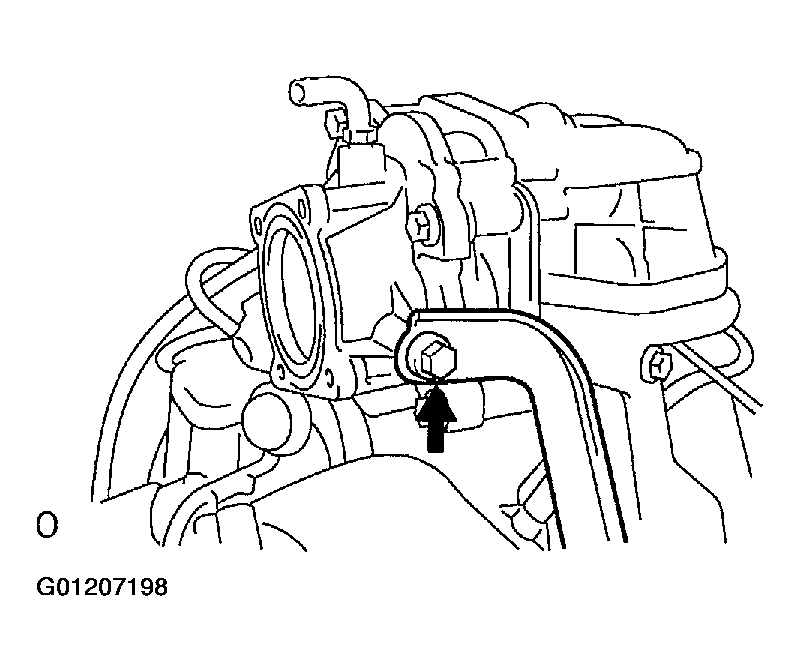

2. Install the bolt shown in the illustration.
  Torque: 20 N.m (199 kgf.cm, 14 ft.lbf)

  Fig 5: Installing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

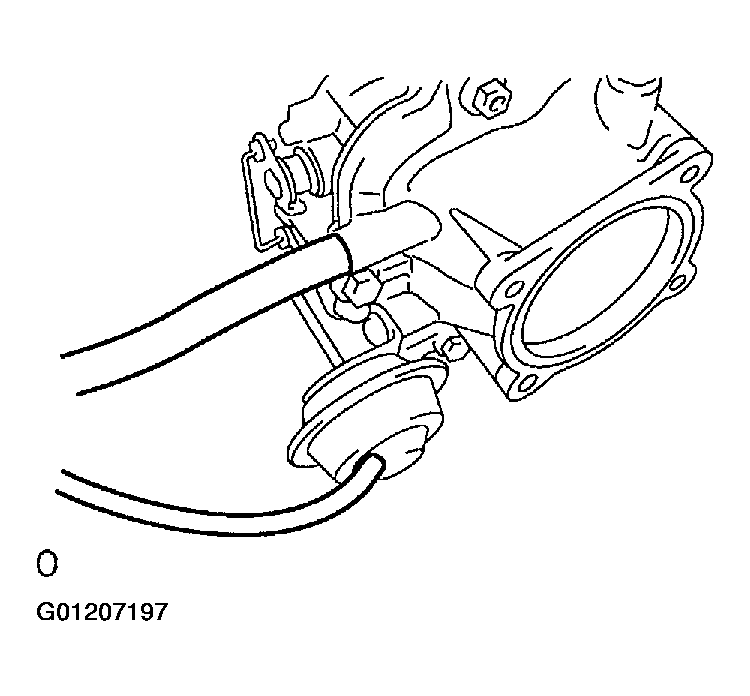

3. Connect the vacuum hoses.
Fig 6: Connecting Vacuum Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install throttle body assembly. See REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY .
Install front suspension upper brace center (w/ front suspension brace upper center)
Torque: 80 N.m (816 kgf.cm, 59 ft.lbf)
Add coolant. See REPLACEMENT .
Check engine coolant leak. See REPLACEMENT .
Inspect function of throttle body assembly. See SFI SYSTEM .
