Vane Pump Assembly: Components

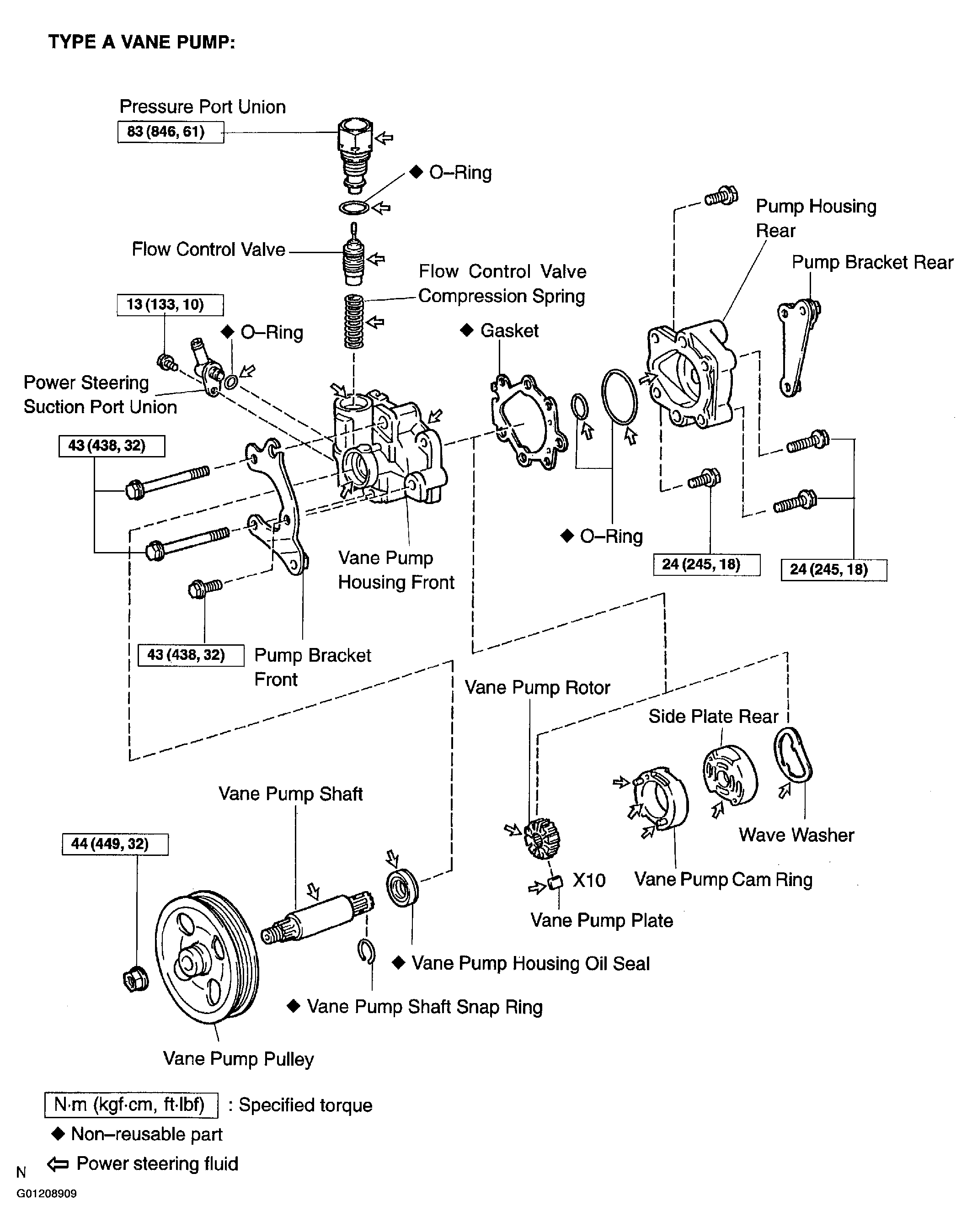

Fig 1: Displaying Type "A" Vane Pump Assembly Components
G01208909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

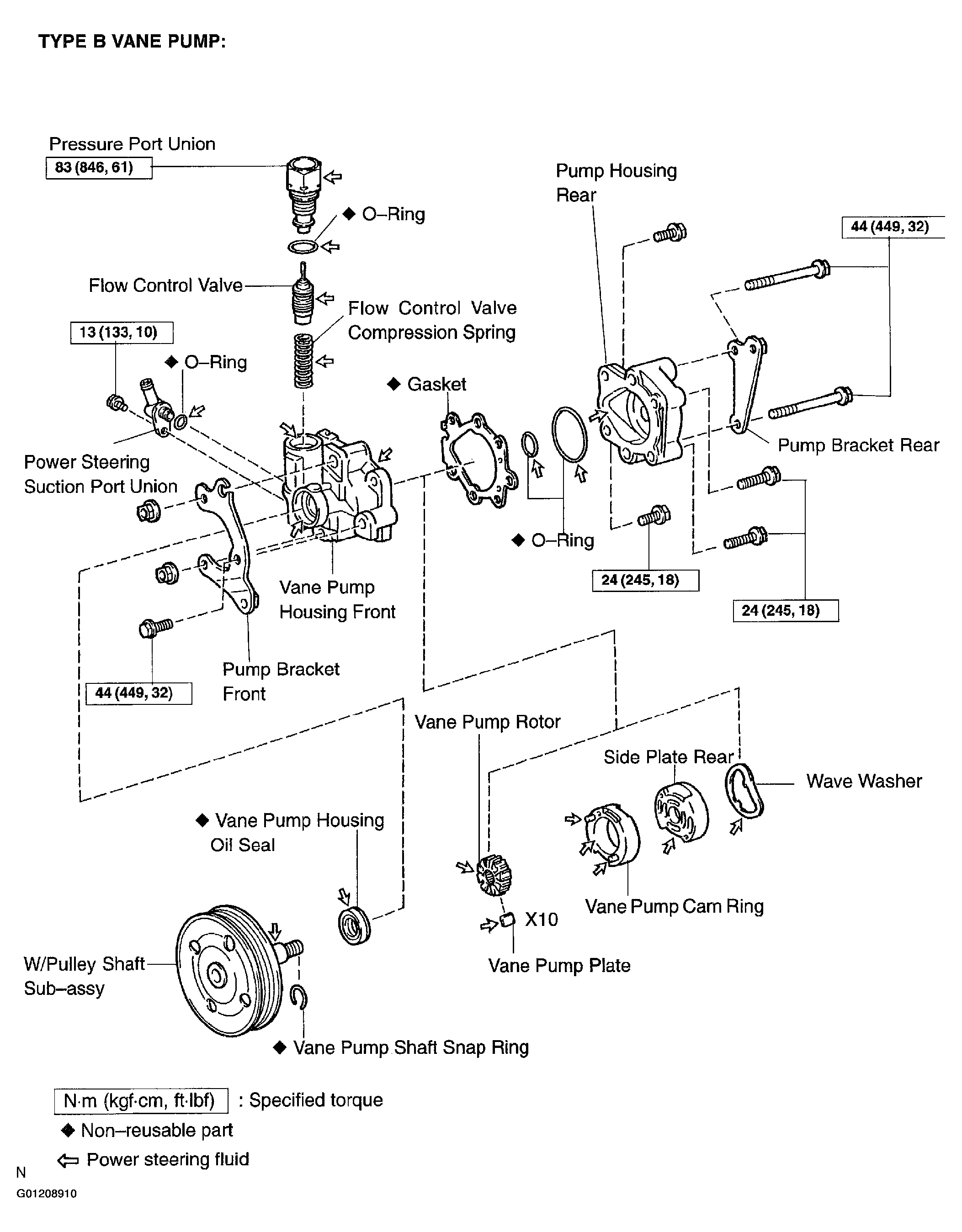

Fig 2: Displaying Type "B" Vane Pump Assembly Components
G01208910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
