Steering Column Assembly: Components

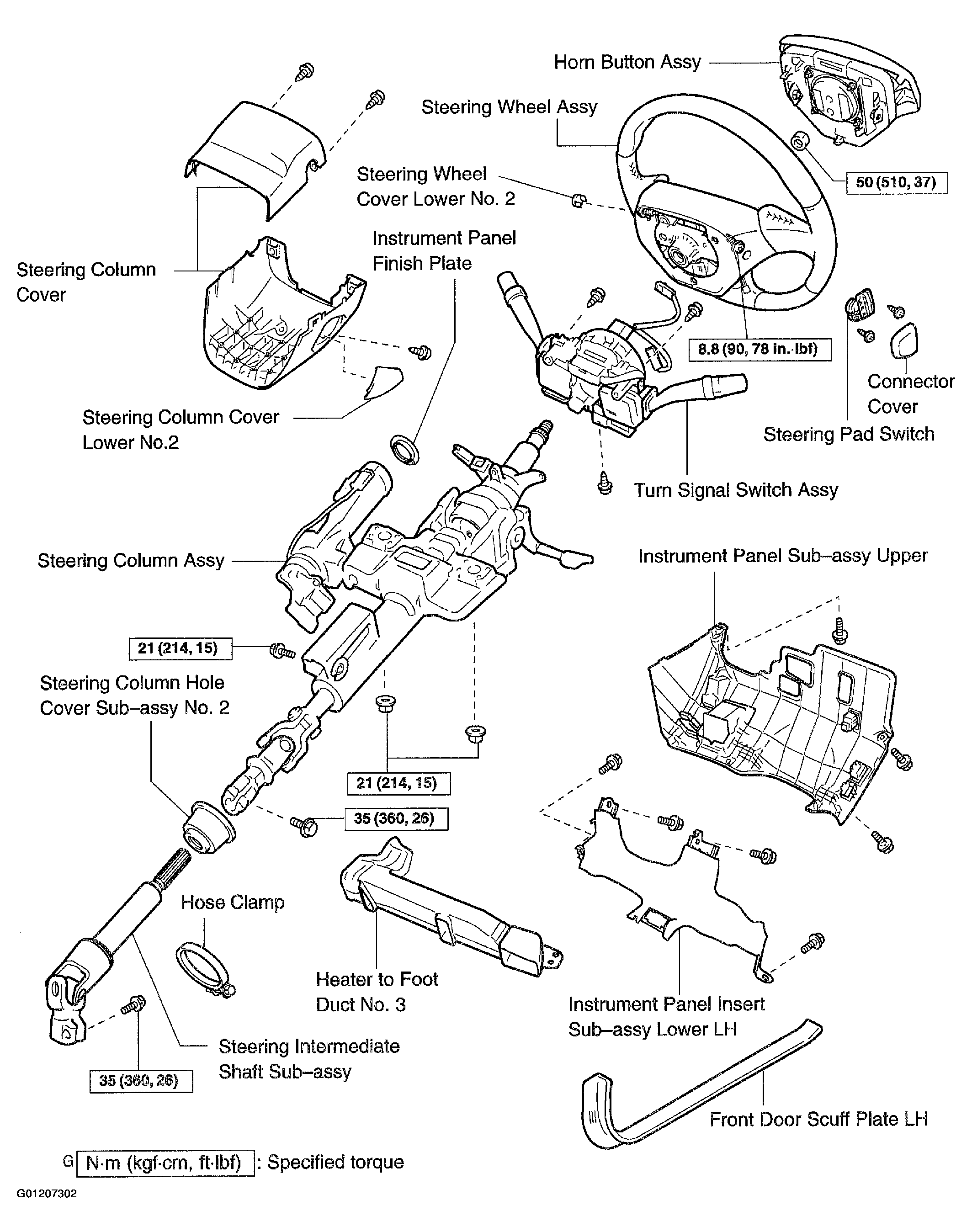

Fig 1: Displaying Steering Column Assembly Components (1 Of 2)
G01207302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

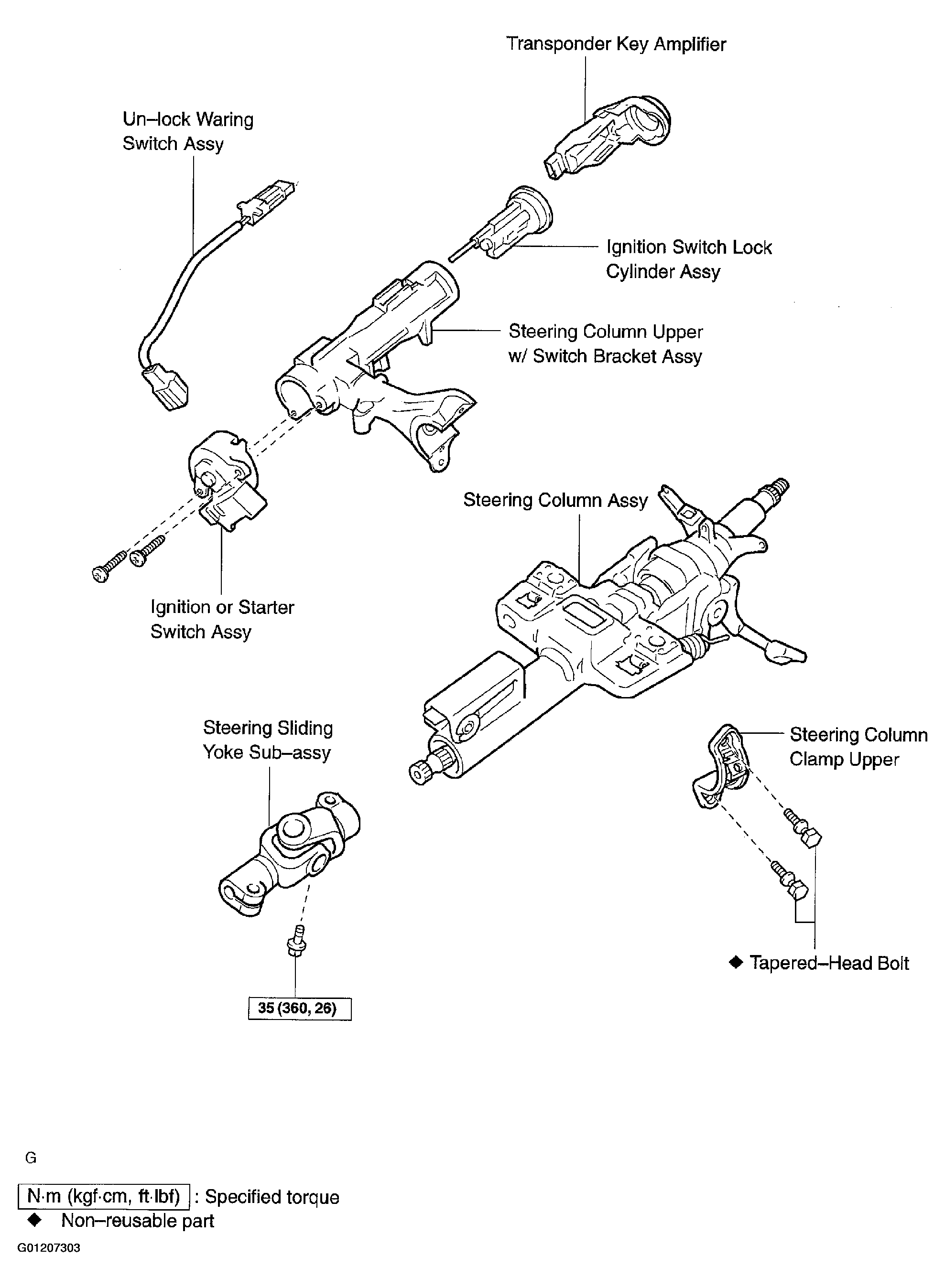

Fig 2: Displaying Steering Column Assembly Components (2 Of 2)
G01207303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
