Steering System: Repair

  1. Steering off center repair procedure
    1. Inspect steering wheel off center.
      1. Apply masking tape on the top center of the steering wheel and steering column upper cover.
      2. Drive the vehicle in a straight line for 100 meters at a constant speed of 35 MPH (56 km/h), and hold the steering wheel to maintain the course.

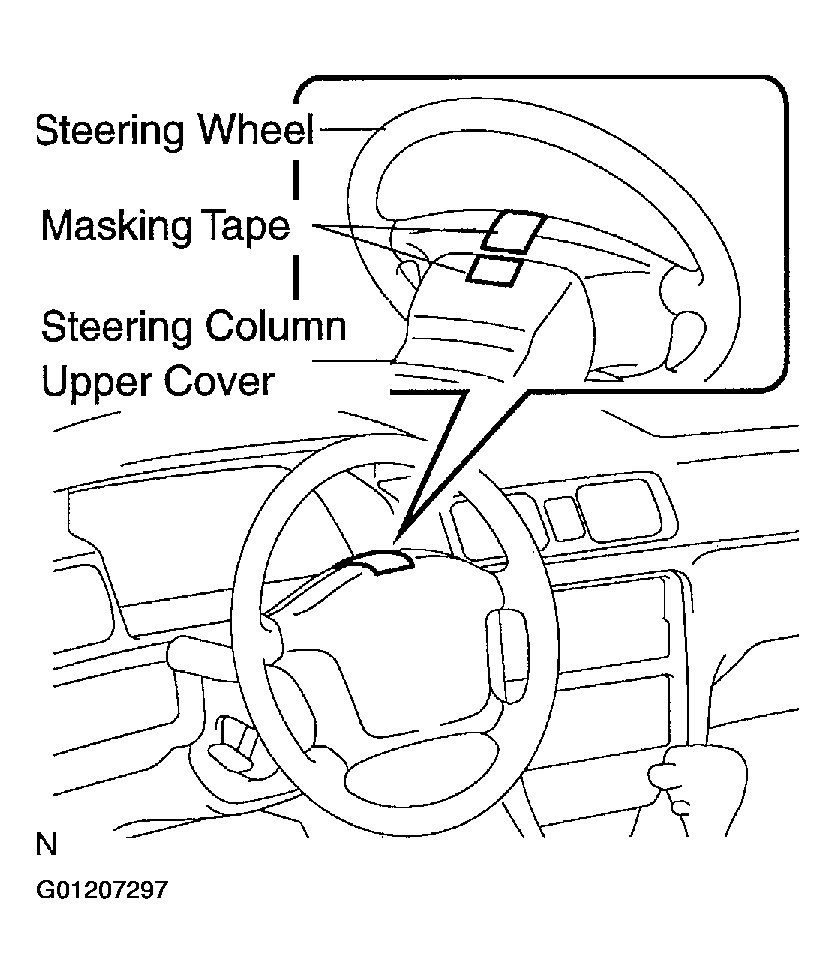

        Fig 1: Displaying Steering Off Center Repair Procedure
        G01207297Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Draw a line on the masking tape as shown in the illustration. See Fig 2.

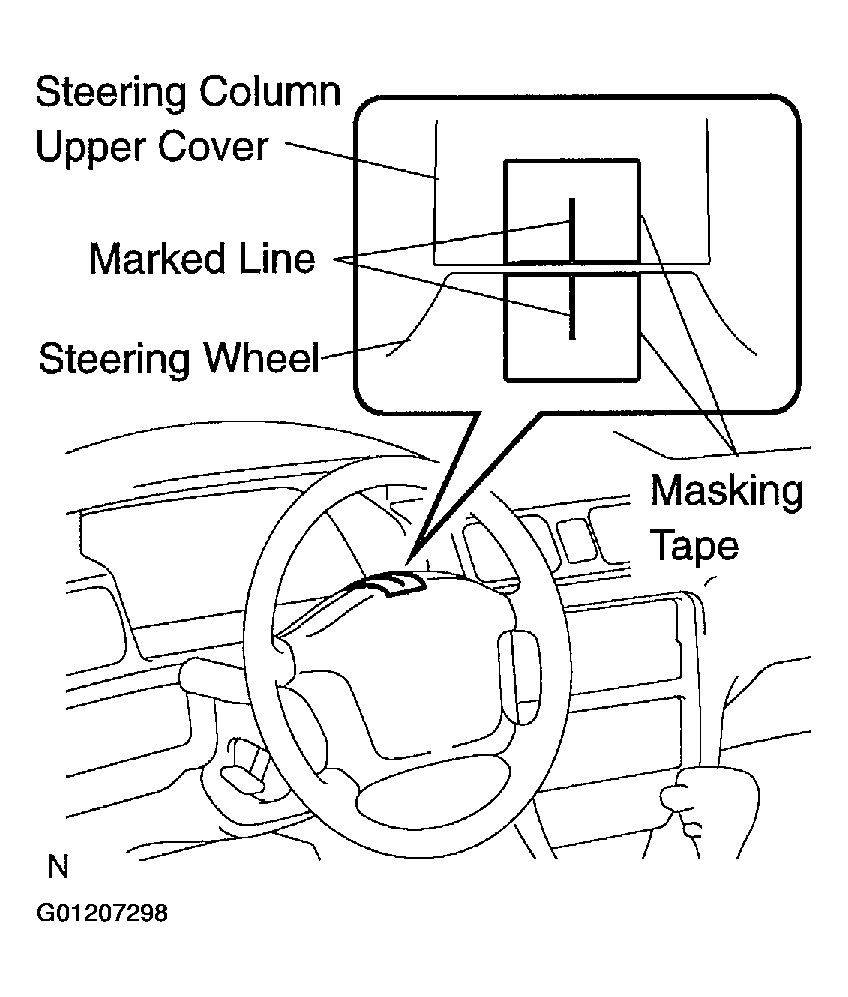

        Fig 2: Displaying Marked Line For Alignment
        G01207298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Turn the steering wheel to its straight position.
        NOTE: Refer to the upper surface of the steering wheel, steering spoke and SRS airbag line for the straight position.
      5. Draw a new line on the masking tape or the steering wheel as shown in the illustration. See Fig 3.

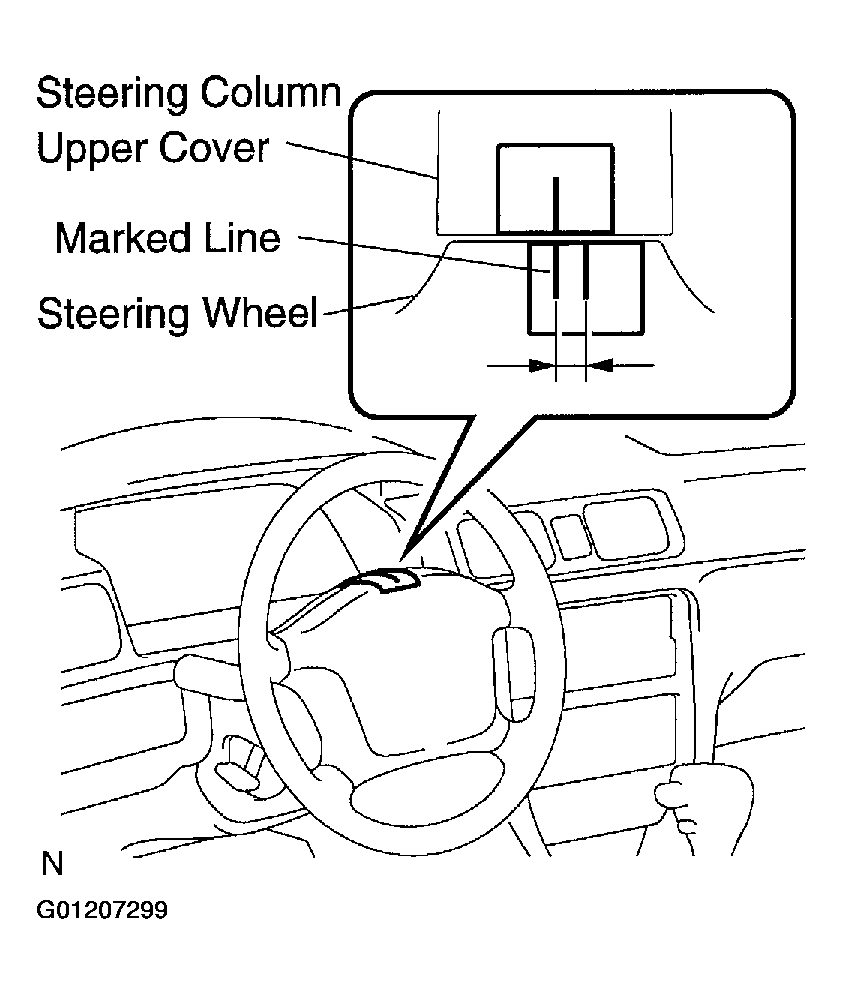

        Fig 3: Marking Steering Angle
        G01207299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Measure the distance between the 2 lines on the masking tape of the steering wheel.
      7. Convert the measured distance to steering angle.

        Measured distance One mm (0.04 in.) = Steering angle approximately One degree.

      NOTE: Make a note of the steering angle.
    2. Adjust steering angle.
      1. Draw a line on the RH and LH tie rod and rack ends where it can easily be seen.

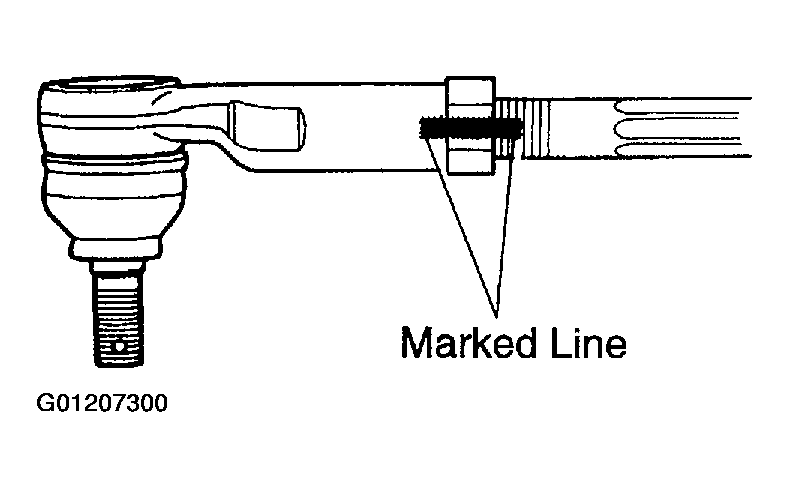

        Fig 4: Displaying Line Marking
        G01207300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Using a paper gauge, measure the distance from RH and LH tie rod ends to the rack end screws.
        NOTE:
        • Measure the RH side and LH side.
        • Make a note of the measured values.
      3. Remove the RH and LH boot clips from the rack boots.

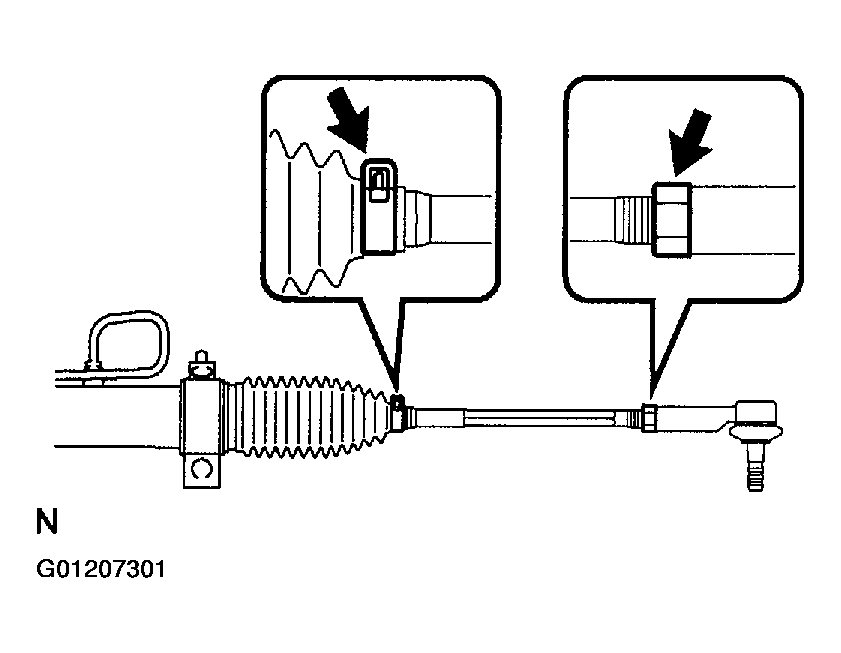

        Fig 5: Removing RH & LH Clips Form Rack Boots
        G01207301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Loosen the RH and LH lock nuts.
      5. Turn the RH and LH rack end by the same amount (but in different directions) according to the steering angle.

        One turn 360 deg. of rack end (1.5 mm (0.059 in.) horizontal movement) - 12 degrees of steering angle.

      6. Tighten the RH and LH lock nuts.

        Torque:  74 N.m (755 kgf.cm, 55 ft.lbf)

        NOTE: Make sure that the difference in length between RH and LH tie rod ends and rack end screws are within 1.5 mm (0.059 in.).
      7. Install the RH and LH boot clips.
