Rear Wheel Alignment: Adjustment

INSPECT TIRE
MEASURE VEHICLE HEIGHT (See step 2 in ADJUSTMENT)
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
INSPECT TOE-IN
Toe-in:

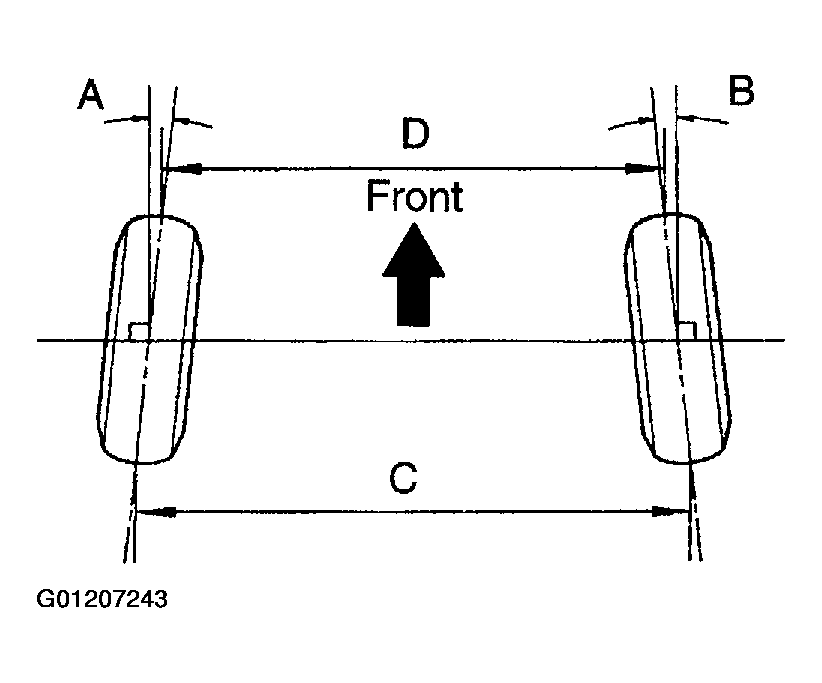

Fig 1: Measuring Toe-In - Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

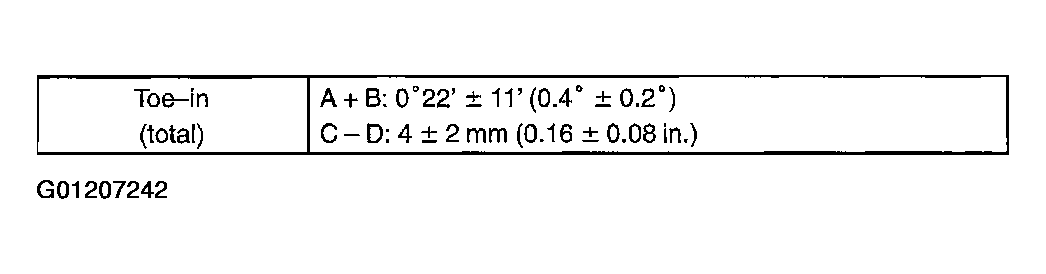

Fig 2: Toe-In Specifications - Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified value, inspect and replace the suspension parts if necessary.
ADJUST TOE-IN
1. Measure the lengths of the right and left No. 2 lower suspension arms.
  No. 2 lower suspension arm length difference: 1.0 mm (0.04 in.) or less

  If the left-right difference is larger than 1.0 mm (0.04 in.), adjust it by following the procedures below.

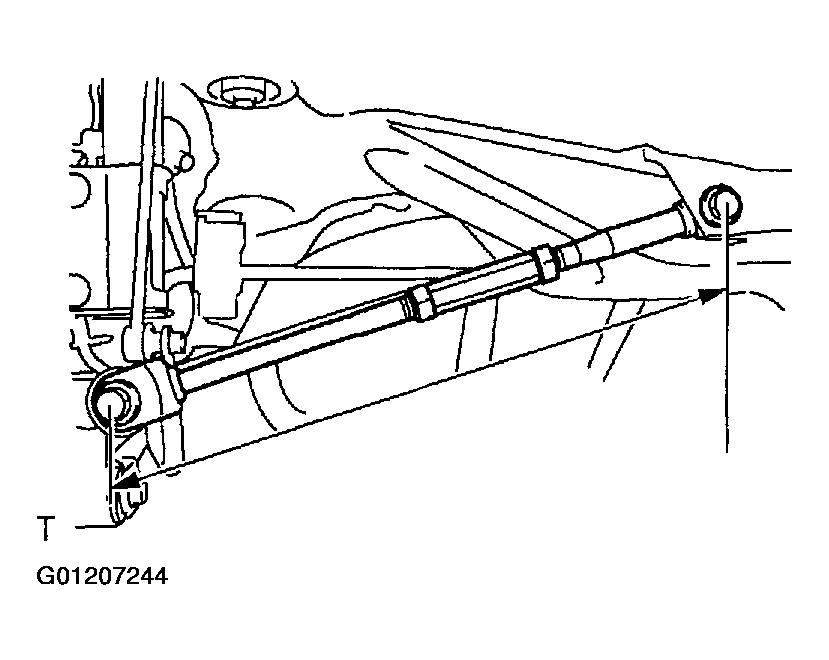

  Fig 3: Measuring Lower Suspension Arms
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Loosen the lock nuts.
3. Turn the right and left adjusting tube by an equal amount to adjust toe-in.

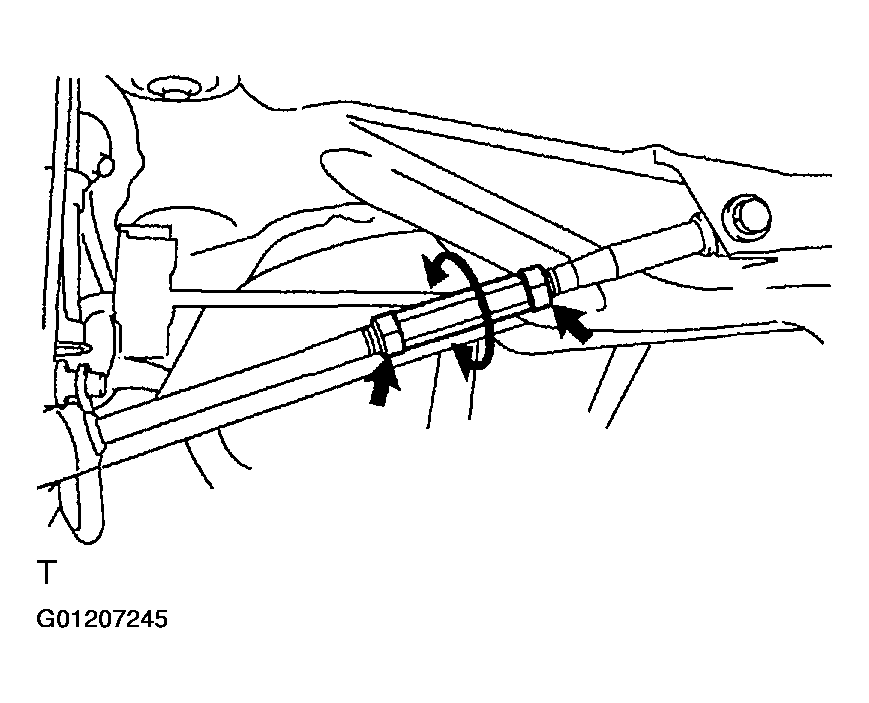

  Fig 4: Adjusting Toe-In By Turning Adjusting Tubes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Try to adjust the toe-in to the center value.
  - One turn of the each adjusting tube will adjust the toe-in by approximately 67' (1°12', 10.8 mm, 0.425 in.).
4. Torque the lock nut.
  Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)
INSPECT CAMBER

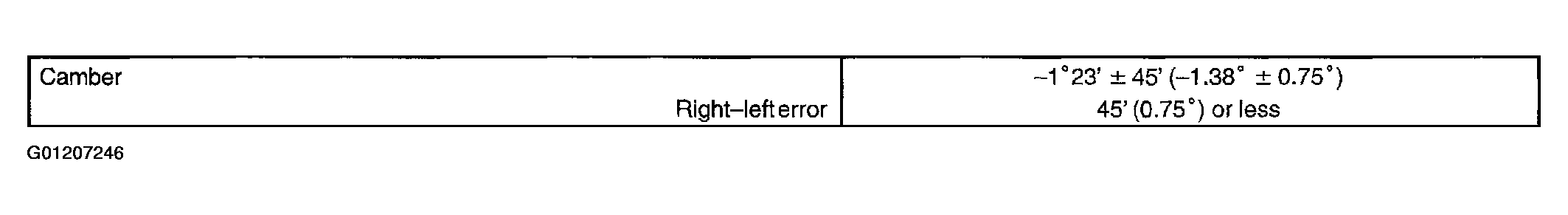

Fig 5: Camber Specifications - Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Camber is not adjustable. If the measurement is not within the specification, inspect the suspension parts for damaged and/or worn-out parts and replace them if necessary.
