Connector Identification

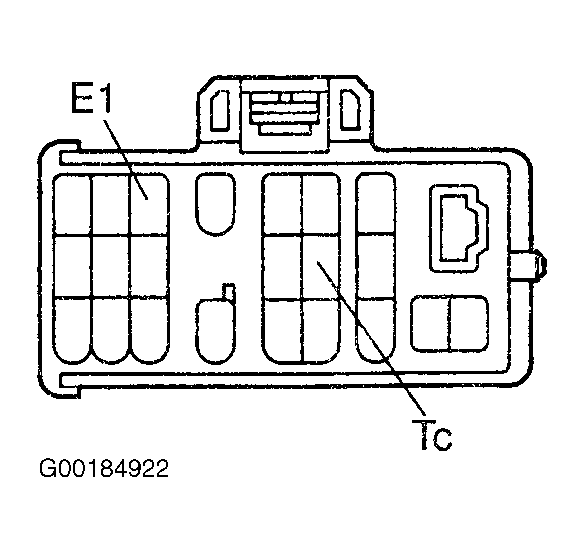

Fig 1: Identifying DLC1 Terminals
G00184922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

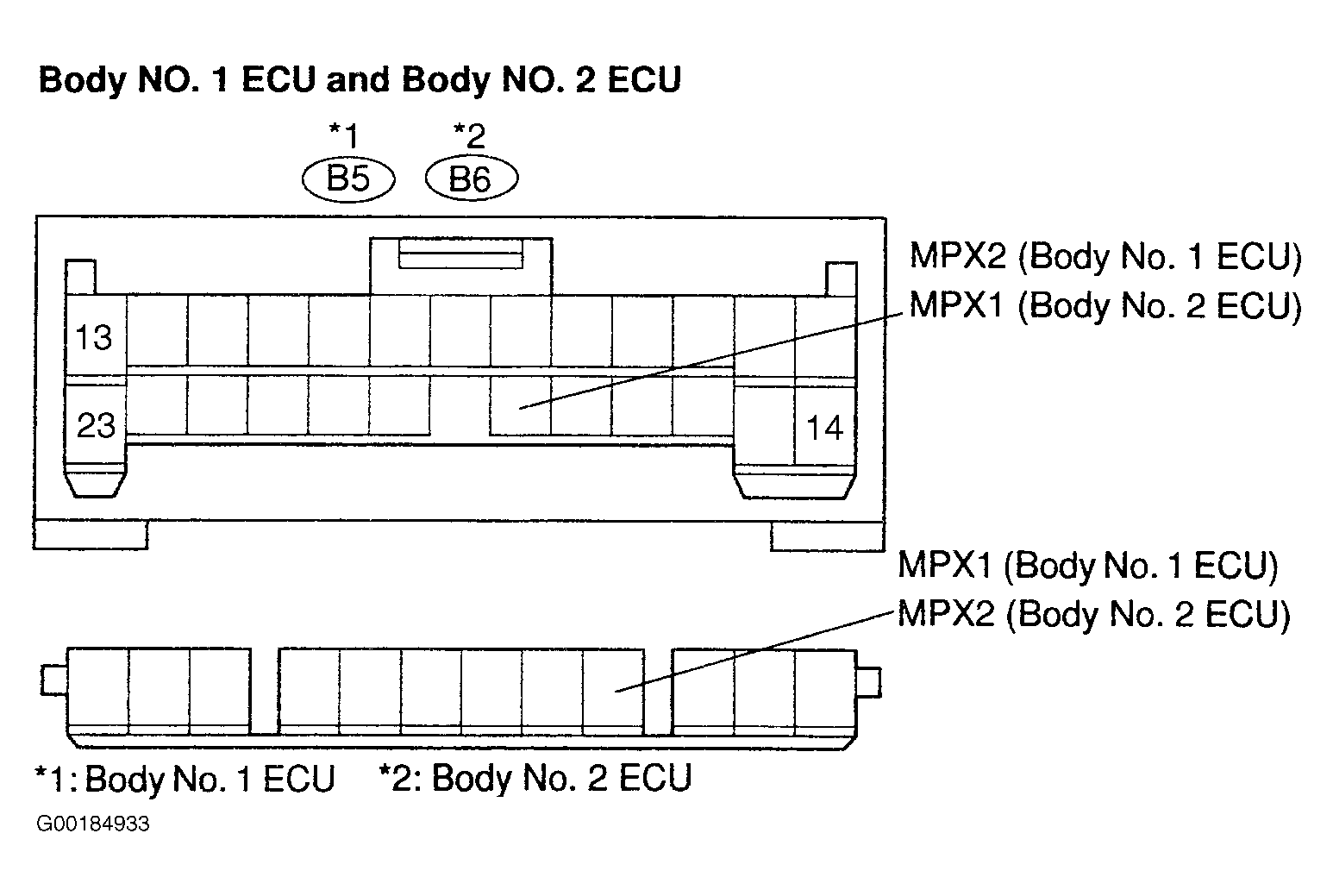

Fig 2: Identifying Body ECU No. 1 & No. 2 Connector Terminals
G00184933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

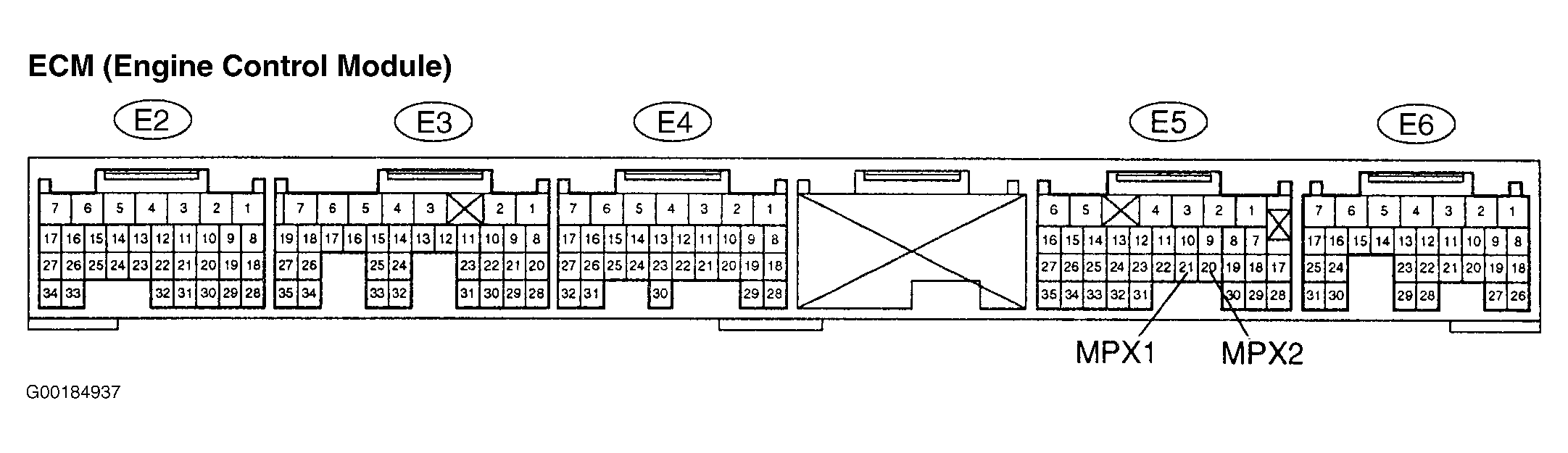

Fig 3: Identifying Engine Control Module (ECM) Terminals
G00184937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
