Charging Systems: Generator: Removal

Remove engine under cover.
Remove drive belt.
Loosen the belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.

NOTE: At the time of installation, please refer to the following items. Do an on-vehicle inspection. See CHARGING SYSTEM .

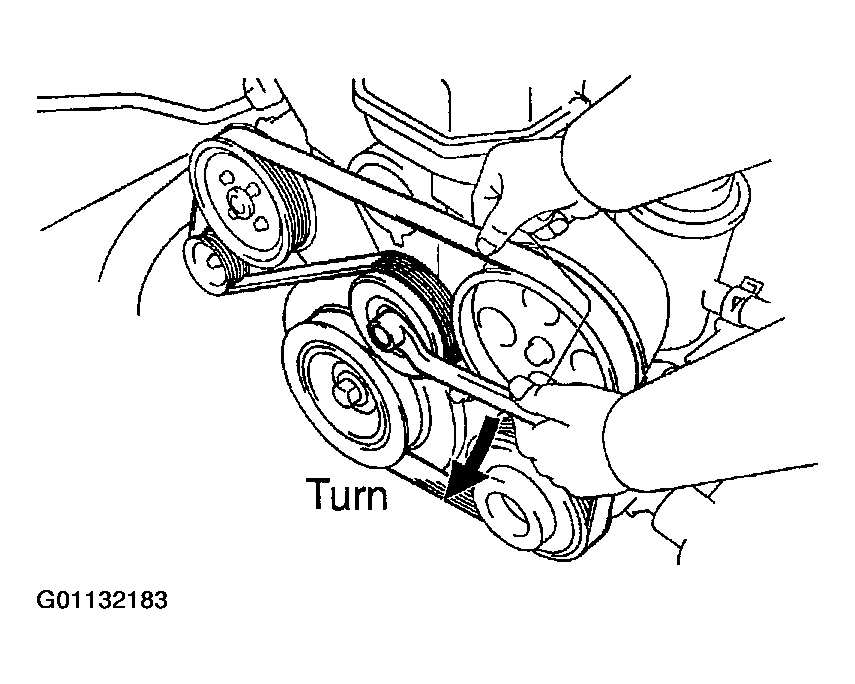

Fig 1: Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove generator.
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

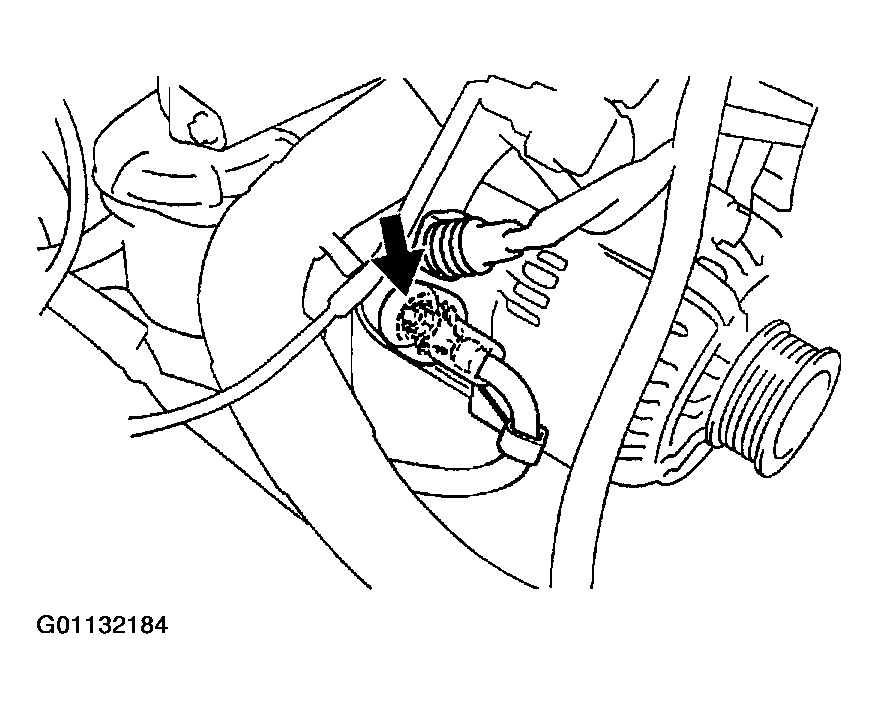

  Fig 2: Locating Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the engine wire clamp from the wire clip on the generator.
4. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.

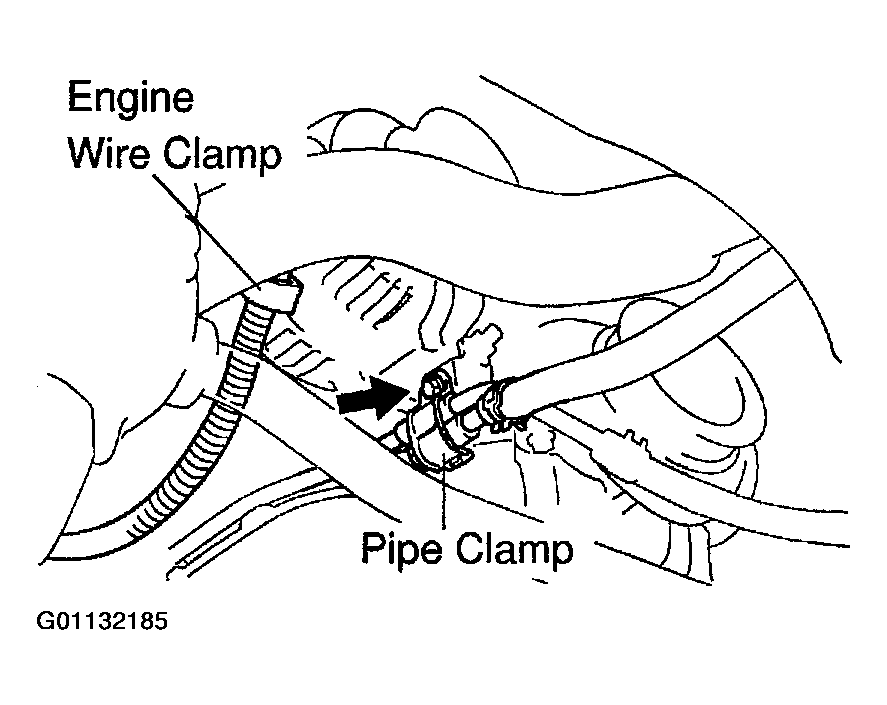

  Fig 3: Locating Engine Wire Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt, nut, pipe bracket and generator.
  1. Torque : 40 N.m (400 kgf.cm, 30 ft.lbf)

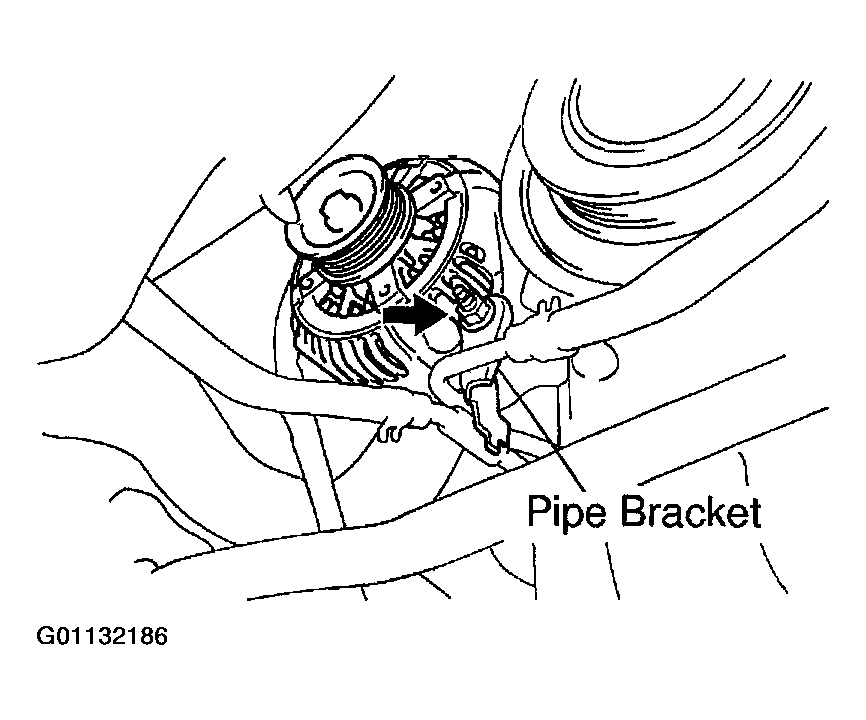

  Fig 4: Locating Pipe Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
