Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2.

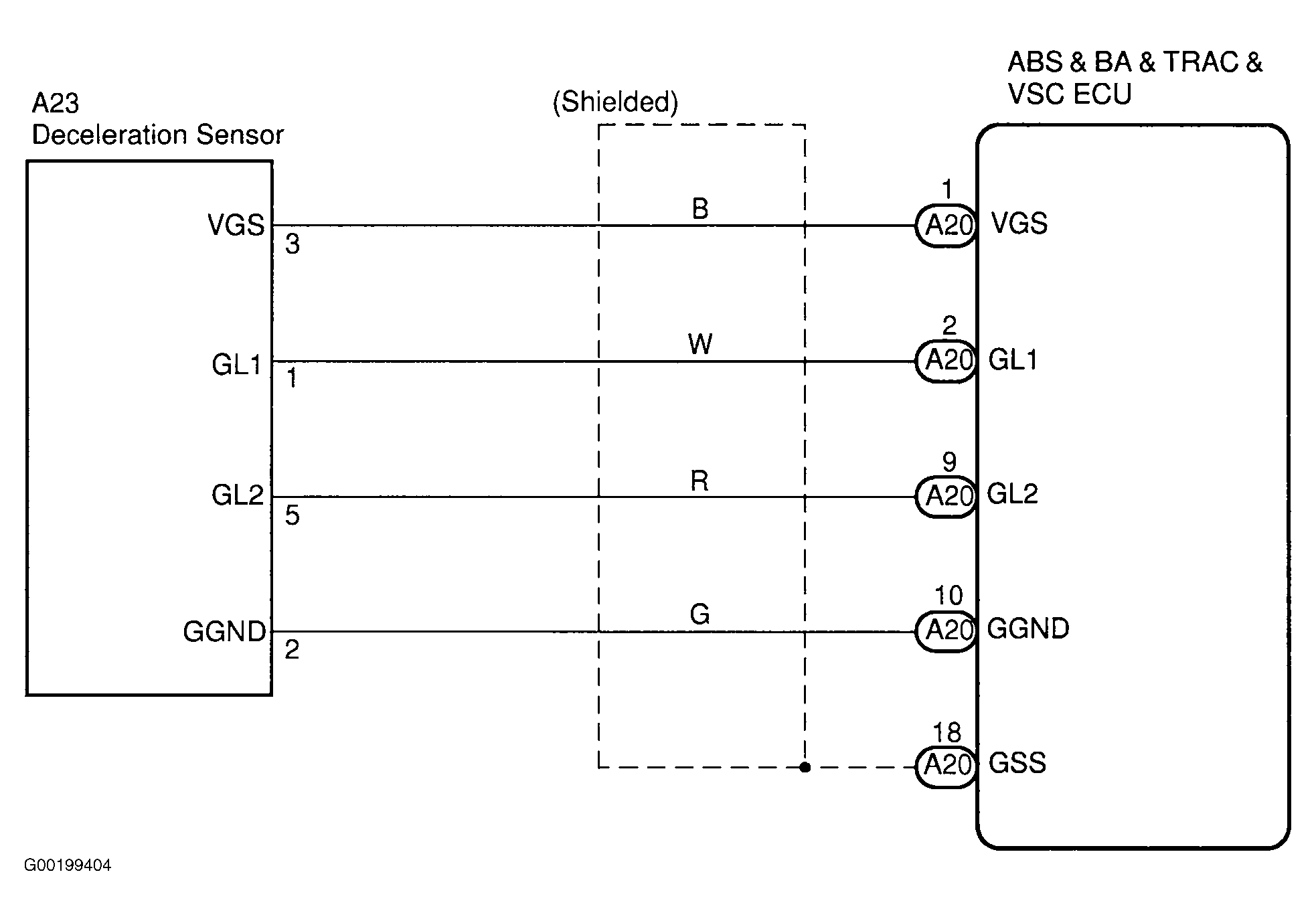

Fig 1: Wiring Diagram Deceleration Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

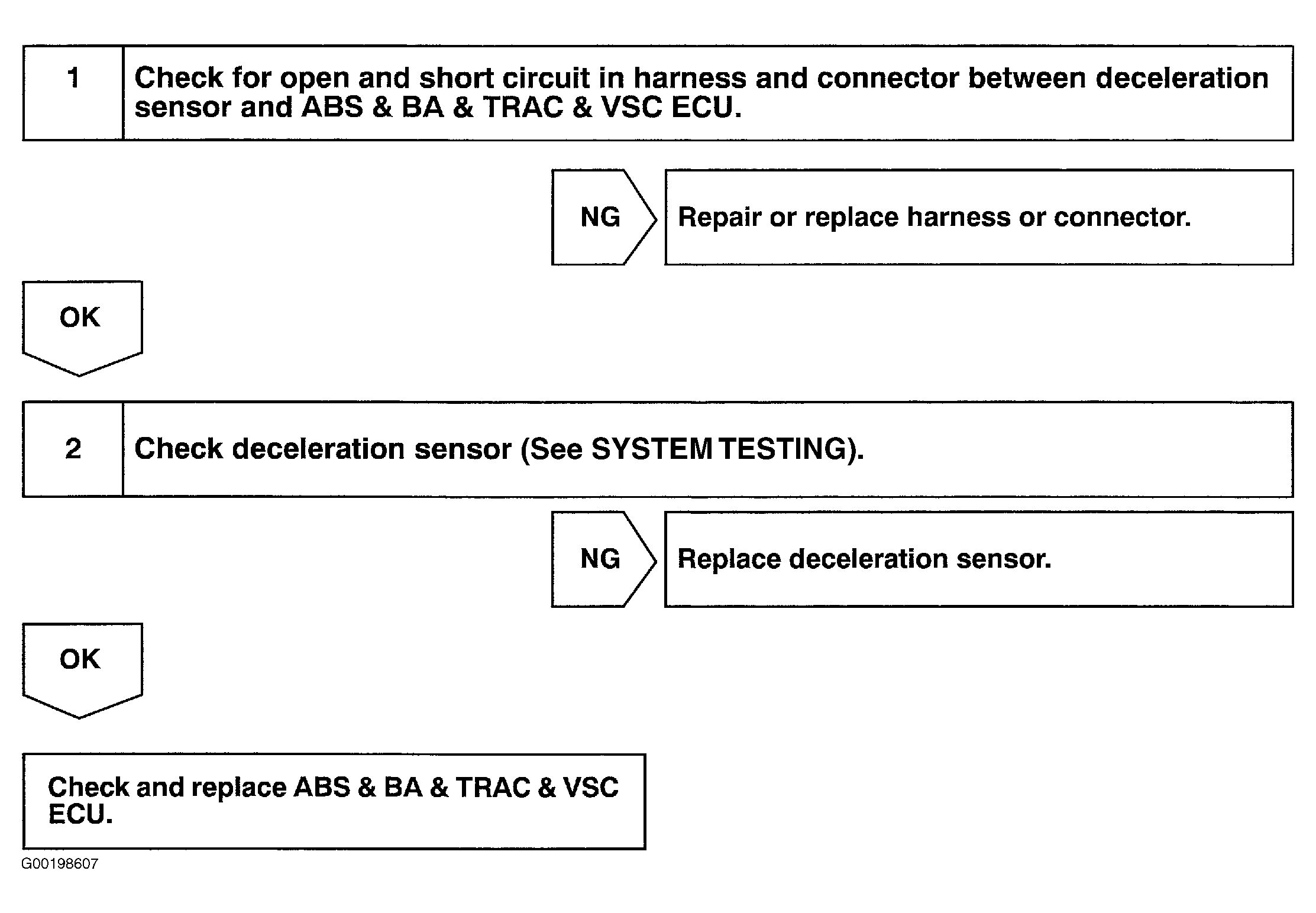

Fig 2: Testing Procedure Deceleration Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
