Testing Procedure

For wiring diagram, see Figure. For testing procedure, see Fig 1 - Fig 3 .

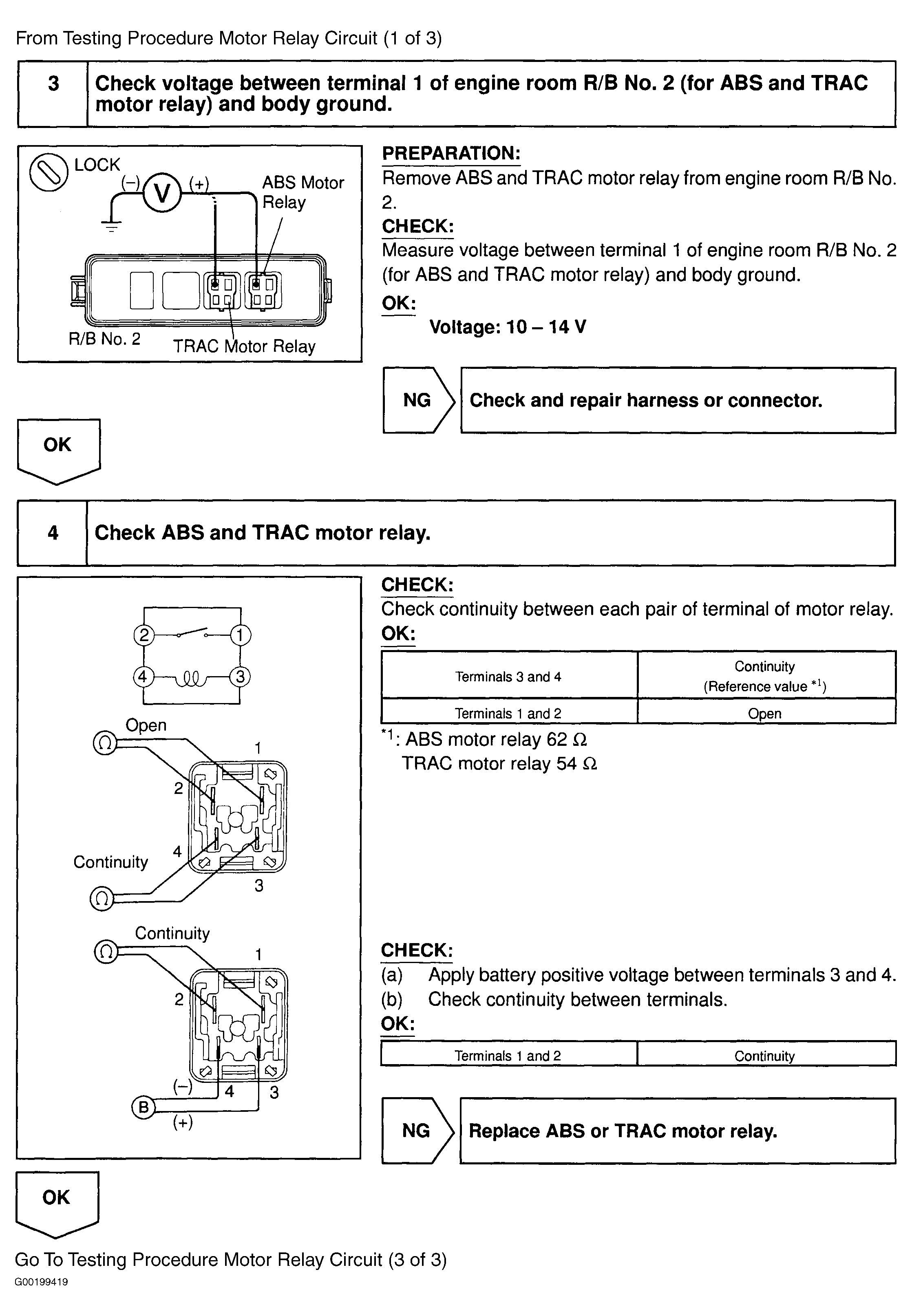

Fig 1: Testing Procedure Motor Relay Circuit (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

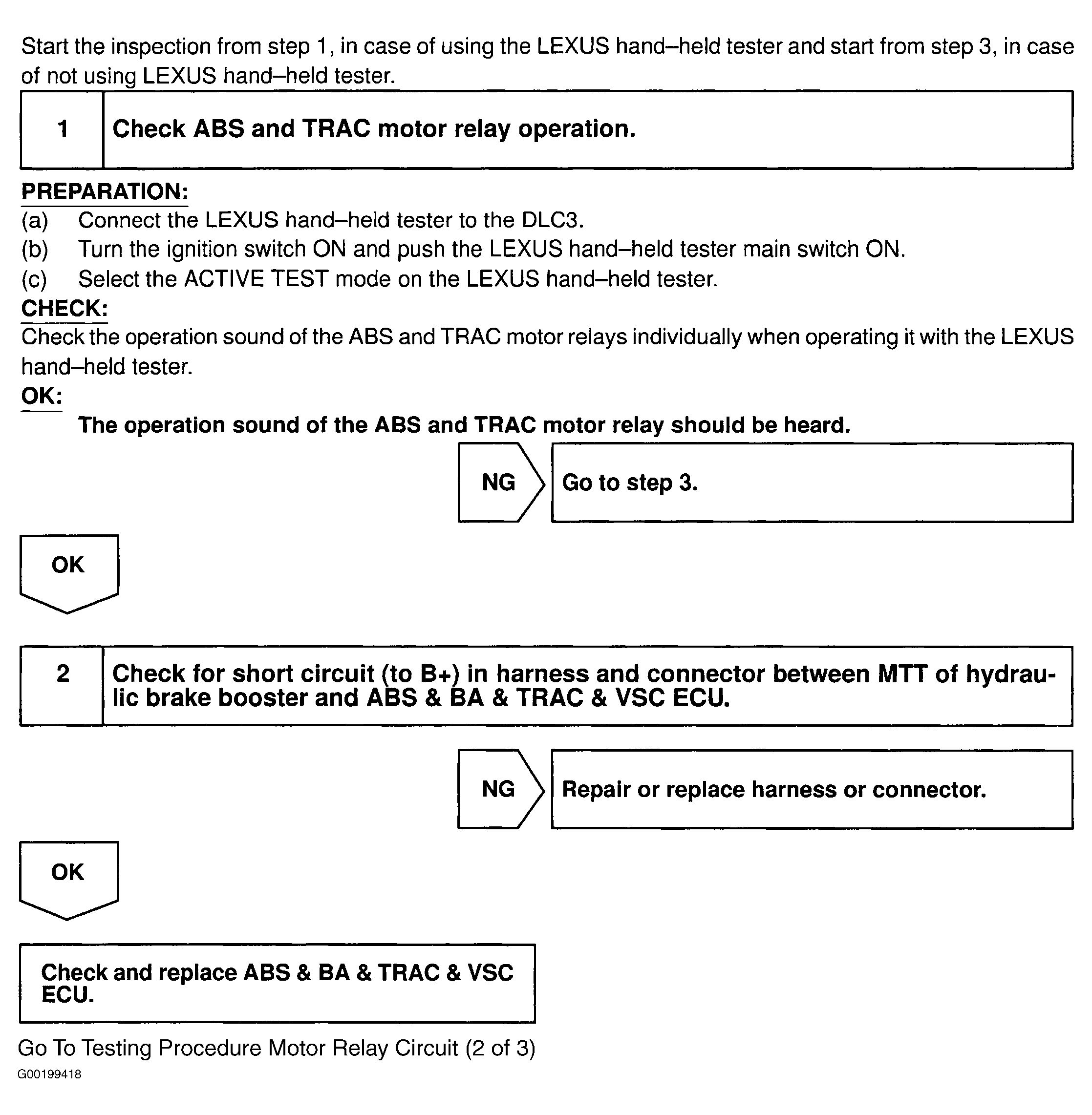

Fig 2: Testing Procedure Motor Relay Circuit (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

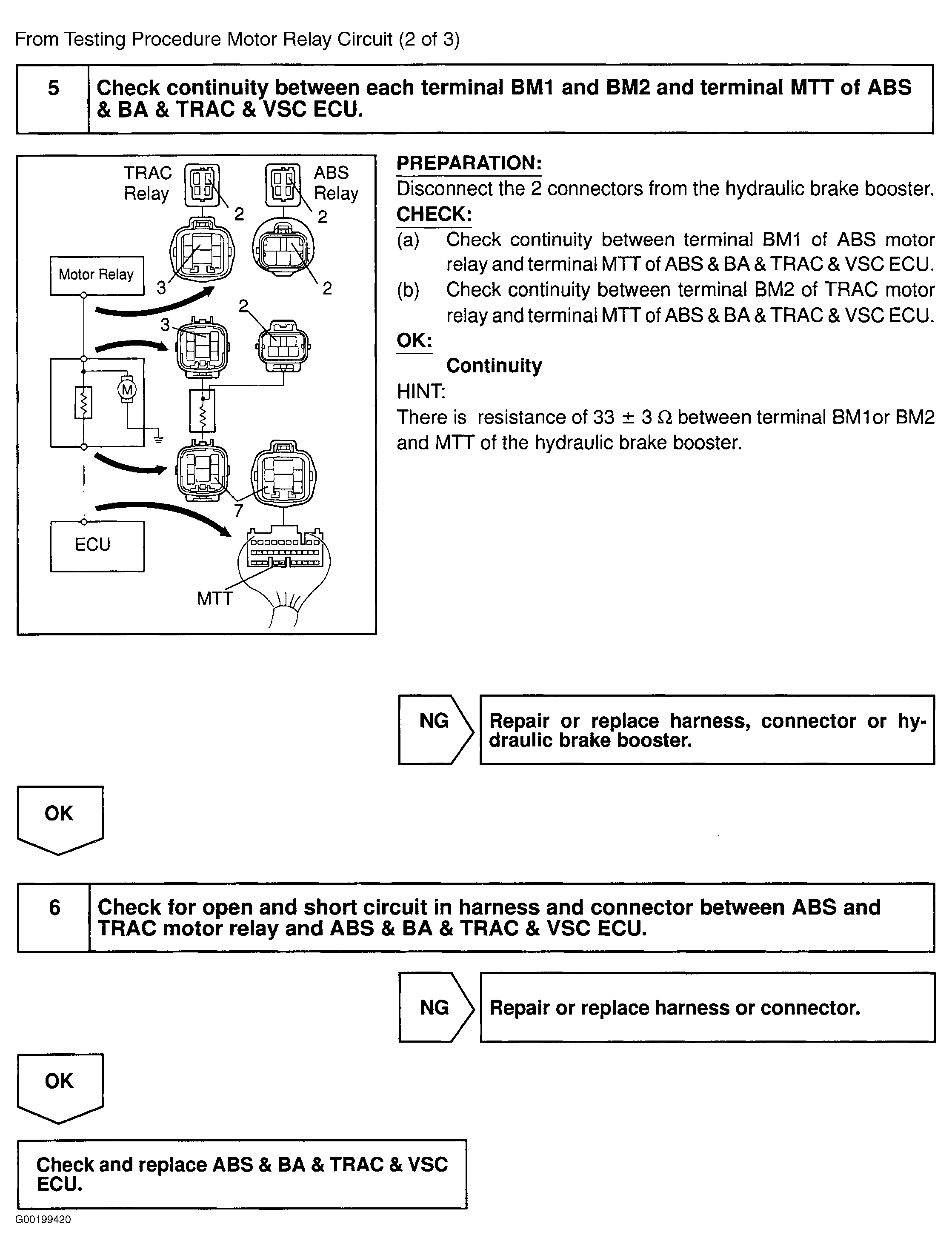

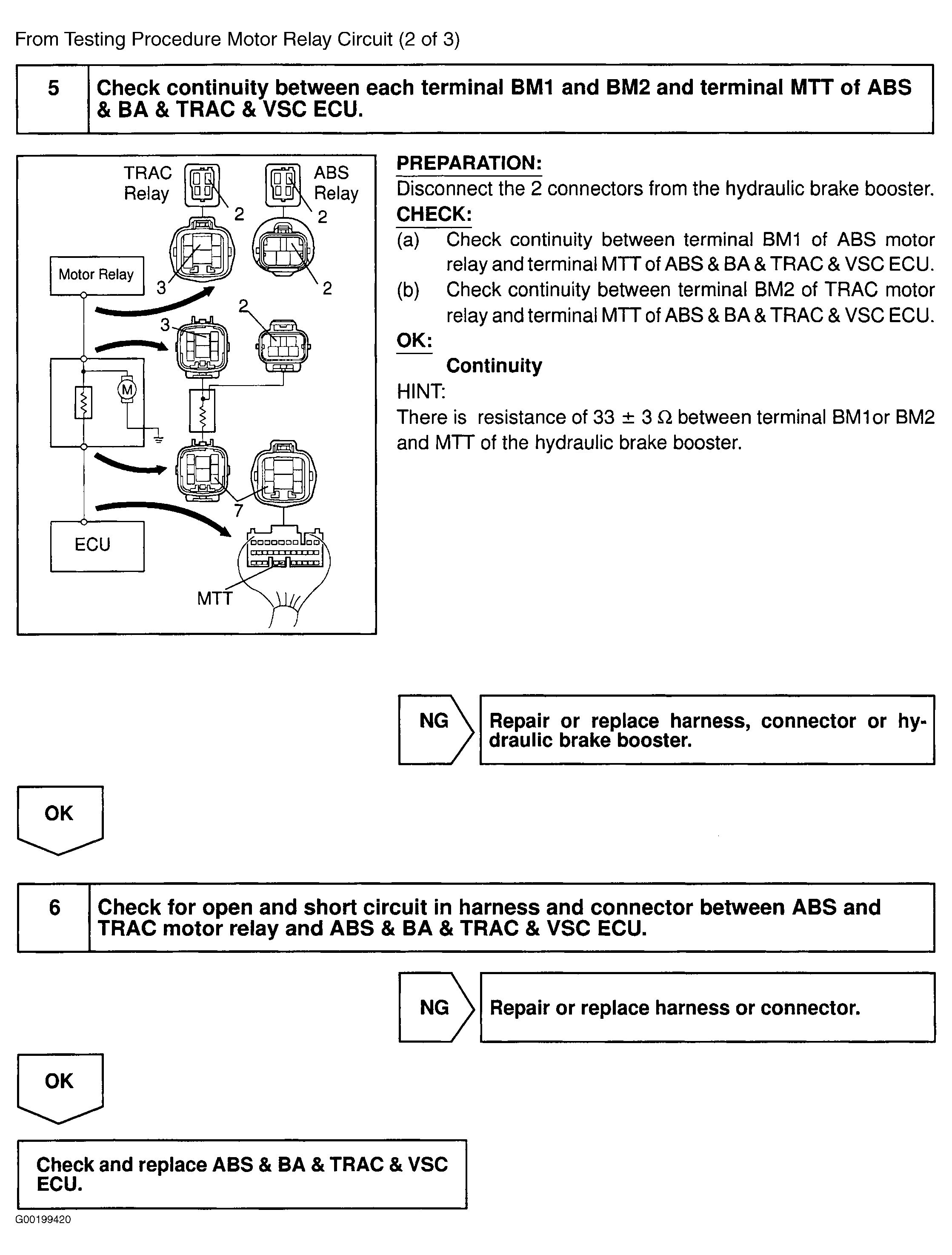

Fig 3: Testing Procedure Motor Relay Circuit (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
