Charging Systems: Generator: Installation

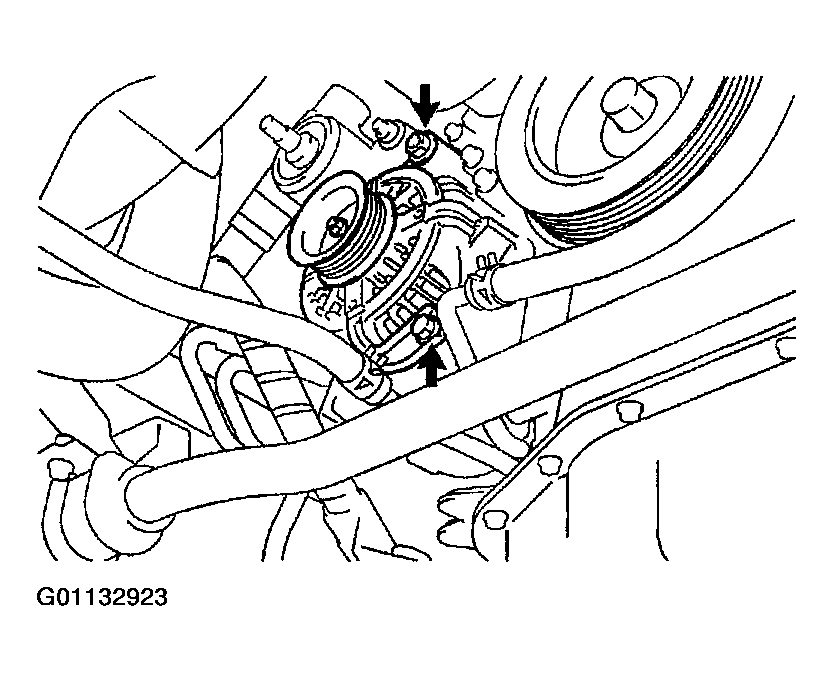

1. Install the generator and stay with the nut and bolt.
   1. Torque  : 39 N.m (400 kgf.cm, 29 ft.lbf)
2. Install the clamp (for generator wire) to the cord clip on alternator.
   Fig 1: Installing Generator & Stay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

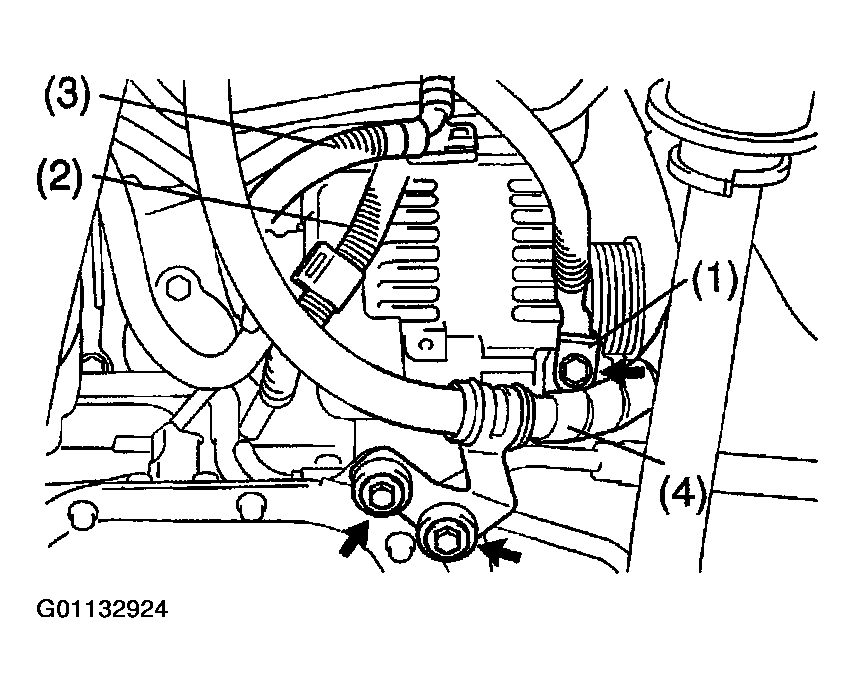

3. Install these parts:
   1. Install the ground cable.
   2. Install the wire (for generator wire) to clamp on cord clip.
   3. Install the wire (for generator connector) to clamp on cord clip.
      • Install the clamp to the wire with a vinyl tape.
      • Install the clamp to the cord clip.
   4. Install the Power Steering (PS) oil hose to No. 1 oil pan.
   Fig 2: Locating Parts For Installation
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

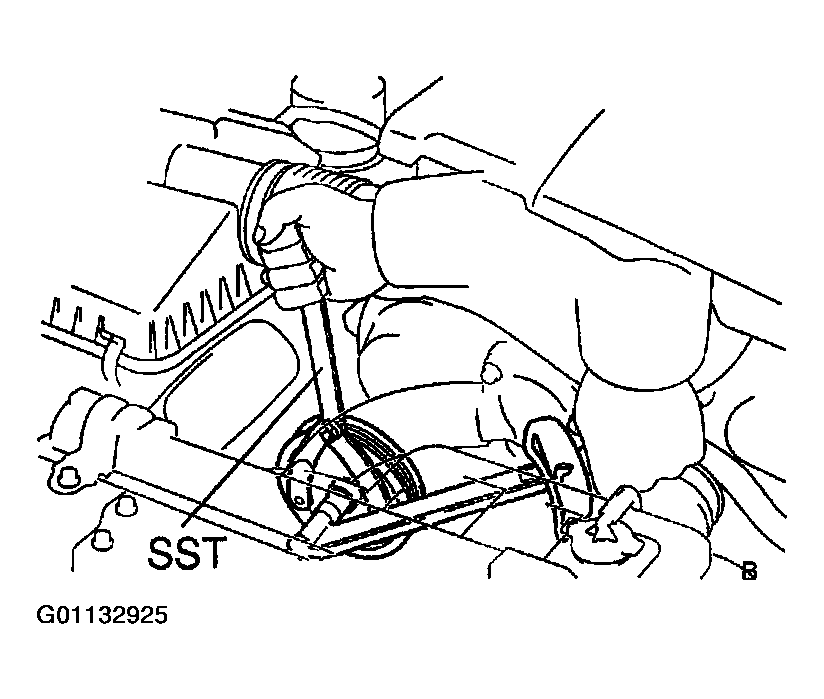

4. Install PS pump pulley.

   Using SST, install the PS pump pulley with the nut.

   1. SST 09960-10010 (09962-01000, 09963-01000)
   2. Torque  : 43 N.m (440 kgf.cm, 32 ft.lbf)
   Fig 3: Installing PS Pump Pulley

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

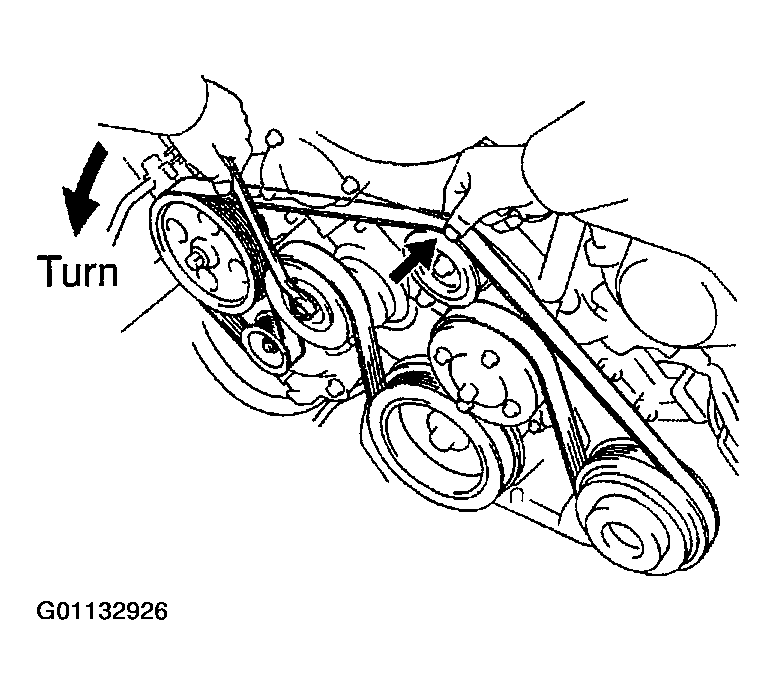

Install the drive belt by turning the drive belt tensioner counterclockwise.

Fig 4: Installing Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
