Front Wheel Alignment: Inspection

MEASURE VEHICLE HEIGHT

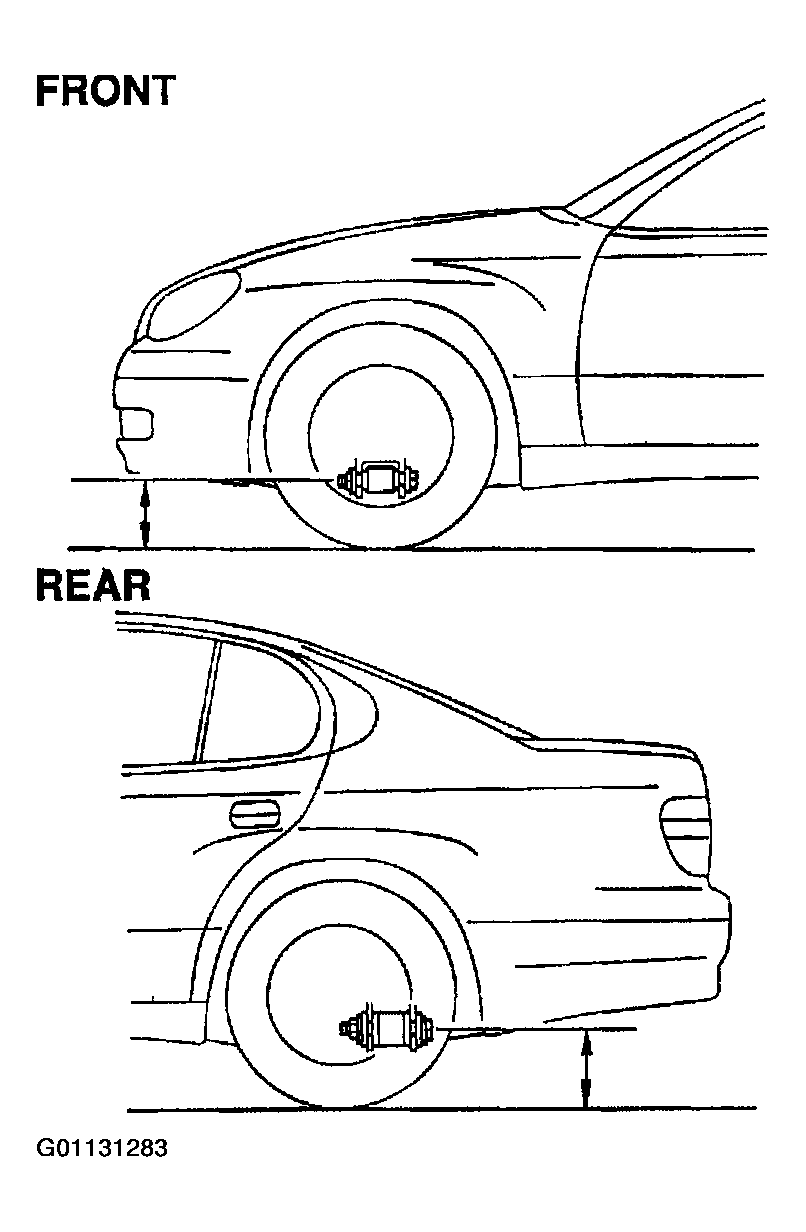

Fig 1: Measuring Vehicle Height - Front & Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

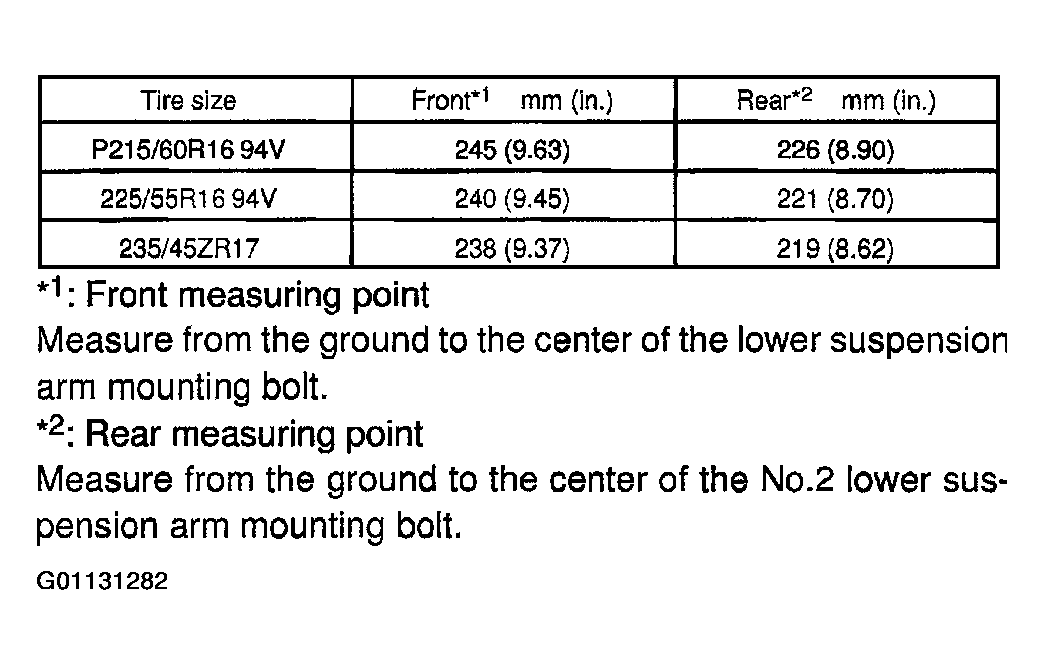

Fig 2: Vehicle Height Specifications - Front & Rear
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specification.

If the vehicle height is not within the specification, try to adjust it by pushing down on or lifting the body.
INSTALL CAMBER-CASTER-KINGPIN GAUGE ONTO WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.

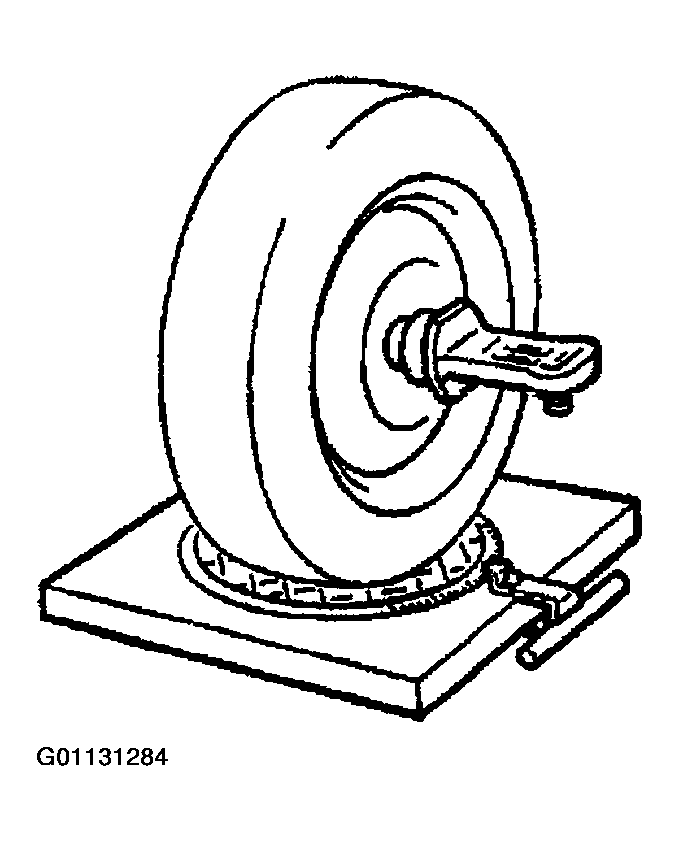

Fig 3: Installing Camber-Caster Gauge
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT CAMBER, CASTER AND STEERING AXIS INCLINATION
If the camber is not within the specification, adjust it by adjusting cam.

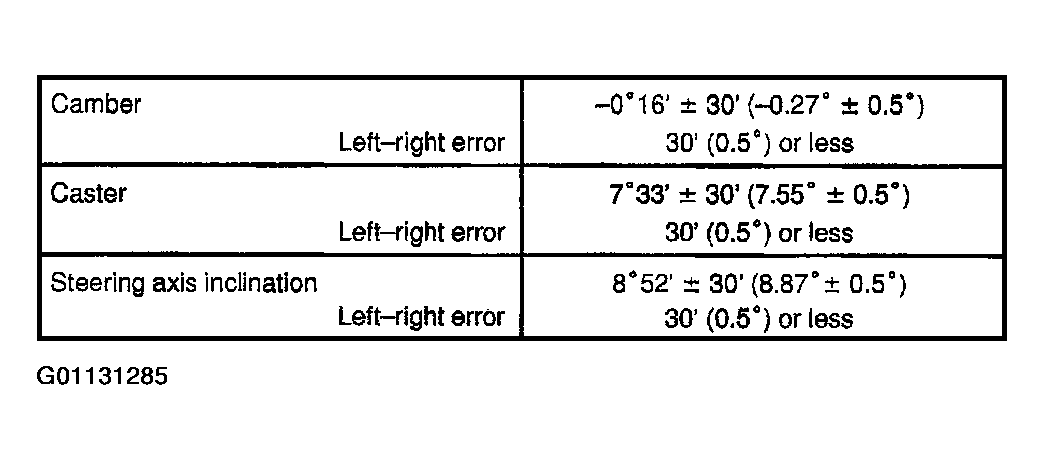

Fig 4: Inspect Camber, Caster & Steering Axis Inclination Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT TOE-IN

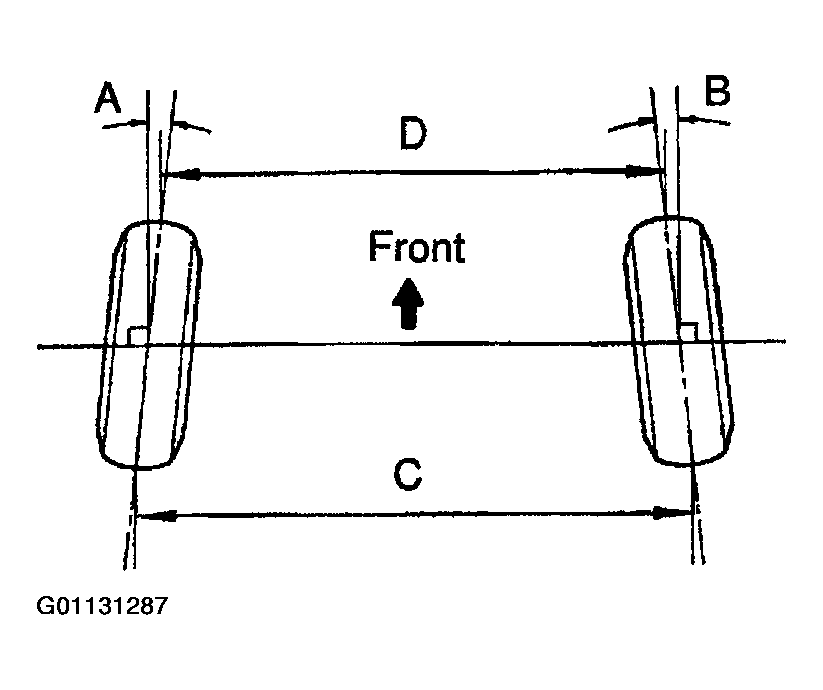

Fig 5: Measuring Toe-In - Front
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

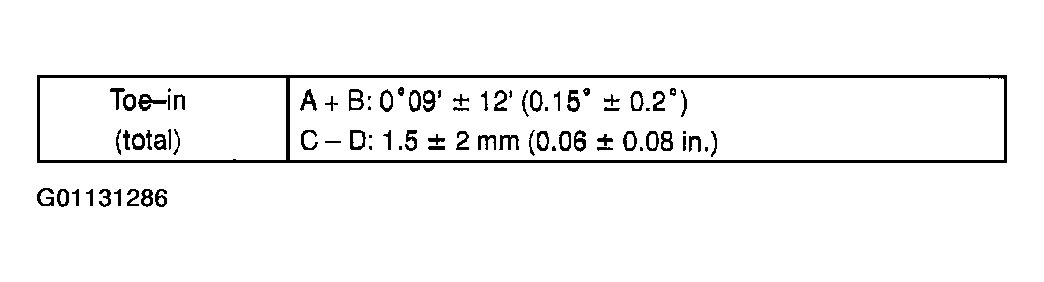

Fig 6: Toe-In Specifications - Front
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specification, adjust it at the tie rod end.
ADJUST CAMBER
HINT:
- After adjusting the camber, inspect the caster and toe-in.
- Try adjusting the camber to the center value of the specification.

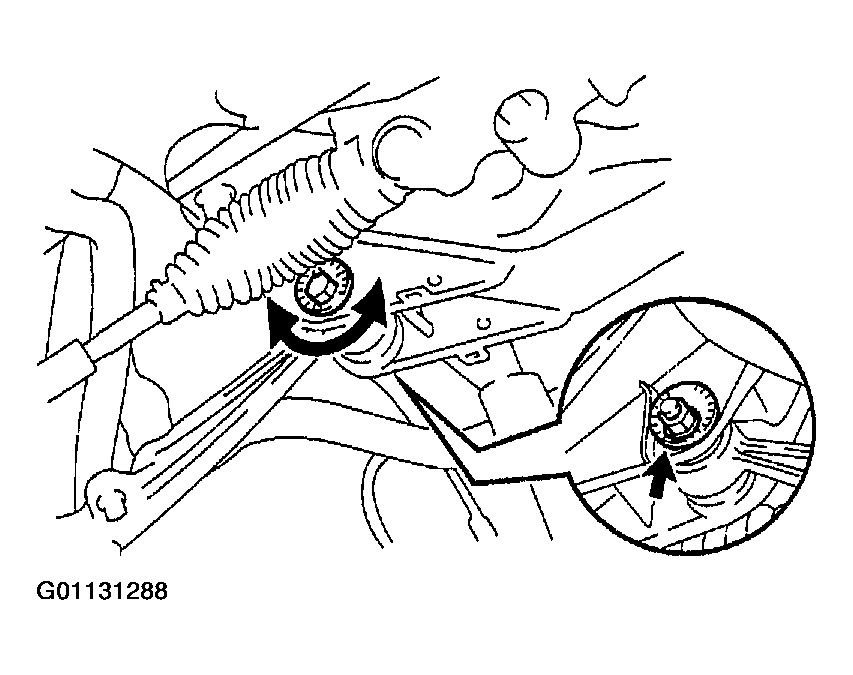

1. Loosen the camber adjusting cam nut of the lower suspension arm.
2. Turn the camber adjusting cam of the lower suspension arm and adjust camber.
  HINT:

  Camber changes about 5' (0.08°) with each graduation of the adjusting cam.
3. Torque the camber adjusting cam nut of lower suspension arm.
  1. Torque: 172 N.m (1,755 kgf.cm, 127 ft.lbf)
ADJUST TOE-IN
1. Remove the boot clips.
2. Loosen the tie rod end lock nuts.
3. Turn the left and right rack ends an equal amount to adjust the toe-in.
  HINT:
  - Try to adjust the toe-in to the center value.
  - Make sure that the lengths of the left and right rack ends are same.
  1. Rack end length difference: 1.5 mm (0.059 in.) or less

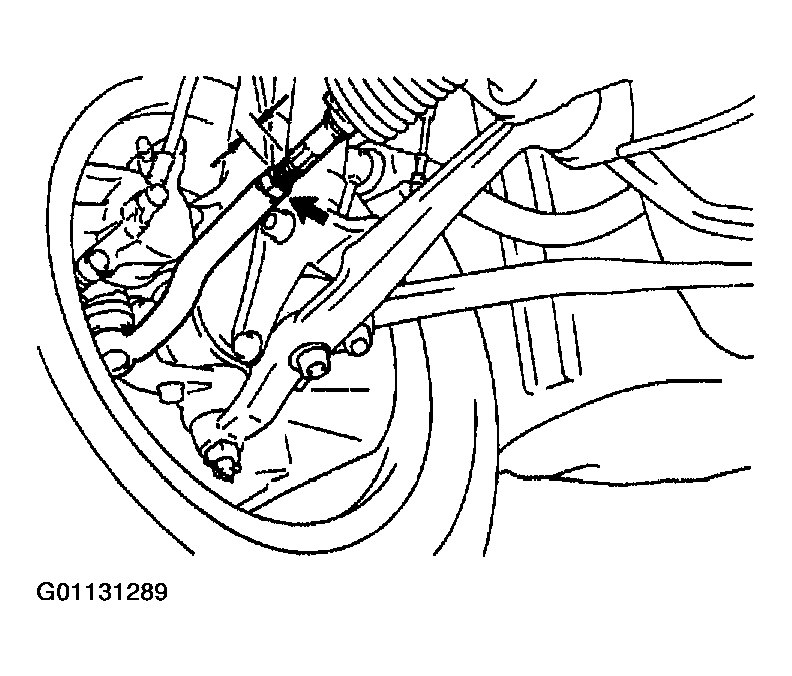

  Fig 8: Measuring Rack Ends
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Torque the tie rod end lock nuts.
  1. Torque: 56 N.m (570 kgf.cm, 41 ft.lbf)
5. Place the boot on the seat and clamp it.
HINT:

Make sure that the boots are not twisted.
INSPECT WHEEL ANGLE
Turn the steering wheel fully, and measure the turning angle.

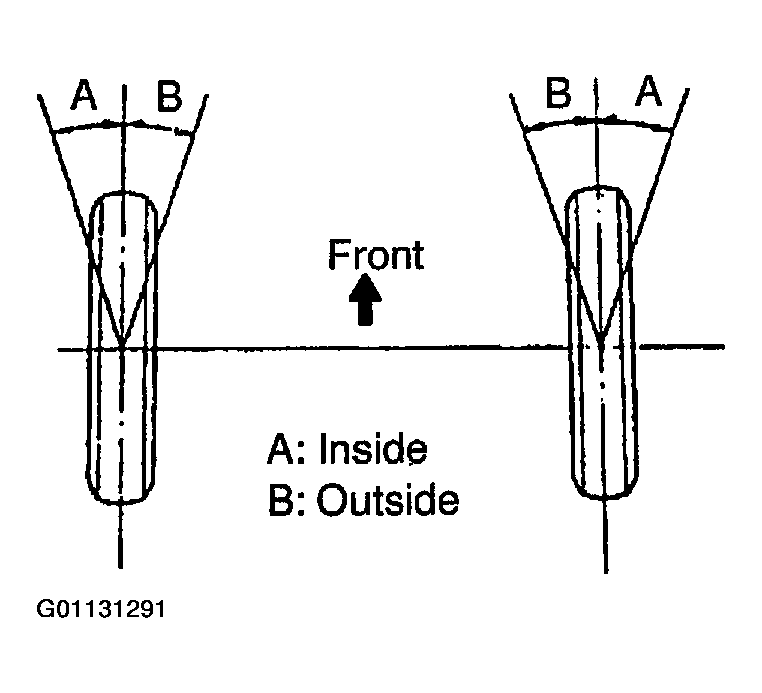

Fig 9: Measuring Wheel Angles
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

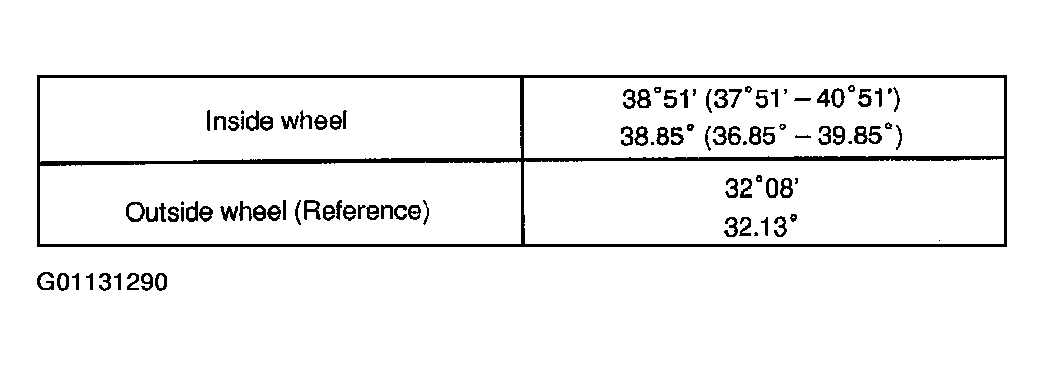

Fig 10: Wheel Angle Specifications - Inside & Outside Wheels
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the wheel angles differ from the standard of the specification, inspect the toe-in.
