Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2 and Fig 3 .

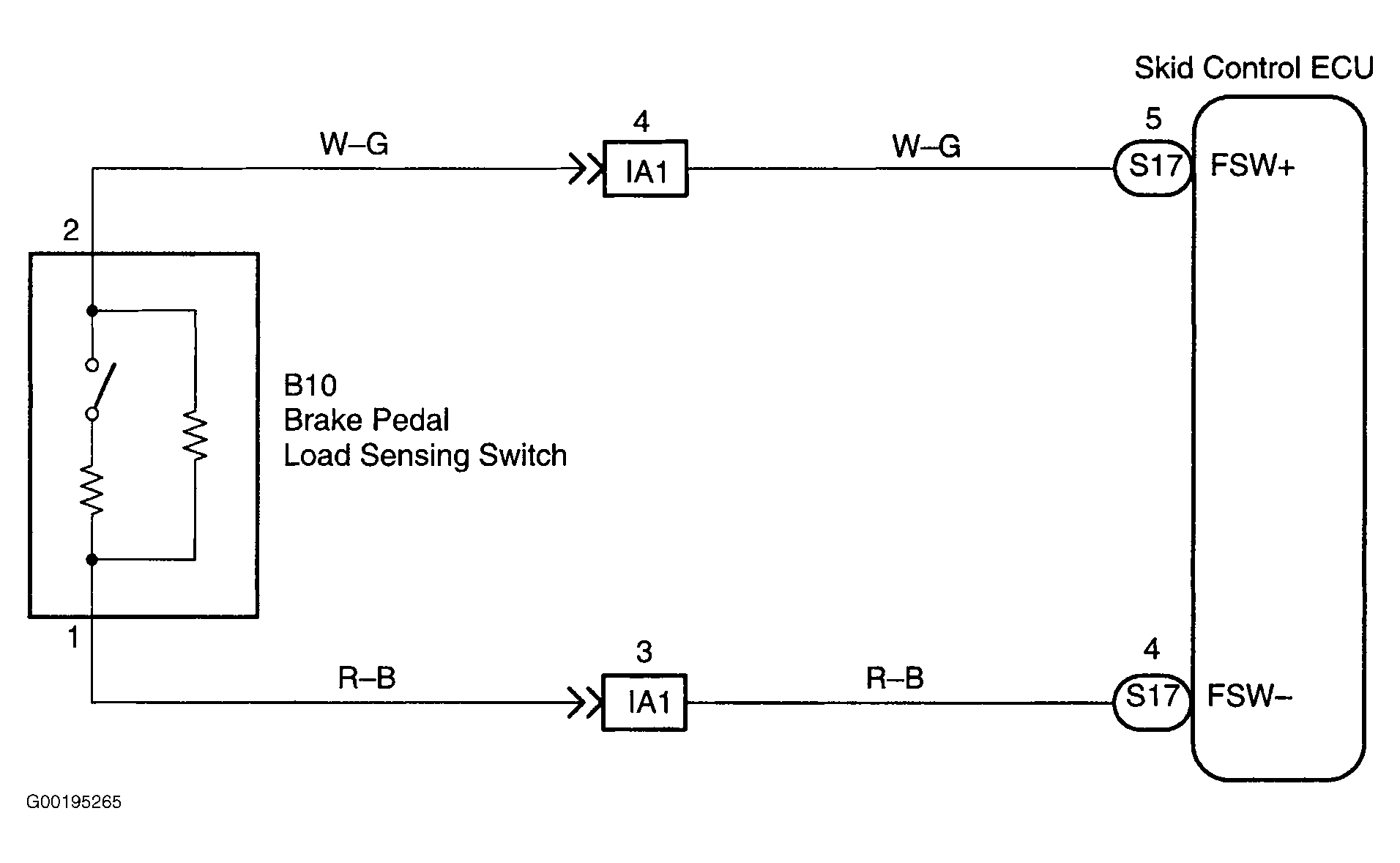

Fig 1: Wiring Diagram Brake Pedal Loading Sensing Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

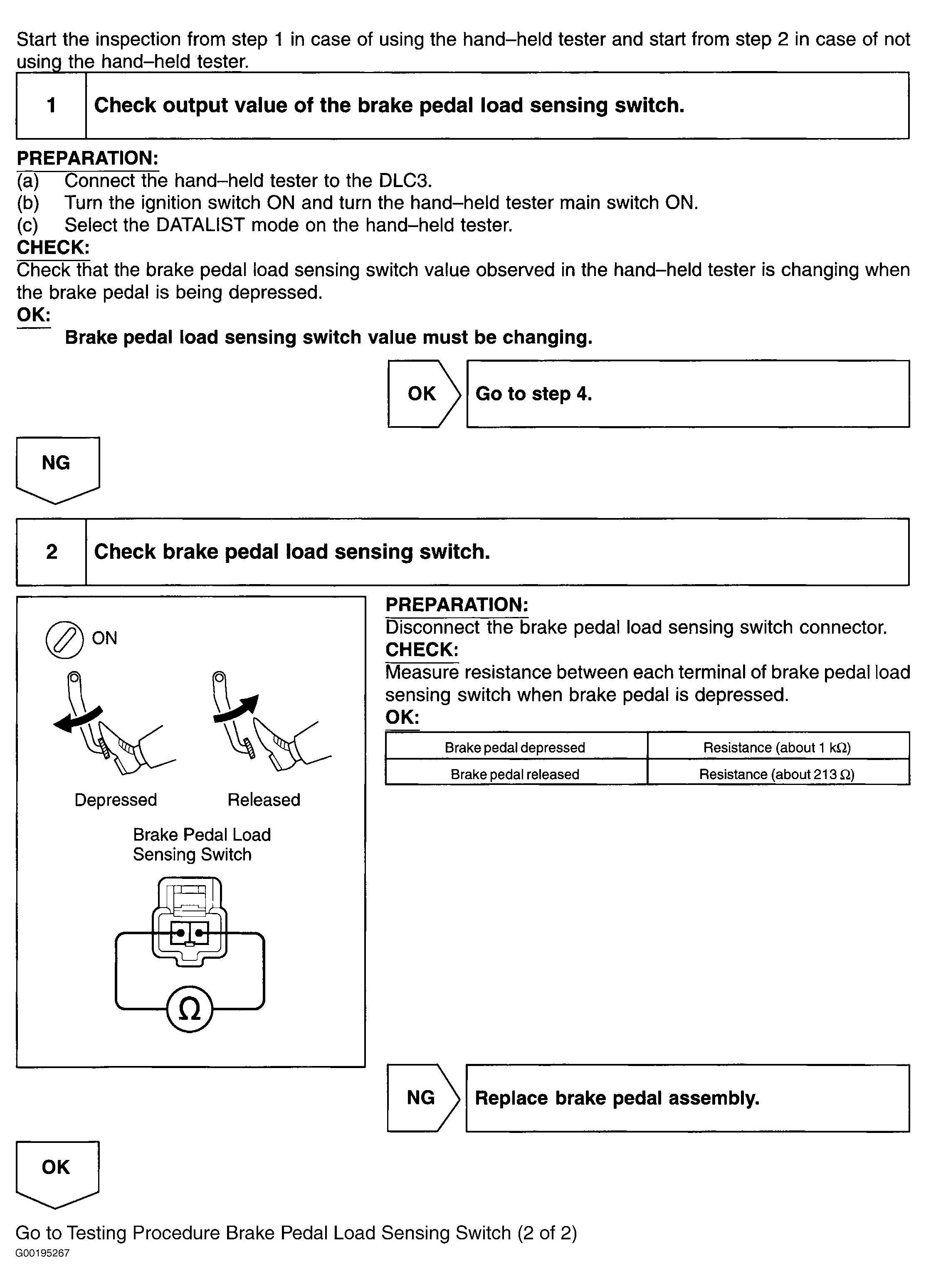

Fig 2: Testing Procedure Brake Pedal Load Sensing Switch (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

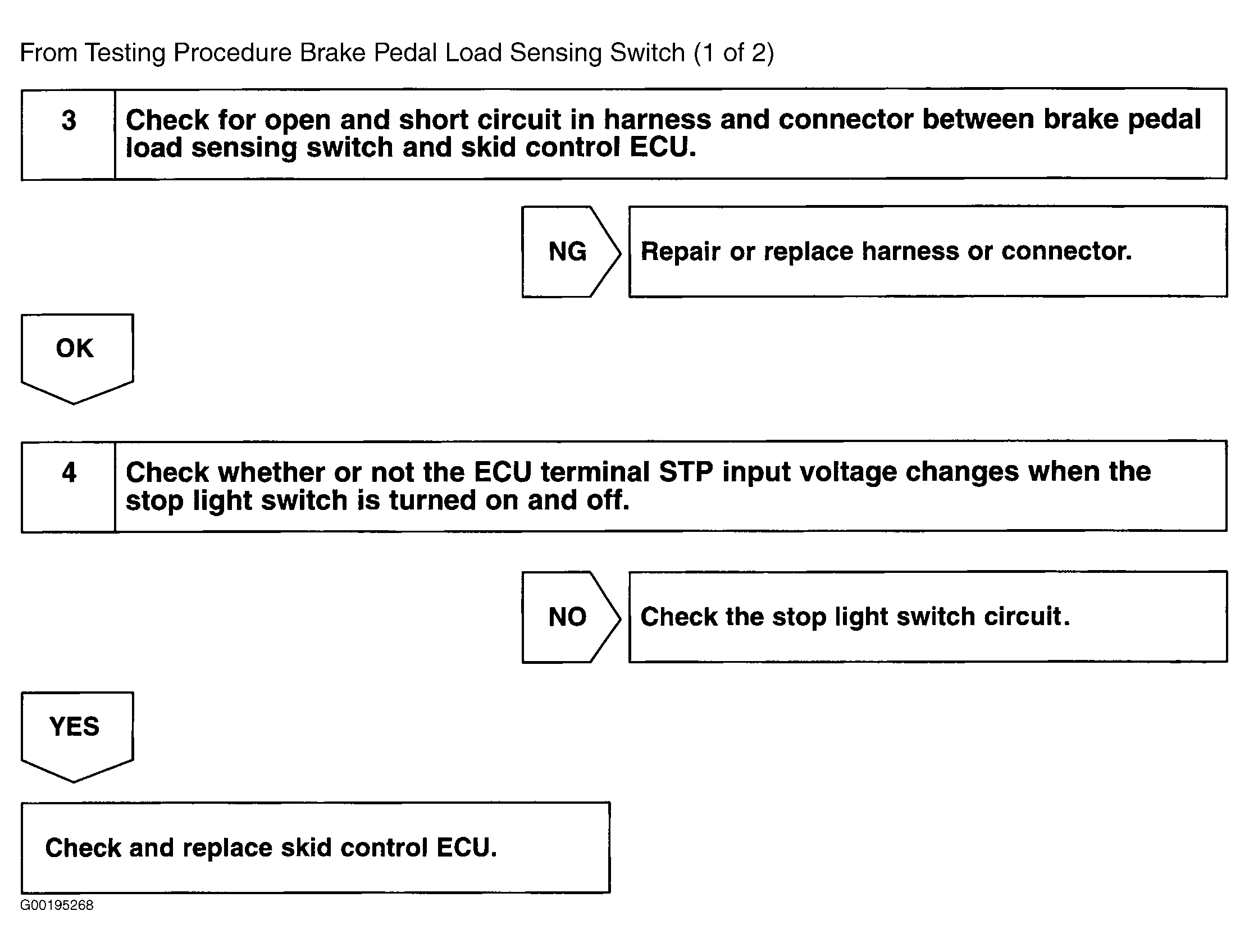

Fig 3: Testing Procedure Brake Pedal Load Sensing Switch (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
