Charging Systems: Generator: Removal

Remove engine under cover.
M/T:
- Remove drive belt tensioner absorber.
- Remove the 2 nuts and absorber.
Torque : 20 N.m (200 kgf.cm, 14 ft.lbf)
Remove drive belt.
Using SST, loosen the belt tension by turning the belt tensioner clockwise from the bottom side, and remove the drive belt.

SST 09216-00041

NOTE: At the time of installation, do an on-vehicle inspection. See ON-VEHICLE INSPECTION .

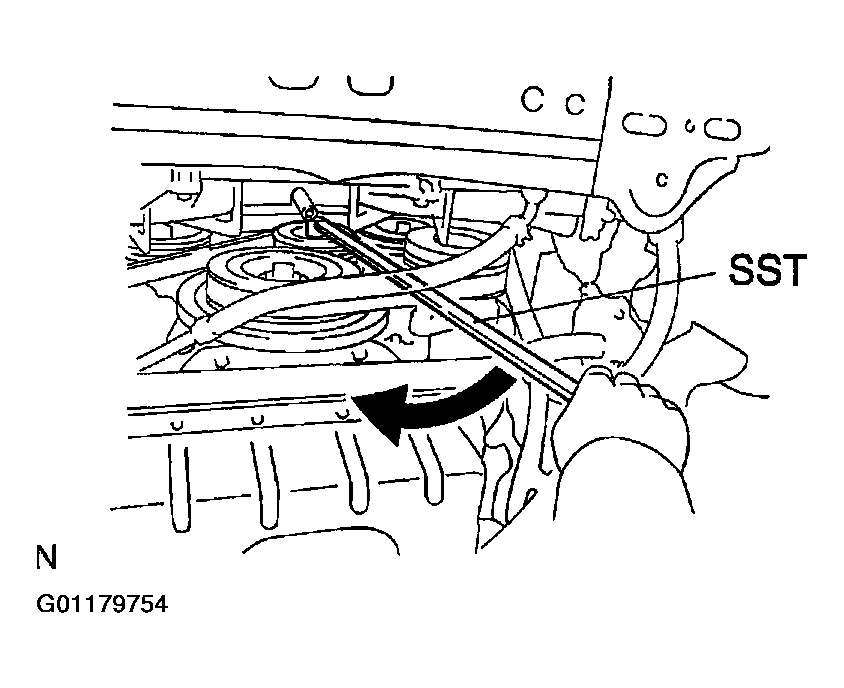

Fig 1: Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove generator.
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.

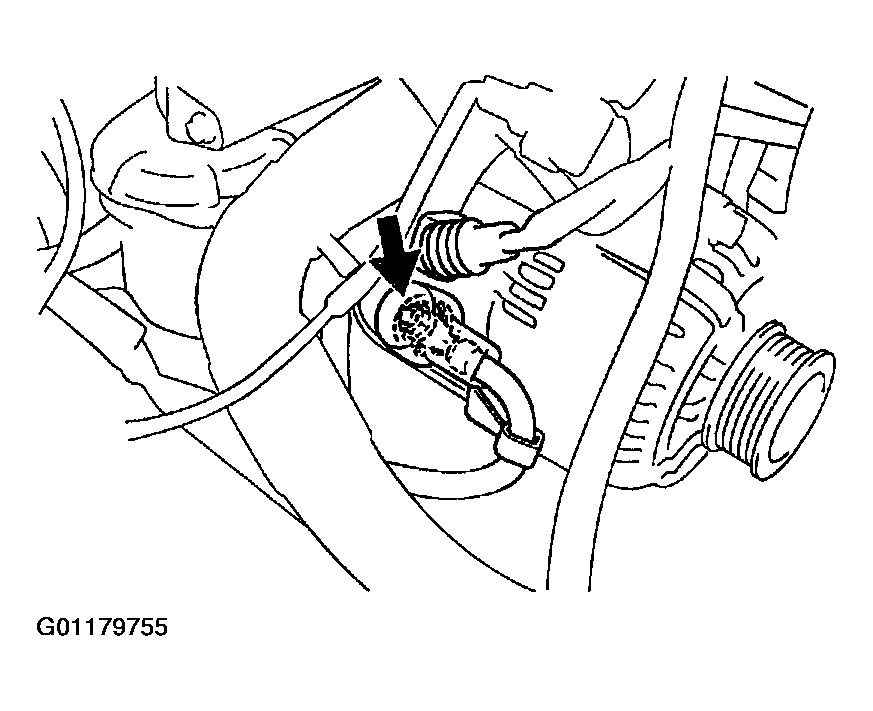

  Fig 2: Locating Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the engine wire clamp from the wire clip on the generator.
4. Remove the bolt and pipe clamp, and disconnect the 2 A/T oil cooler pipes from the generator.

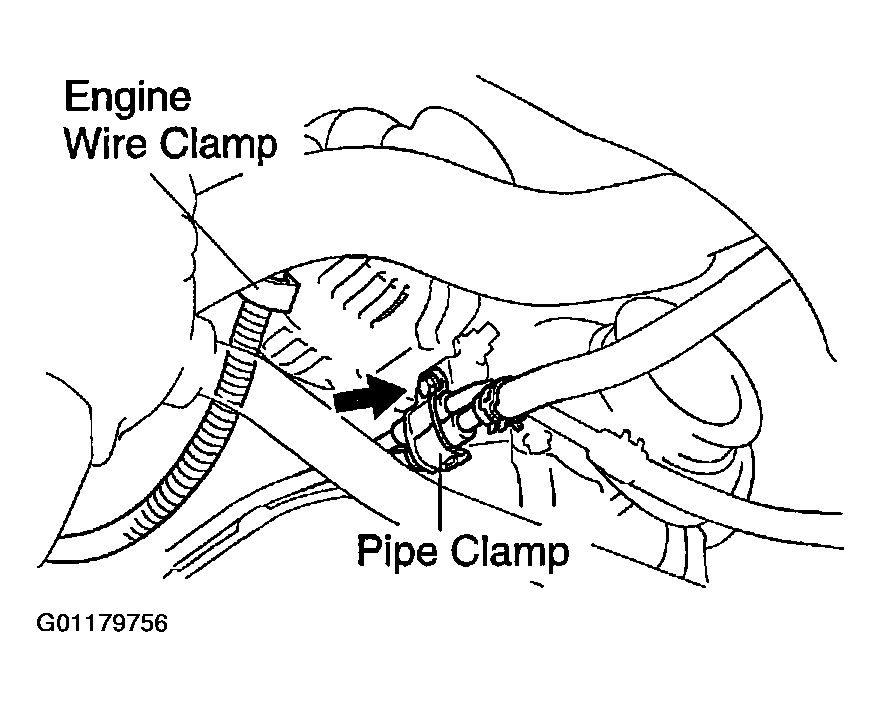

  Fig 3: Locating Engine Clamp & Pipe Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt, nut, pipe bracket and generator.
  Torque : 40 N.m (400 kgf.cm, 30 ft.lbf)

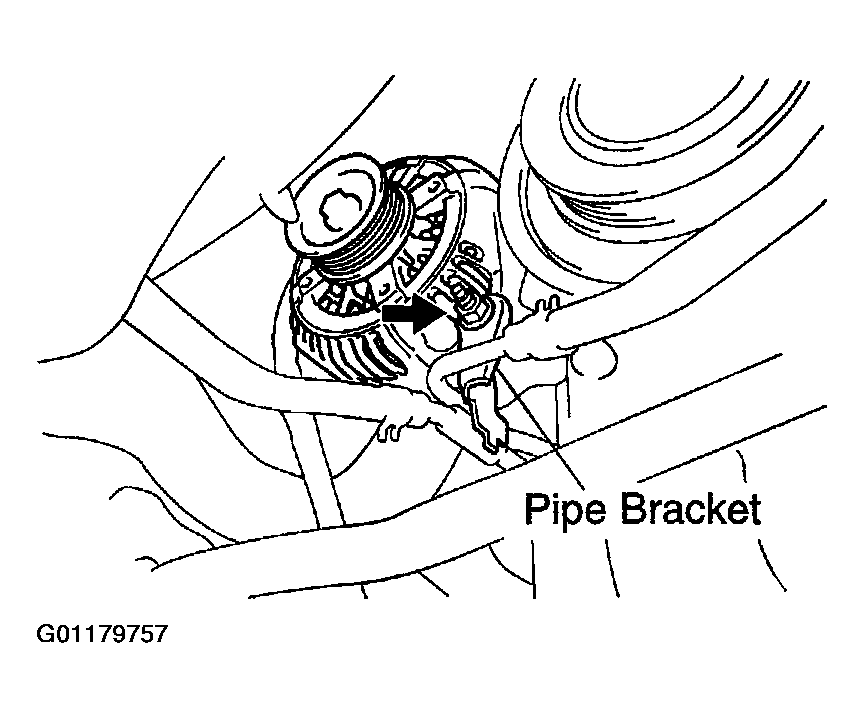

  Fig 4: Locating Pipe Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
