Cylinder Block: Replacement

REPLACE CONNECTING ROD BUSHING
1. Using SST and a press, press out the bushing.
  1. SST 09222-30010

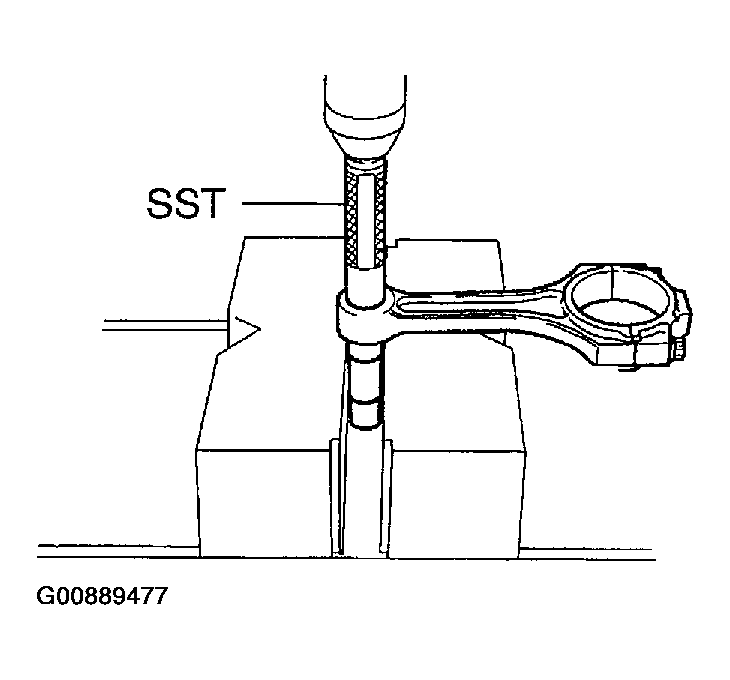

  Fig 1: Pressing Out Bushing Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the oil holes of a new bushing and the connecting rod.
3. Using SST and a press, press in the bushing.
  1. SST 09222-30010

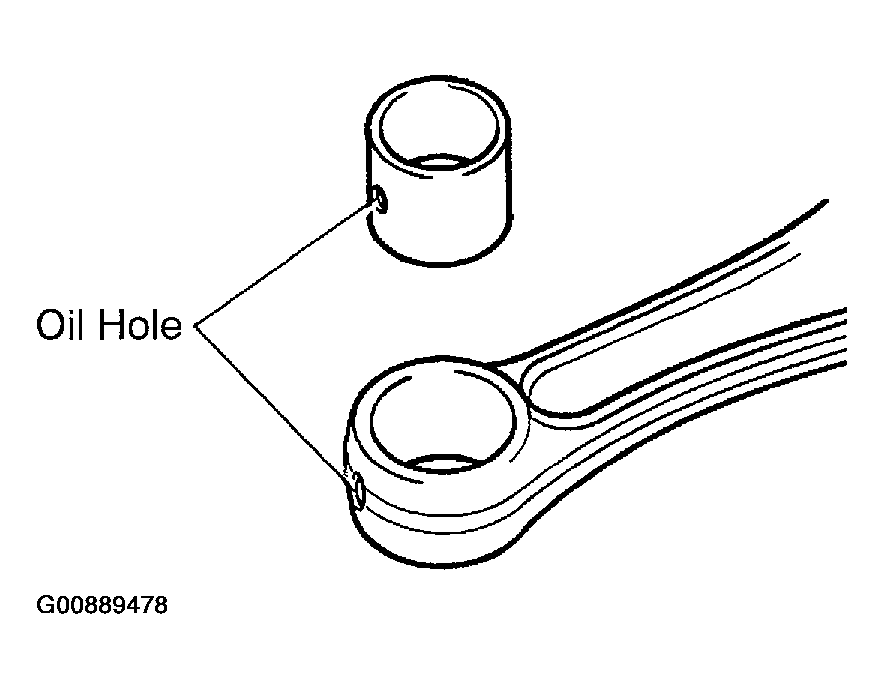

  Fig 2: Aligning Oil Holes Of New Bushing And Connecting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a pin hole grinder, bore the bushing to obtain the standard specified clearance (See INSPECTION ) between the bushing and piston pin.

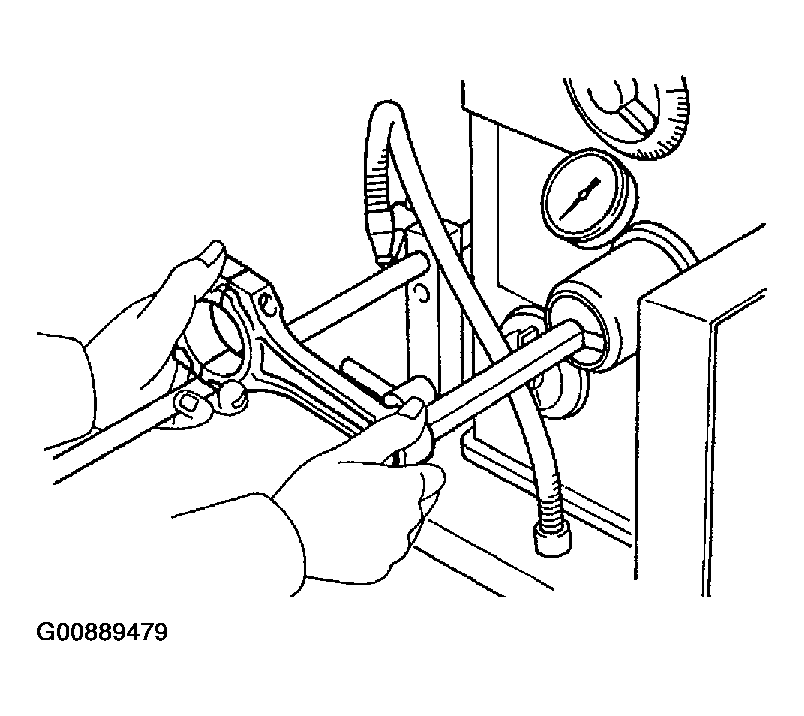

  Fig 3: Boring Connecting Rod Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the piston pin fit at room temperature.
  Coat the piston pin with engine oil and push it into the connecting rod with your thumb.

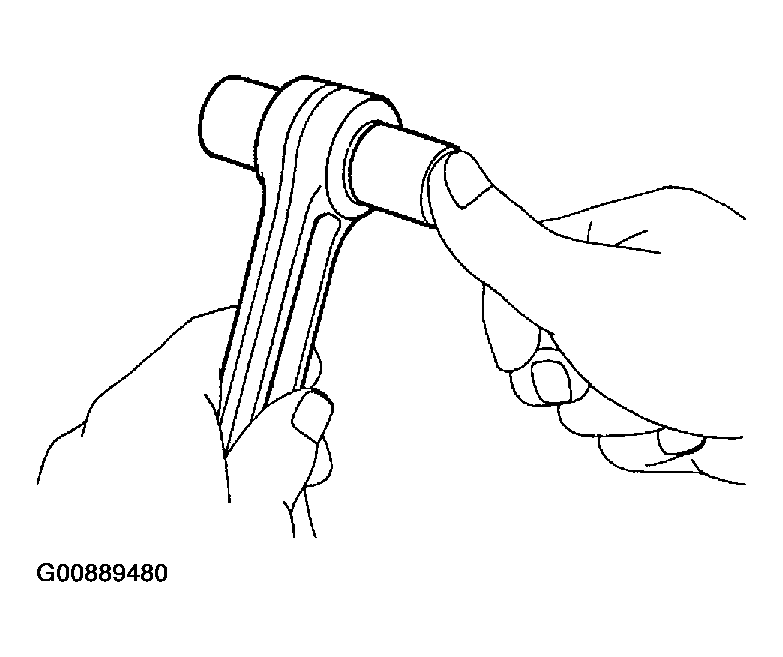

  Fig 4: Checking Piston Pin Fit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE CRANKSHAFT FRONT OIL SEAL
HINT:

There are 2 methods ( a and b) to replace the oil seal.
1. If the oil pump is removed form the cylinder block.
  1. Using a screwdriver, pry out the oil seal.

    Fig 5: Prying Out Oil Seal Using Screwdriver
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

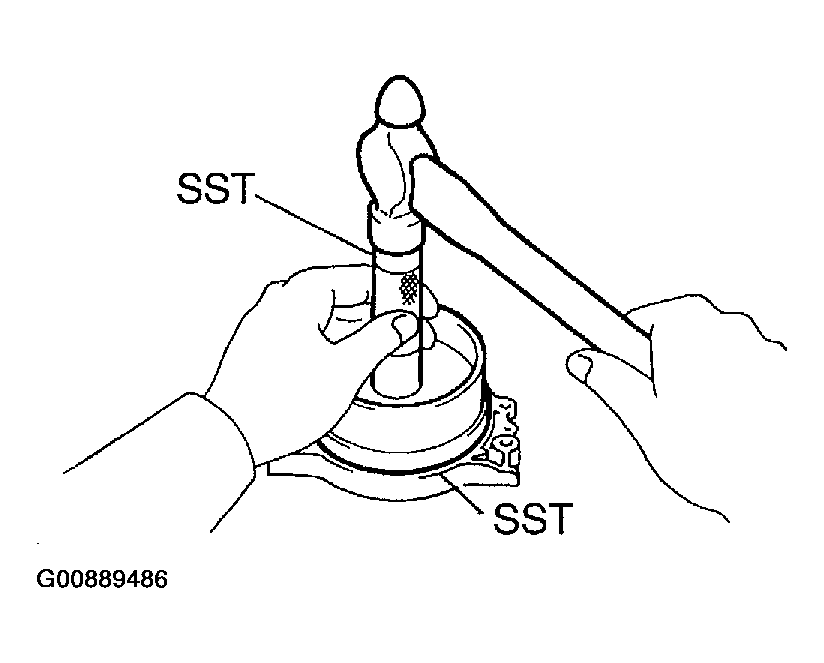

  2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the oil pump body edge.
    1. SST 09316-60011 (09316-00011)
    Fig 6: Tapping Oil Seal Using SST And Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply MP grease to the oil seal lip.
2. If the pump is installed on the cylinder block.

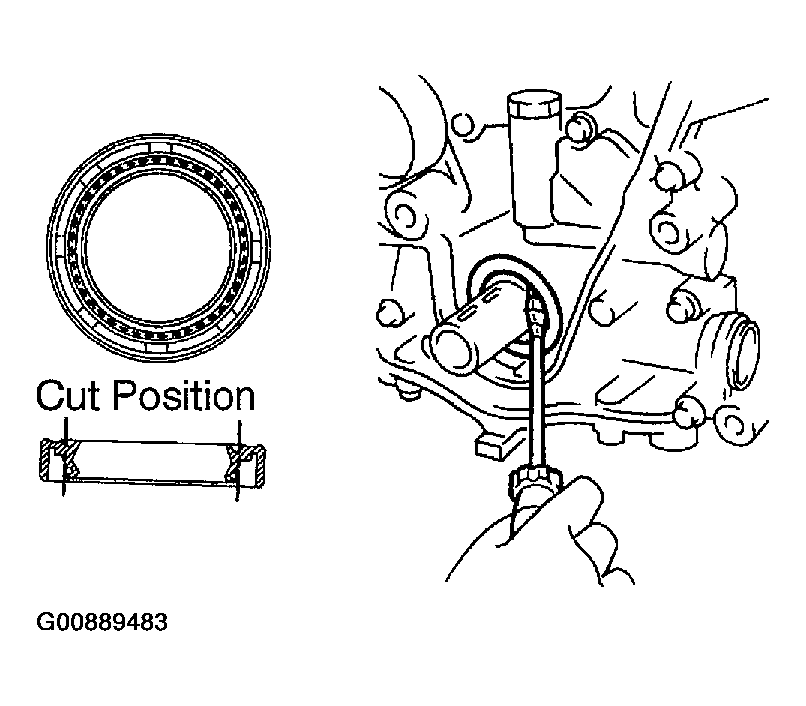

  1. Using a knife, cut off the oil seal lip.
  2. Using a screwdriver, pry out the oil seal.
    NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.

    Fig 7: Prying Out Oil Seal Using Screwdriver
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply MP grease to a new oil seal lip.
  4. Using SST and a hammer, tap in the oil seal until its surface is flush with the oil pump body edge.
    1. SST 09316-60011 (09316-00011)

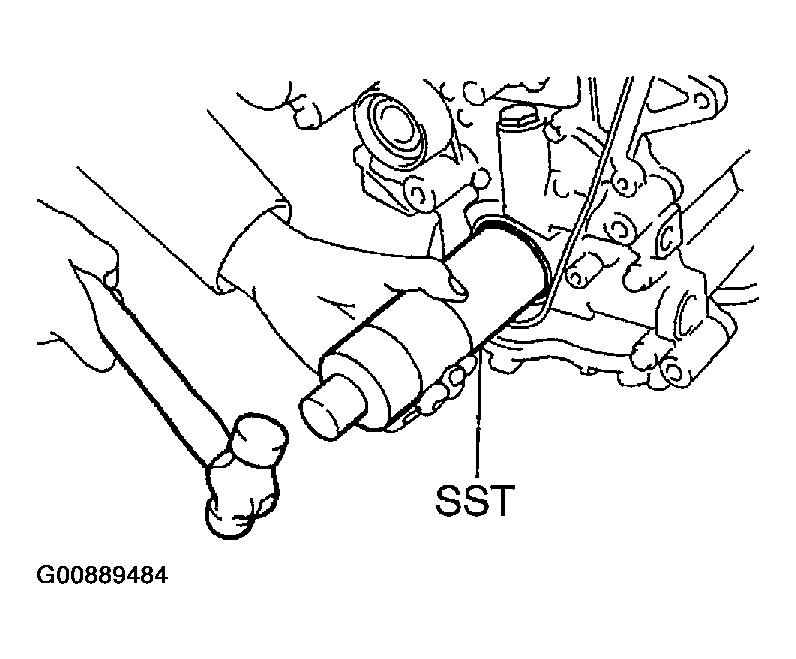

    Fig 8: Tapping Oil Seal Using SST And Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE CRANKSHAFT REAR OIL SEAL
HINT:

There are 2 methods ( a and b) to replace the oil seal.
1. If the rear oil seal retainer is removed from the cylinder block.
  1. Using a screwdriver and hammer, tap out the oil seal.

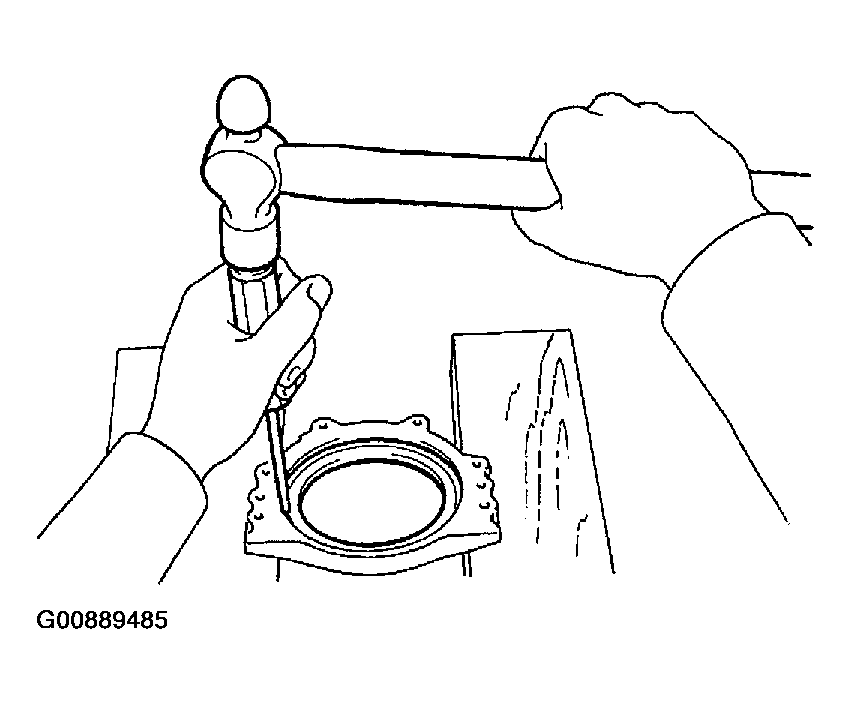

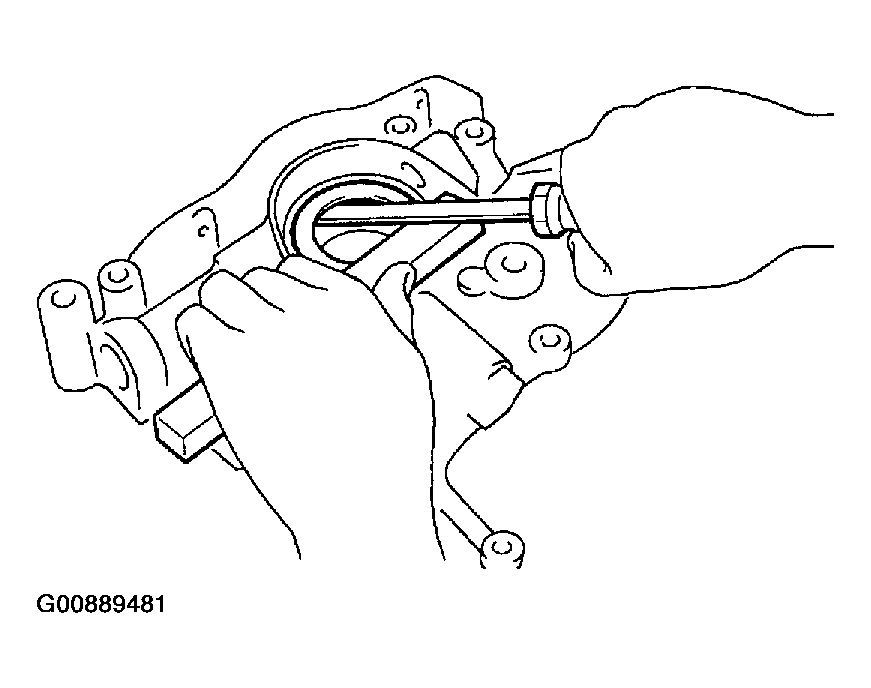

    Fig 9: Tapping Out Oil Seal Using Screwdriver And Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using SST and a hammer, tap in a new oil seal until its surface is flush with the rear oil seal retainer edge.
    1. SST 09223-15030, 09950-70010 (09951-07100)

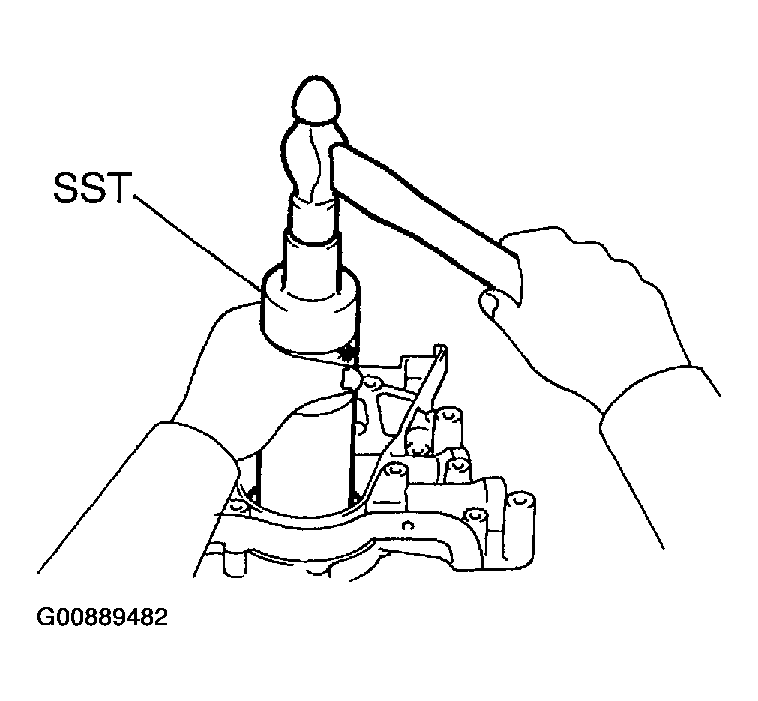

    Fig 10: Tapping Oil Seal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Apply MP grease to the oil seal lip.
2. If the rear seal retainer is installed on the cylinder block.

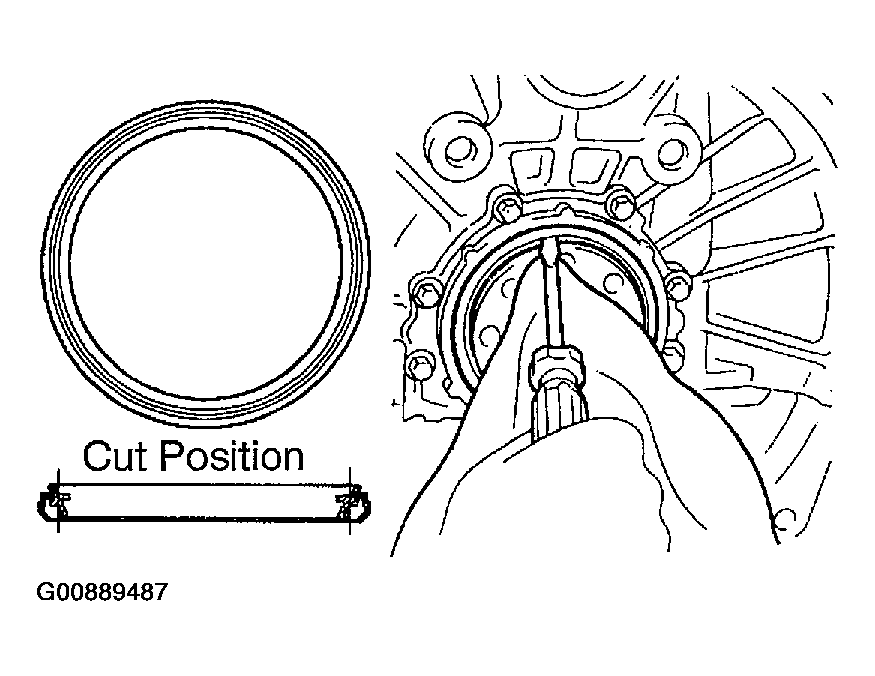

  1. Using a knife, cut off the oil seal lip.

    Fig 11: Cutting Off Oil Seal Lip Using Knife
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Using a screwdriver, pry out the oil seal.
    NOTE: Be careful not to damage the crankshaft. Tape the screwdriver tip.
  3. Apply MP grease to a new oil seal lip.
  4. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.
    1. SST 09223-15030, 09950-70010 (09951-07100)

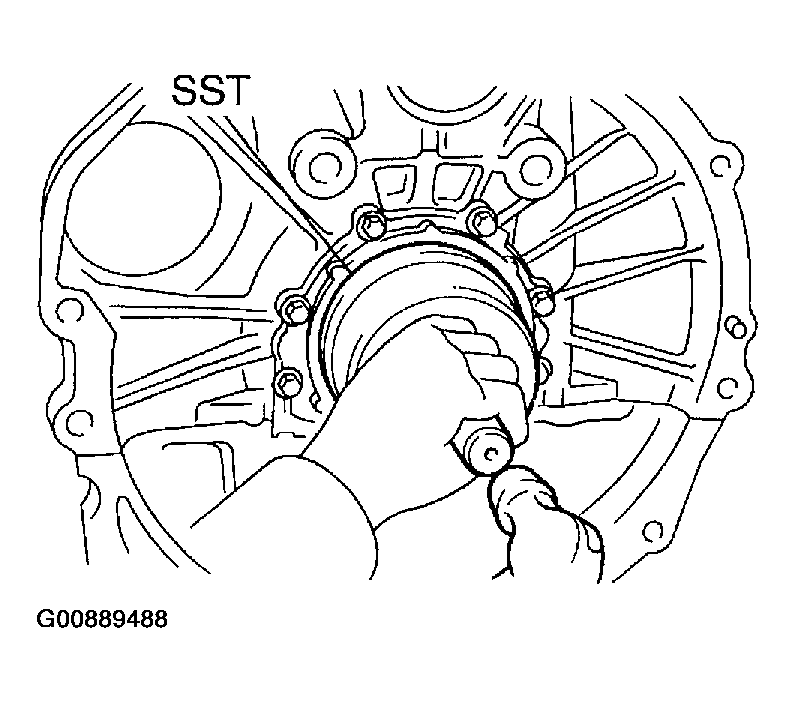

    Fig 12: Tapping Oil Seal Using SST And Hammer
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
