Rear Wheel Alignment: Inspection

MEASURE VEHICLE HEIGHT (See INSPECTION )
INSTALL CAMBER-CASTER-KINGPIN GAUGE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.
INSPECT CAMBER
Camber (SEDAN):

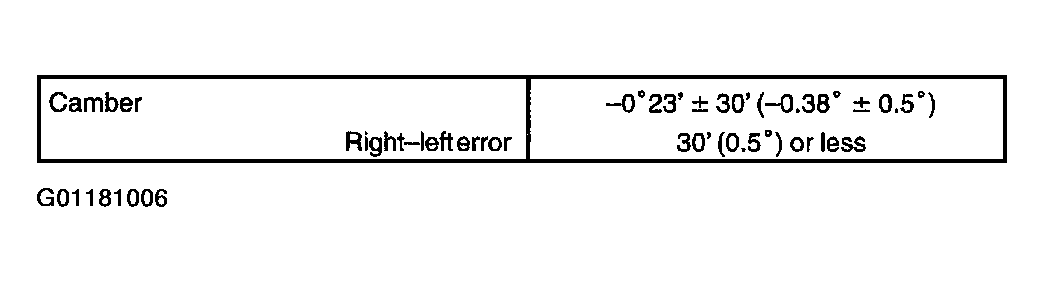

Fig 1: Rear Camber Specification (Canada)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

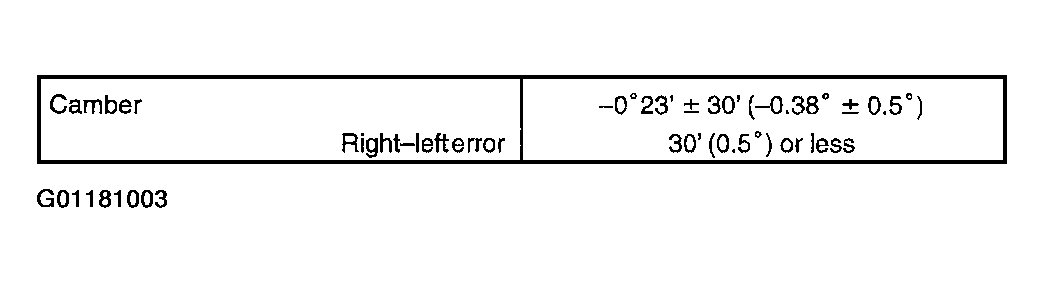

Fig 2: Rear Camber Specification (Except Canada)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Camber (WAGON):

Fig 3: Rear Camber Specification (Canada)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Rear Camber Specification (Except Canada)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the camber is not within the specified valve, after the toe-in is inspected, see 5 to adjust.
INSPECT TOE-IN
Toe-in:

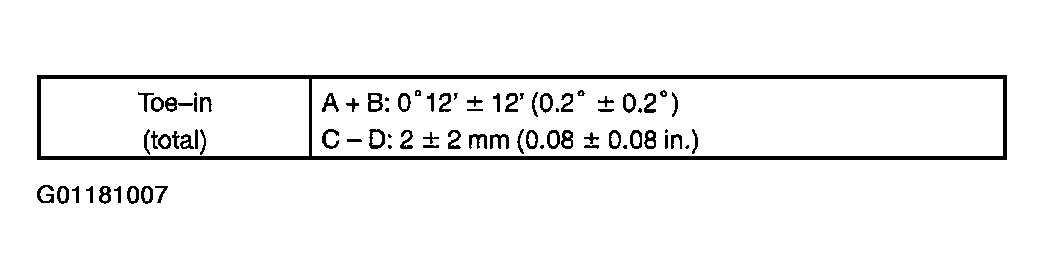

Fig 5: Rear Toe-In Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the toe-in is not within the specified valve, after the camber is inspected, see 5 to adjust.

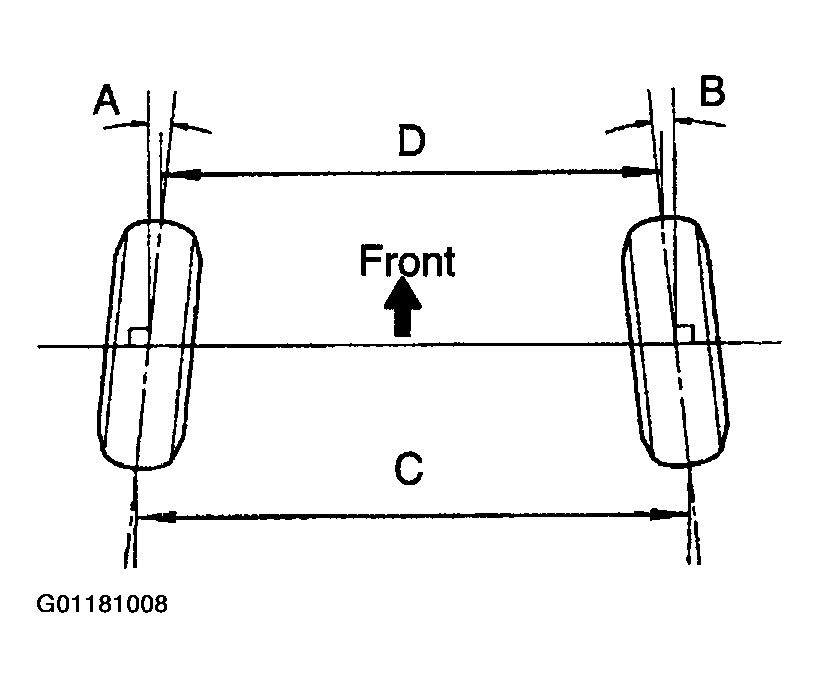

Fig 6: Identifying Rear Toe-In Measurements
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST CAMBER AND TOE-IN
1. Measure the lengths of the toe control link "A" and No. 2 lower suspension arm "B", as shown in the illustration.
2. Obtain the difference between "A" and "B".
3. Employ the same manner described above to the other side.
4. Obtain the difference between right and left from the values obtained above.
  Right and left difference: 4.0 mm (0.157 in.) or less

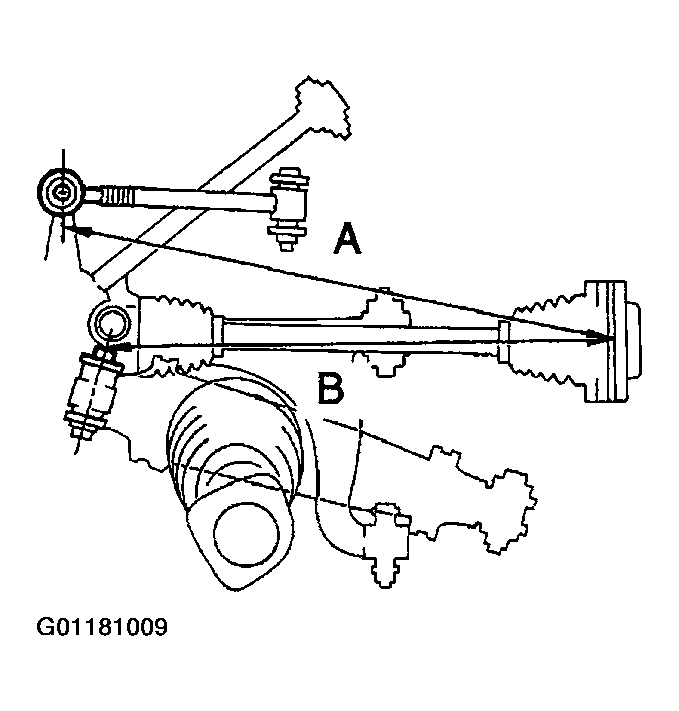

  Fig 7: Measuring Lengths Of Toe Control Link "A" And No. 2 Lower Suspension Arm "B"
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If they are not within the specified value, adjust the lengths of them by turning the adjusting cam.
5. Inspect the camber and toe-in.
6. Adjust the camber.
  1. Loosen the camber adjusting cam nut of the No. 2 lower suspension arm.
  2. Turn the camber adjusting cam of the No. 2 lower suspension arm and adjust the camber.
    HINT:

    Camber will change about 5.0' (0.08°) with each graduation of the adjusting cam.
  3. Torque the camber adjusting cam nut.
    Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)

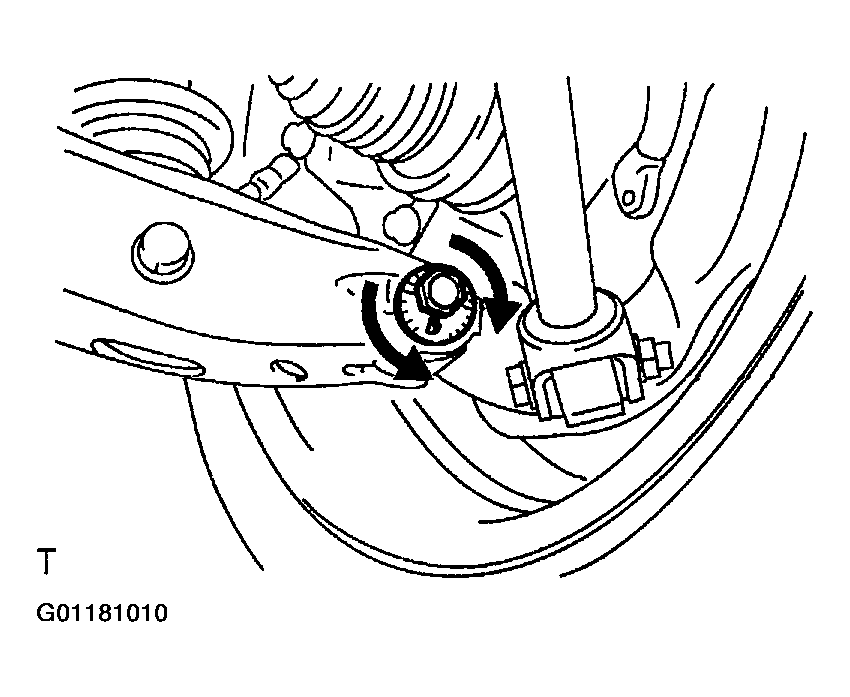

  Fig 8: Identifying Camber Adjusting Cam Of No. 2 Lower Suspension Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Adjust the toe-in.
  1. Loosen the camber adjusting cam nut of the toe control link.
  2. Turn the camber adjusting cam of the toe control link and adjust the toe-in.
    HINT:

    Toe-in will change about 4.0 mm (0.157 in.) with each graduation of the adjusting cam.
  3. Torque the camber adjusting cam nut.
    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

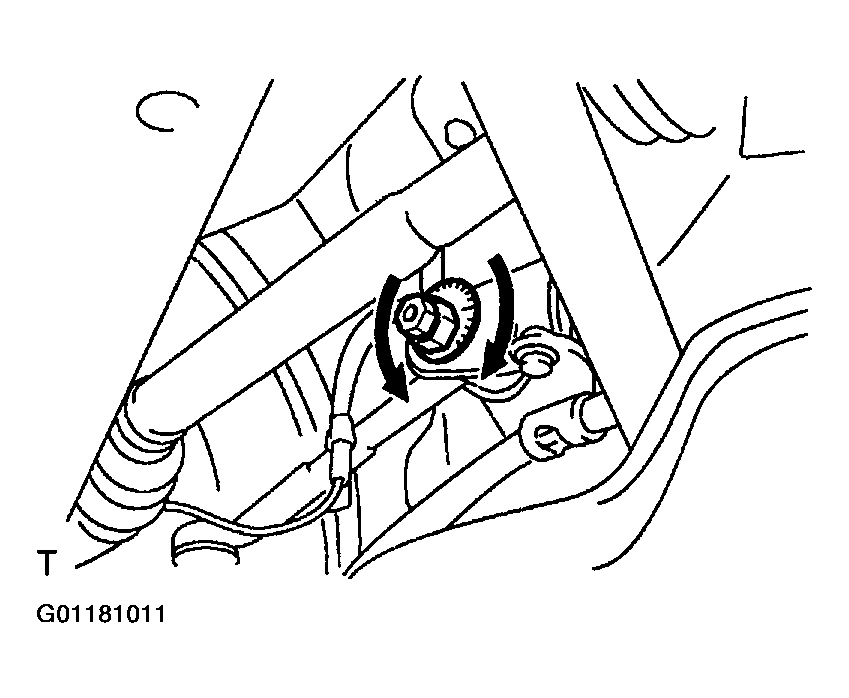

  Fig 9: Turning Camber Adjusting Cam Of Toe Control Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
