Data Link Connector

OBD-II regulations (SAE J-1850) standardizes Data Link Connector (DLC) configurations. On all models, DLC No. 3 connector is located under left side of instrument panel. See Fig 1.

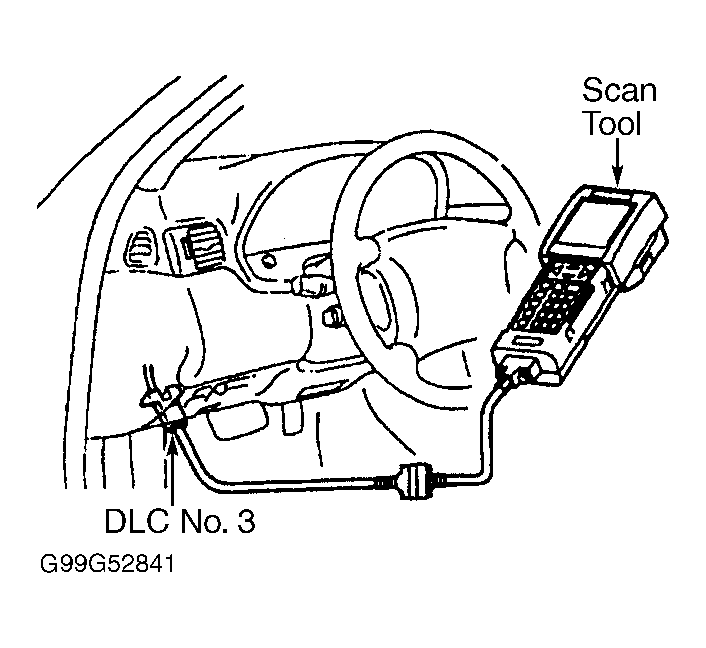

Fig 1: Connecting Scan Tool To DLC No. 3
G99G52841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
