Alignment Specifications & Procedures: Specifications

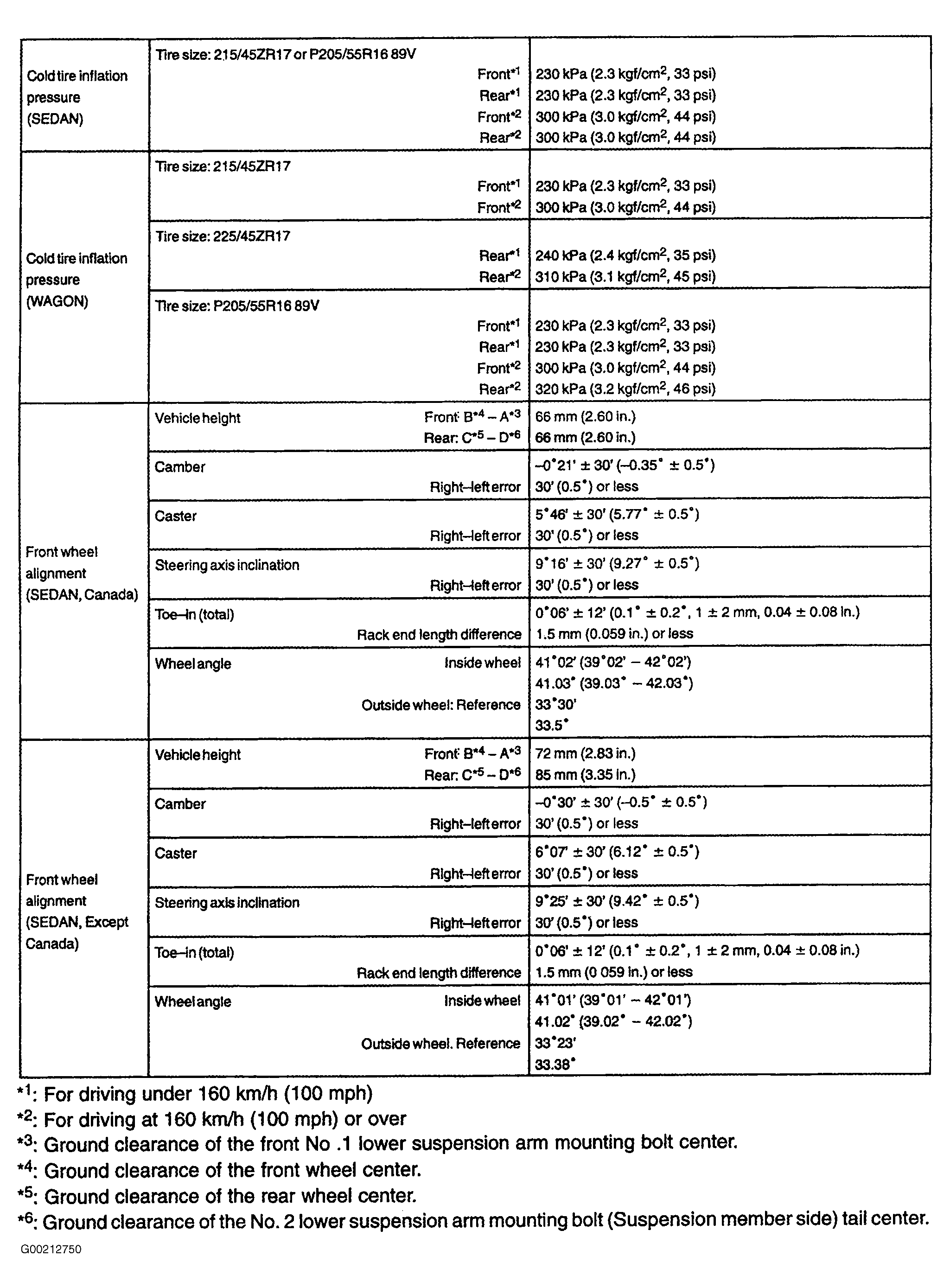

Fig 1: Wheel Alignment Specifications (1 Of 2)
G00212750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

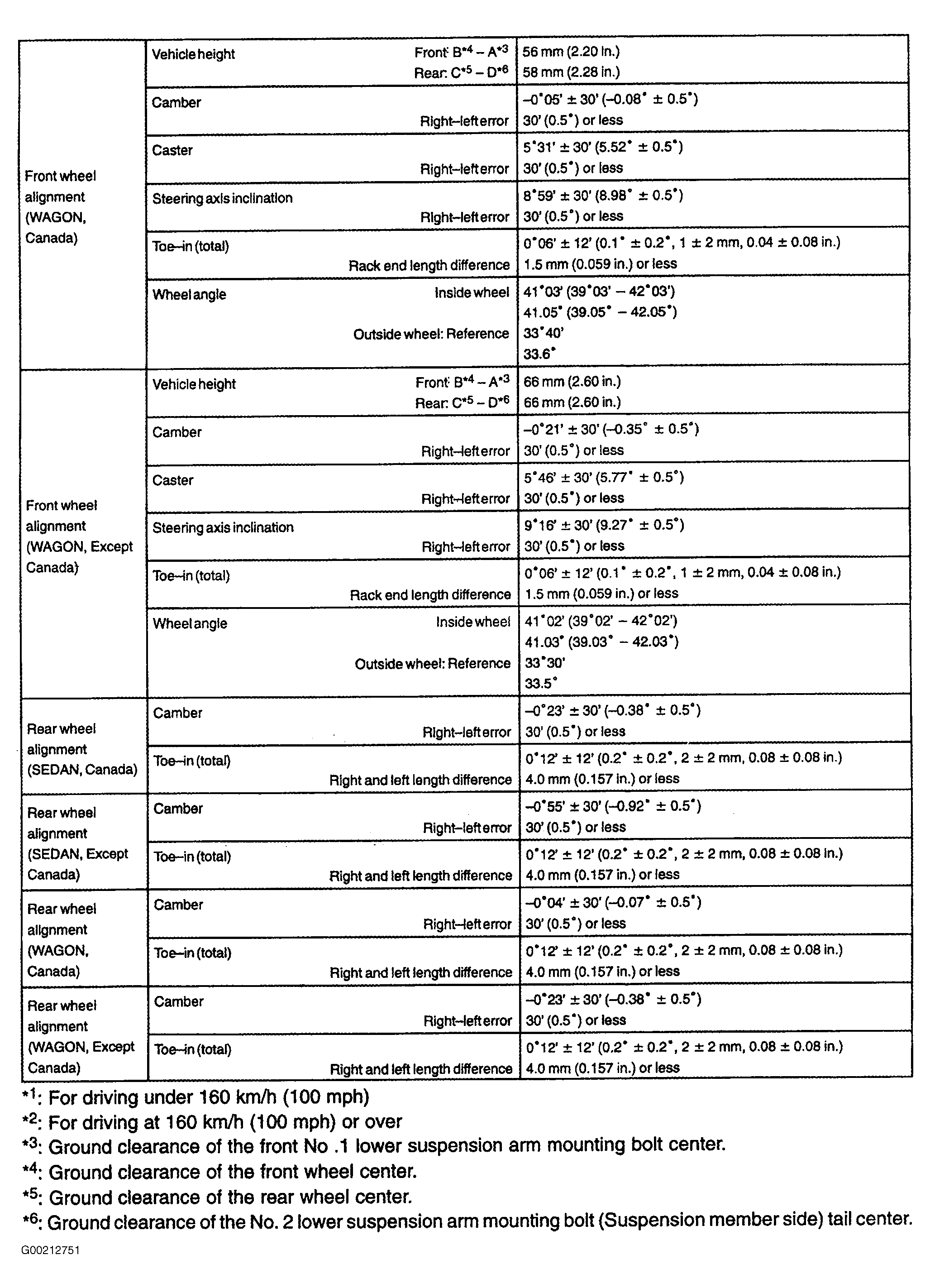

Fig 2: Wheel Alignment Specifications (2 Of 2)
G00212751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
