Testing Procedure

For wiring diagram for 2002 vehicles see Fig 1. For wiring diagram for 2003 vehicles see Fig 2. For testing procedure see Fig 3 and Fig 4 .

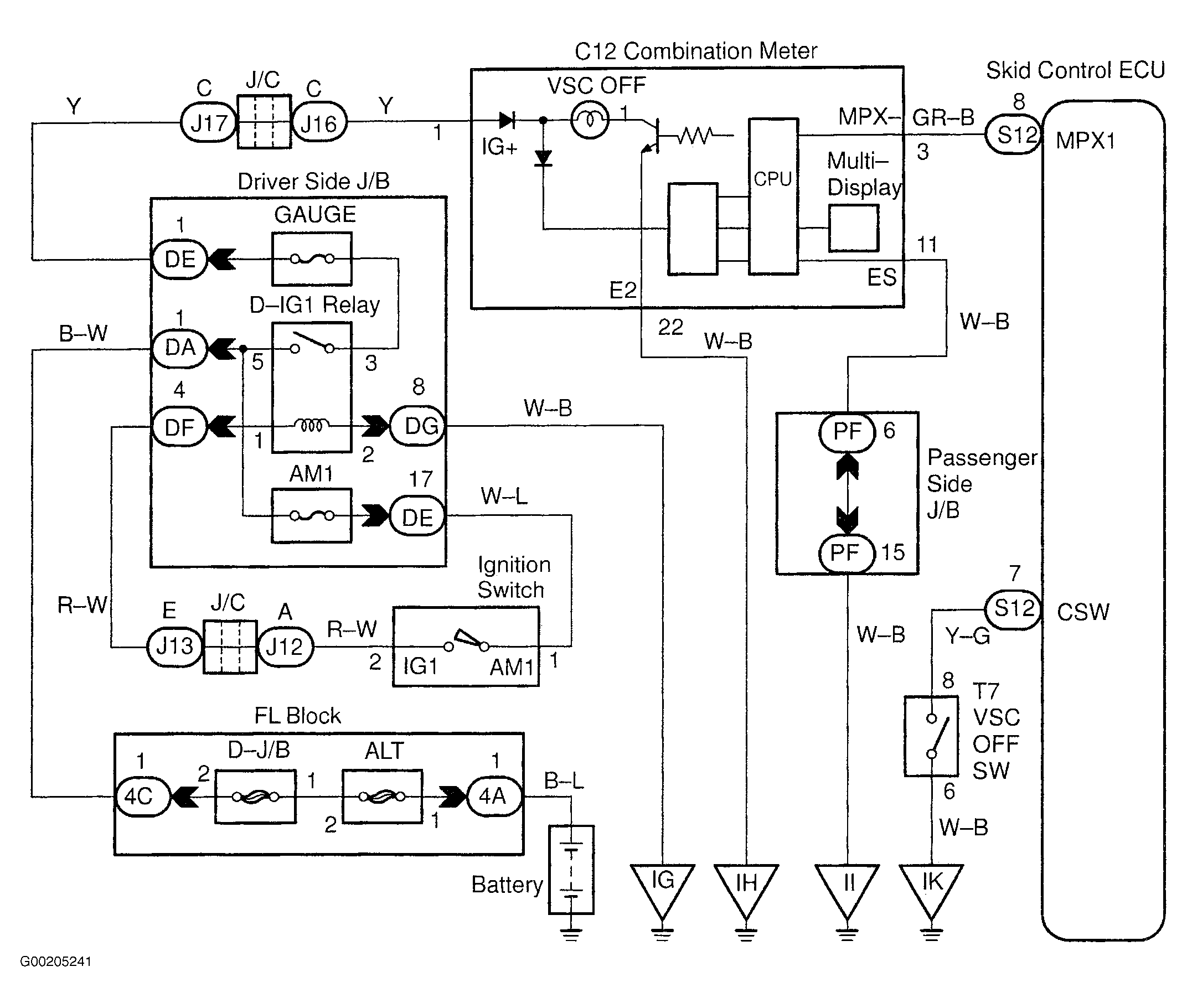

Fig 1: VSC OFF Switch Circuit Wiring Diagram (2002)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

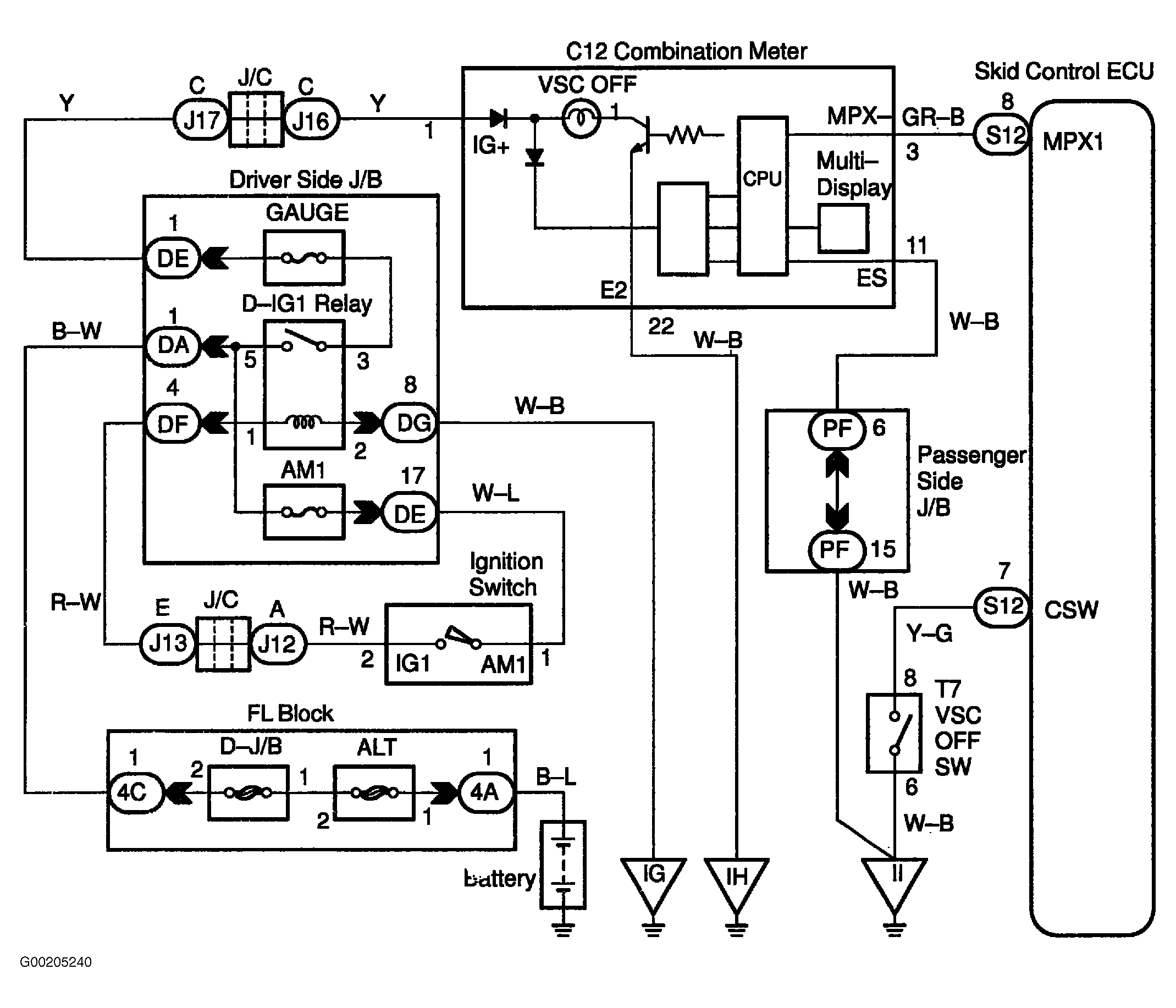

Fig 2: VSC OFF Switch Circuit Wiring Diagram (2003)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

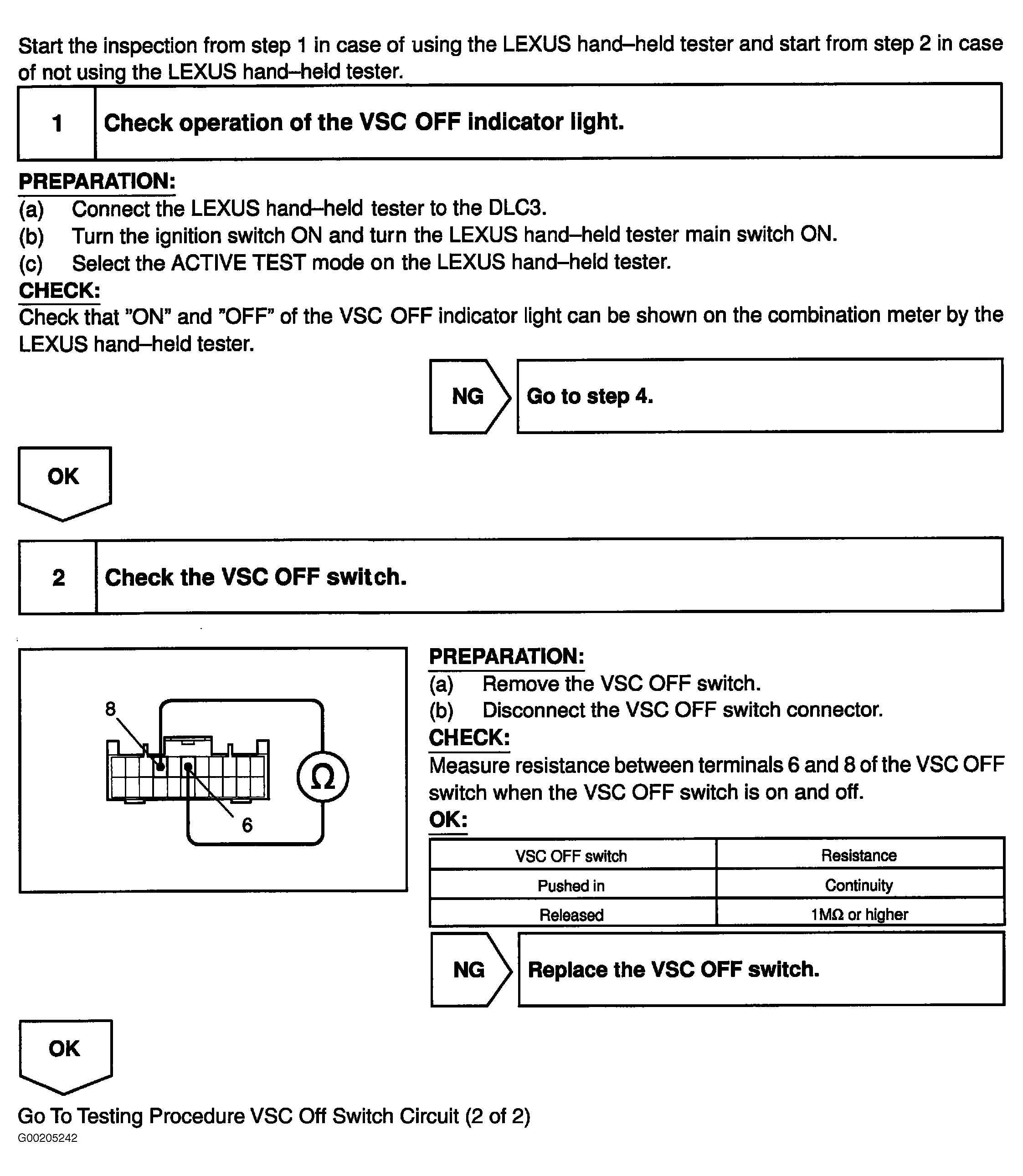

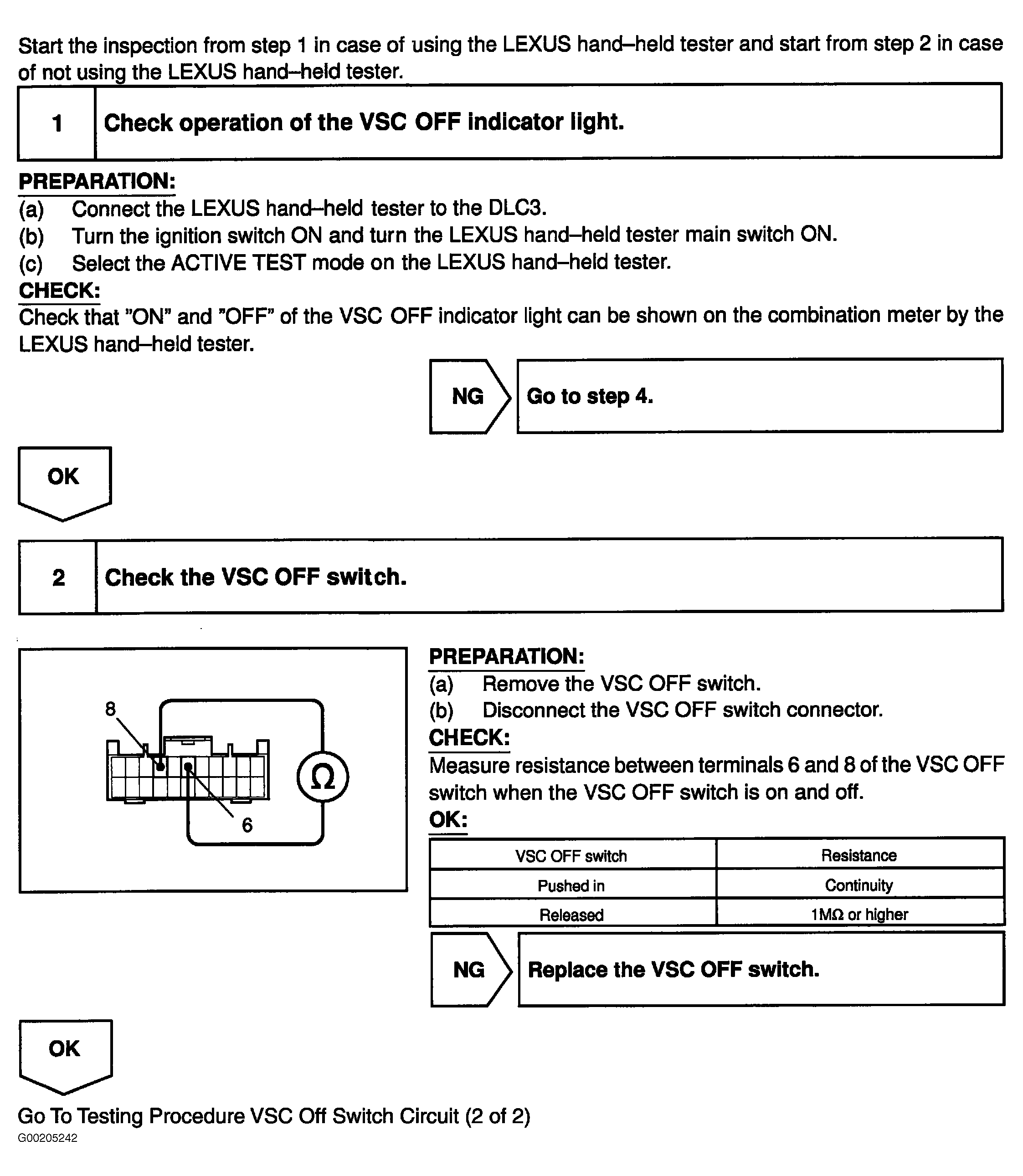

Fig 3: Testing Procedure VSC OFF Switch Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

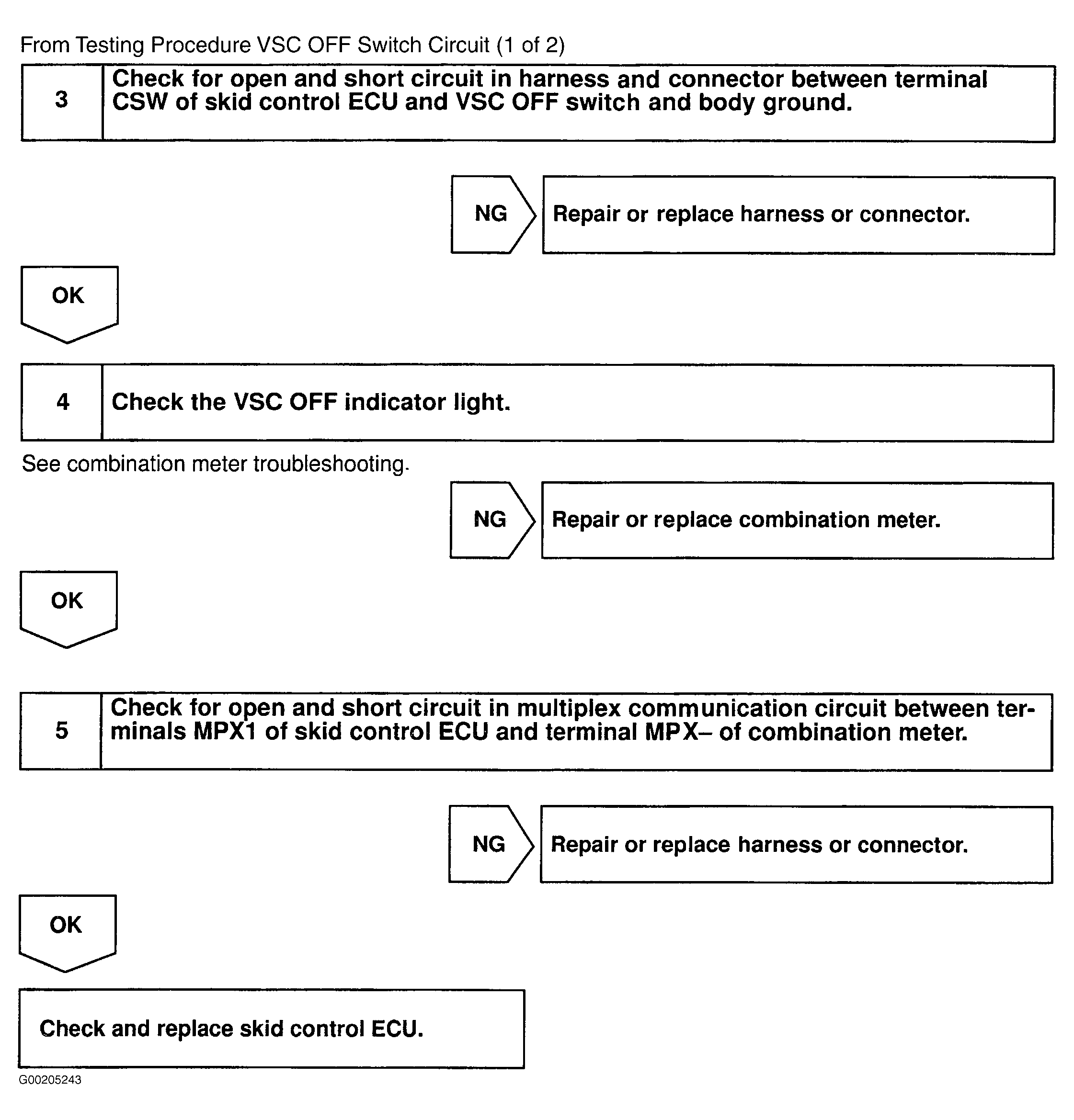

Fig 4: Testing Procedure VSC OFF Switch Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
