Charging Systems: Generator: Replacement

Replace front bearing.
1. Remove the 4 screws, bearing retainer and bearing.

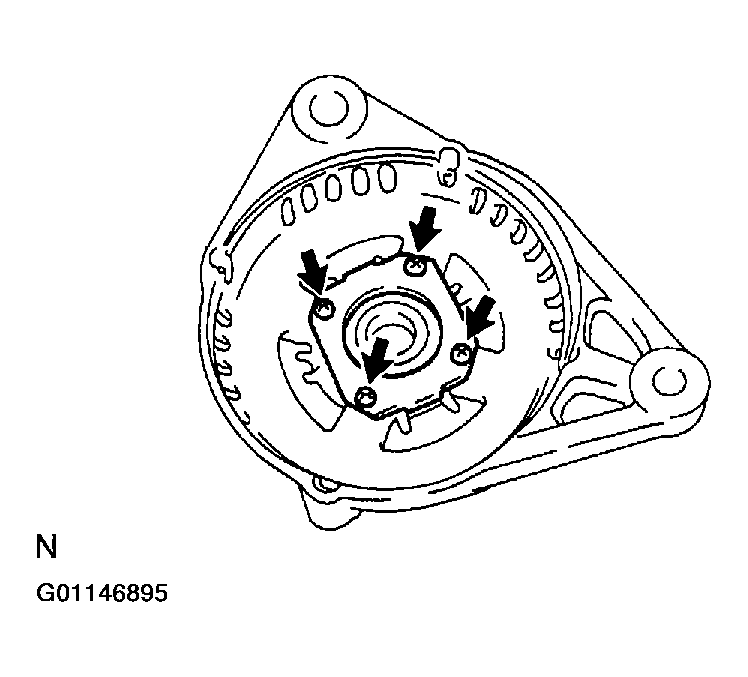

  Fig 1: Locating Bearing Retainer Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a socket wrench and press, press out the bearing:
  SST 09223-00010

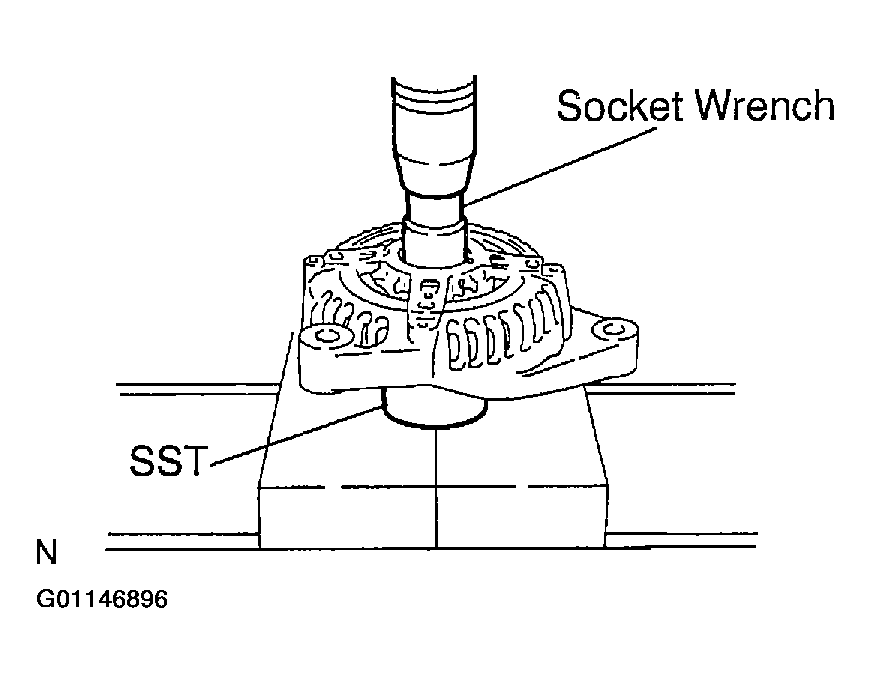

  Fig 2: Locating Socket Wrench
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950-60010 (09951-00480)
4. Install the bearing retainer with the 4 screws.
  Torque : 2.6 N.m (27 kgf.cm, 23 in.lbf)

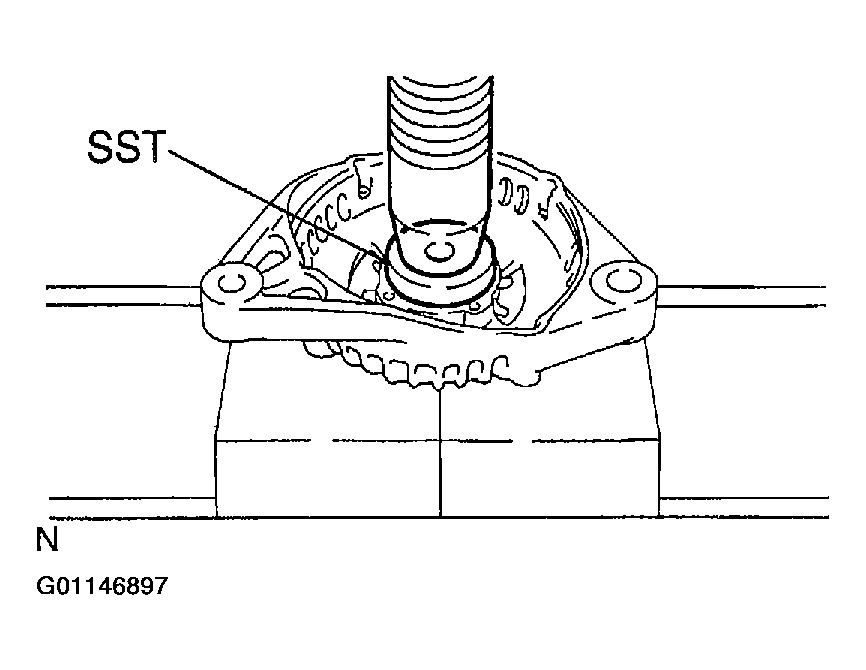

  Fig 3: Pressing In New Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Replace rear bearing.
1. Using SST, remove the bearing cover (outside) and bearing.
  SST 09820-00021

  NOTE: Be careful not to damage the fan.
2. Remove the bearing cover (inside).

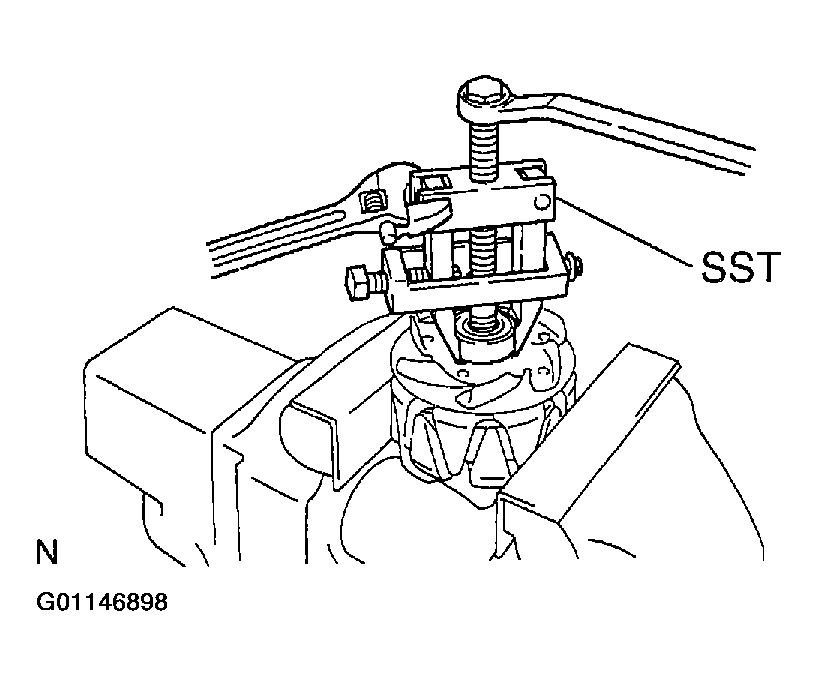

  Fig 4: Removing Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place the bearing cover (inside) on the rotor.

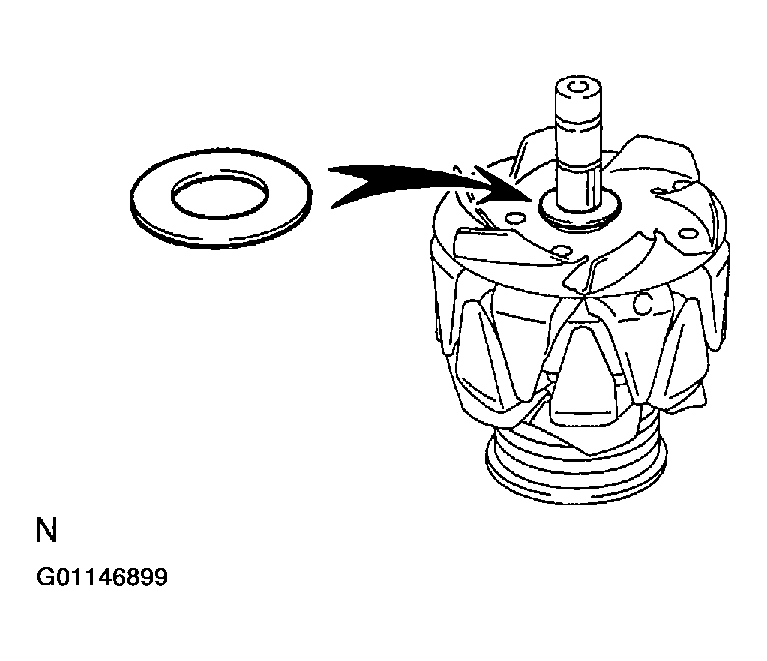

  Fig 5: Placing Bearing Cover On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST and a press, press in a new bearing.
  SST 09820-00031

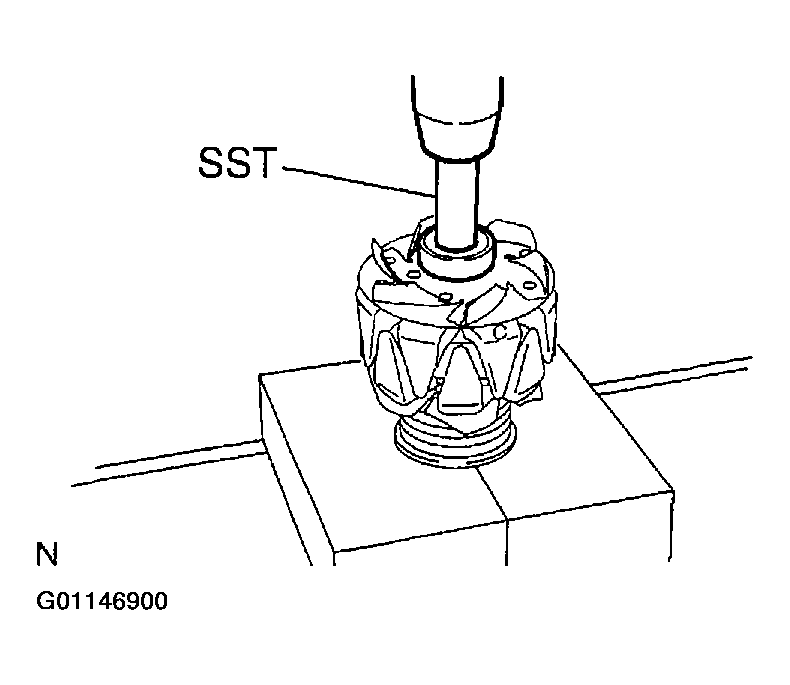

  Fig 6: Pressing In New Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using SST, push in the bearing cover (outside).
  SST 09285-76010

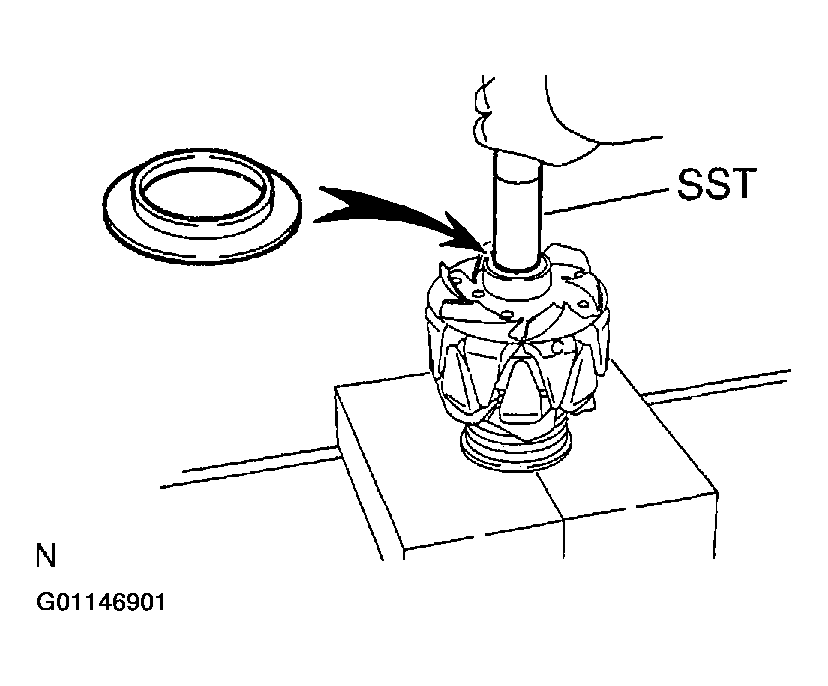

  Fig 7: Pressing In Bearing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
