Crankshaft Position Sensor: Replacement

  1. Remove engine under cover.
  2. Remove Crankshaft Position (CKP) sensor.
    1. Disconnect the CKP sensor connector.

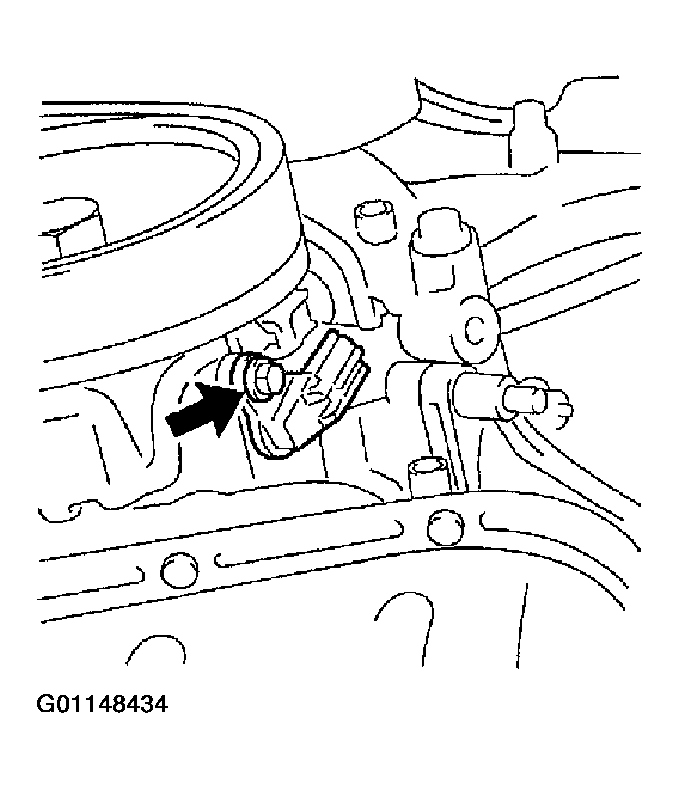

      Fig 1: Locating Crankshaft Position (CKP) Sensor
      G01148434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and CKP sensor
  3. Reinstall new CKP sensor.
    1. Install a new CKP sensor with the bolt.
      1. Torque  : 6.5 N.m (65 kgf.cm, 58 in.lbf)
    2. Connect the CKP sensor connector.
  4. Reinstall engine under cover.
