Section 541 (Front Height Control Sensor): Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Disconnect the connector.
2. Remove the nut and disconnect the height control sensor link.

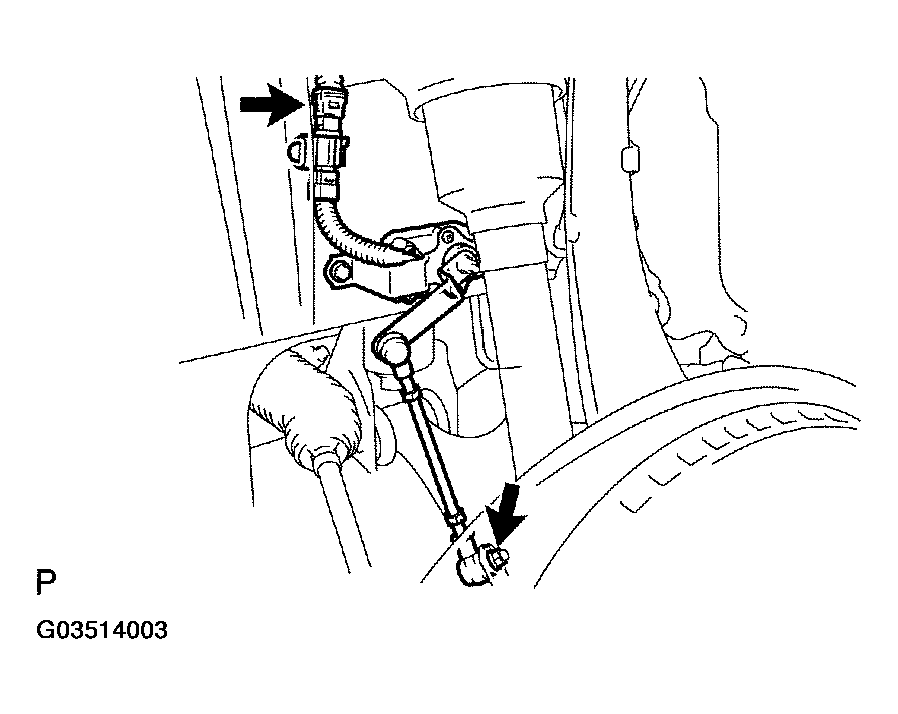

  Fig 1: Removing Nut And Disconnecting Height Control Sensor Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 bolts and the height control sensor sub-assy front LH.

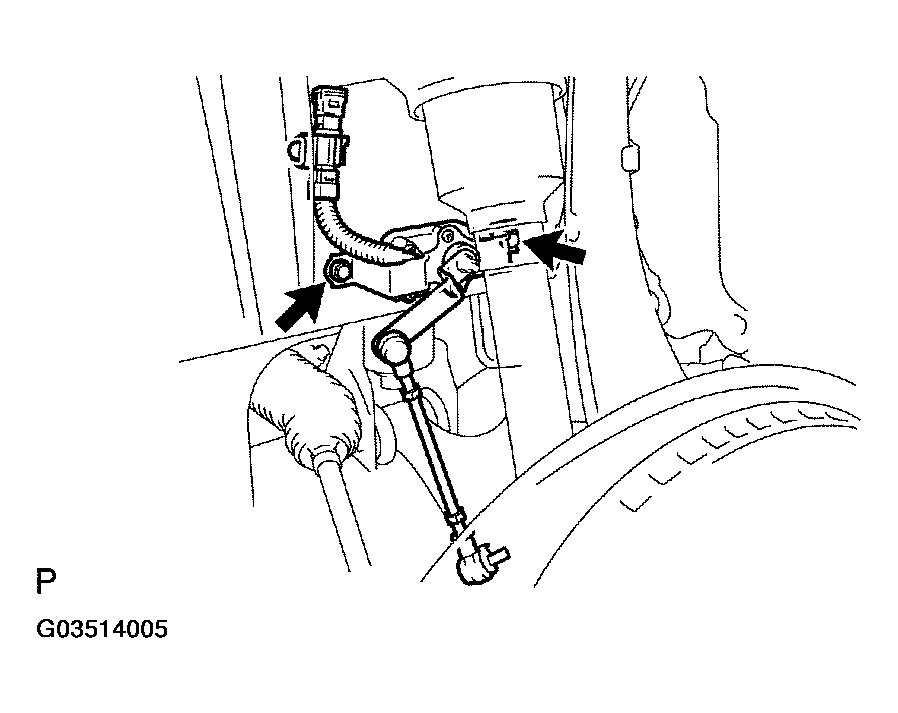

  Fig 2: Removing Bolts And Front Height Control Sensor Sub-Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY FRONT LH
1. Install the height control sensor sub-assy LH with the 2 bolts.

  Fig 3: Installing Front Height Control Sensor Sub-Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control sensor link with the nut.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the connector.

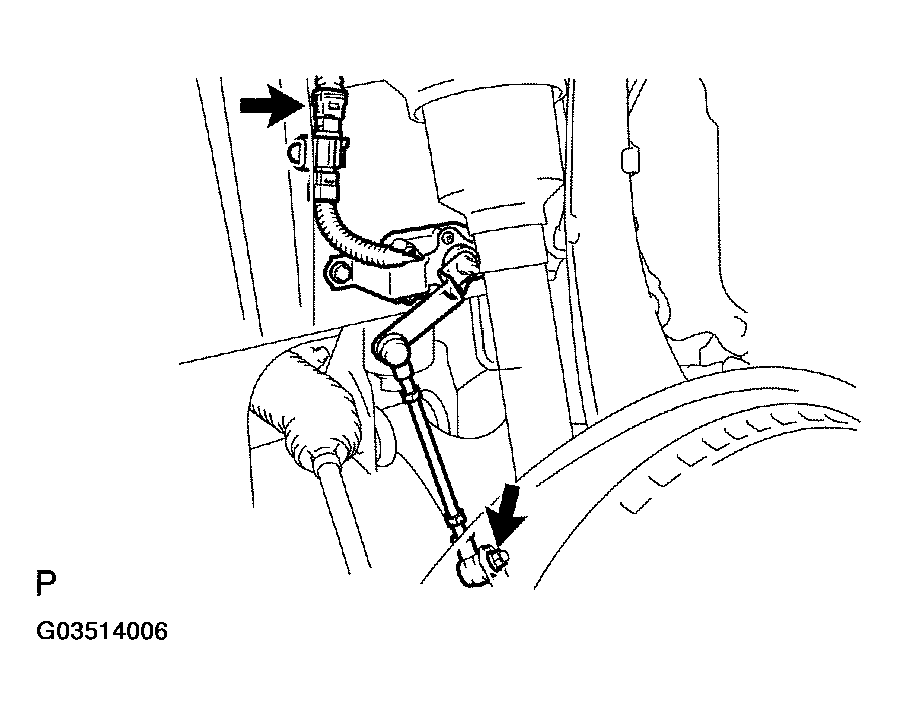

  Fig 4: Installing Height Control Sensor Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
HEADLIGHT AIM ONLY (SEE ADJUSTMENT )
