Electrical Component Locator: Splices

SPLICES LOCATION

Component	Component Location
B1	In body harness, at right side of windshield header.
B2	In body harness, above middle of right front door.
B3	In body harness, at right side of luggage compartment.
B4	In body harness, at middle of rear bumper.
B5	In body harness, under front of left front seat.
B6	In body harness, under rear of left front seat.
B7	In body harness, under right front seat.
B8	In body harness, under left middle of rear backrest.
B9	In body harness, under left middle of rear backrest.
B10	In body harness, under right middle of rear back rest.
B11	In body harness, under right middle of right rear back rest.

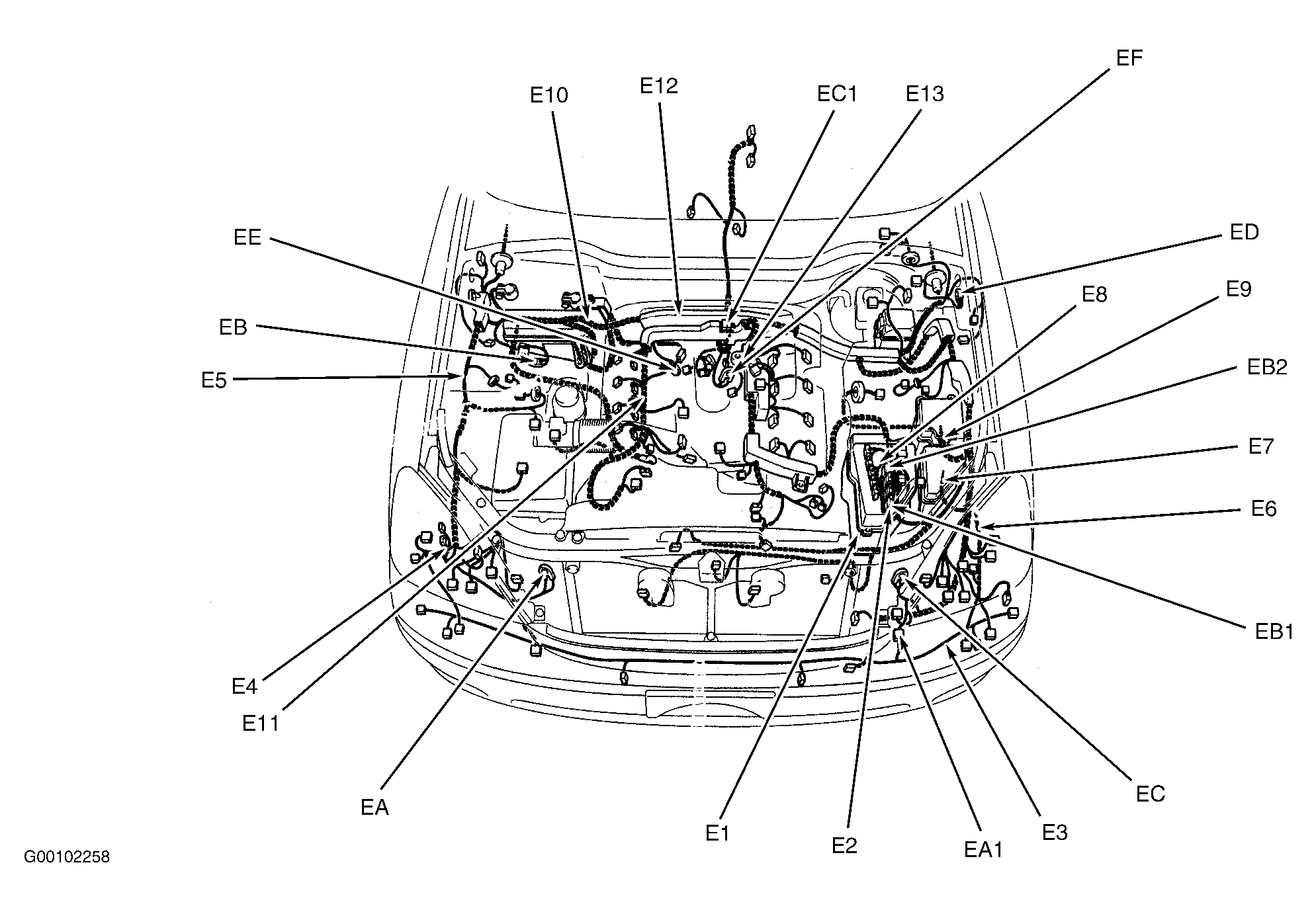

E1	In engine harness, under ECU box. See Figure.
E2	In engine harness, near ECU box. See Figure.
E3	In engine harness, behind left headlight. See Figure.
E4	In engine harness, behind right headlight. See Figure.
E5	In engine harness, at middle of right inner fender panel. See Figure.
E6	In engine harness, behind left headlight. See Figure.
E7	In engine harness, Under engine compartment J/B No. 2. See Figure.
E8	In engine harness, under ECU box. See Figure.
E9	In engine harness, under engine compartment J/B No. 1. See Figure.
E10	In engine harness, near front of battery. See Figure.
E11	In engine harness, at center top of right cylinder head. See Figure.
E12	In engine harness, at center rear top of engine. See Figure.
E13	In engine harness, at rear top of left cylinder head. See Figure.

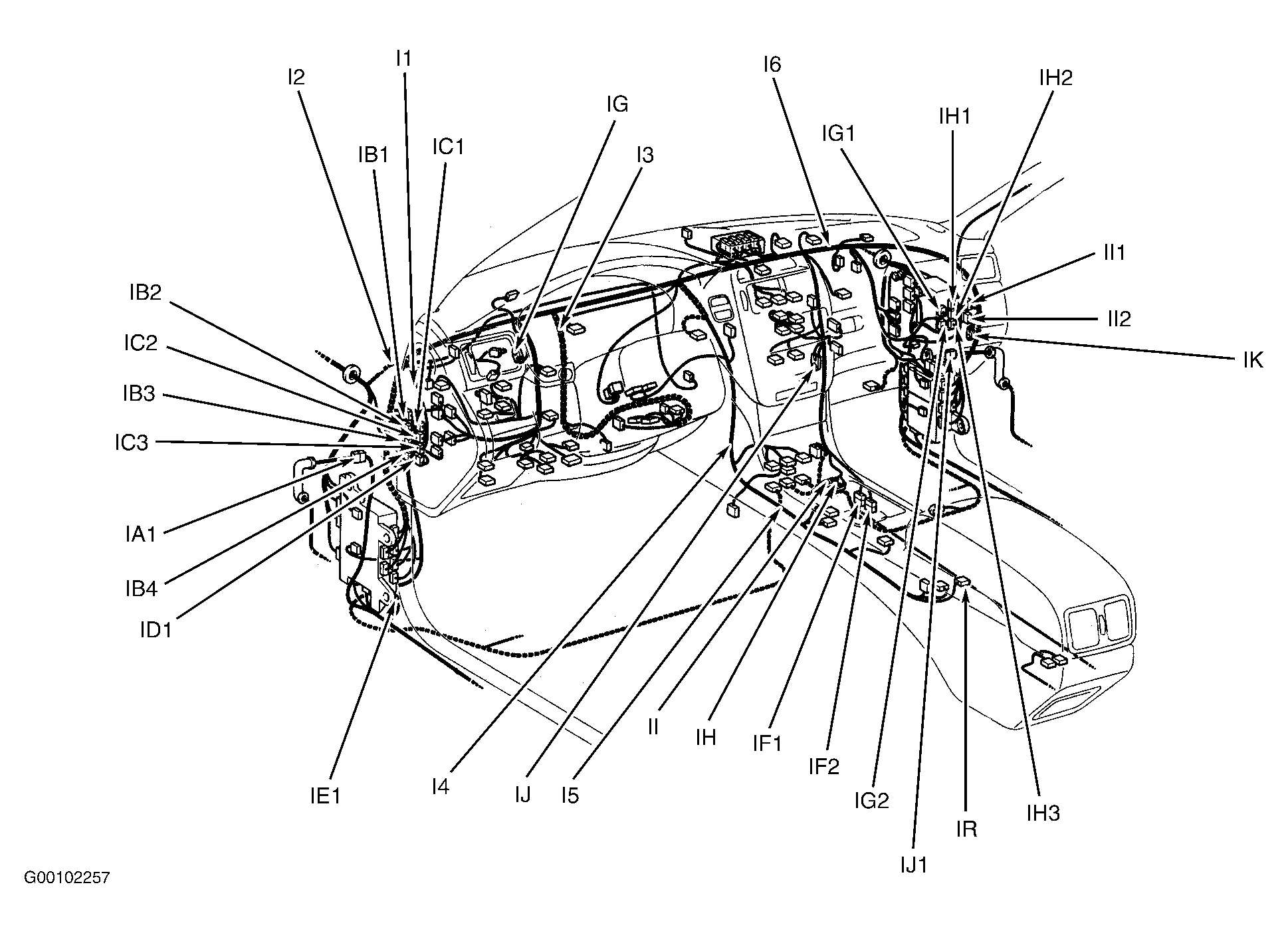

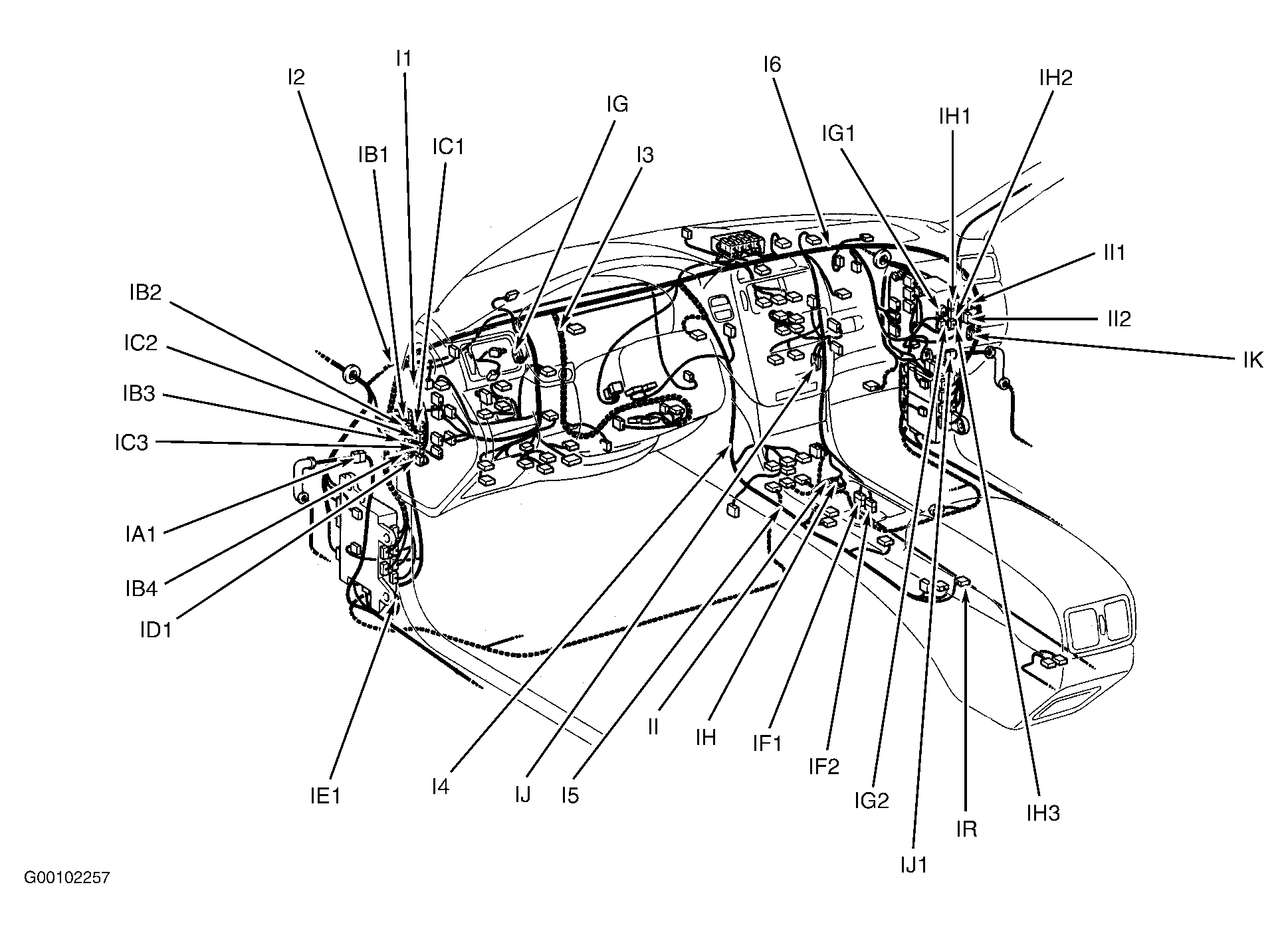

I1	In dash harness, behind left side of instrument cluster. See Figure.
I2	In dash harness, behind upper left side of dash. See Figure.
I3	In dash harness, behind middle of instrument cluster. See Figure.
I4	In dash harness, behind left upper center console. See Figure.
I5	In dash harness, under left front of center console. See Figure.
I6	In dash harness, behind passenger side air bag. See Figure.
