Alignment Specifications & Procedures: Specifications

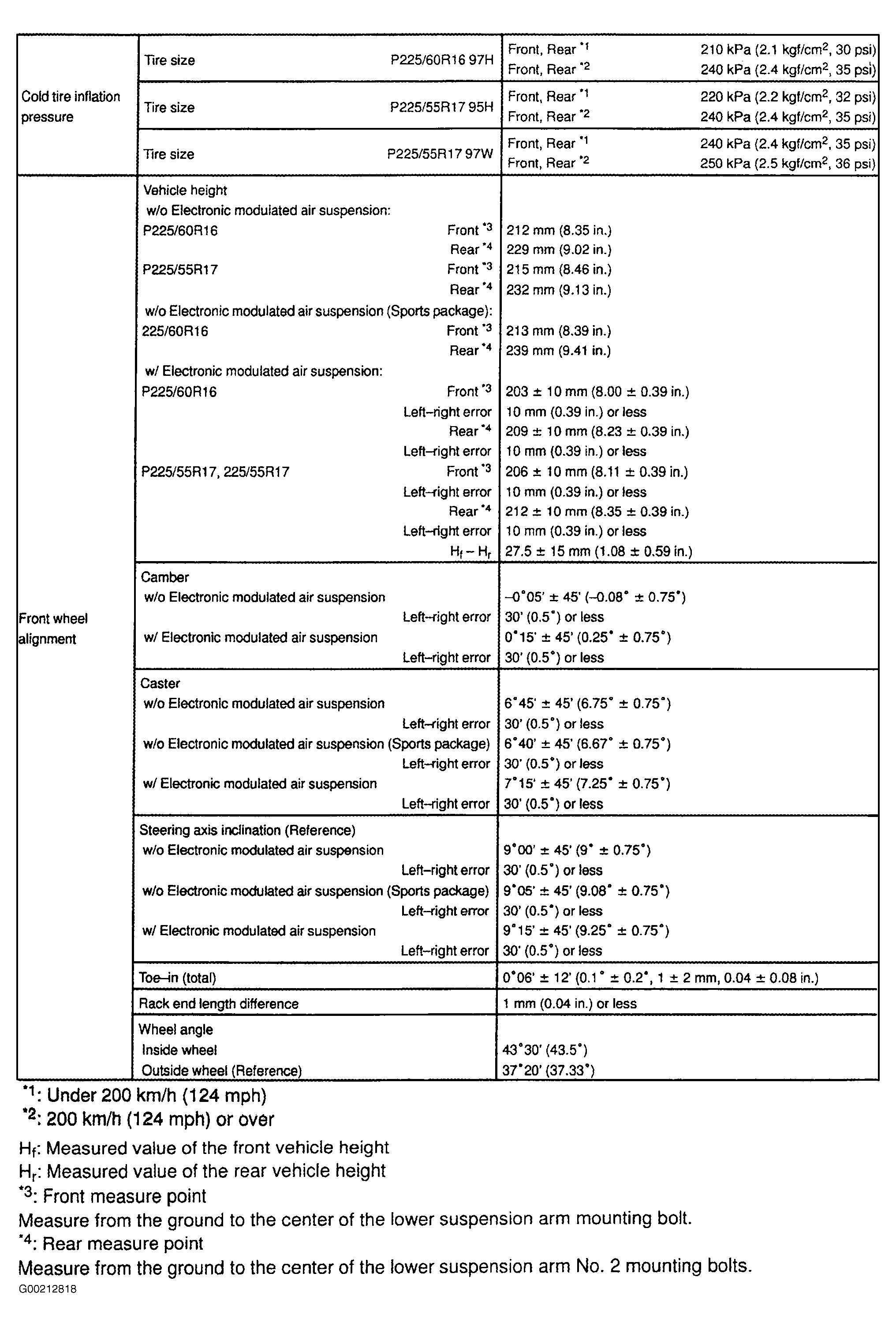

Fig 1: Wheel Alignment Specifications (LS 430 1 Of 2)
G00212818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

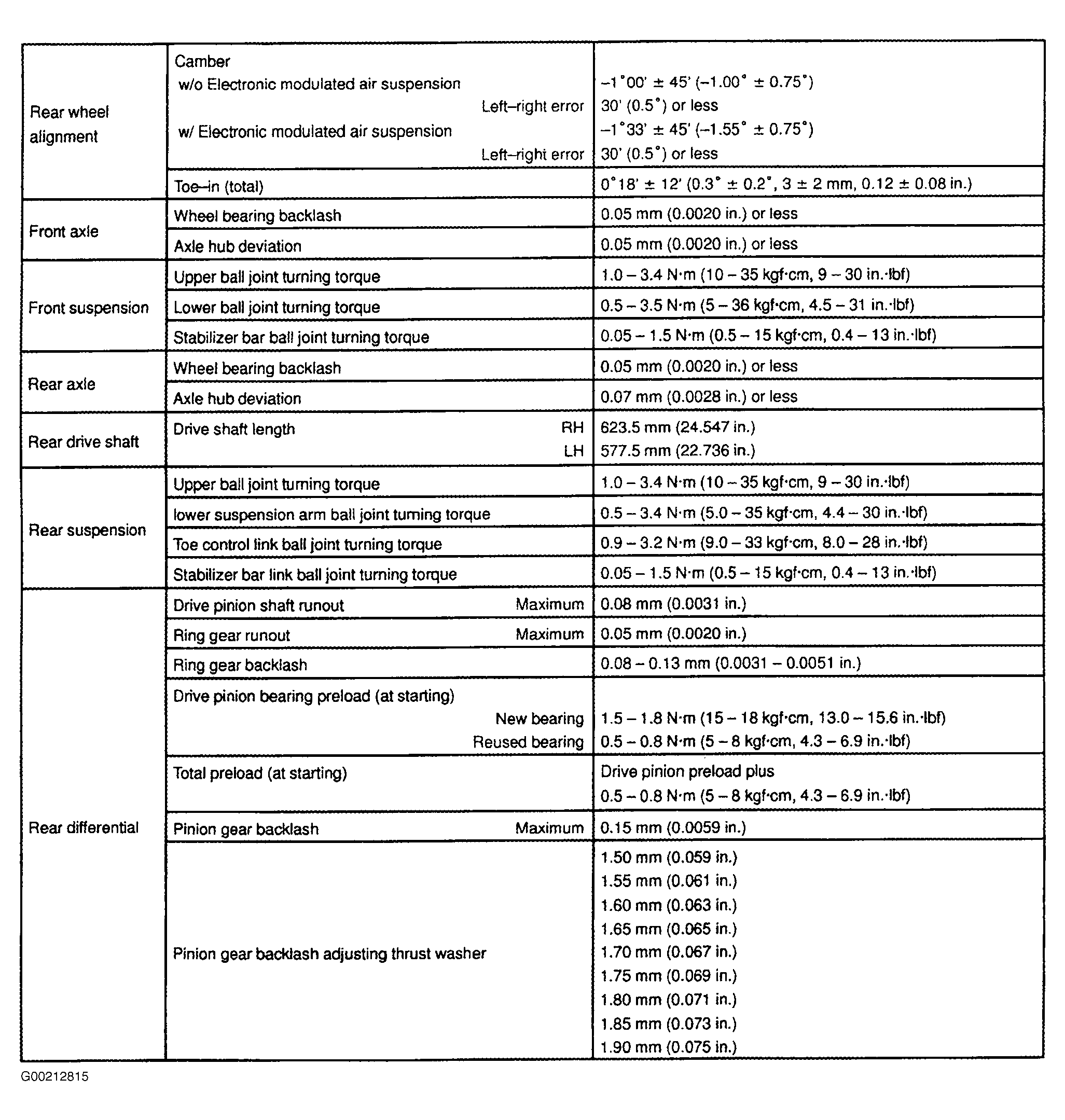

Fig 2: Wheel Alignment Specifications (LS 430 2 Of 2)
G00212815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
