Component Locations

For component locations, see Fig 1.

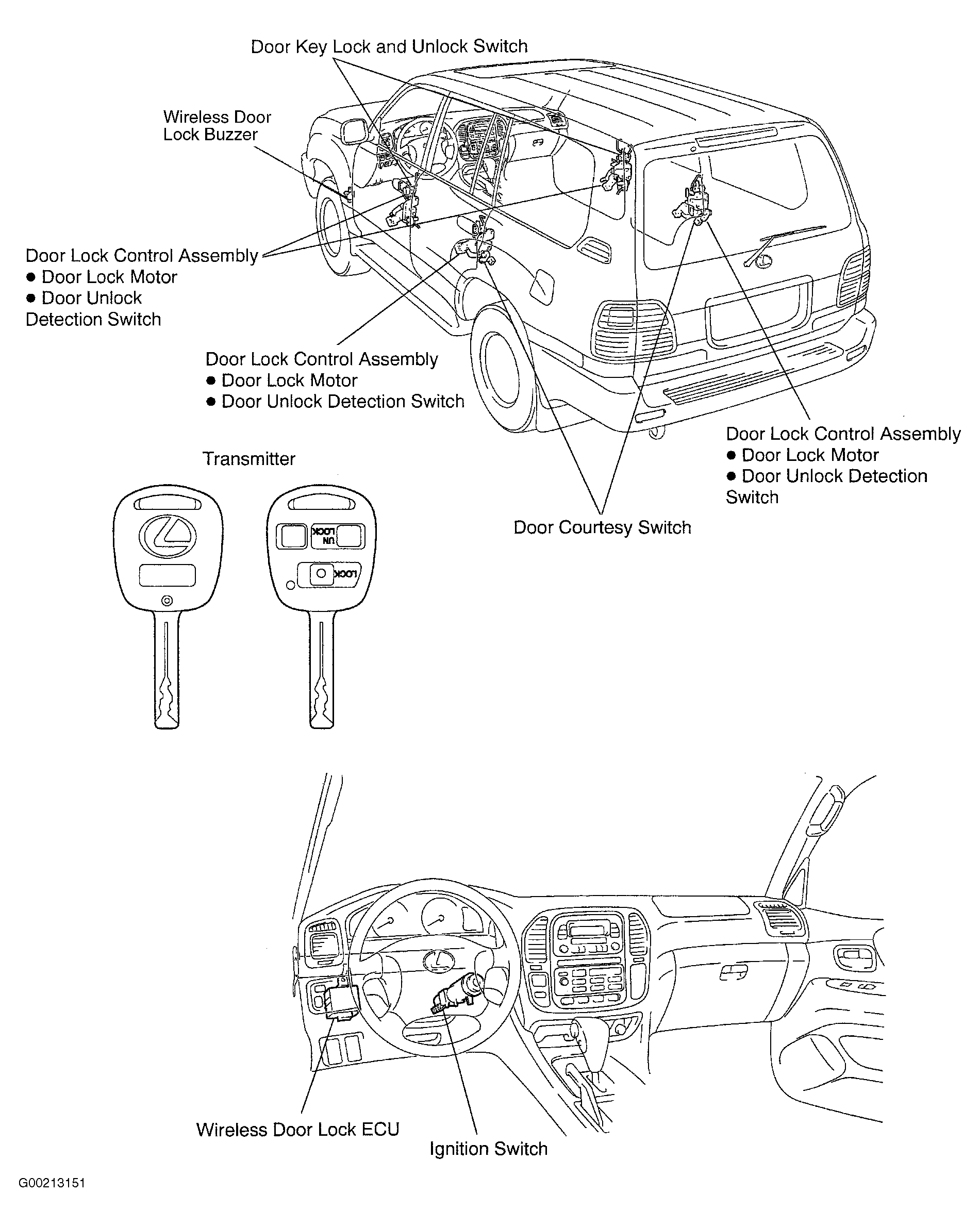

Fig 1: Identifying Remote Keyless Entry Component Locations
G00213151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
