Remote Transmitter Recognition Code Registration

NOTE: When replacing the door lock control receiver and transmitter, registration of the recognition code is necessary because they are provided as single components.

Select which operation mode should be performed from the following modes:
- Add Mode - The add mode is used to retain codes already registered while you register new recognition codes. This mode is used when adding a transmitter. However, if the number of registered codes exceed 4 codes, previously registered codes are correspondingly erased in order, starting from the first registered code.
- Rewrite Mode - The rewrite mode is used to erase all previously registered codes and register only new recognition codes.
- Prohibition Mode - The prohibition mode is used to erase all registered codes and cancels the wireless door lock function. Use this mode then the transmitter is lost.
- Confirmation Mode - The confirmation mode is for confirming how many recognition codes are already registered before you register additional recognition codes.

NOTE: When the procedure is out of the specified, the operation returns to normal operation. A maximum of 4 recognition codes can be registered.

Fig 1: Identifying Recognition Code Registration Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Recognition Code Registration Flowchart (2 Of 3)

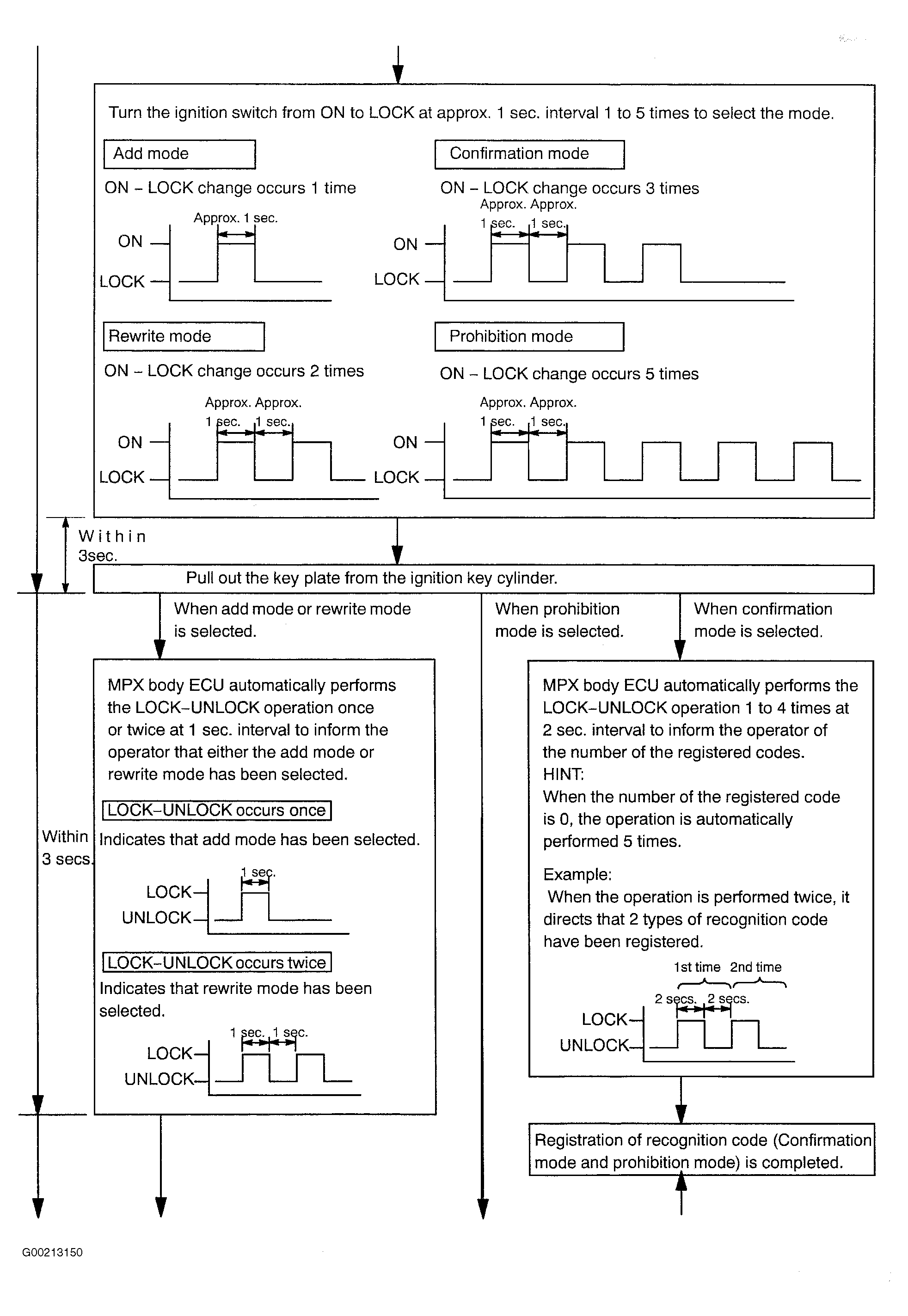

Fig 3: Identifying Recognition Code Registration Flowchart (3 Of 3)
