Charging Systems: Generator: Removal

DRAIN ENGINE COOLANT (See REPLACEMENT )
REMOVE GENERATOR DRIVE BELT
Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

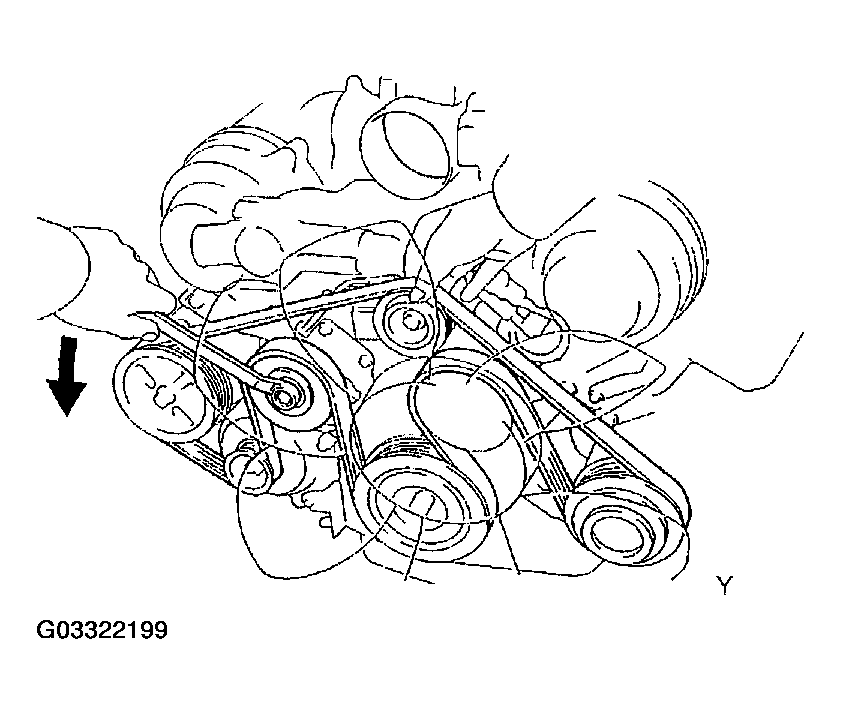

Fig 1: Removing Generator Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: The pulley bolt for the belt tensioner has a left - hand thread.
REMOVE ENGINE UNDER COVER NO. 1
REMOVE RADIATOR ASSEMBLY (See REMOVAL )
REMOVE PS VANE PUMP PULLEY (See REMOVAL )

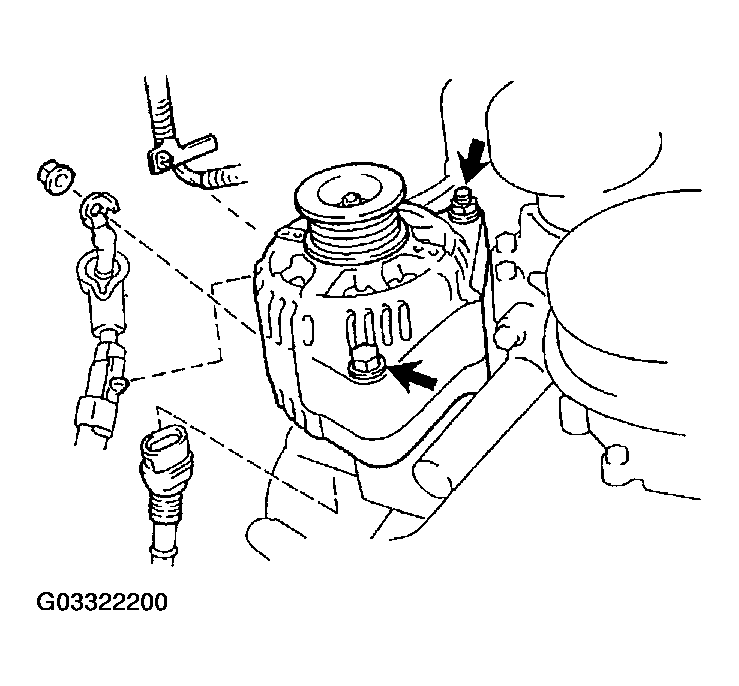

REMOVE GENERATOR
1. Disconnect the generator connector.
2. Remove the rubber cap and nut, and disconnect the generator wire.
3. Disconnect the generator wire clamp from the cord clip on the generator.
4. Remove the bolt, nut and generator.
